Heater Core Case: Service and Repair

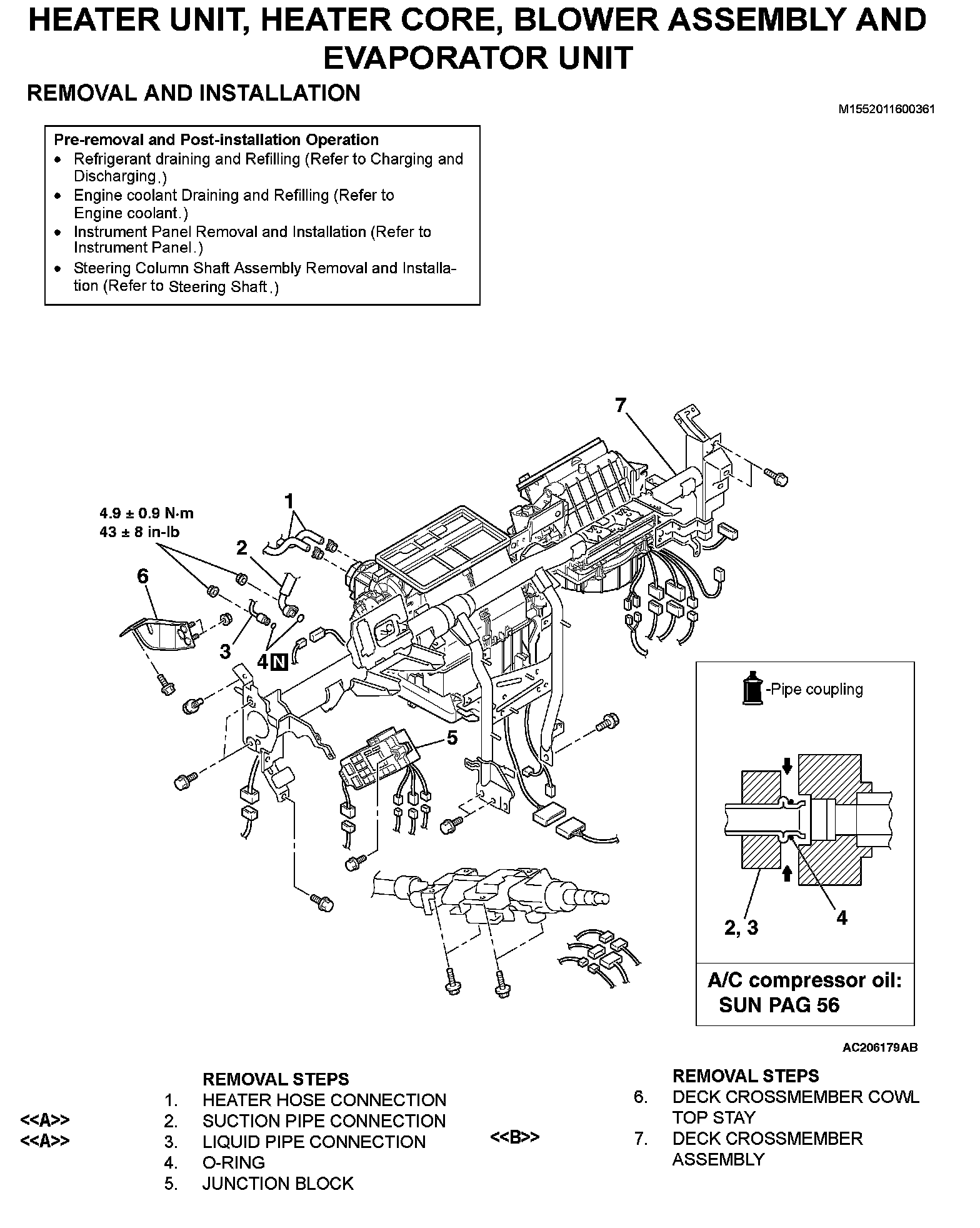

HEATER UNIT, HEATER CORE, BLOWER ASSEMBLY AND EVAPORATOR UNIT
REMOVAL SERVICE POINTS
<> SUCTION PIPE AND LIQUID PIPE DISCONNECTION
CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.
To prevent the entry of dust or other foreign bodies, plug the dismantled hose and the nipples of the expansion valves.
Part 1:
Part 2:
<> FRONT DECK CROSSMEMBER ASSEMBLY REMOVAL

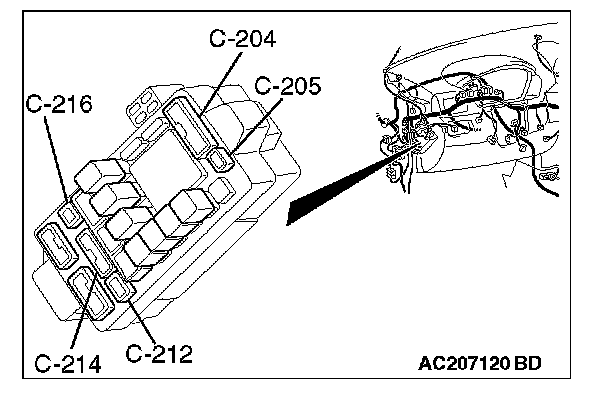

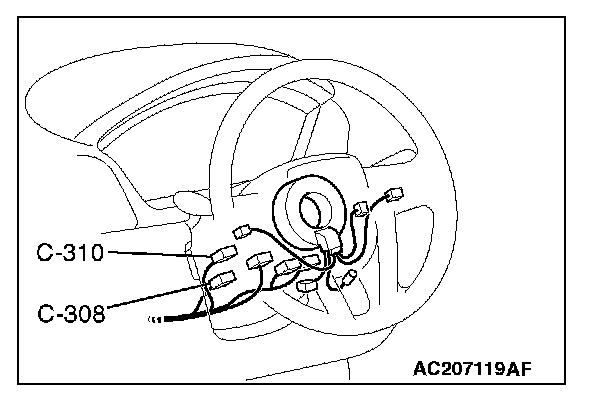

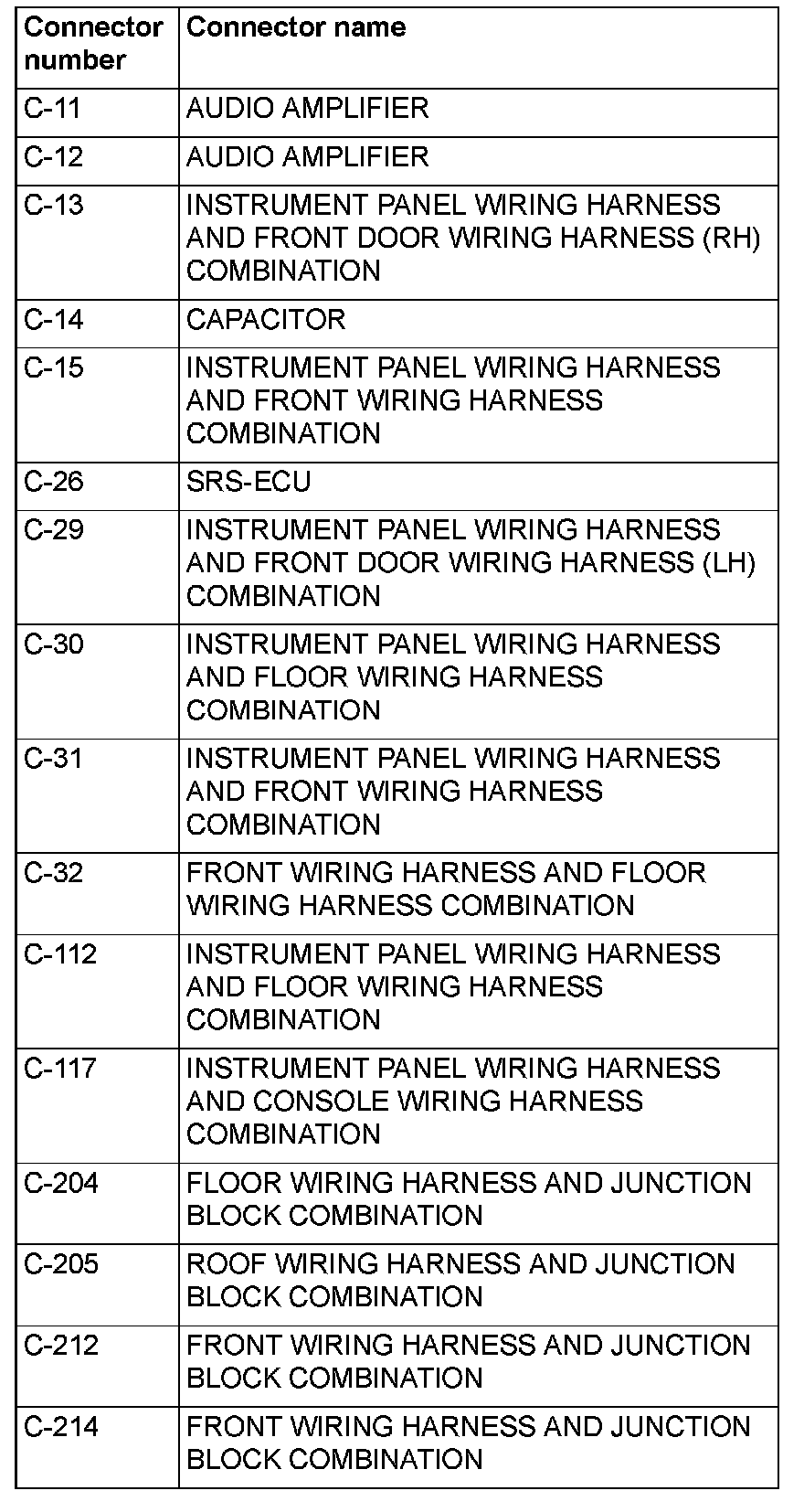

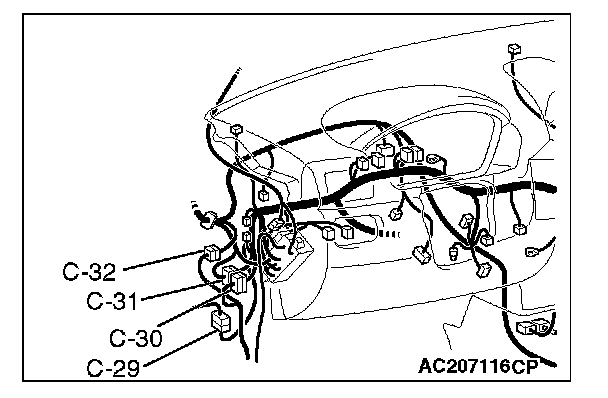

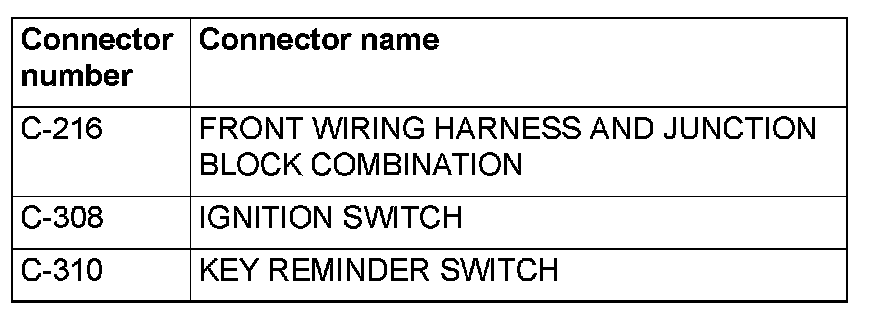

Disconnect the given connectors to gain access to the front deck crossmember.
