Information Bus: Service and Repair
How to disconnect joint connector1. Remove the combination meter.

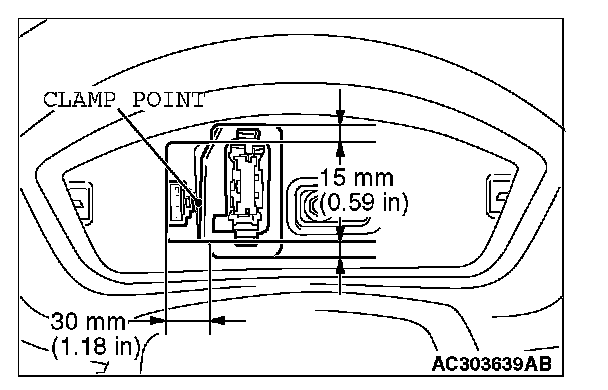

2. Cut off part of the instrument panel as shown.
3. Reach through the opening to unclamp the joint connector and feed it down.
4. Reach underneath the instrument panel to check and measure at the joint connector.
5. After the connector check and measurement has been done, tape the joint connector to wiring harness securely as shown by arrows.
