Oil Pan, Engine

Engine Mechanical
Engine lower oil pan bolt 11 ± 1 Nm (97 ± 9 in. lbs.)
Engine oil pan drain plug 39 ± 5 Nm (29 ± 3 ft. lbs.)

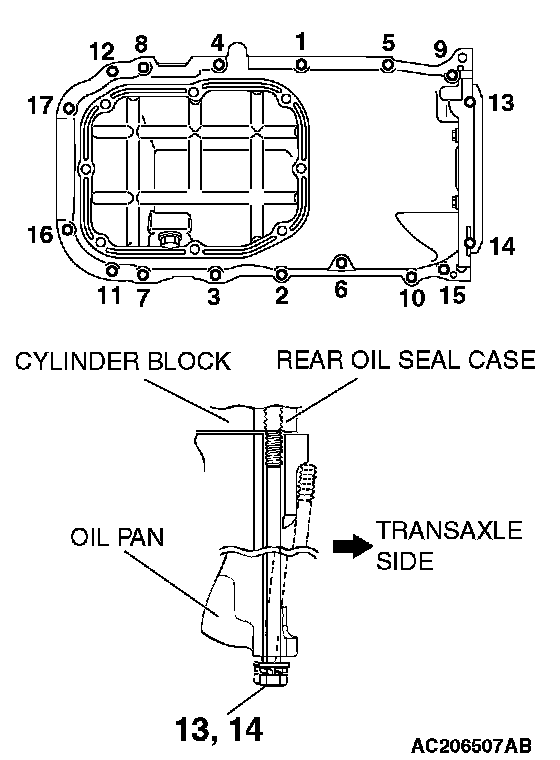

Engine upper oil pan bolt 8.5 ± 3.5 Nm (76 ± 31 in. lbs.)
Engine upper oil pan to torque converter bolt 35 ± 6 Nm (26 ± 4 ft. lbs.)
Oil pan and oil screen Cover bolt 11 ± 0.5 Nm (93 ± 4 in. lbs.)

Engine Overhaul
Oil pan, lower bolt 11 ± 1 Nm (95 ± 9 in. lbs.)
Oil pan, upper bolt 9.0 ± 3.0 Nm (80 ± 26 in. lbs.)
