Instruments - Center Display DTC Addition
No: TSB-09-54-005DATE: February, 2009
MODEL: 2004-08 Endeavor
SUBJECT:
DIAGNOSTIC TROUBLE CODES FOR CENTER DISPLAY ADDED - SERVICE MANUAL REVISION
PURPOSE
The diagnostic trouble codes for the multi-center display were omitted in the applicable Service Manuals. This Service Bulletin contains the added codes and related descriptions.
AFFECTED VEHICLE(S)
2004-2008 Endeavor
APPLICABLE MANUAL(S)

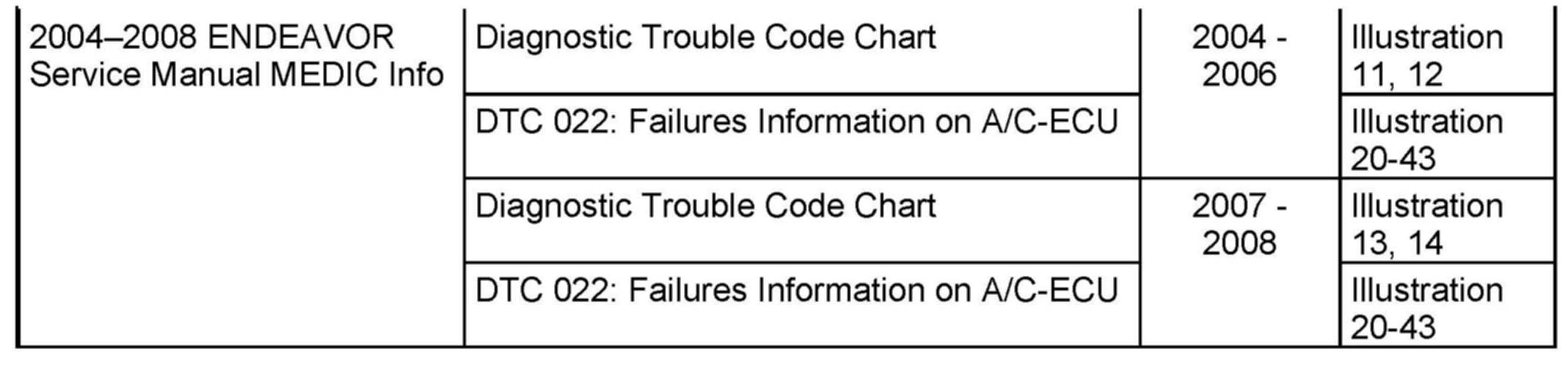

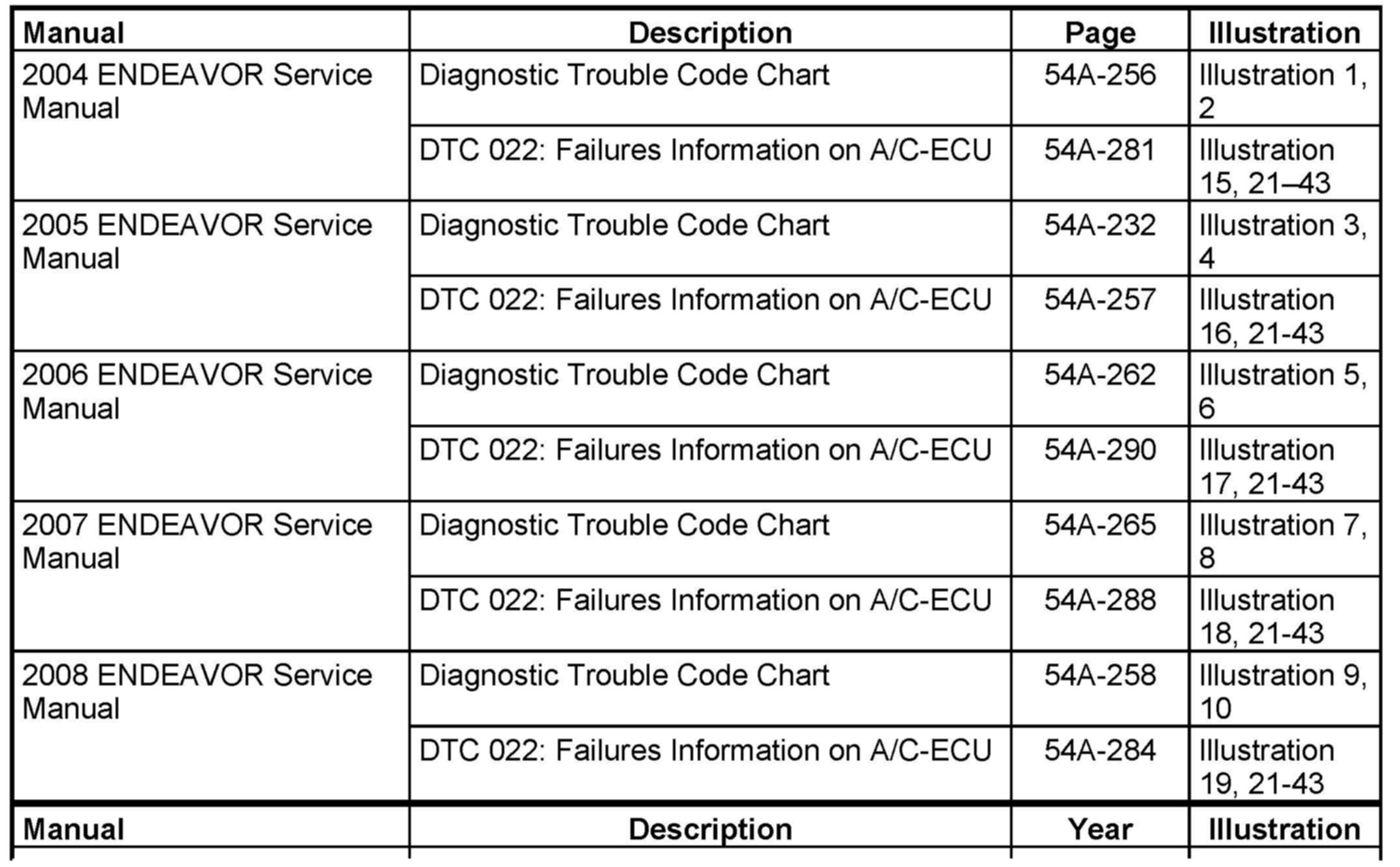

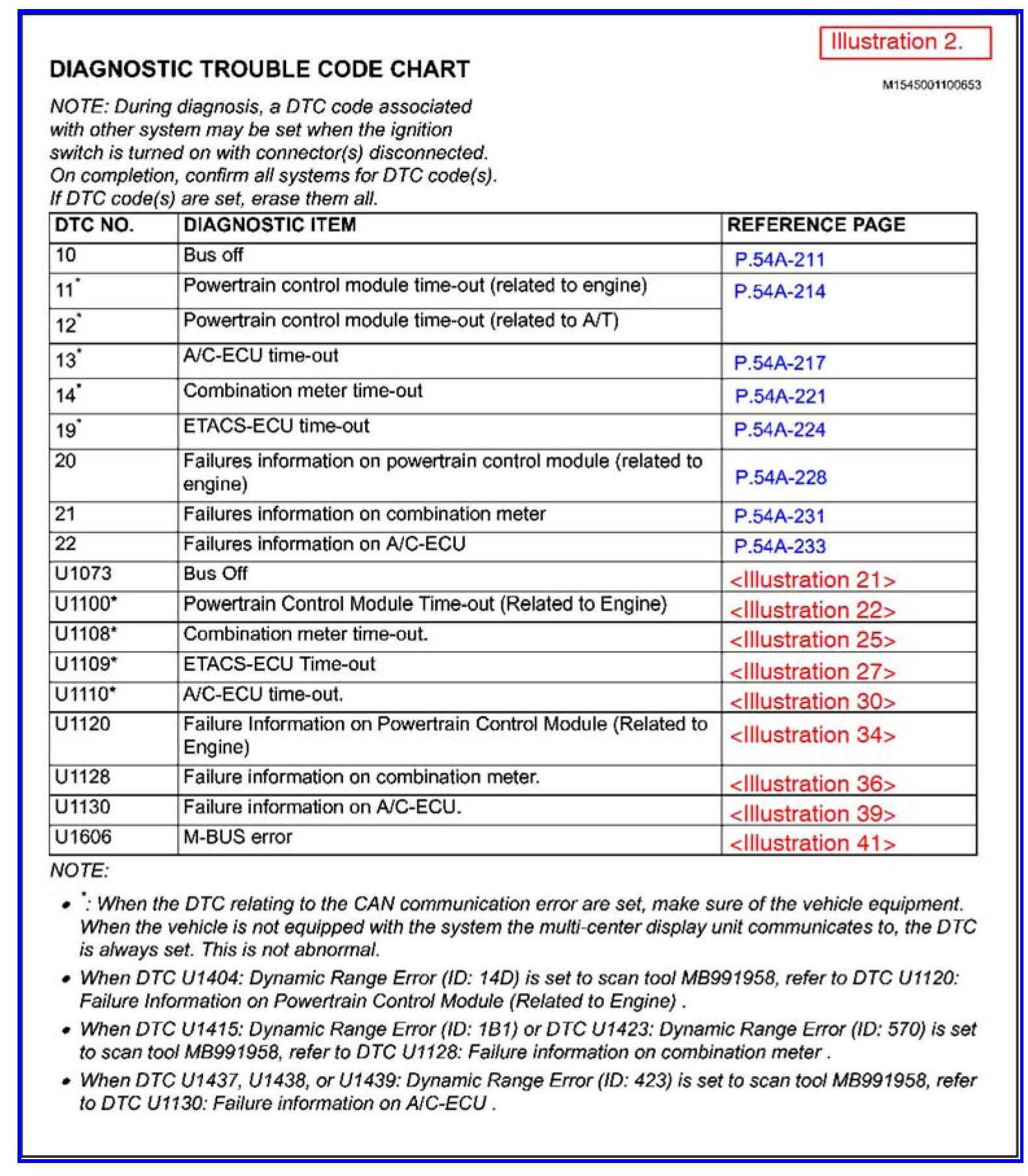

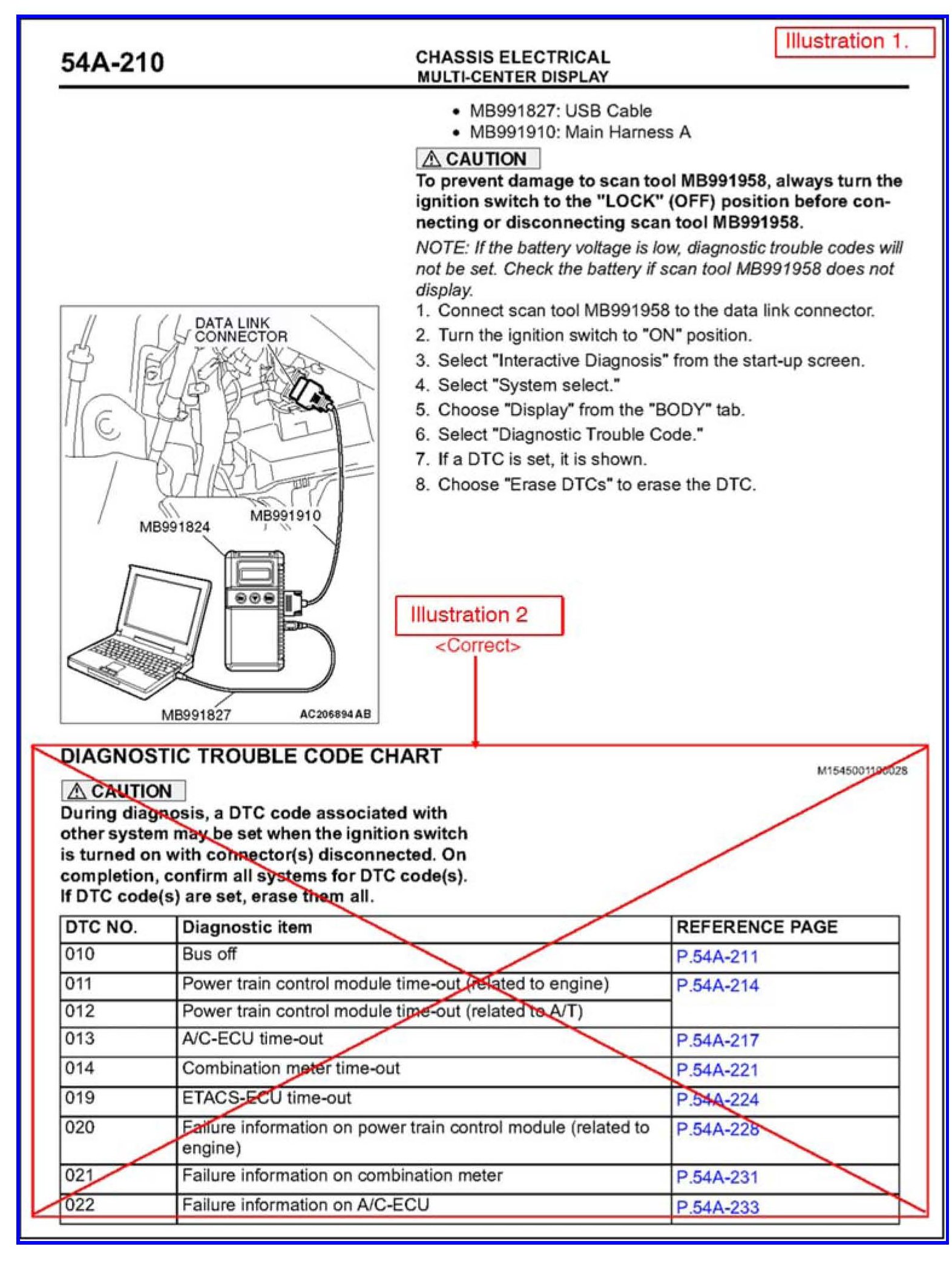

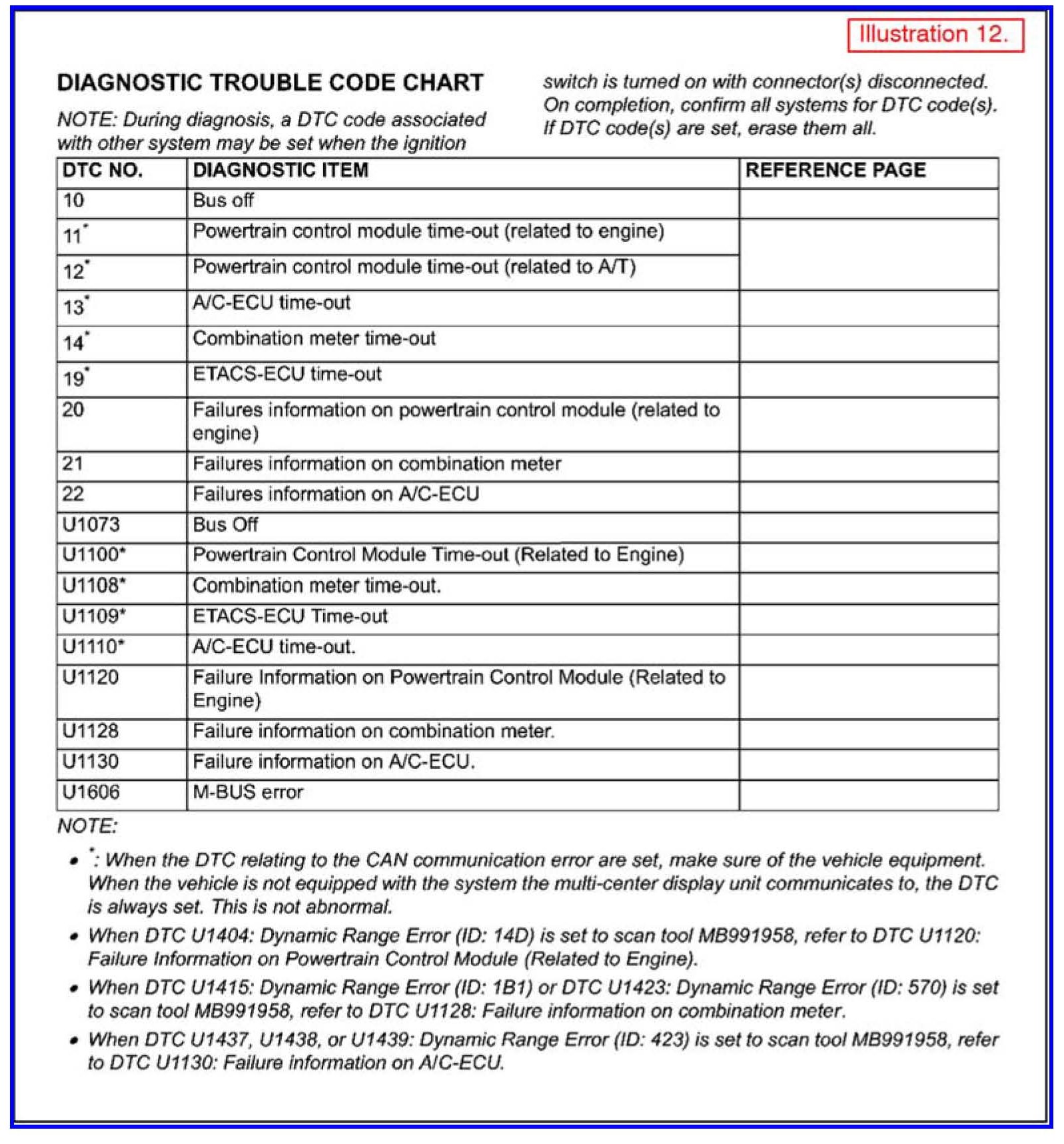

Illustration 1 - Page 54A-210
Illustration 2

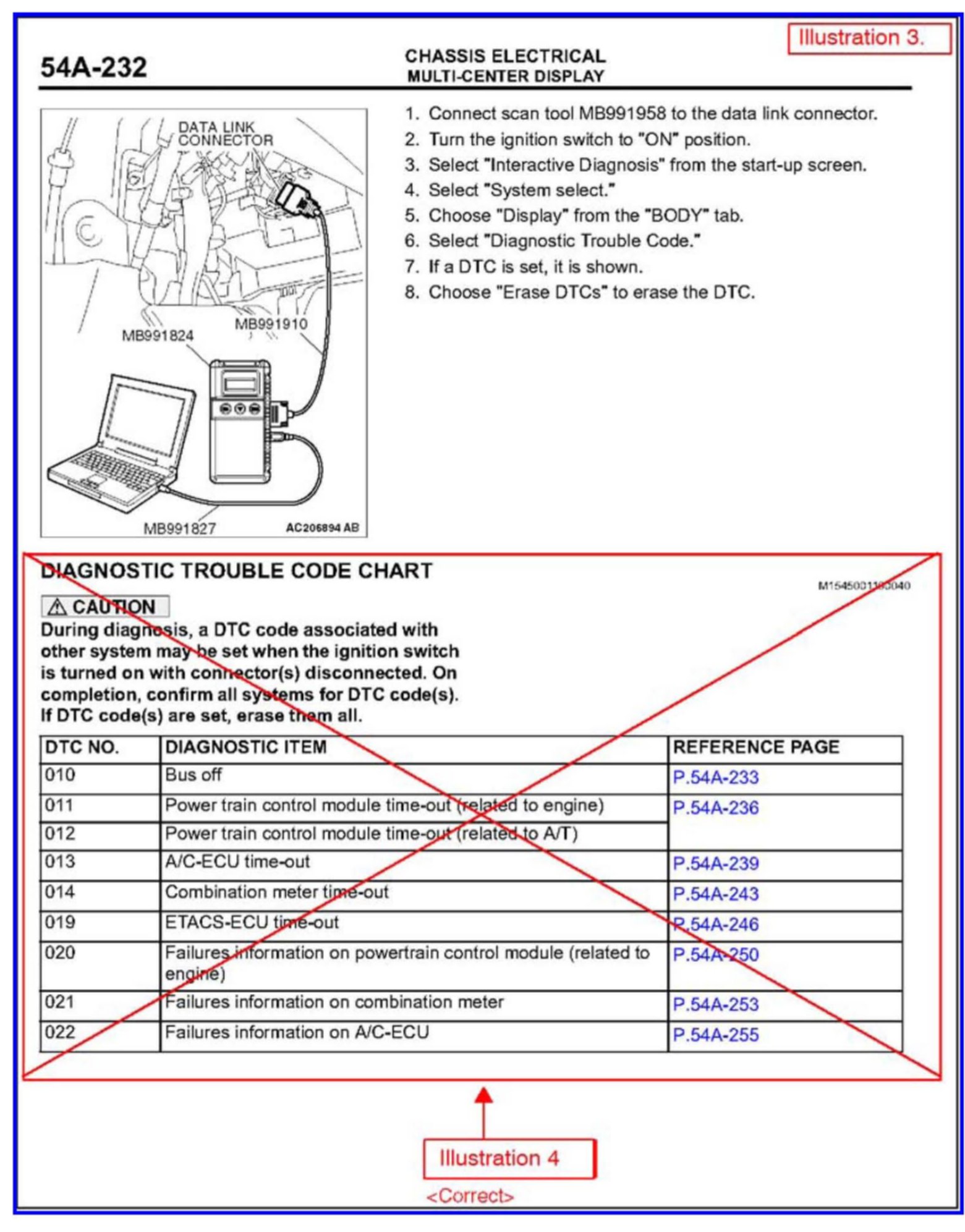

Illustration 3 Page 54A-232

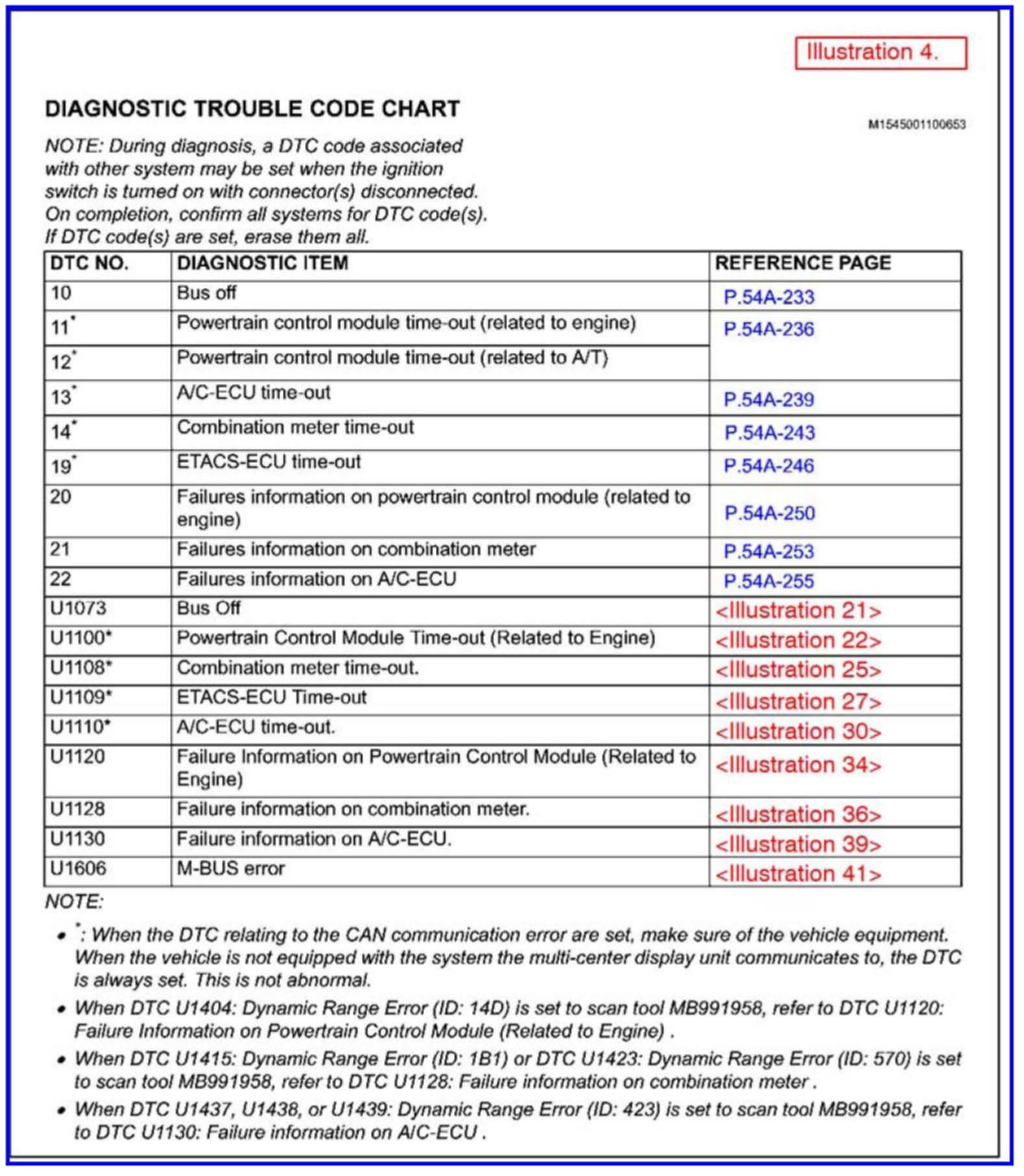

Illustration 4

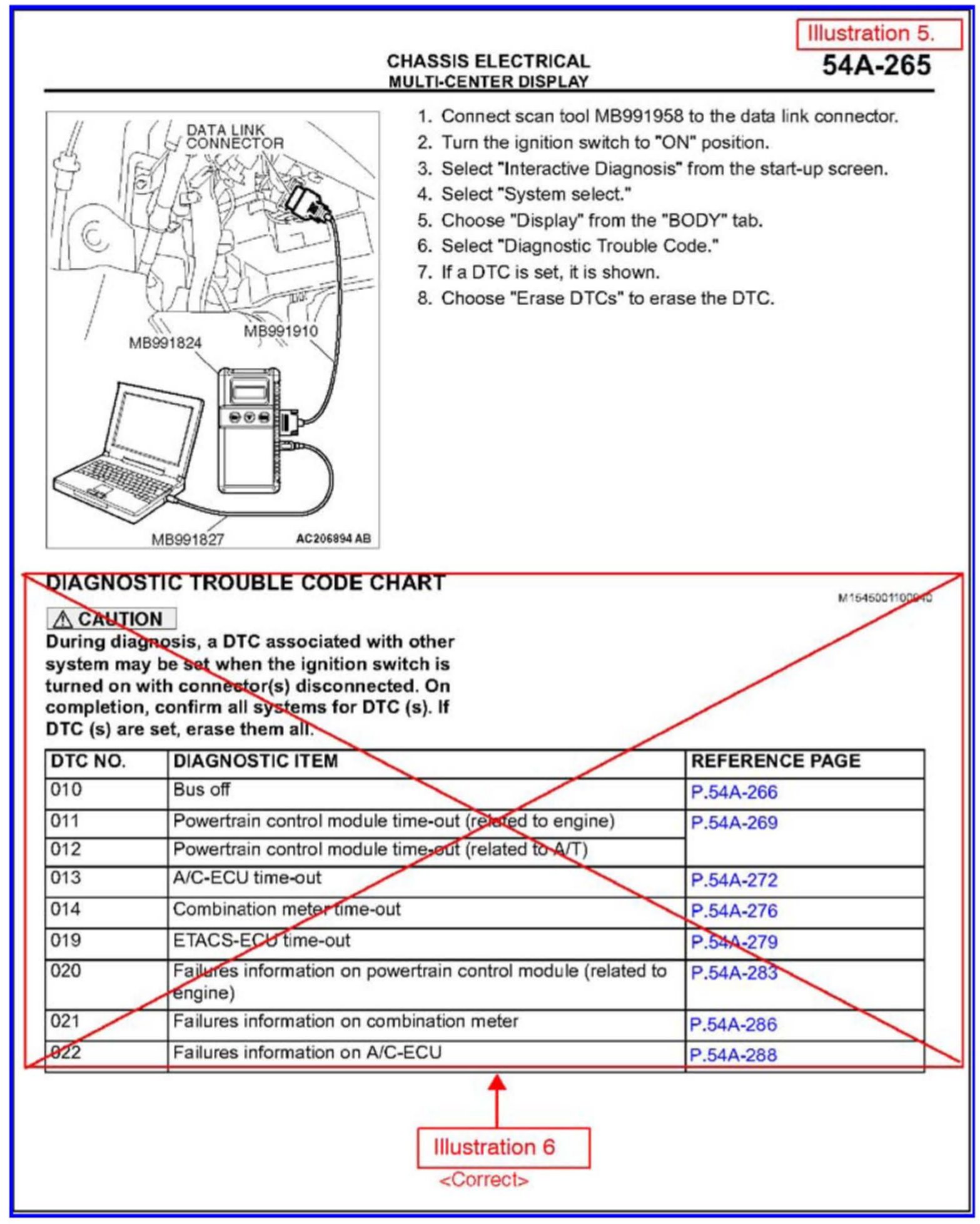

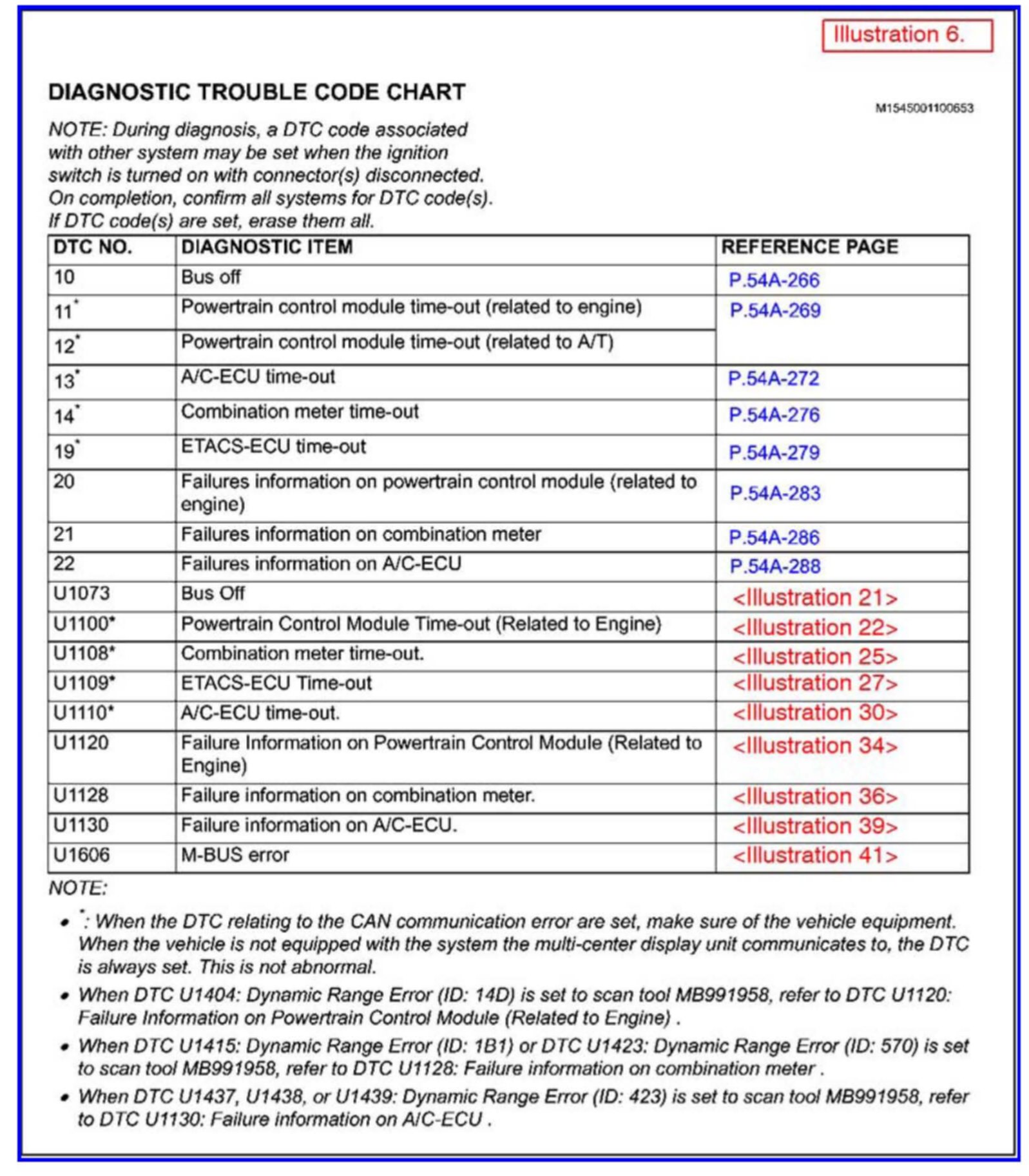

Illustration 5 - Page 54A-265
Illustration 6

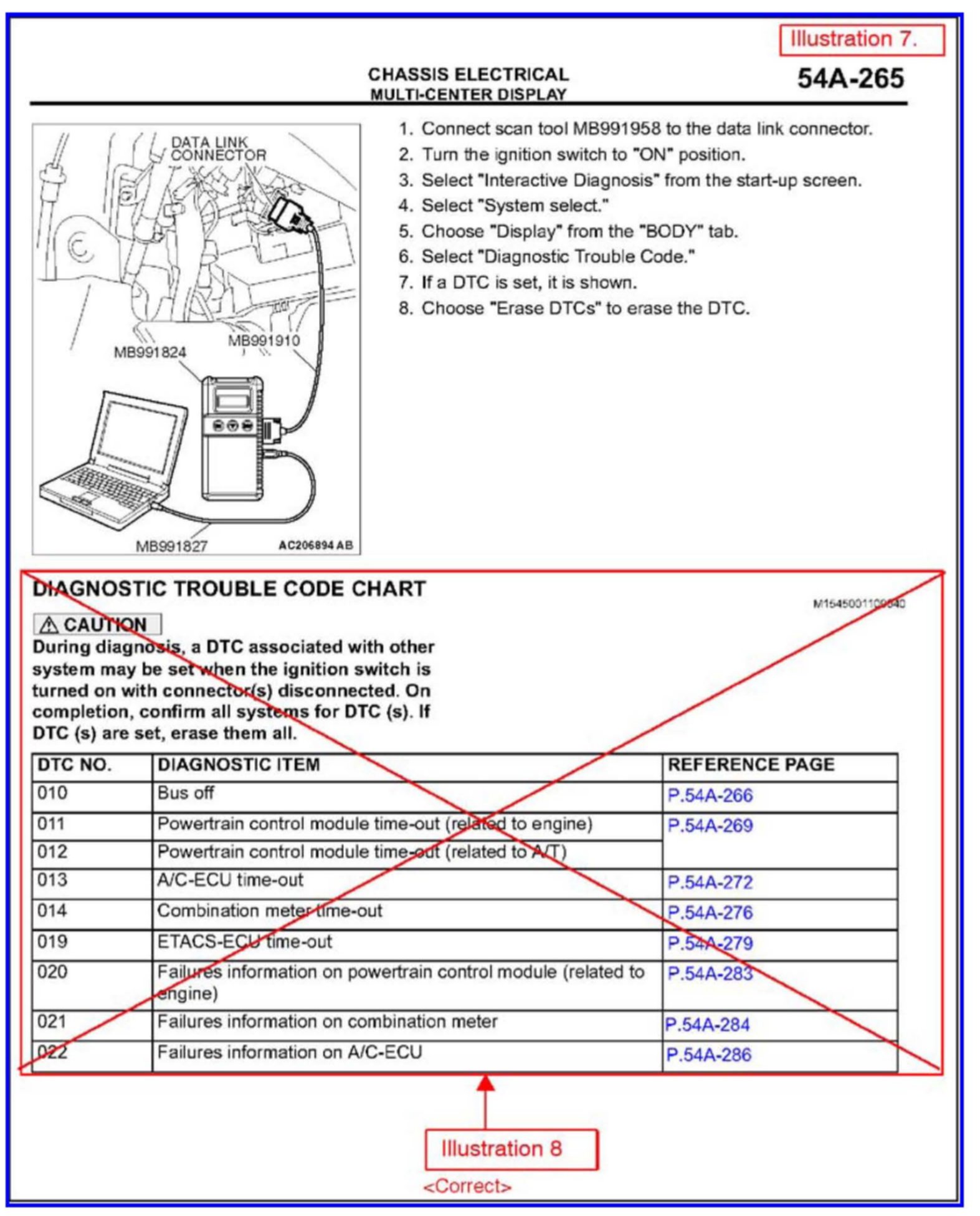

Illustration 7 - Page 54A-265
Illustration 8

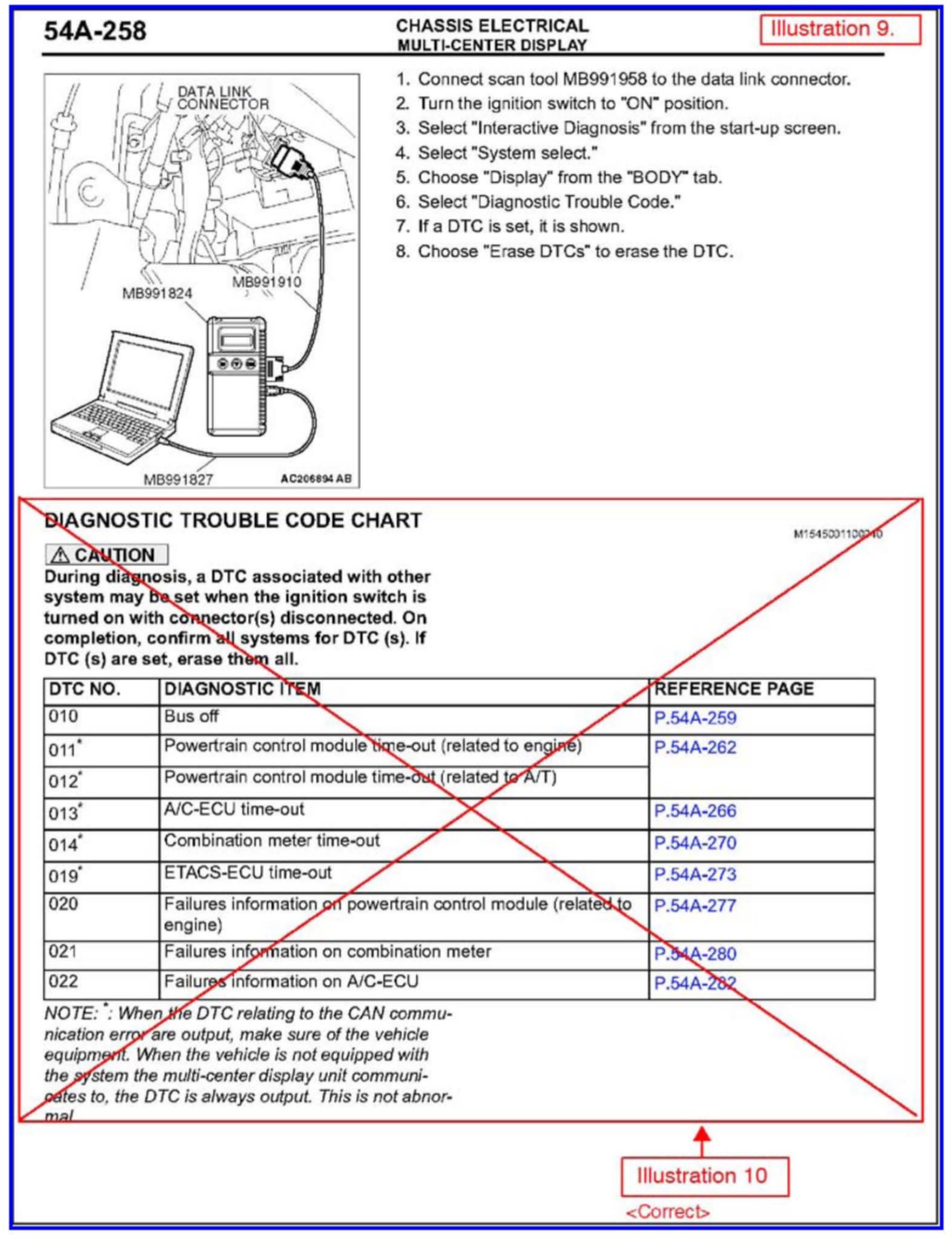

Illustration 9 - Page 54A-258

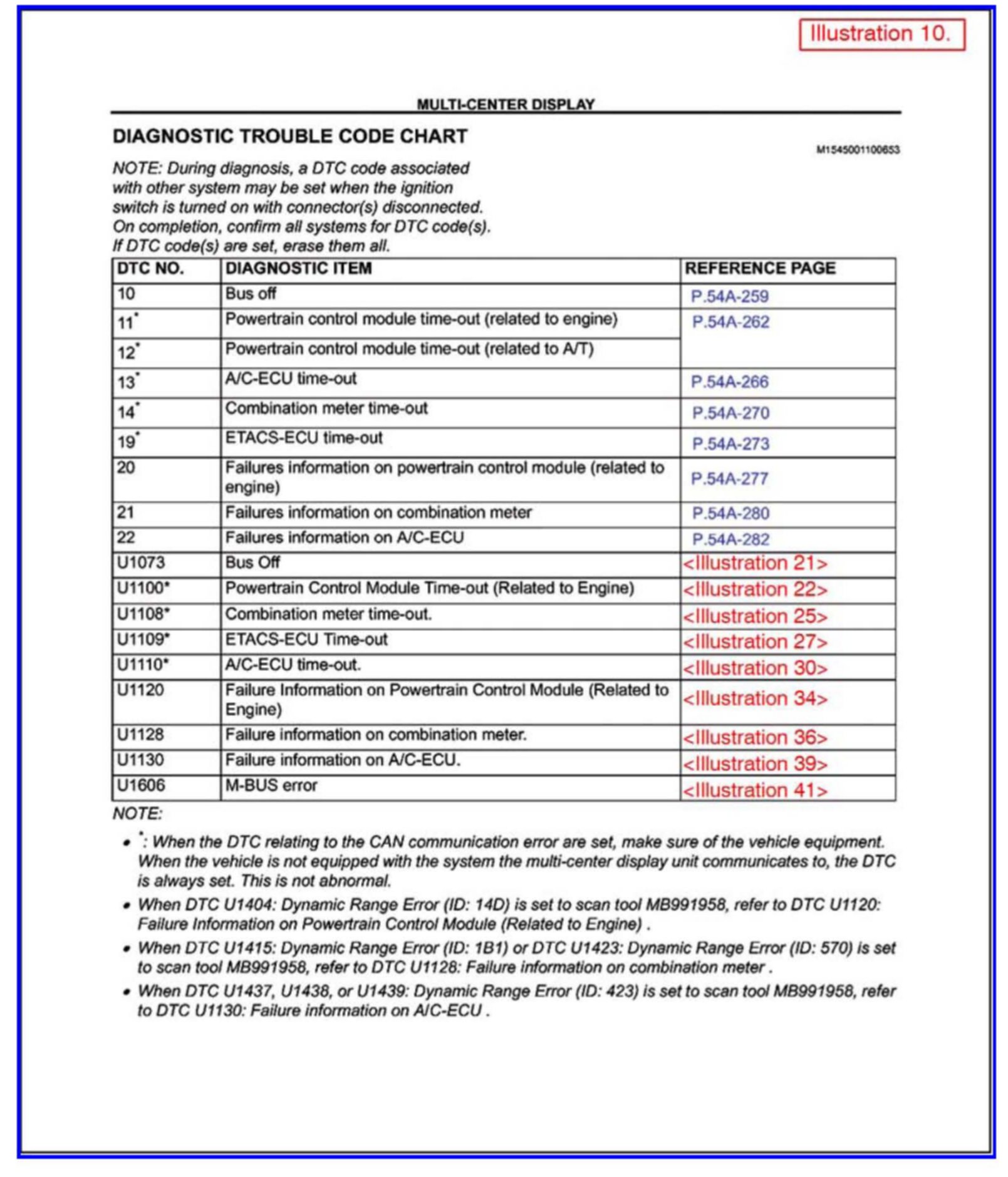

Illustration 10
Illustration 11

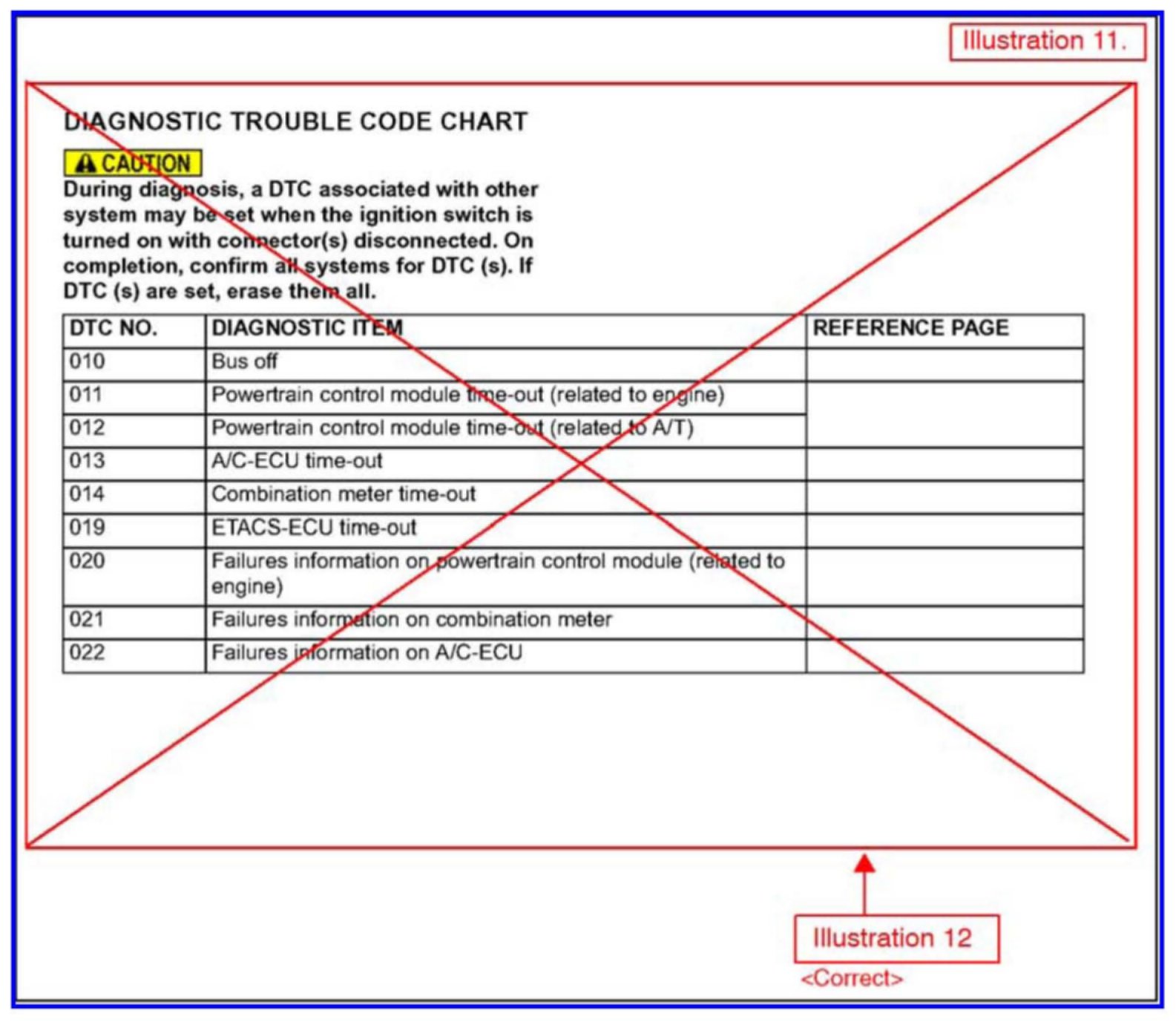

Illustration 12

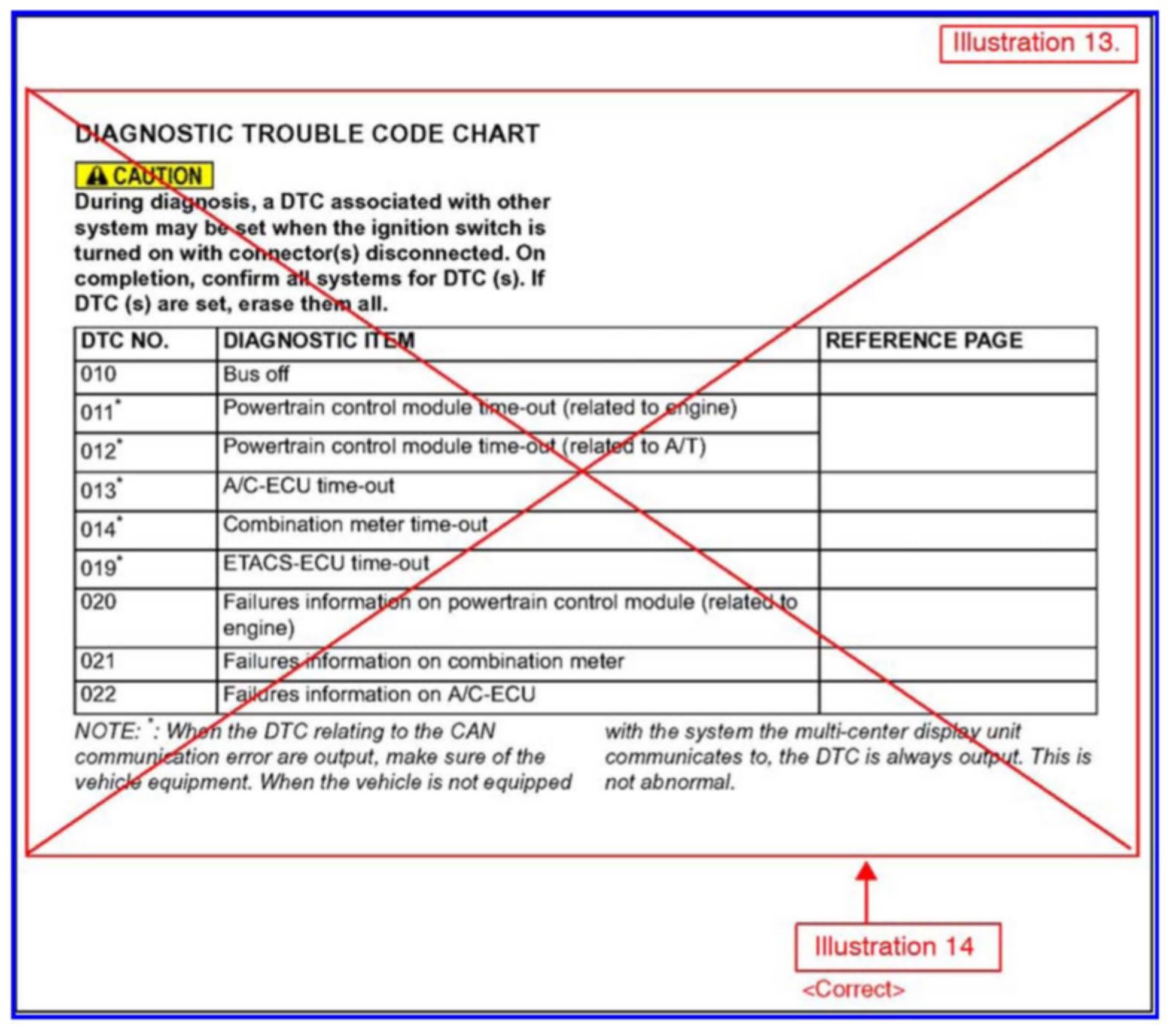

Illustration 13

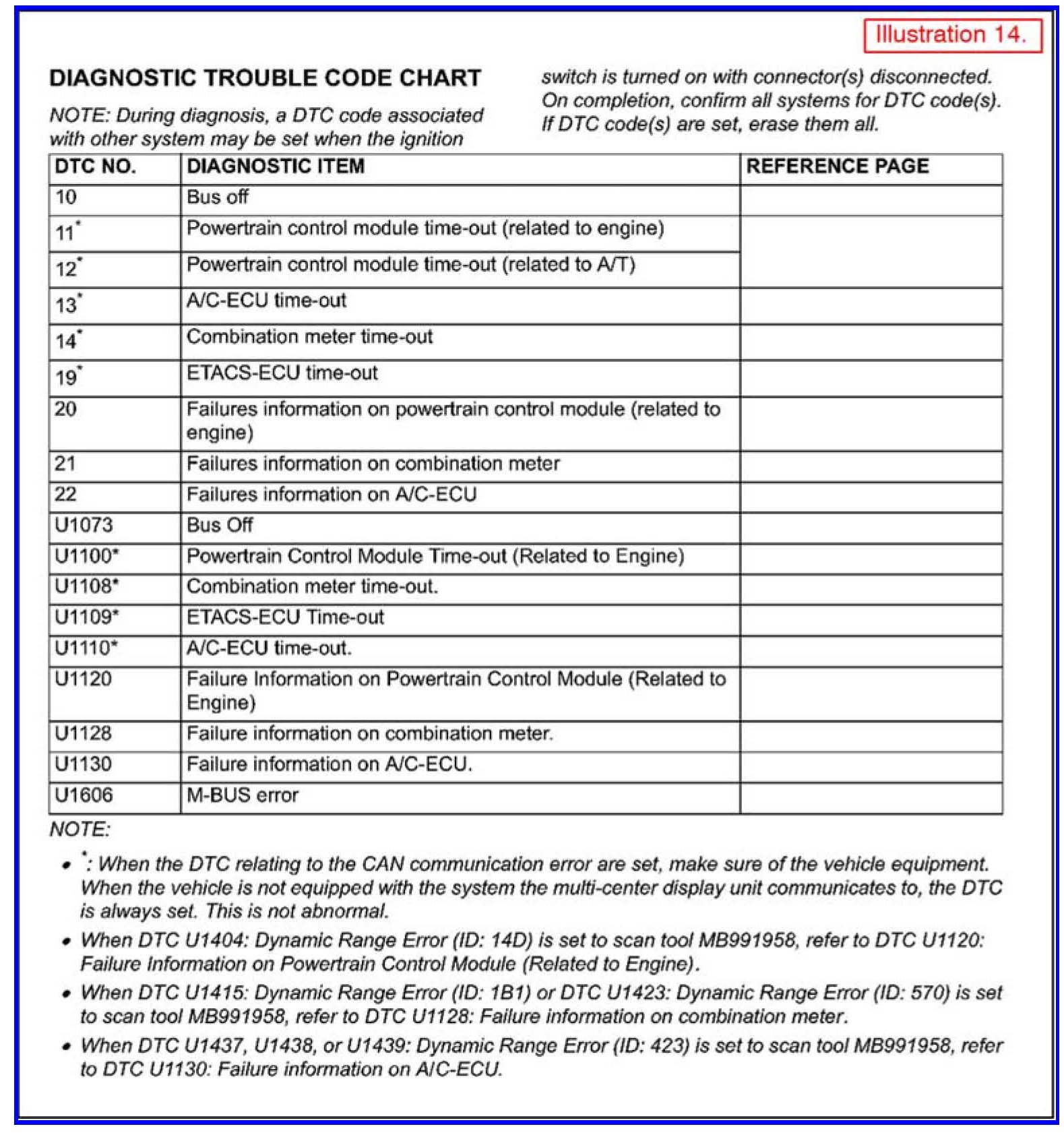

Illustration 14

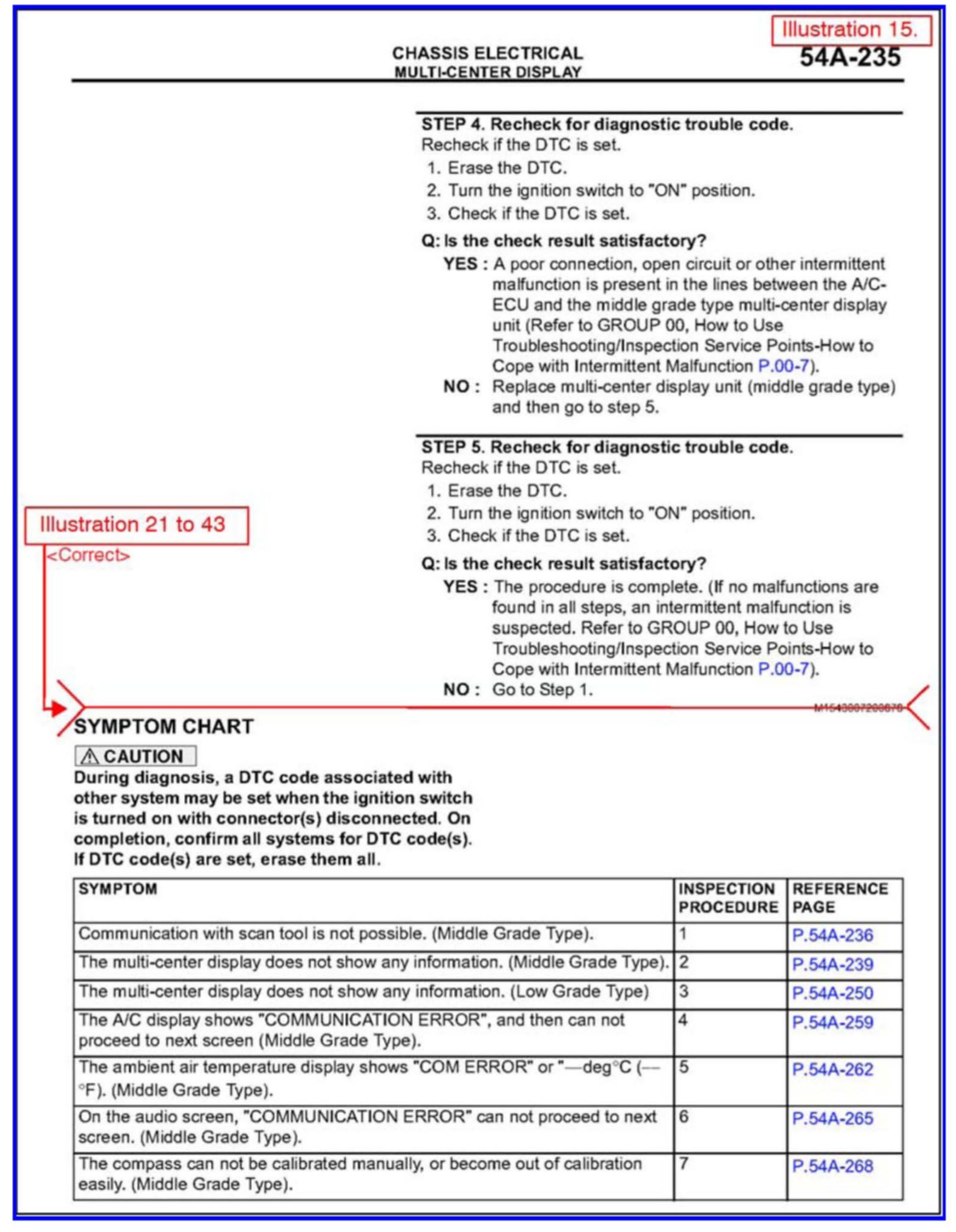

Illustration 15 - Page 54A-235

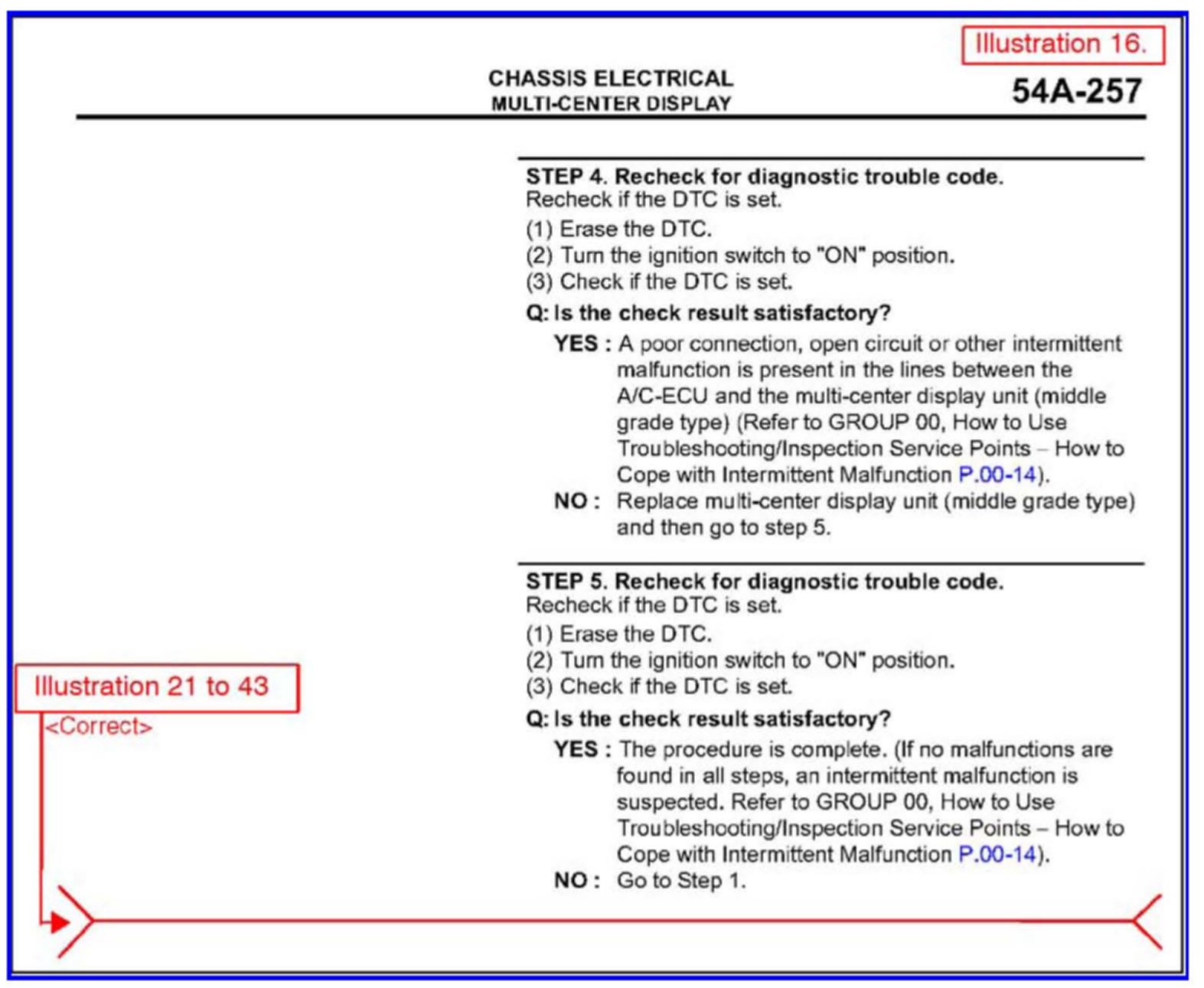

Illustration 16 - Page 54A-257

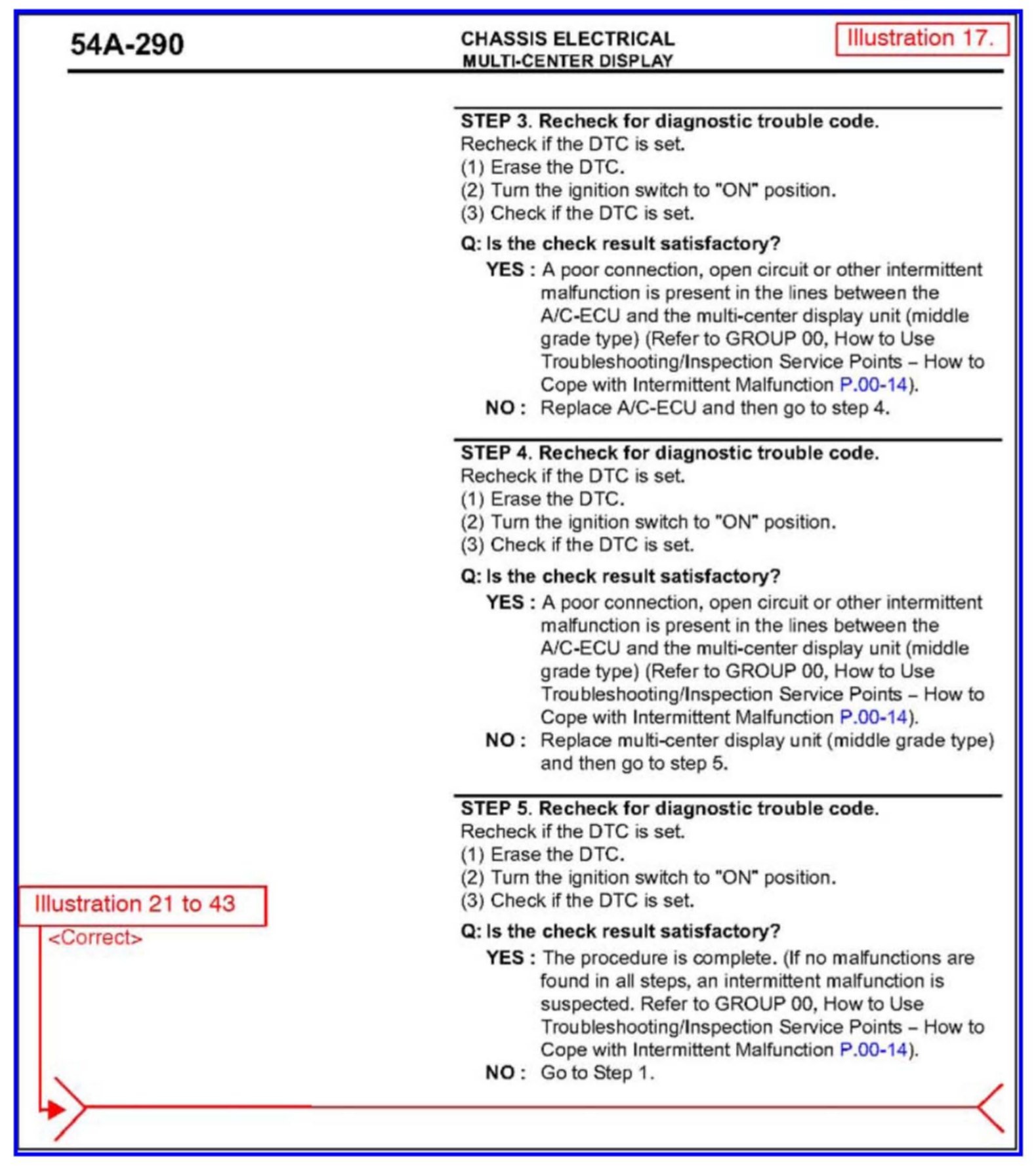

Illustration 17 - Page 54A-290

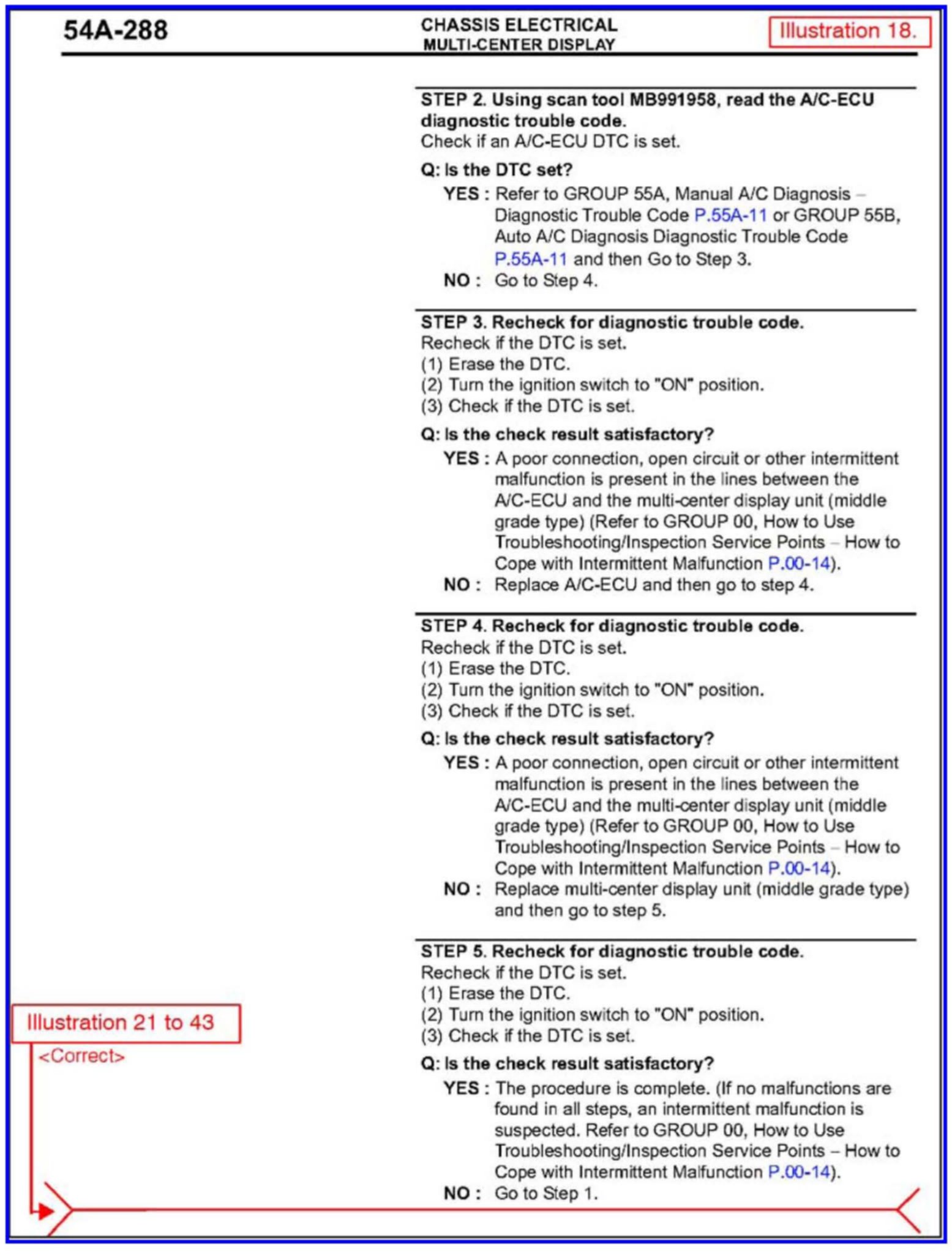

Illustration 18 - Page 54A-288

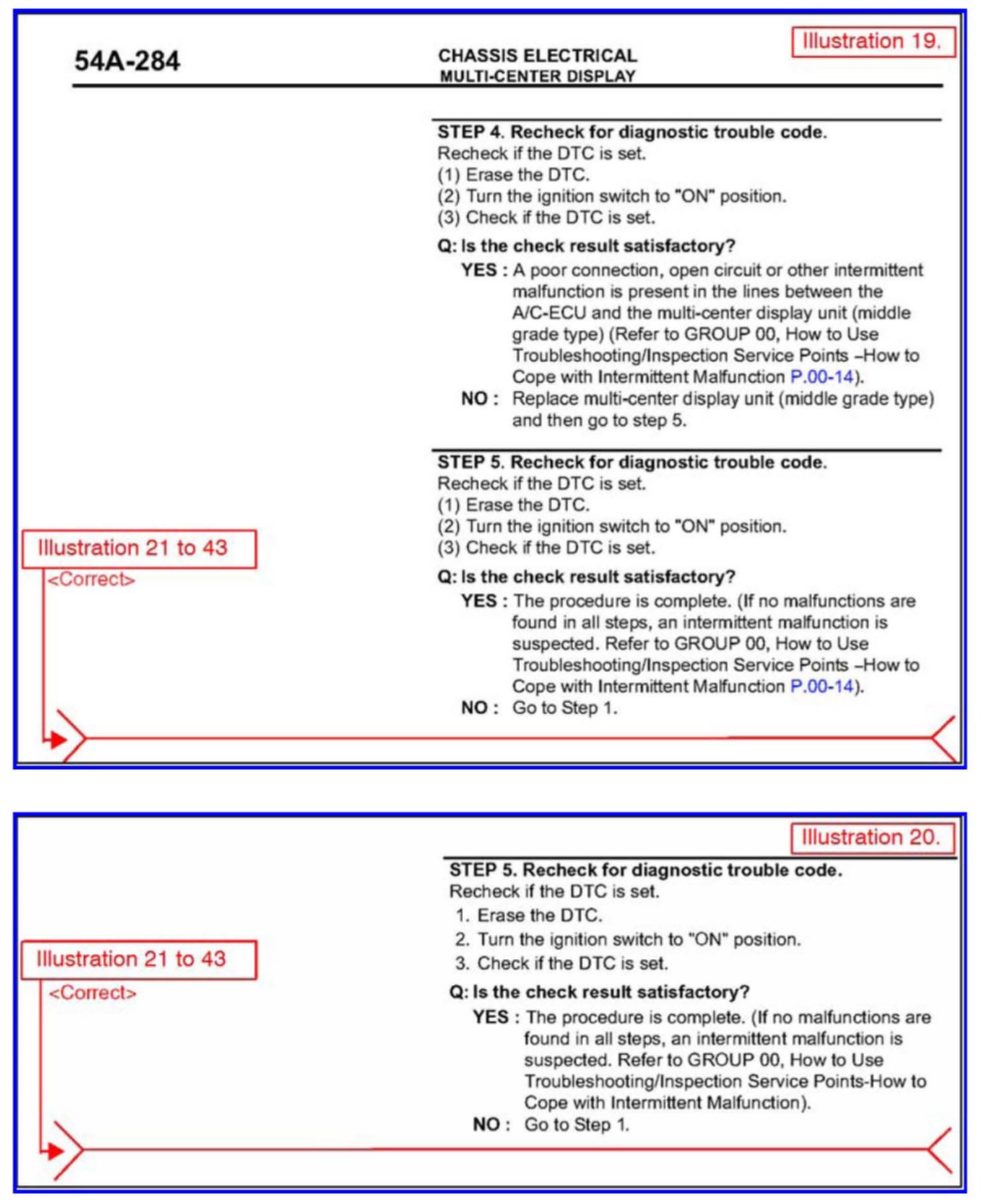

Illustration 19 - Page 54A-284 and Illustration 20
