Instruments - Multi-Center Display Customization

No: TSB-03-54-003
DATE: March, 2003
MODEL: 2004 Endeavor

SUBJECT:
CUSTOMIZATION USING MULTI-CENTER DISPLAY

AFFECTED VEHICLES

2004 Endeavor XLS and Limited models

PURPOSE

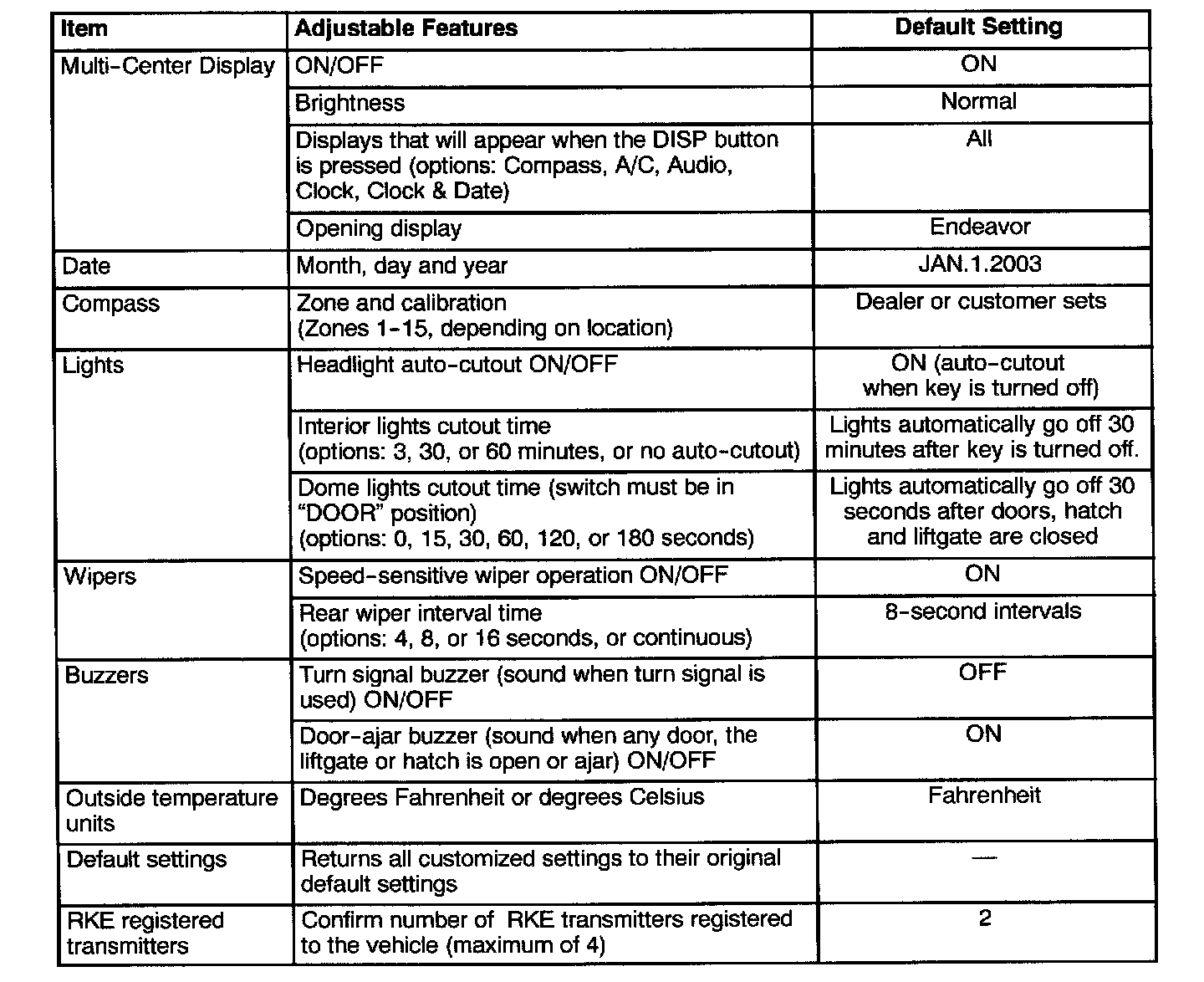

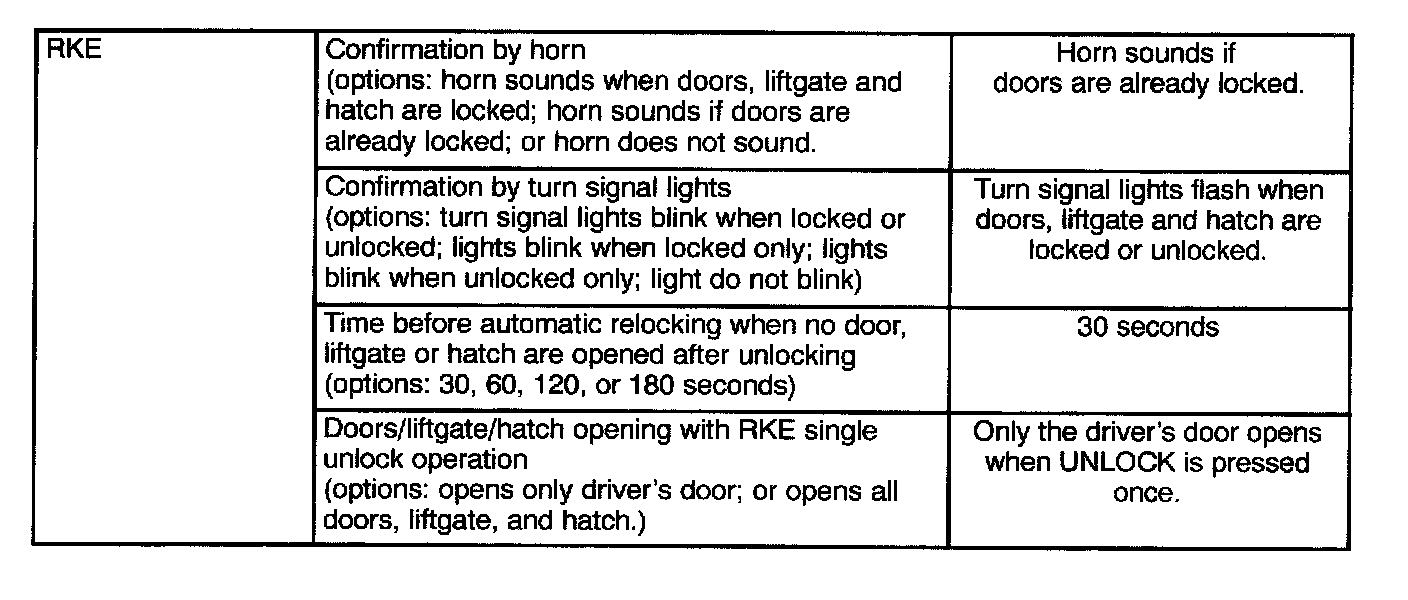

Endeavor XLS and Limited models are equipped with a multi-Center display. The multi-Center display can be used to Customize the following features in accordance with the owner's preferences. Advise the customer to refer to pages 3-85 through 3-120 in the Endeavor owner's manual for instructions.
