Home
>>
Mitsubishi
>>
2004
>>
Lancer Sportback L4-2.4L SOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Drive Axles, Bearings and Joints
>>
Wheel Hub
>>
Diagrams
>>

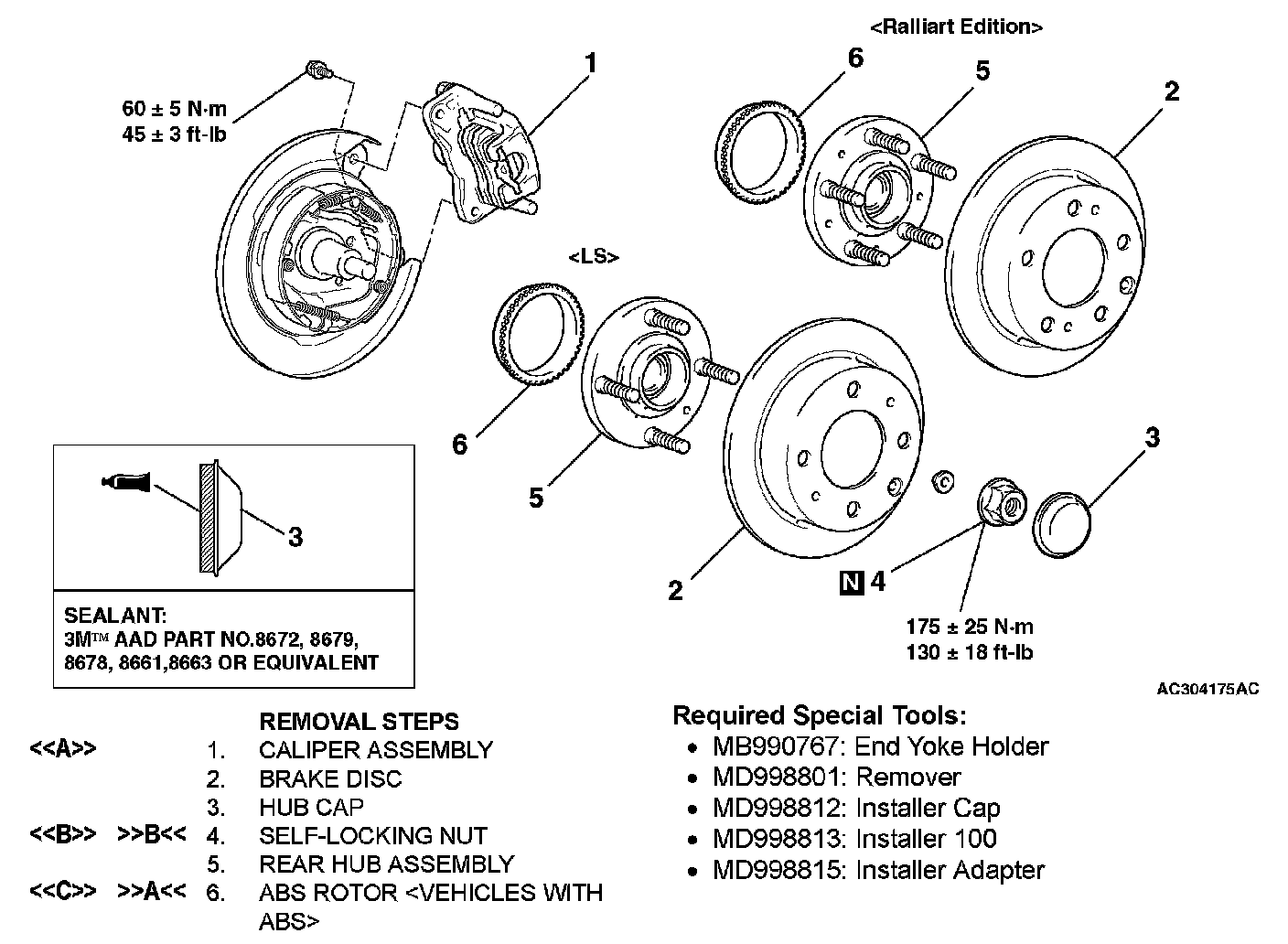

Rear Axle
Rear Axle
