Cruise Control Servo: Testing and Inspection

VACUUM ACTUATOR CHECK

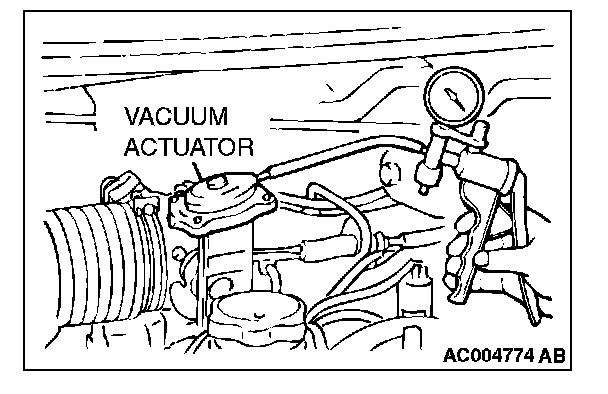

1. Disconnect the vacuum hose from the vacuum actuator, and connect a hand vacuum pump to the vacuum actuator.
2. Check that the throttle lever operates when applying vacuum, and the vacuum is maintained.
