Cruise Control Switch: Testing and Inspection

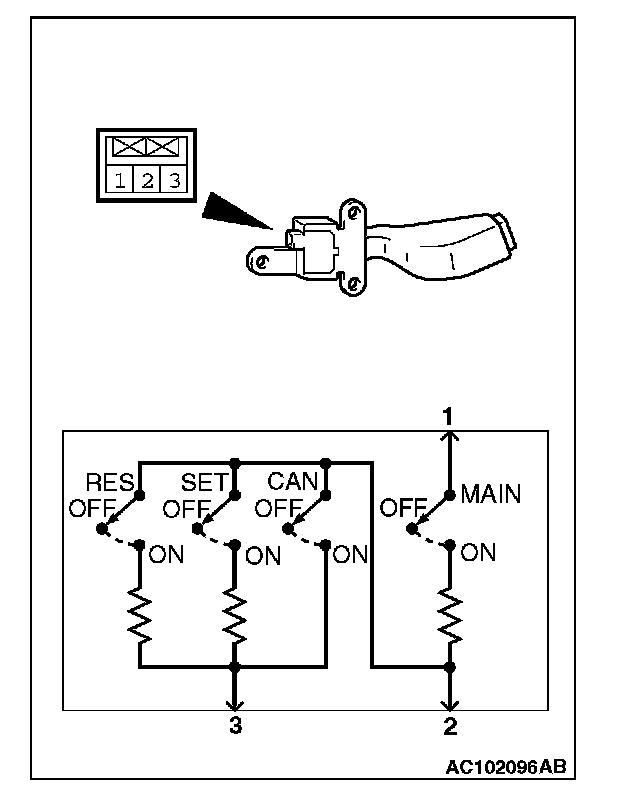

AUTO-CRUISE CONTROL SWITCH CHECK

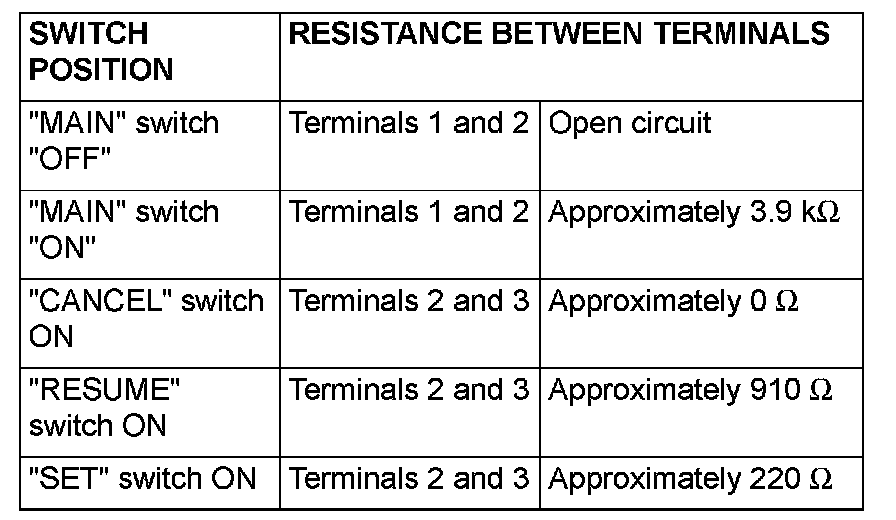

Measure the resistance between the terminals when each of the "SET," "RESUM," "CANCEL" and "MAIN" switches is pressed. If the values measured at the time correspond to those in the table given, the resistance values are correct.
