Alignment: Testing and Inspection
STEERING ANGLE CHECK

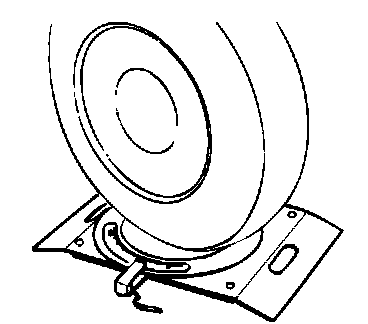

1. Place the front wheel on a turning radius gauge and measure the steering angle.

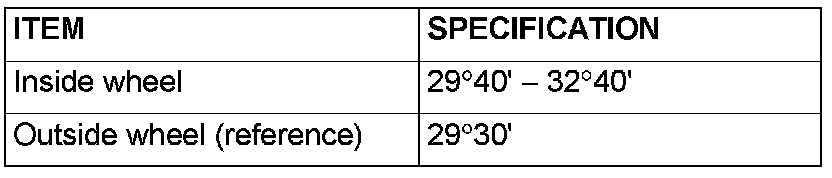

Standard value

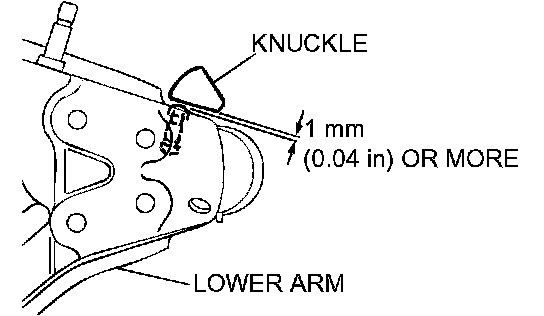

CAUTION: When the steering wheel is turned to lock, check that the clearance between the knuckle and the stopper is 1 mm (0.04 inch) or more.
2. Check that the toe-in is within the standard value. If the steering angle is outside the standard value, adjust the toe-in.
Standard value: 3.5 ± 3.5 mm (0.14 ± 0.14 inch)

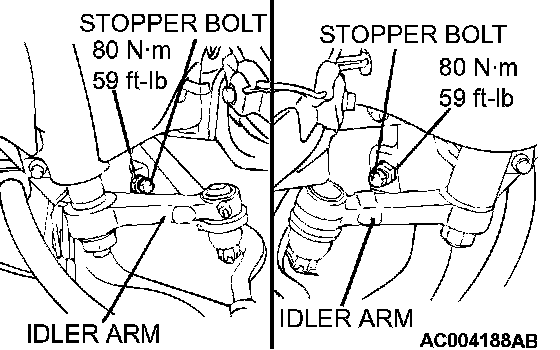

3. Adjust the steering angle with the stopper bolt.
