Home >> Mitsubishi >> 2004 >> Montero Sport V6-3.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor >> Locations

Vehicle Speed Sensor: Locations

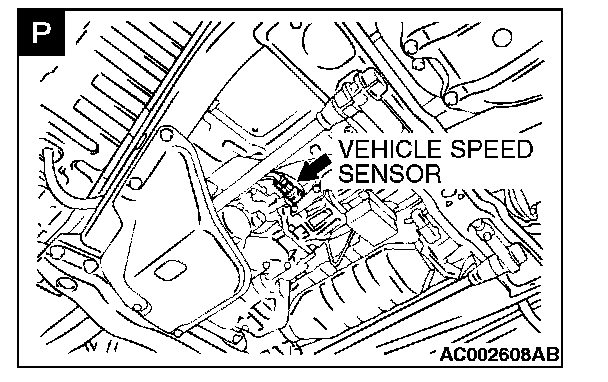

View P:

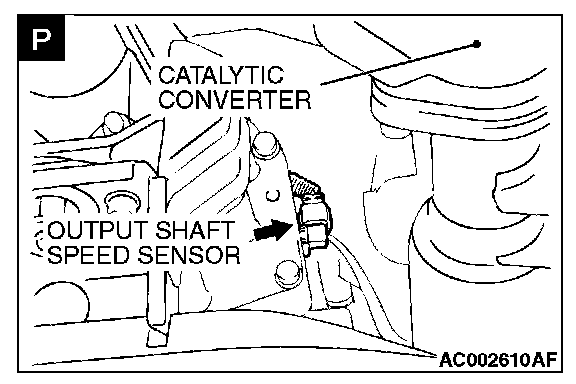

View P:



Overall View (Part 2):



Overall View (Part 1):
