Spark Plug: Testing and Inspection

CAUTION:

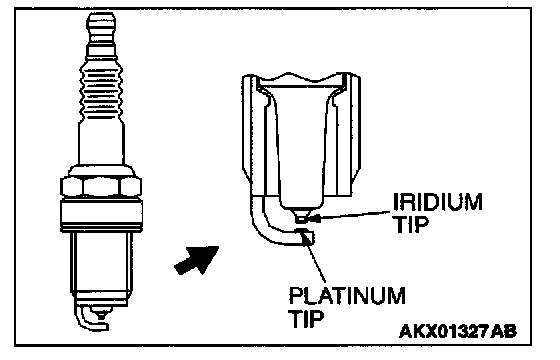

- Do not attempt to adjust the gap of the iridium plug.
- Cleaning of the iridium plug may result in damage to the iridium and platinum tips. Therefore, if carbon deposits must be removed, use a plug cleaner and complete cleaning within 20 seconds to protect the electrode. Do not use a wire brush.

Check the plug gap and replace if the limit is exceeded.

Standard value: 1.0 - 1.1 mm (0.039 - 0.043 inch)
Limit: 1.3 mm (0.051 inch)
