Fail-Safe/Backup Function
FAIL-SAFE/BACKUP FUNCTION When a malfunction of a main sensor or actuator is detected by the PCM, the transmission is controlled by preset control logic to maintain safe conditions for driving.

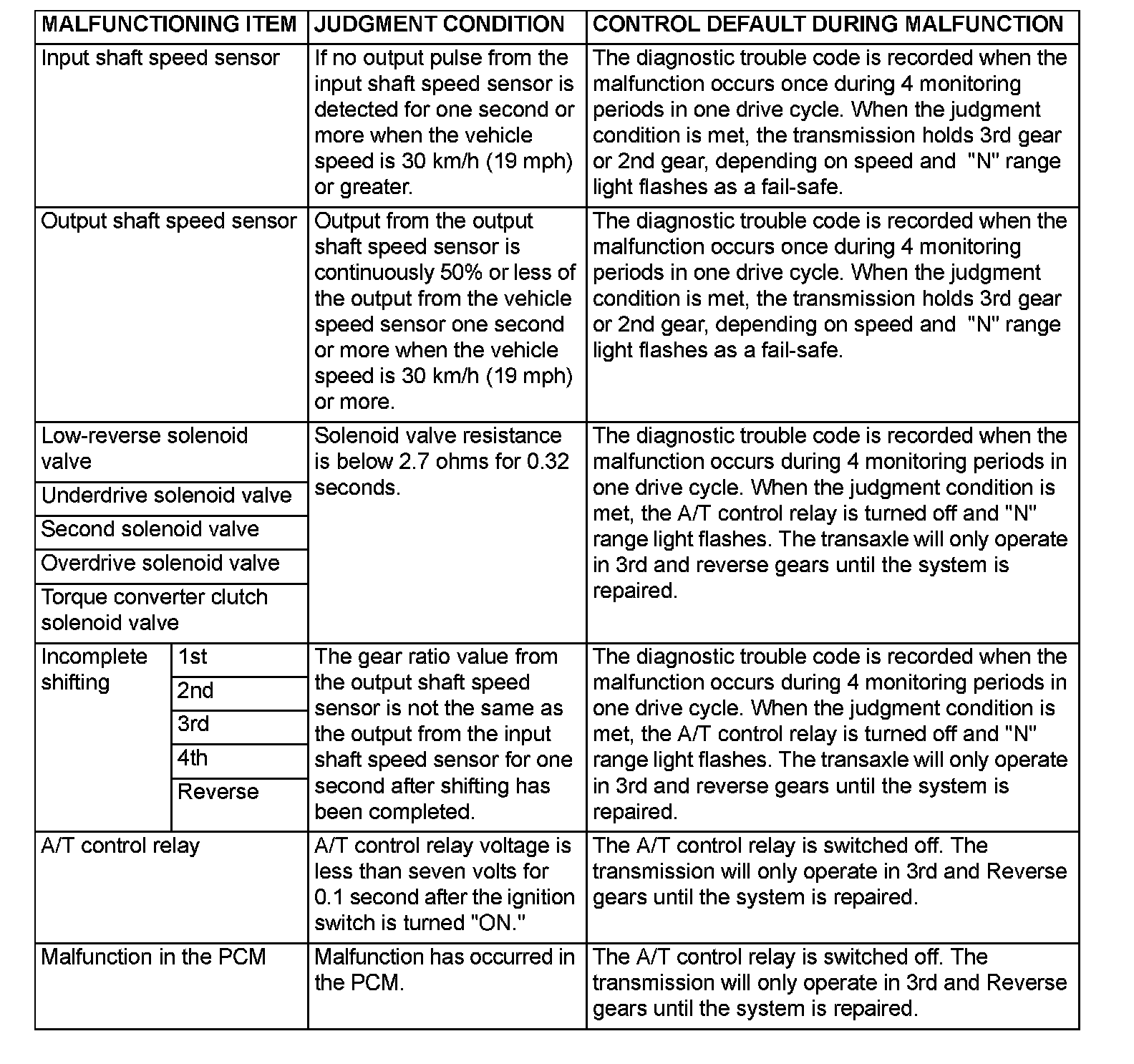

The following table shows how the fail-safe/backup function affects vehicle driveability and operation.
