Automatic Transmission/Transaxle
>>
Transmission and Transfer Case Connection
Transmission and Transfer Case Connection

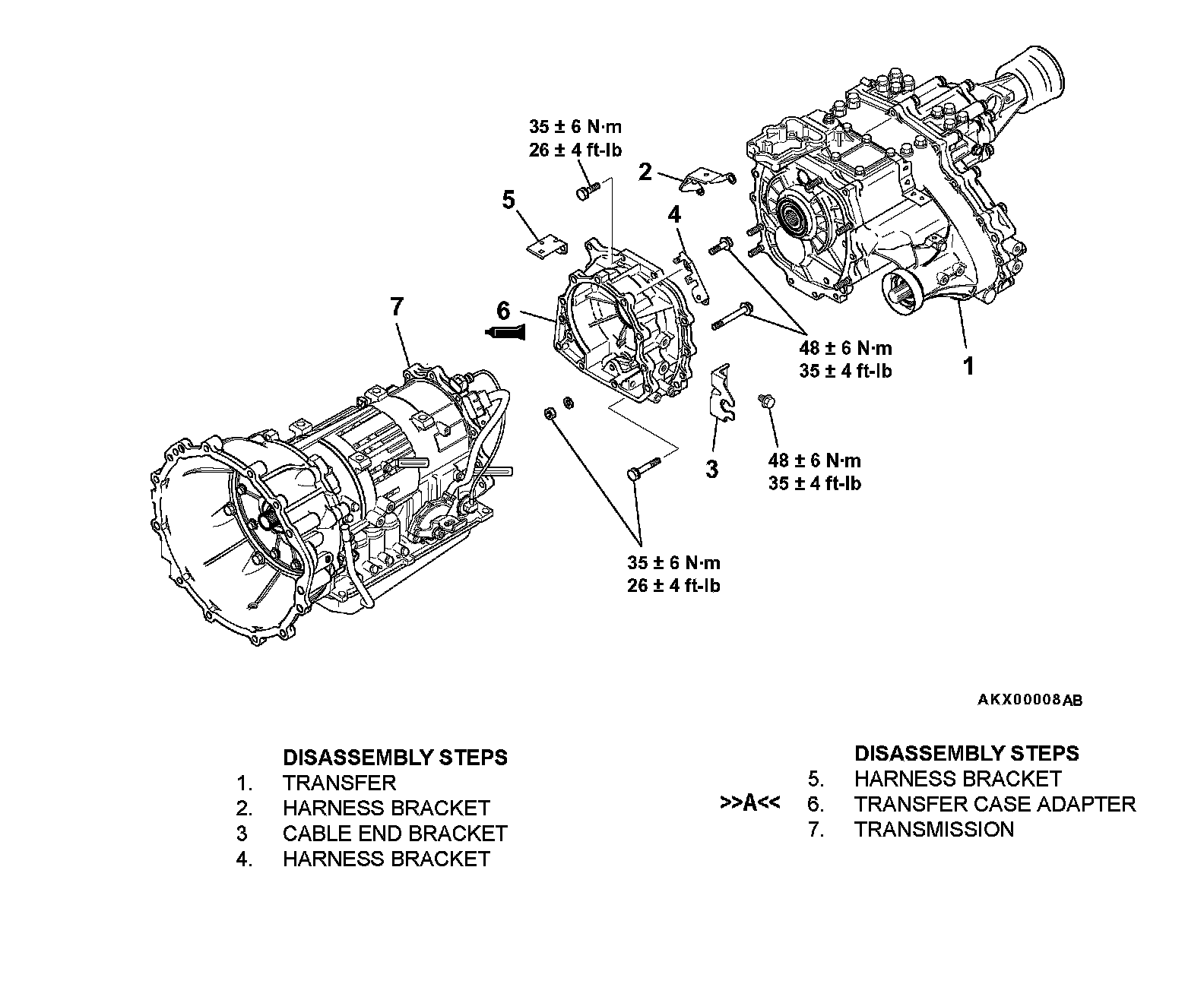

TRANSMISSION AND TRANSFER OVERHAUL W/ RELATED COMPONENTS
