Valve Body

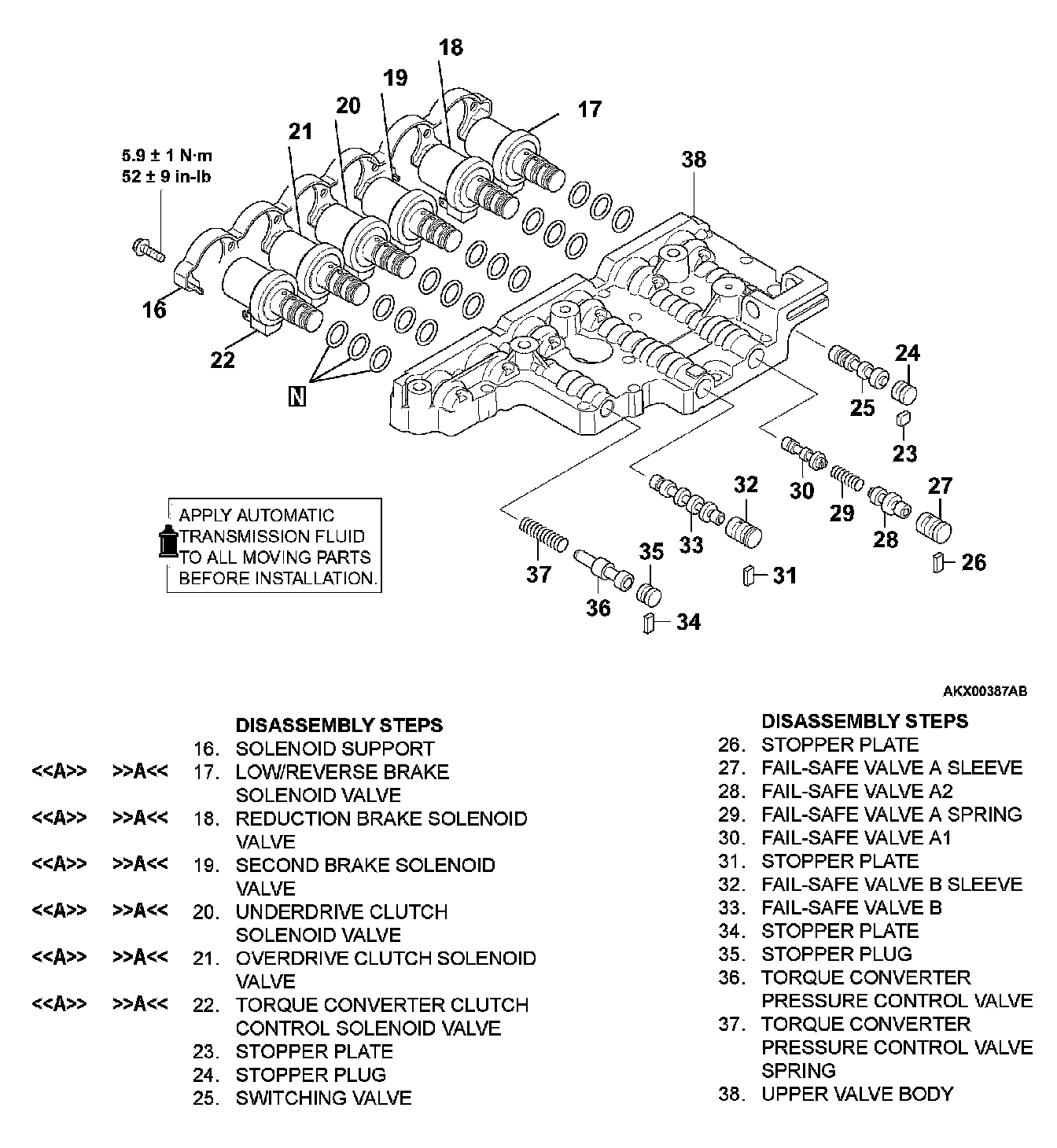

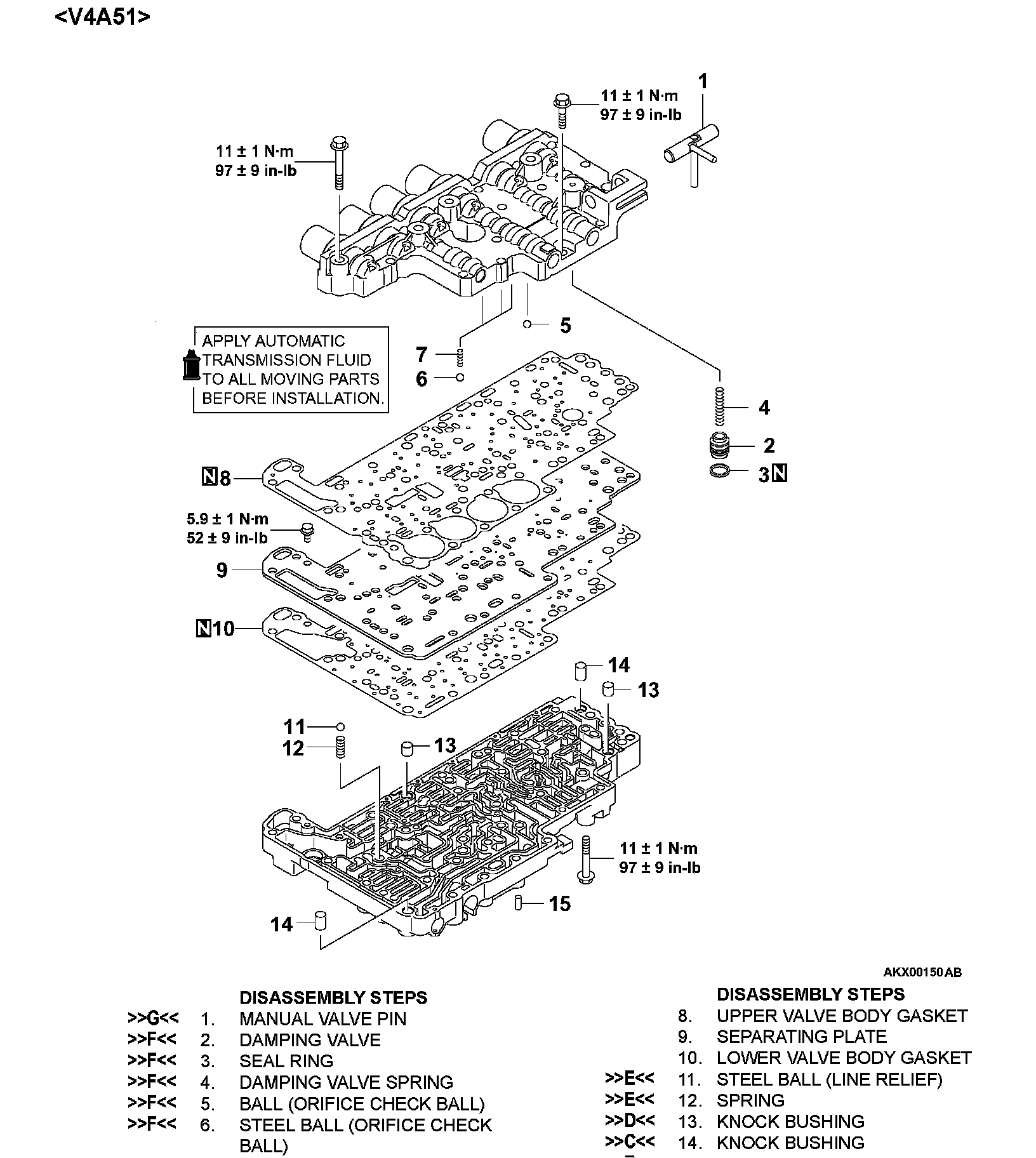

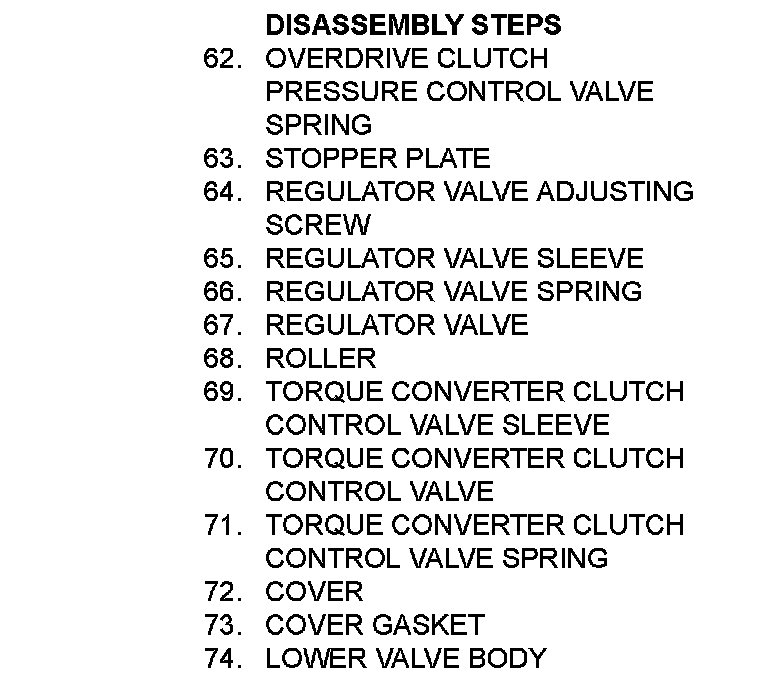

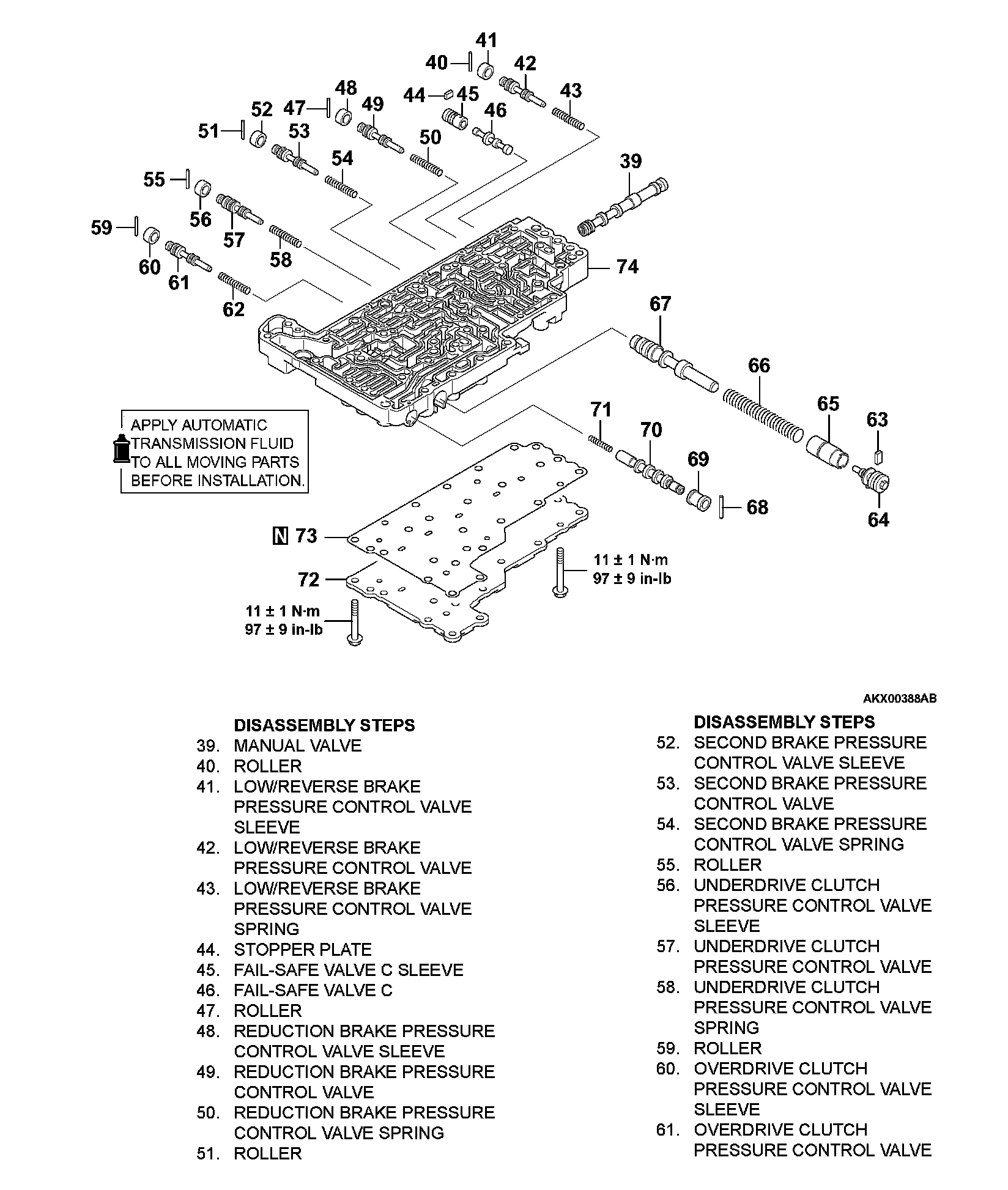

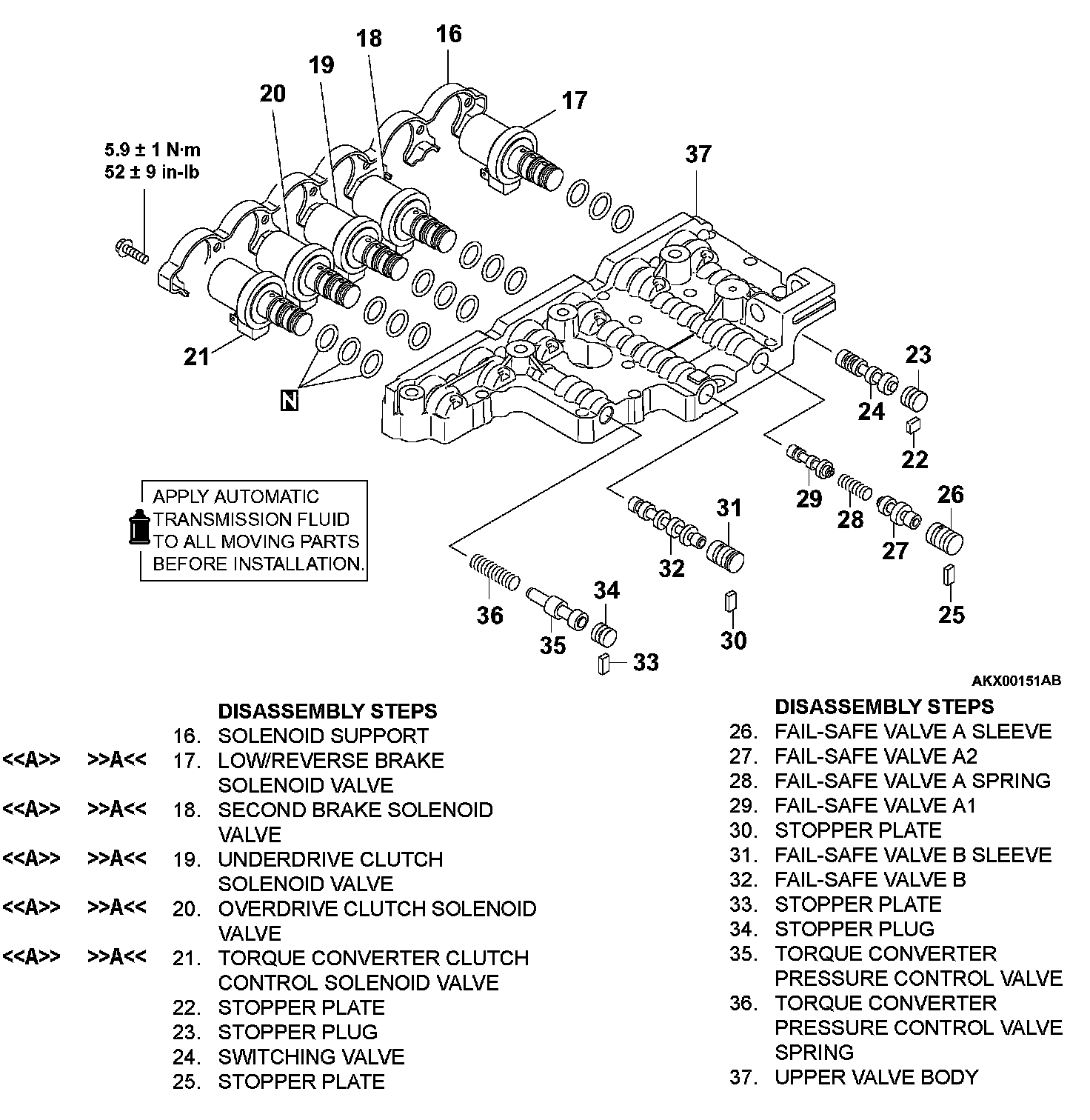

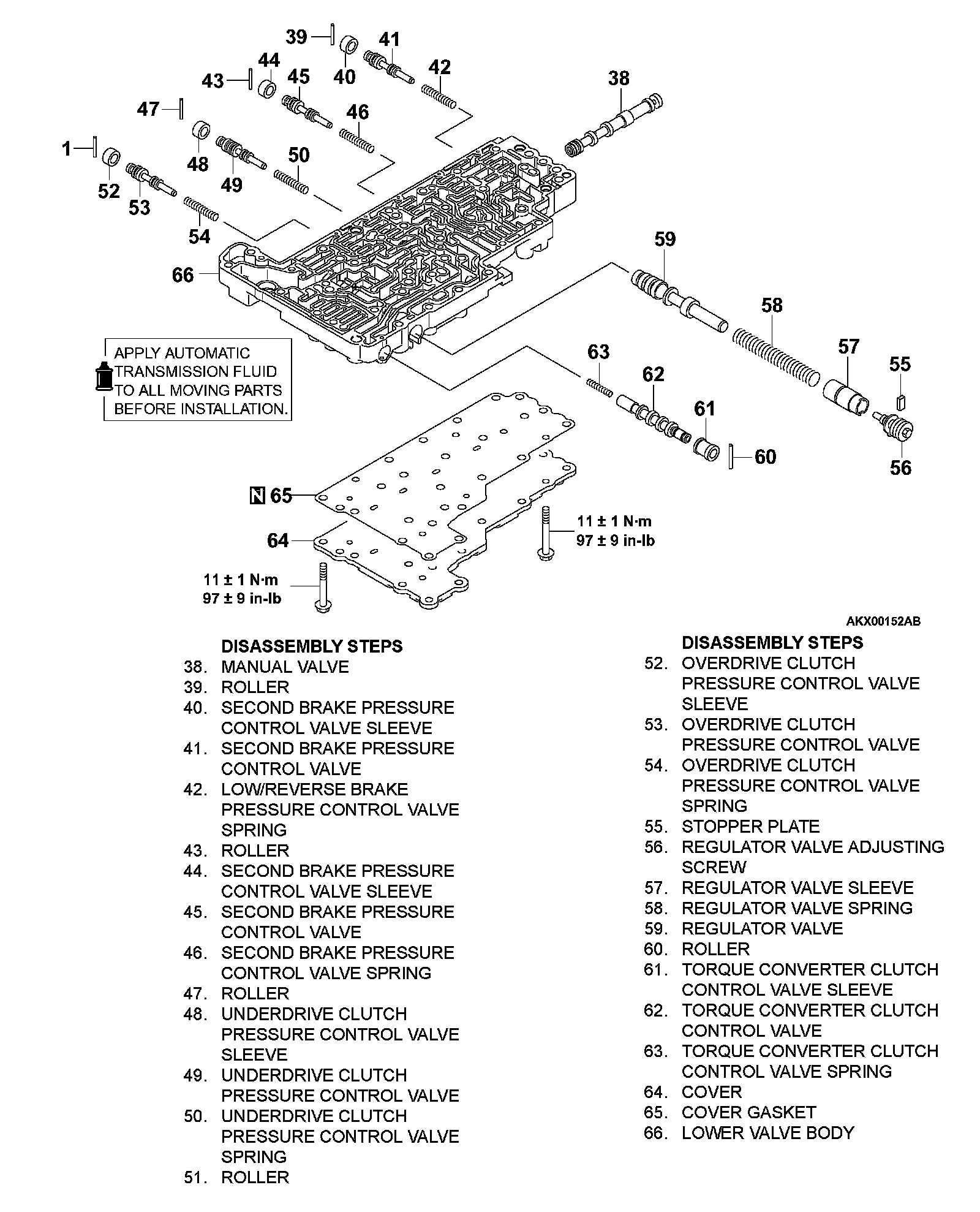

VALVE BODY OVERHAUL W/ RELATED COMPONENTS

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:







Part 1 Of 4:




Part 2 Of 4:




Part 3 Of 4:




Part 4 Of 4:
