Firewall

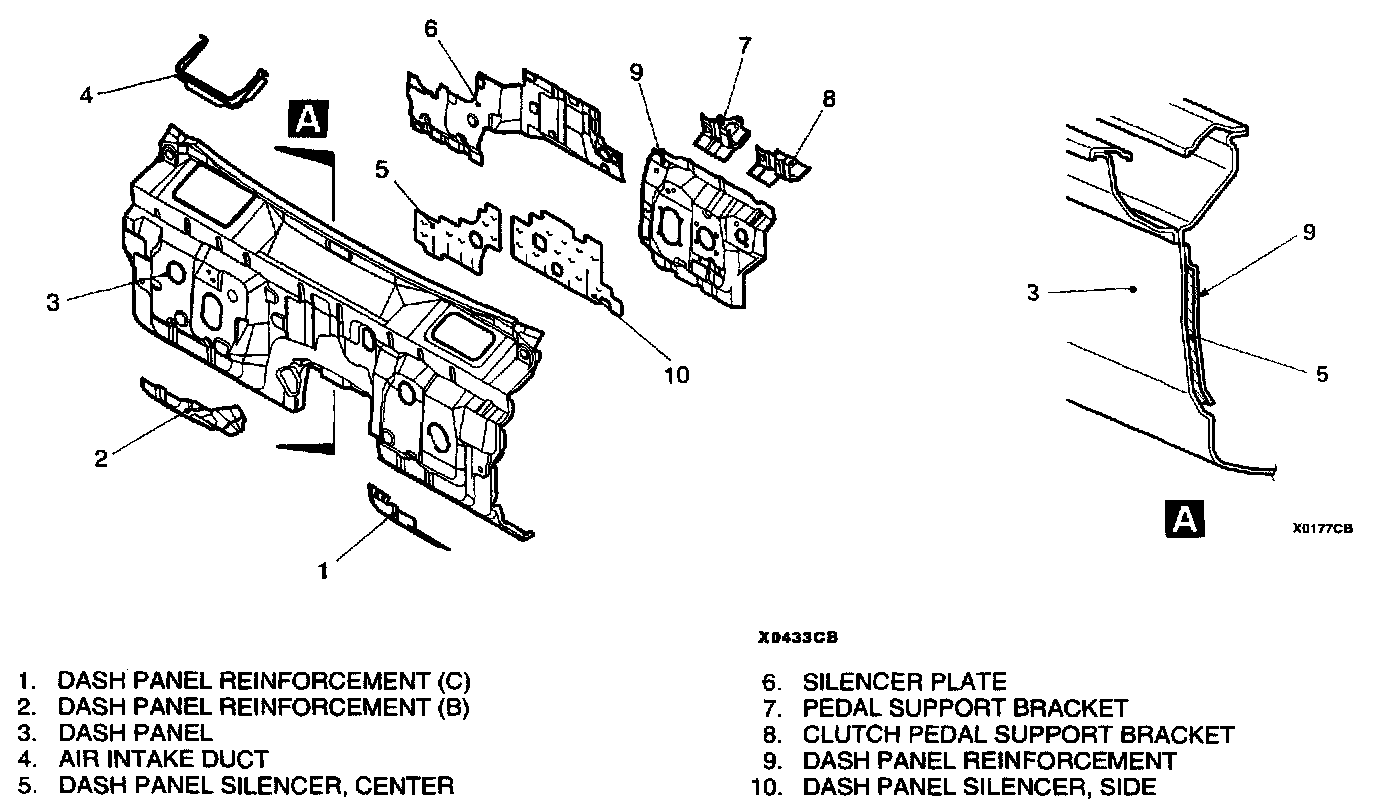

DASH PANEL
A steel plate-type vibration damper (consisting of panels with silencer material inside) has been added to the dash panel to improve vibration damping and soundproofing.
