Compressor Assembly

AIR CONDITIONING COMPRESSOR CLUTCH OPERATION INSPECTION

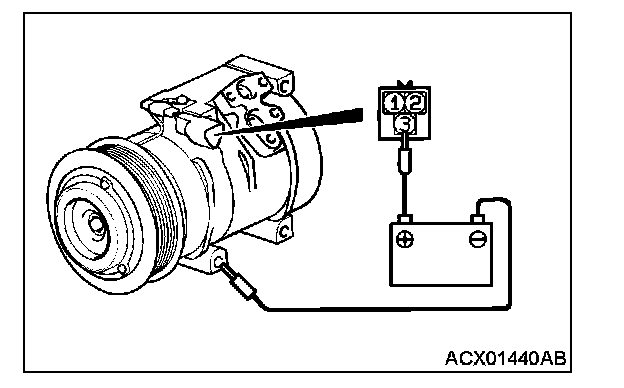

Connect the positive battery terminal to the air conditioning compressor clutch connector terminal 3, and ground the negative battery terminal to the body of the compressor. The condition is normal if the sound of the magnetic clutch (click) can be heard.
