EATCS-ECU

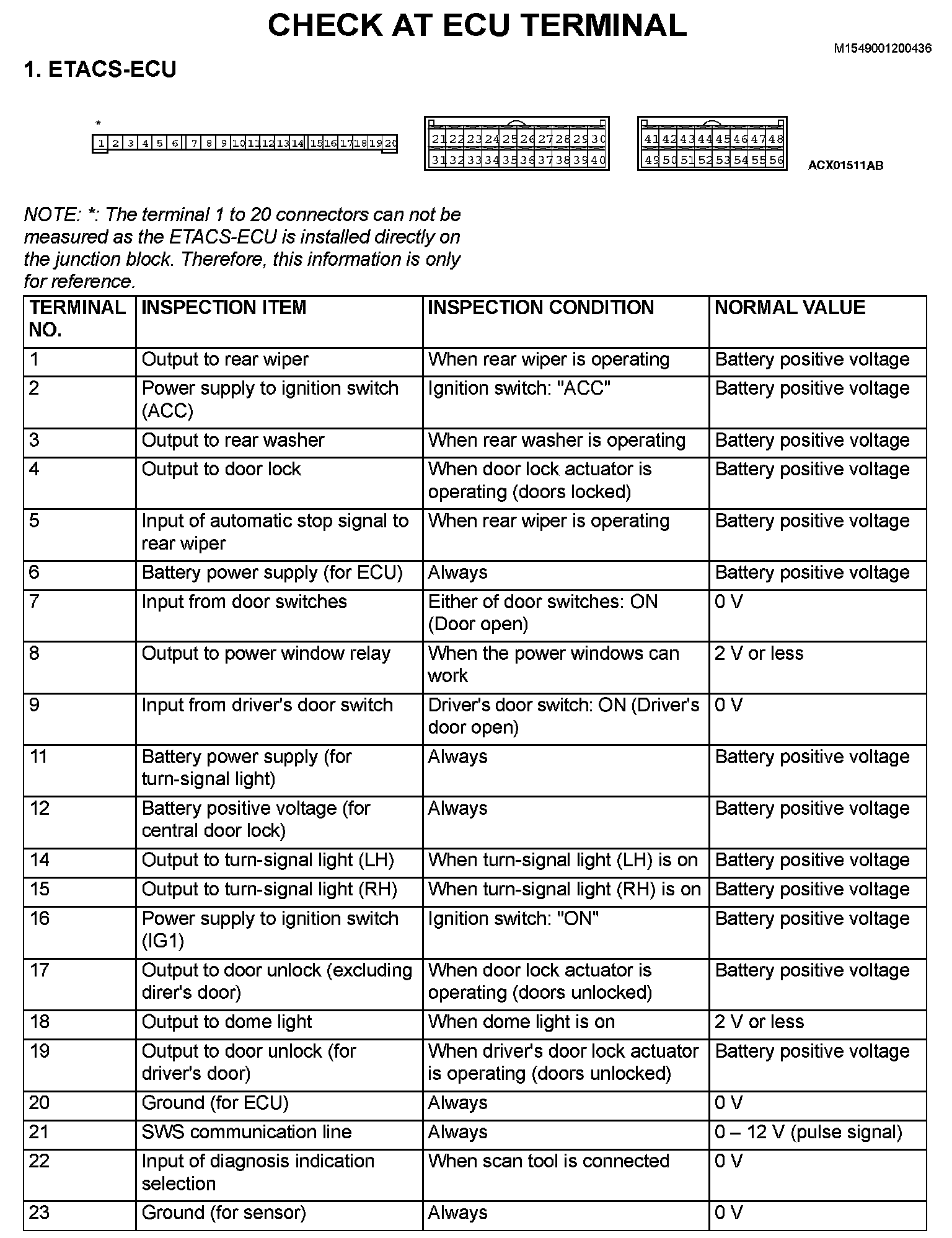

Check At ECU Terminal (ETACS-ECU) Part 1:

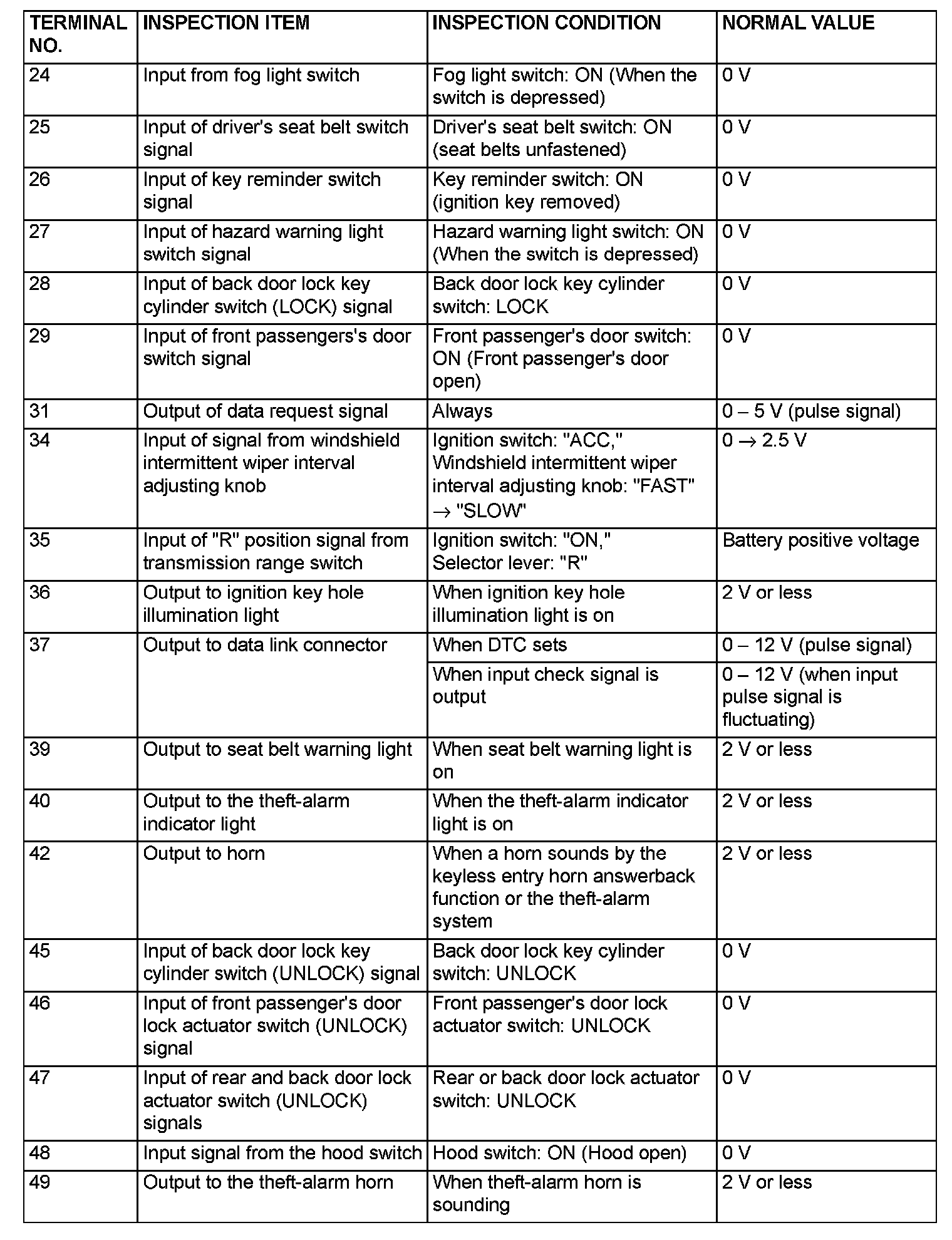

Check At ECU Terminal (ETACS-ECU) Part 2:

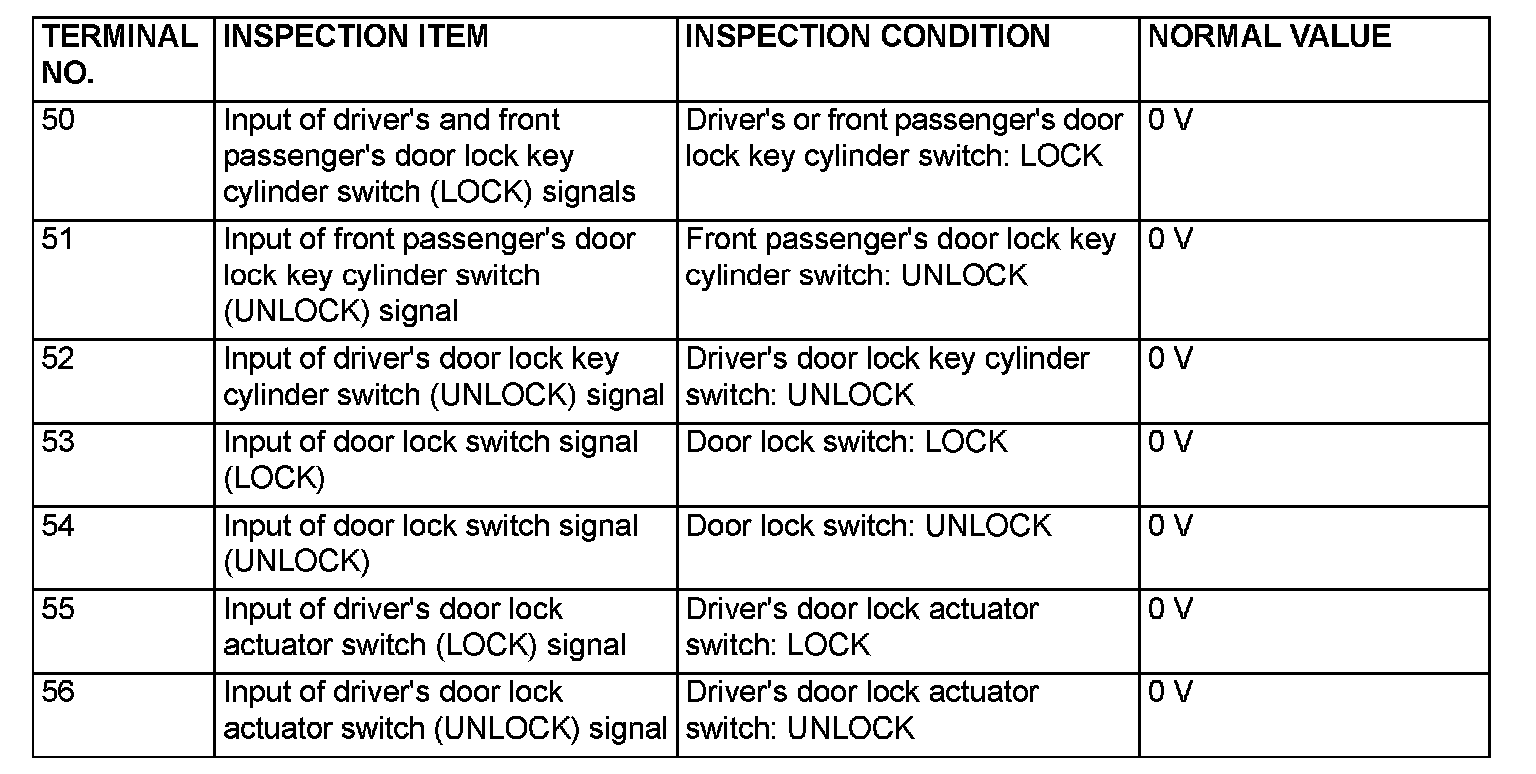

Check At ECU Terminal (ETACS-ECU) Part 3:
