Scan Tool Testing and Procedures

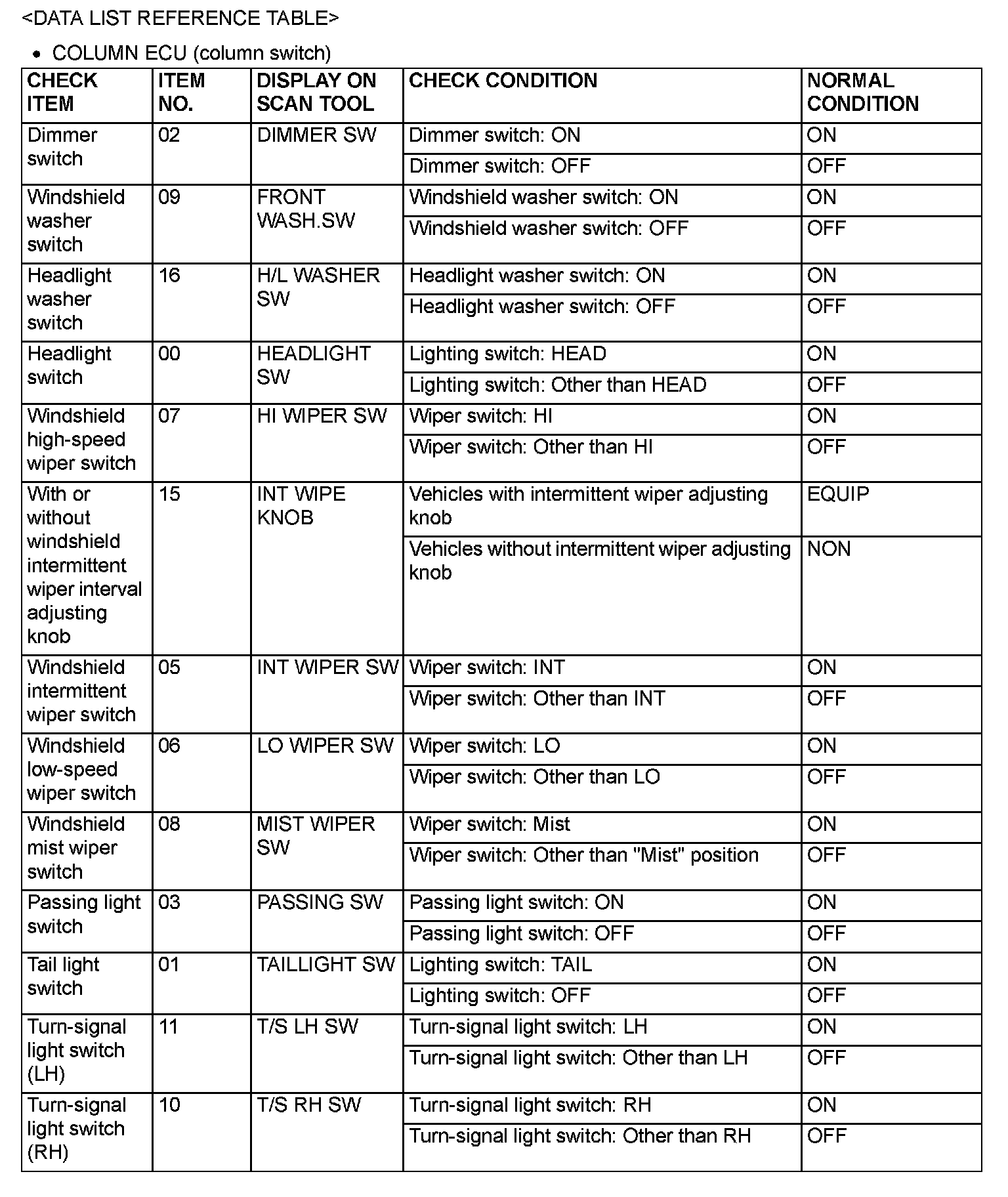

COLUMN ECU (column switch)

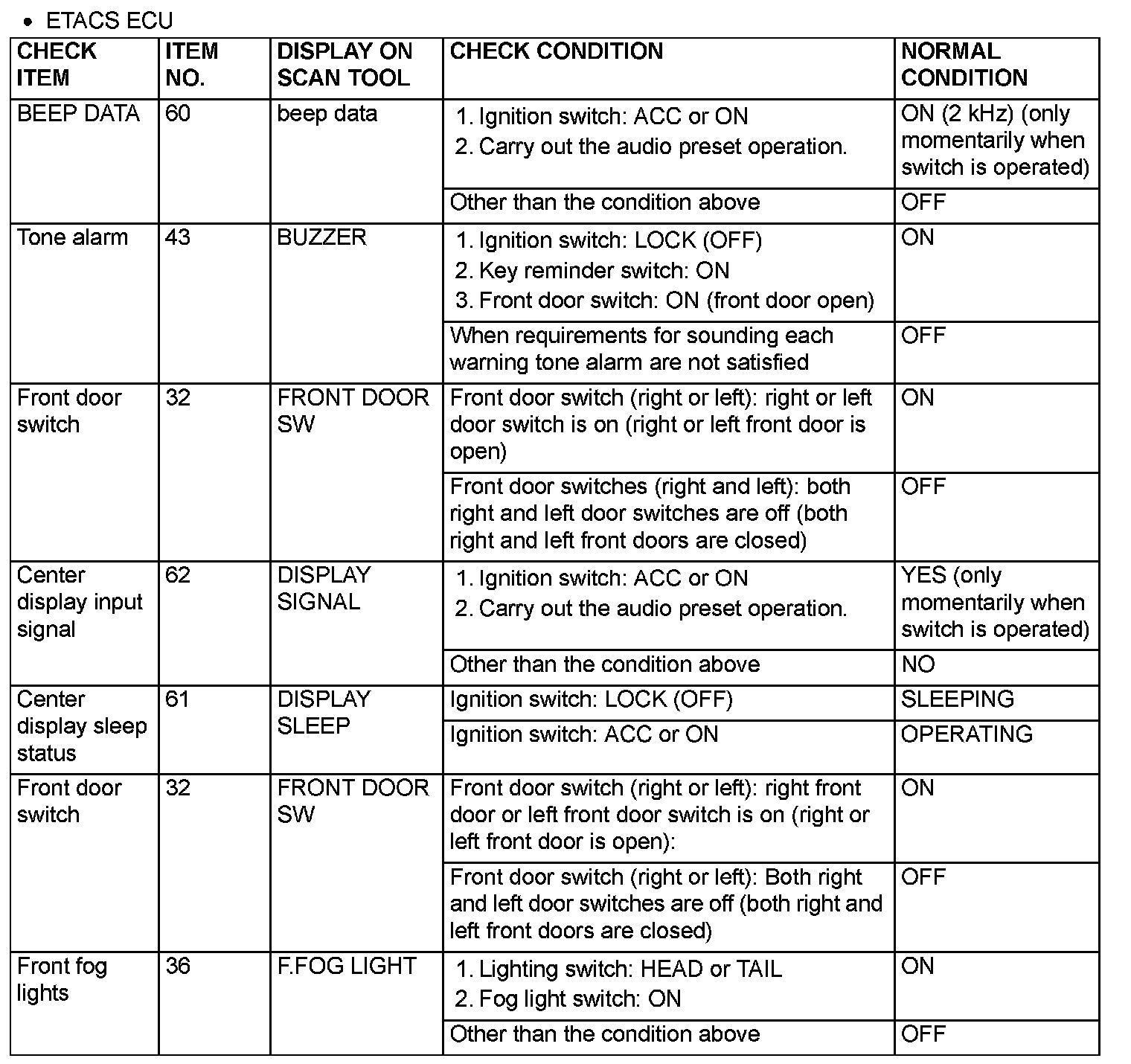

ETACS ECU

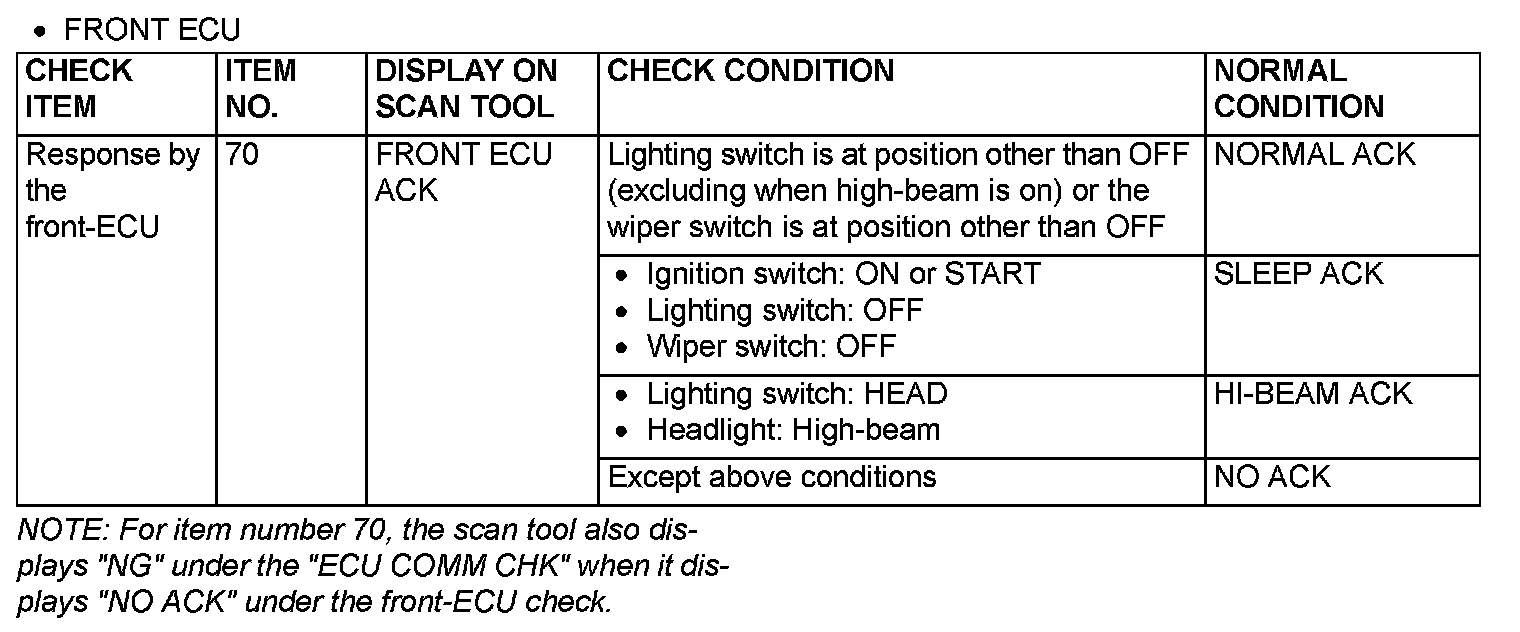

FRONT ECU

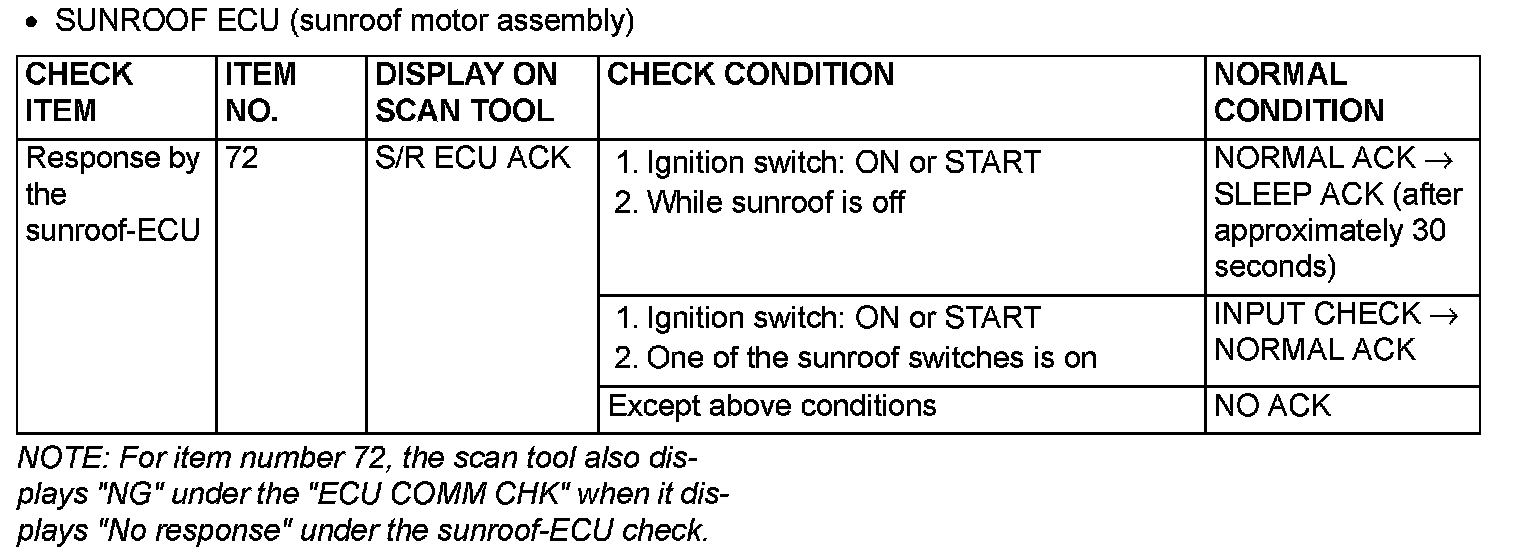

SUNROOF ECU (sunroof motor assembly)

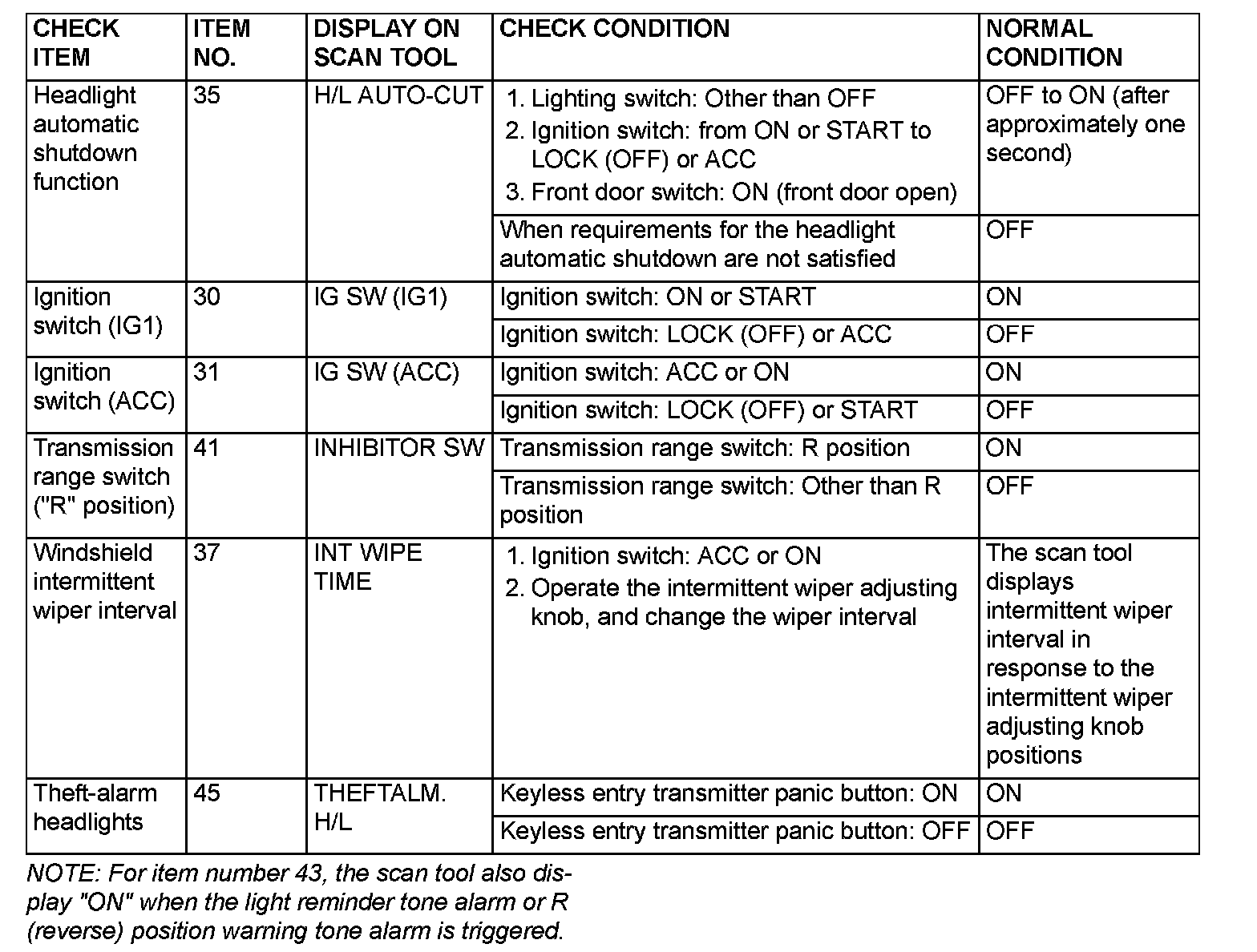

The table shows the service data and their normal condition, which are displayed during the "FUNCTION DIAG." The row "Normal condition" shows values, which are shown when each operation is made.

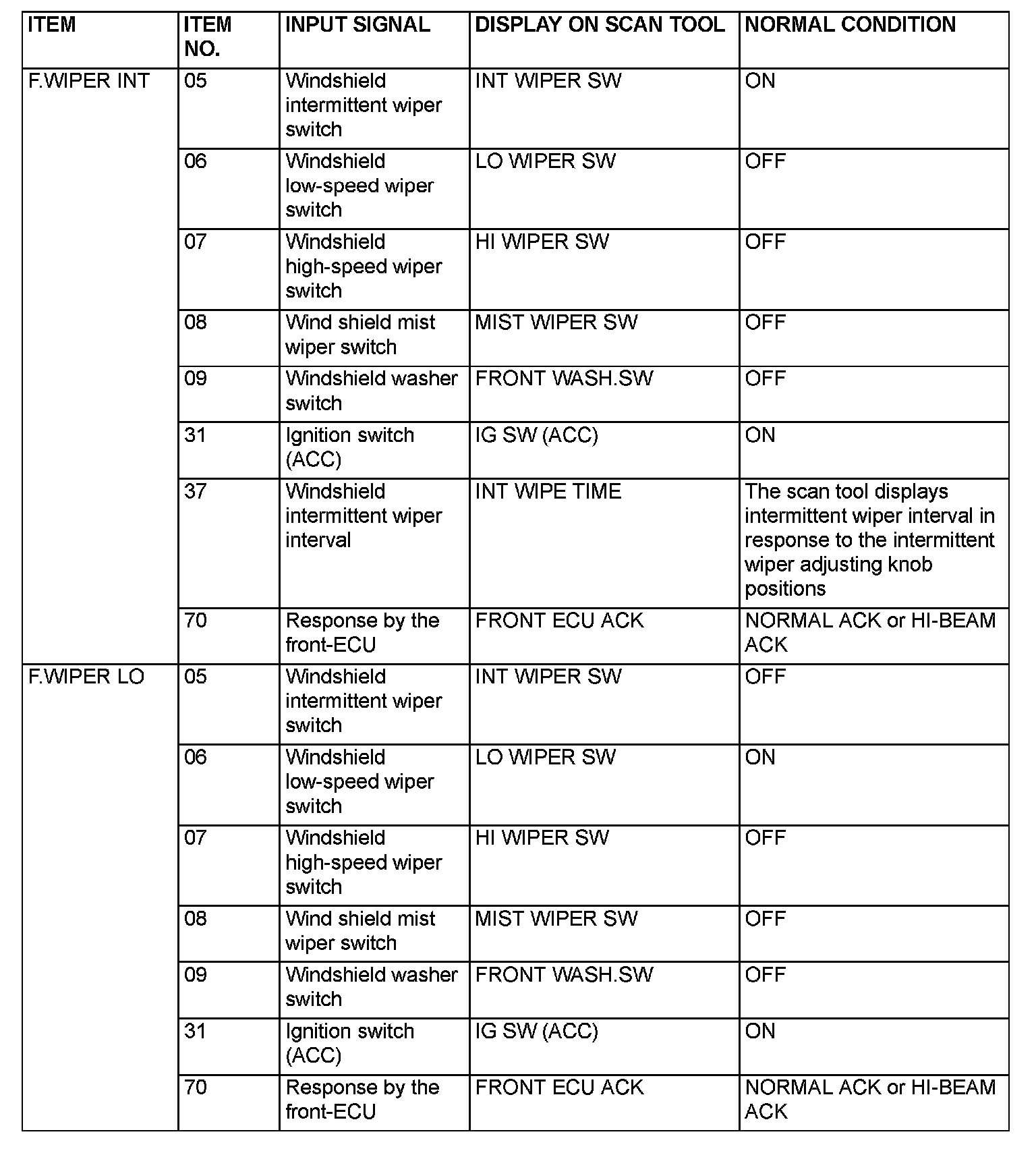

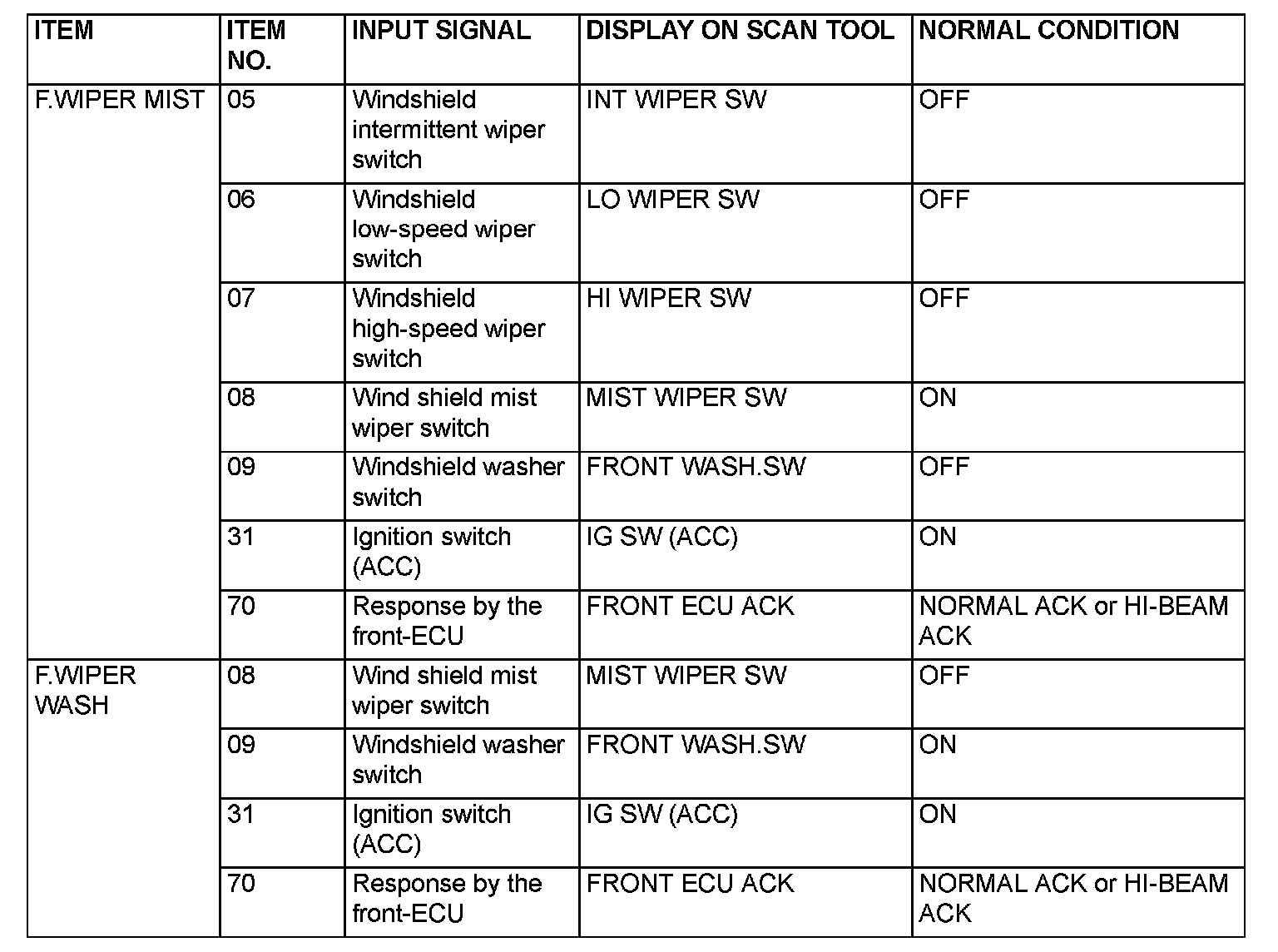

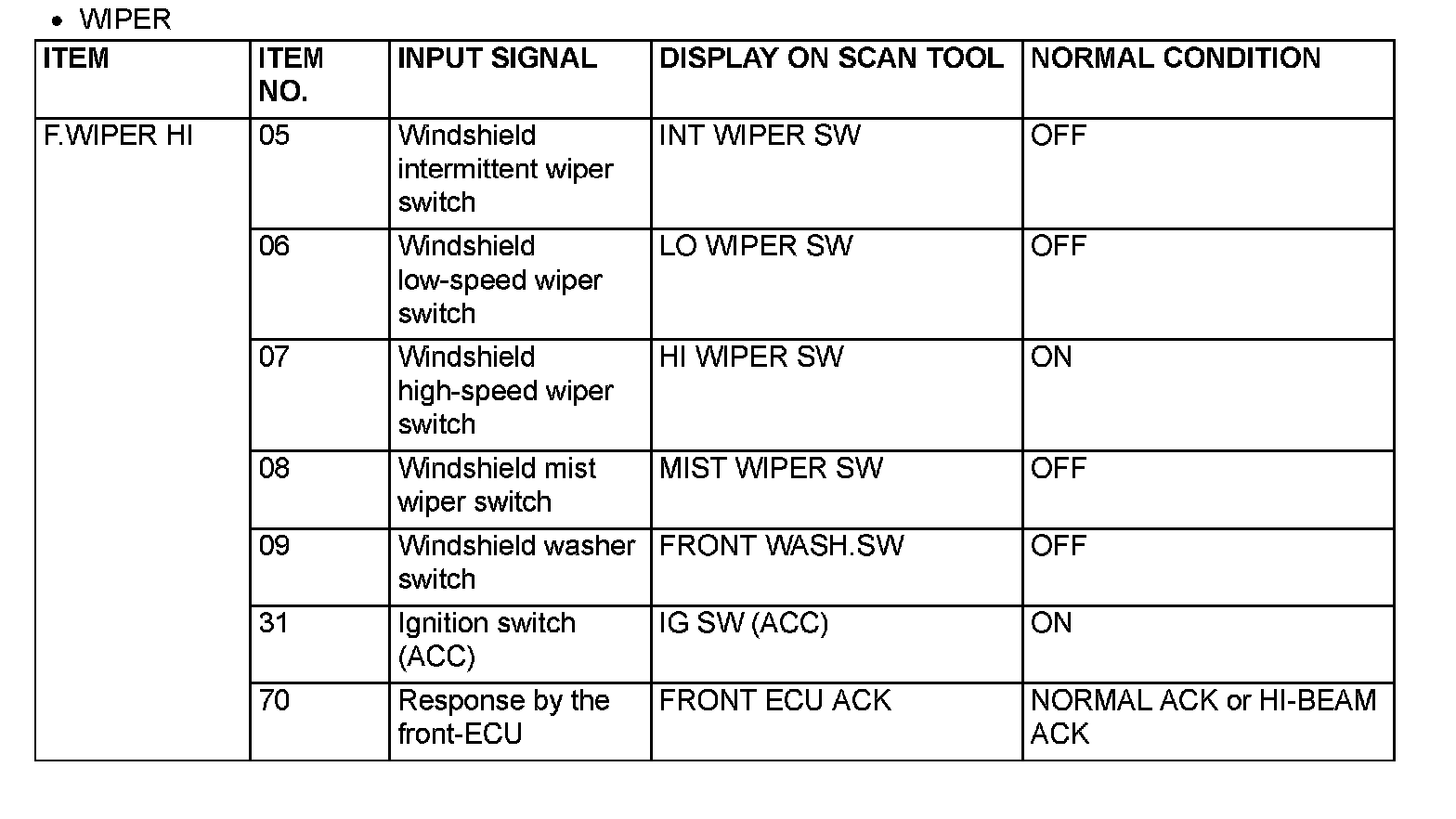

WIPER

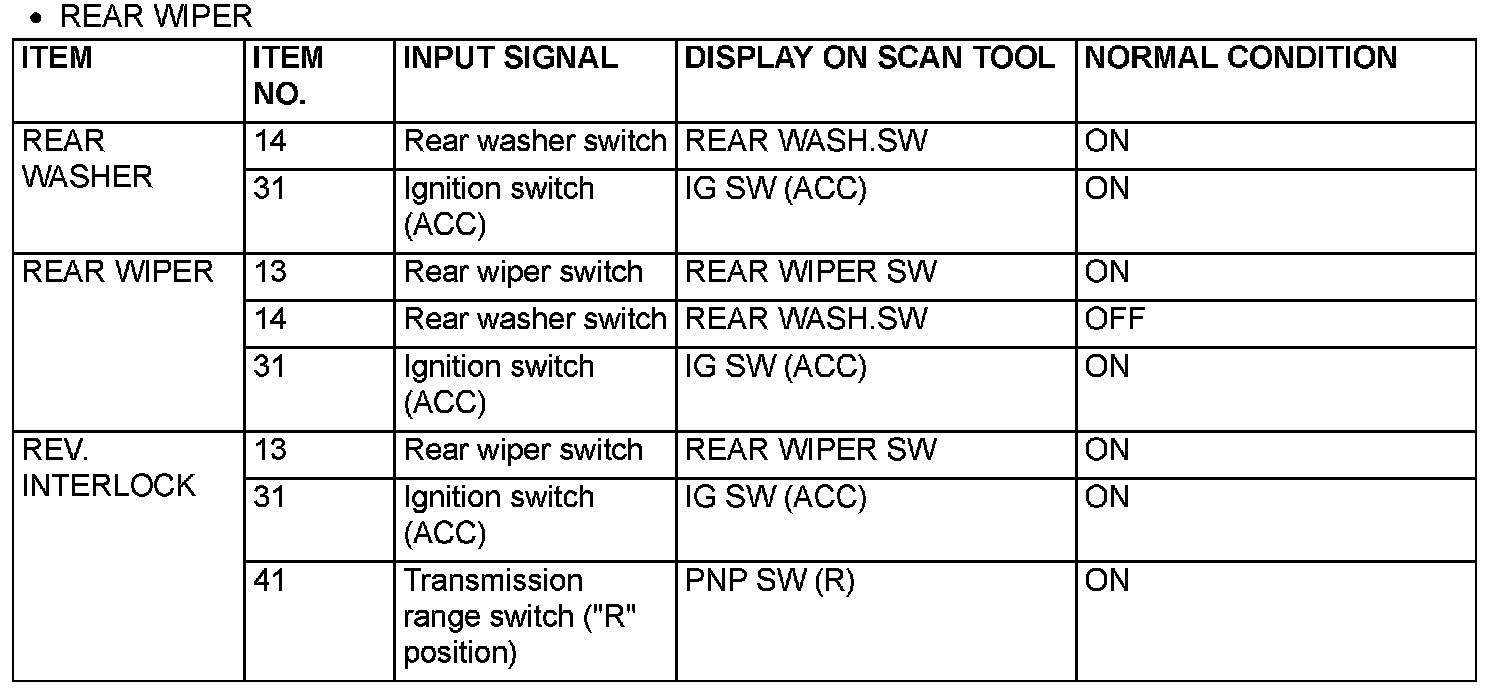

REAR WIPER

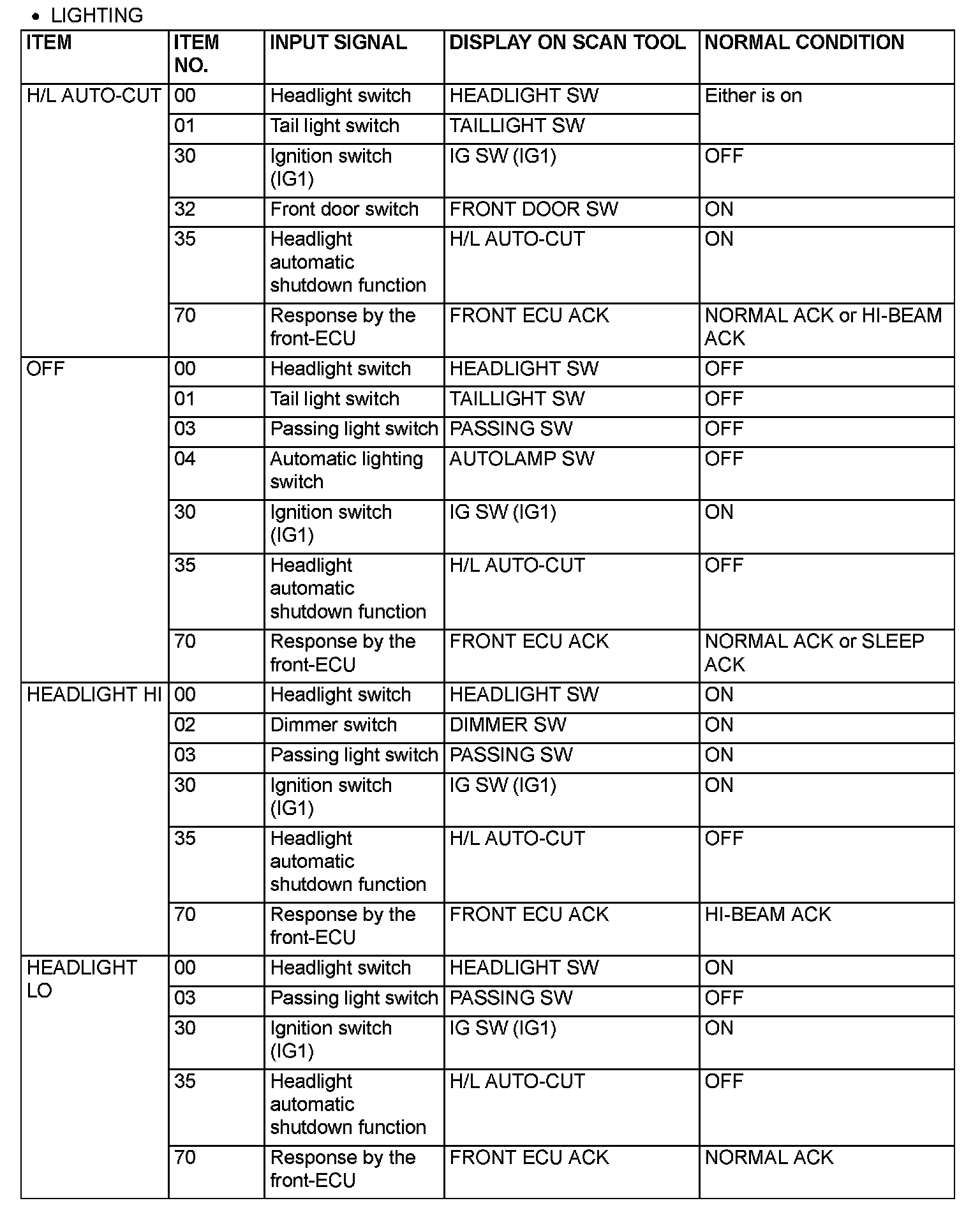

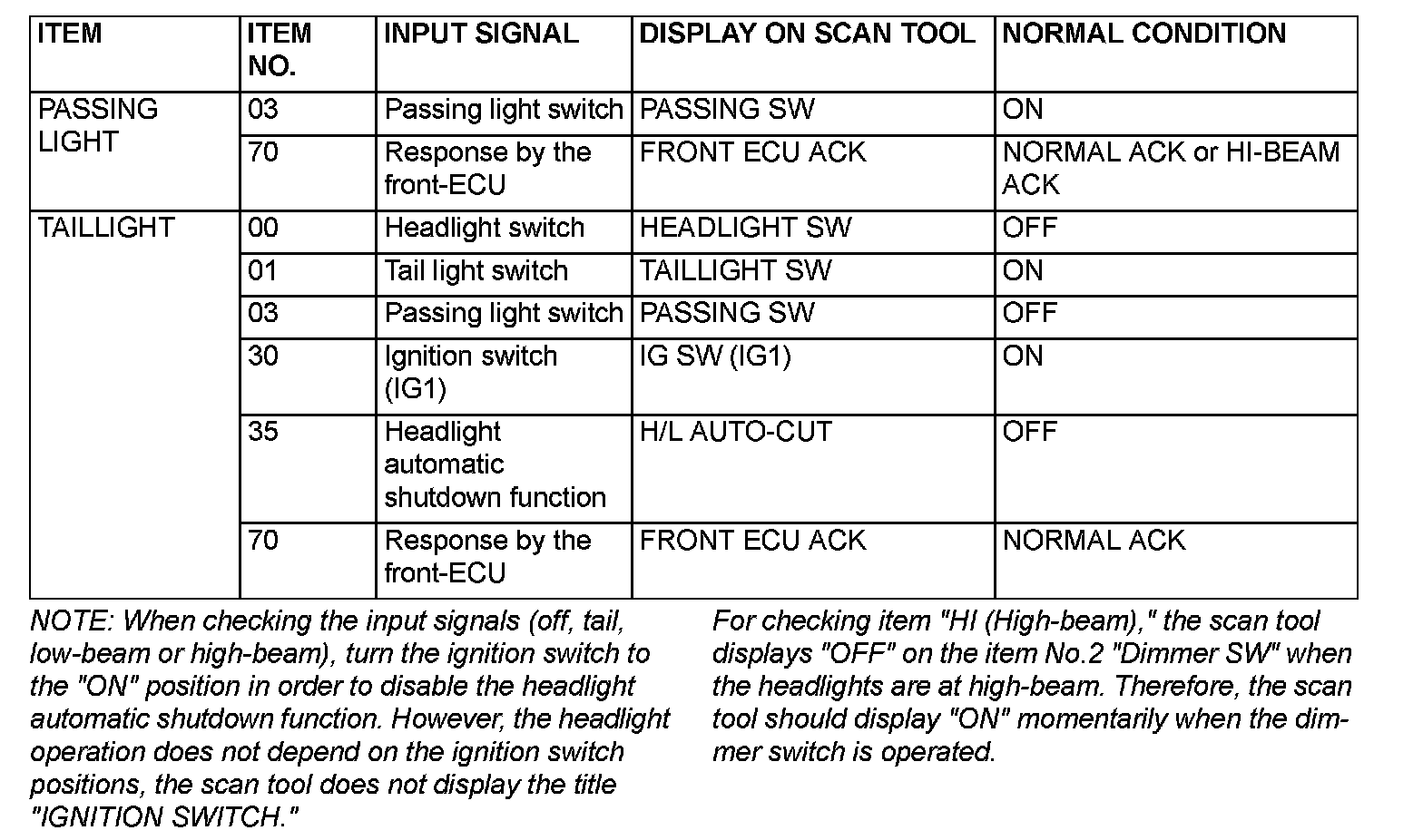

LIGHTING

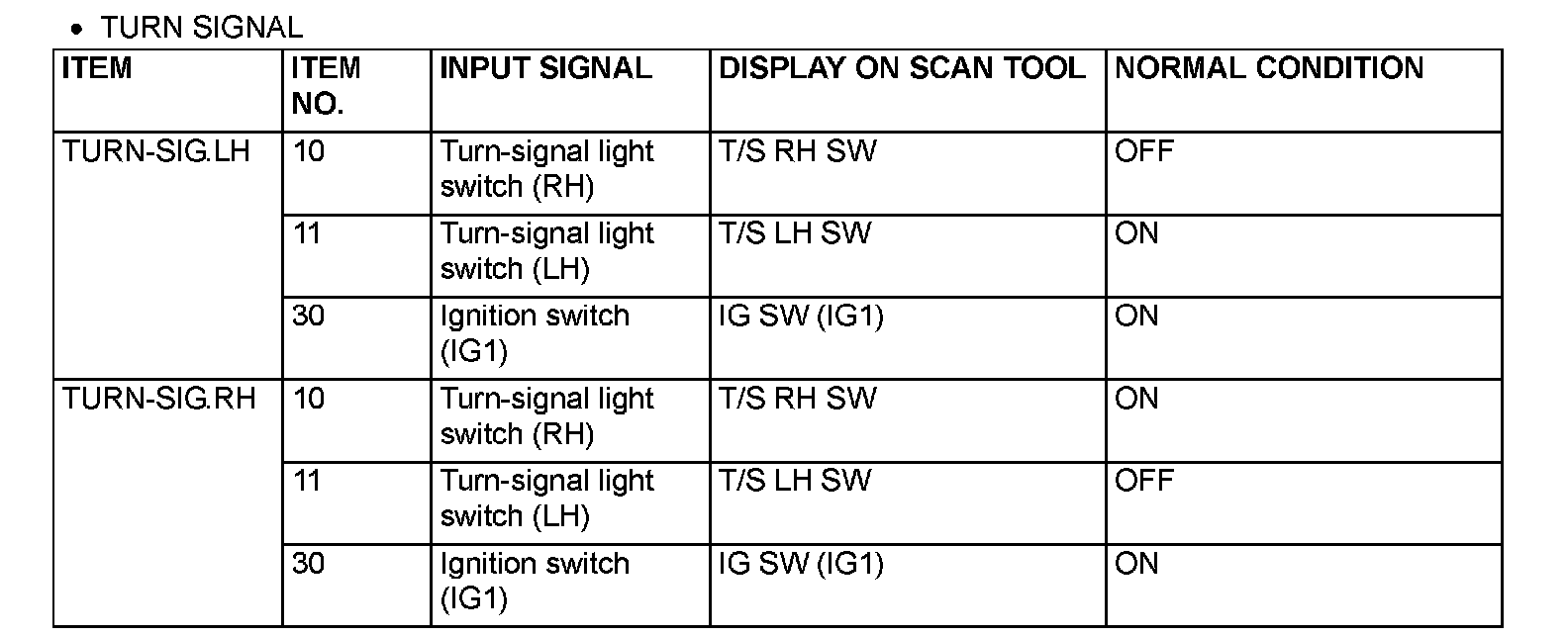

TURN SIGNAL

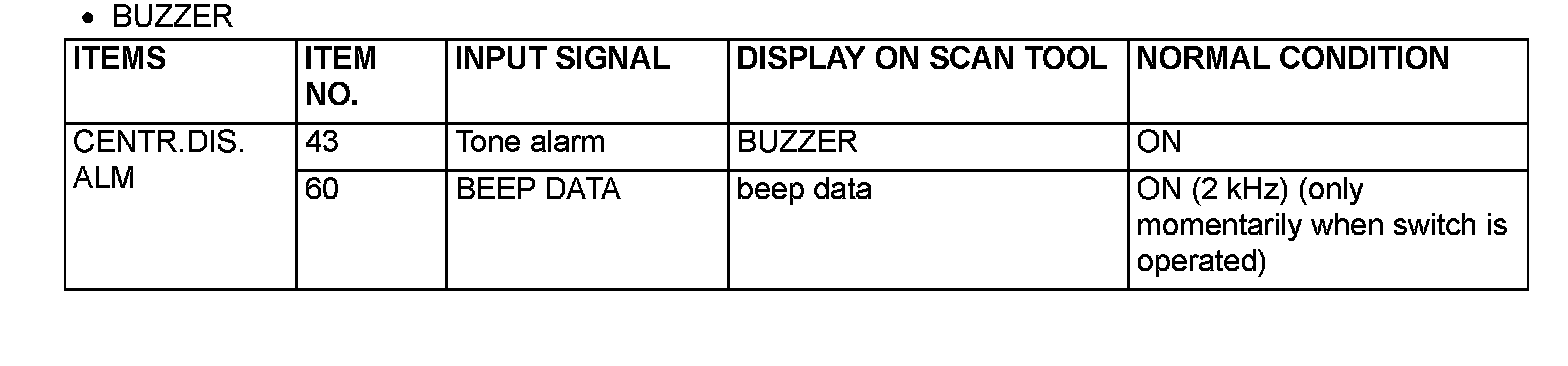

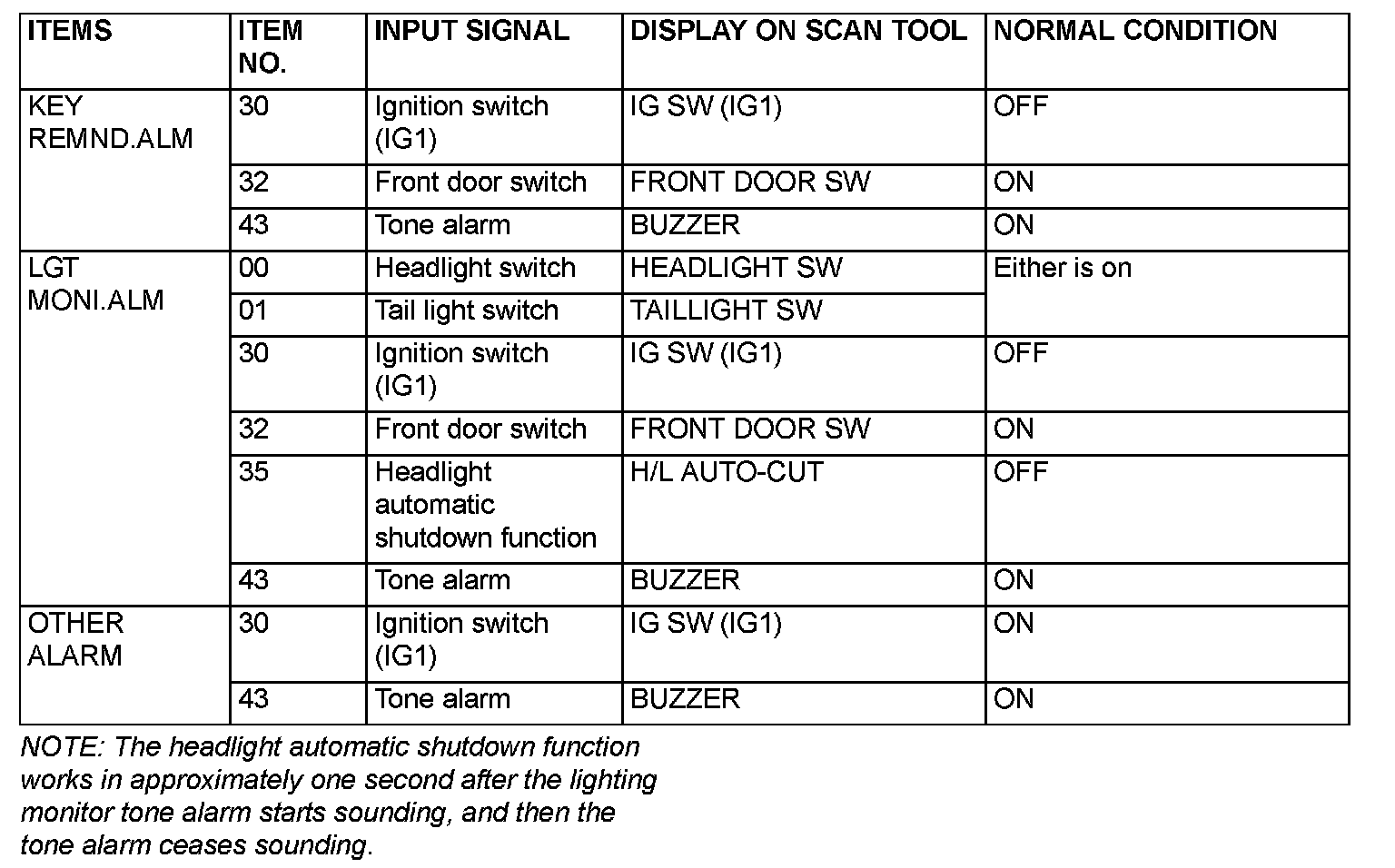

BUZZER

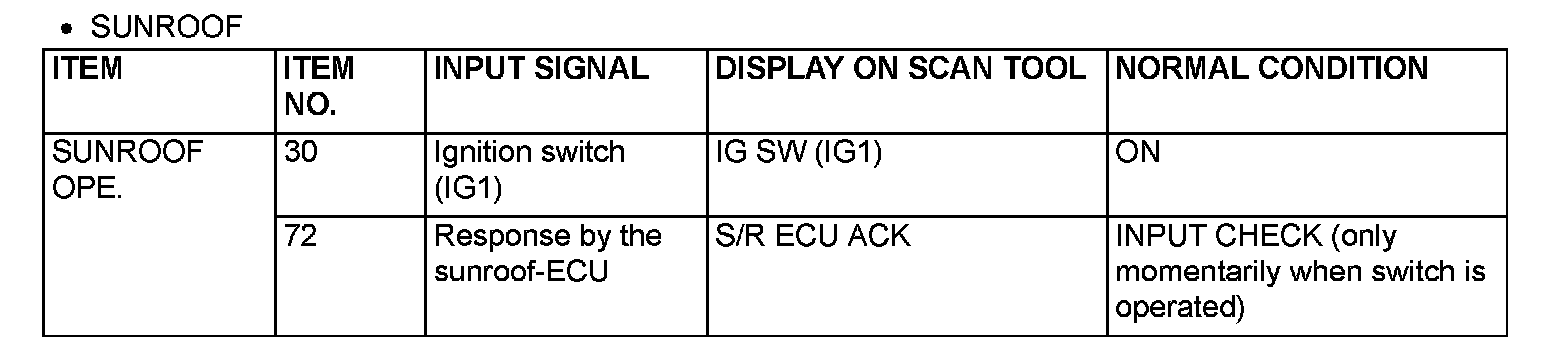

SUNROOF

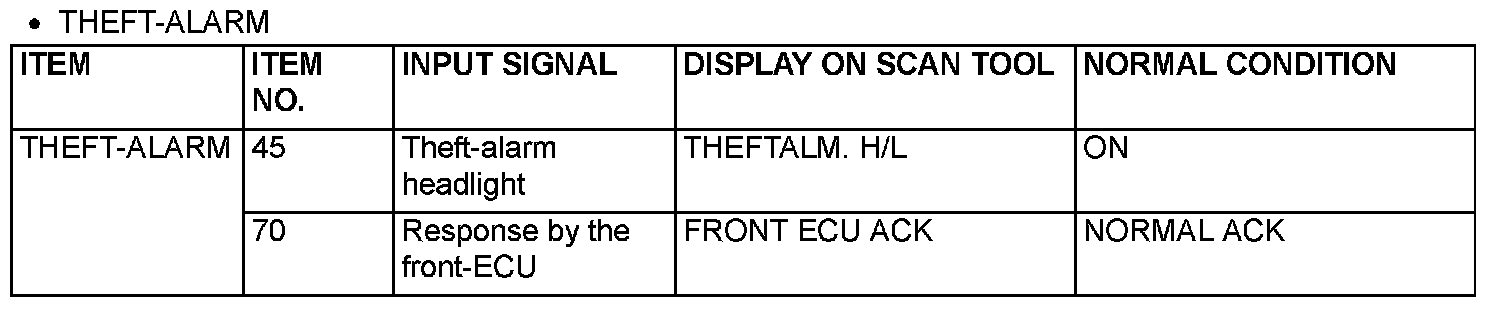

THEFT-ALARM
