Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2004
>>
Montero V6-3.8L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Locations
>>
Component Locations
Component Locations

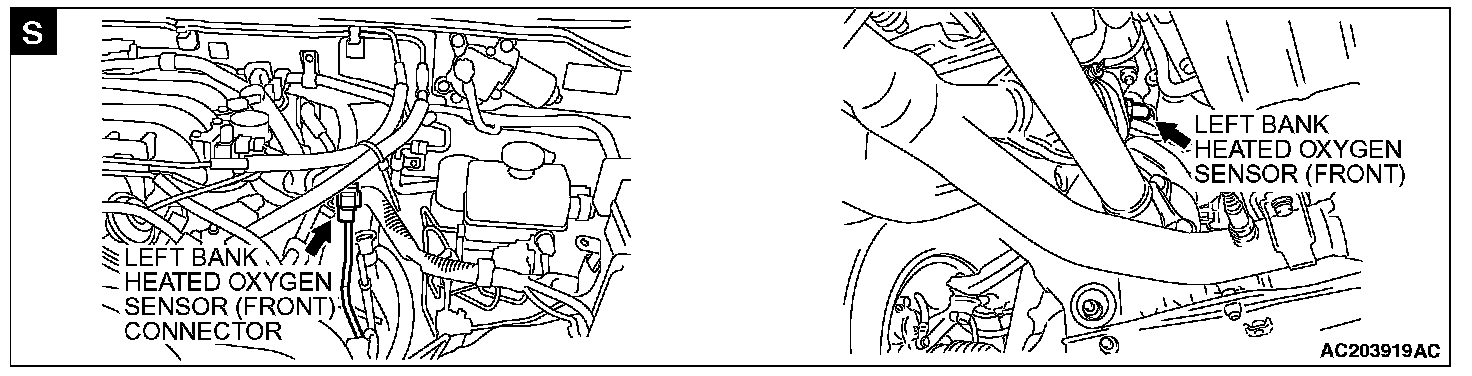

View S:
View S:

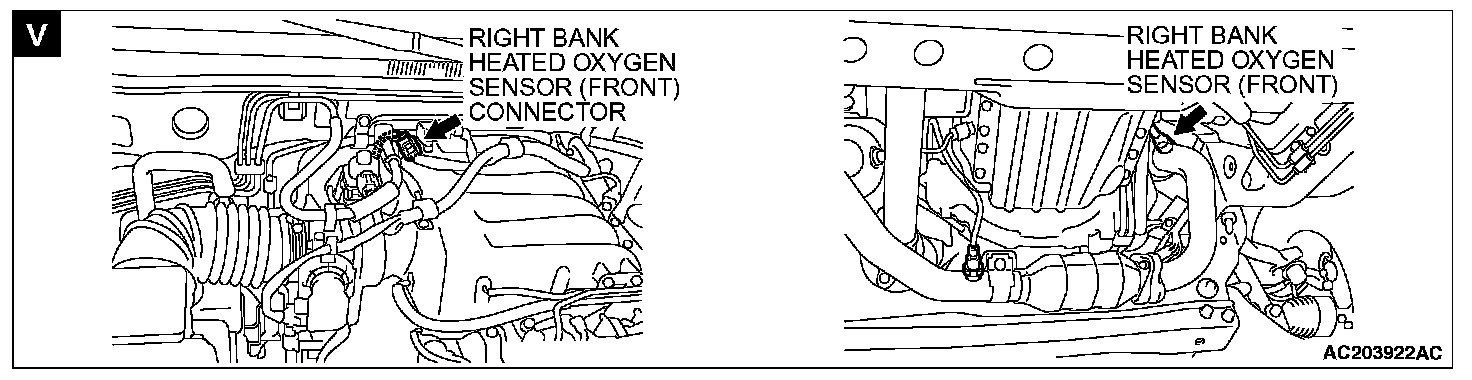

View V:

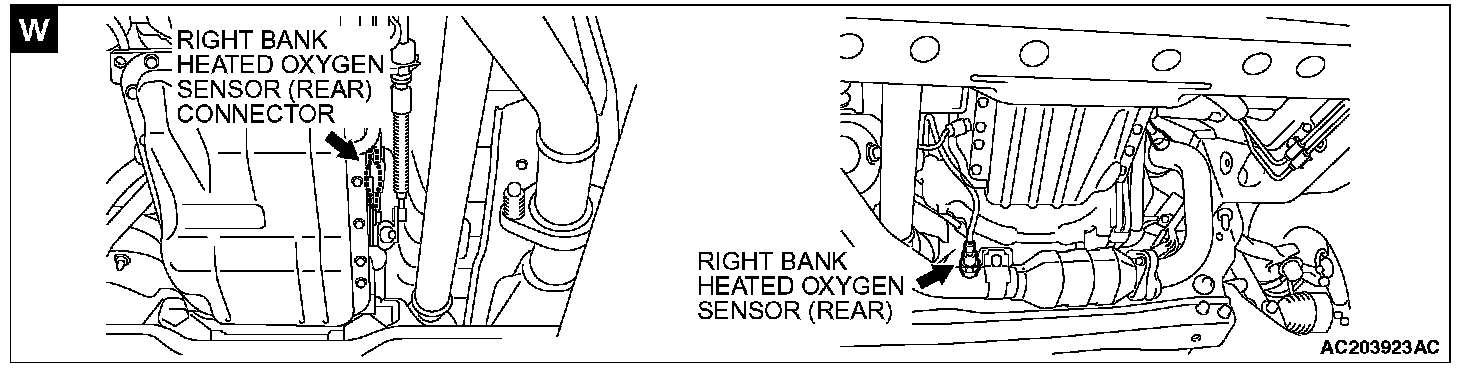

View W:
Overall View:
Overall View:
