Fail-Safe Function Reference Table

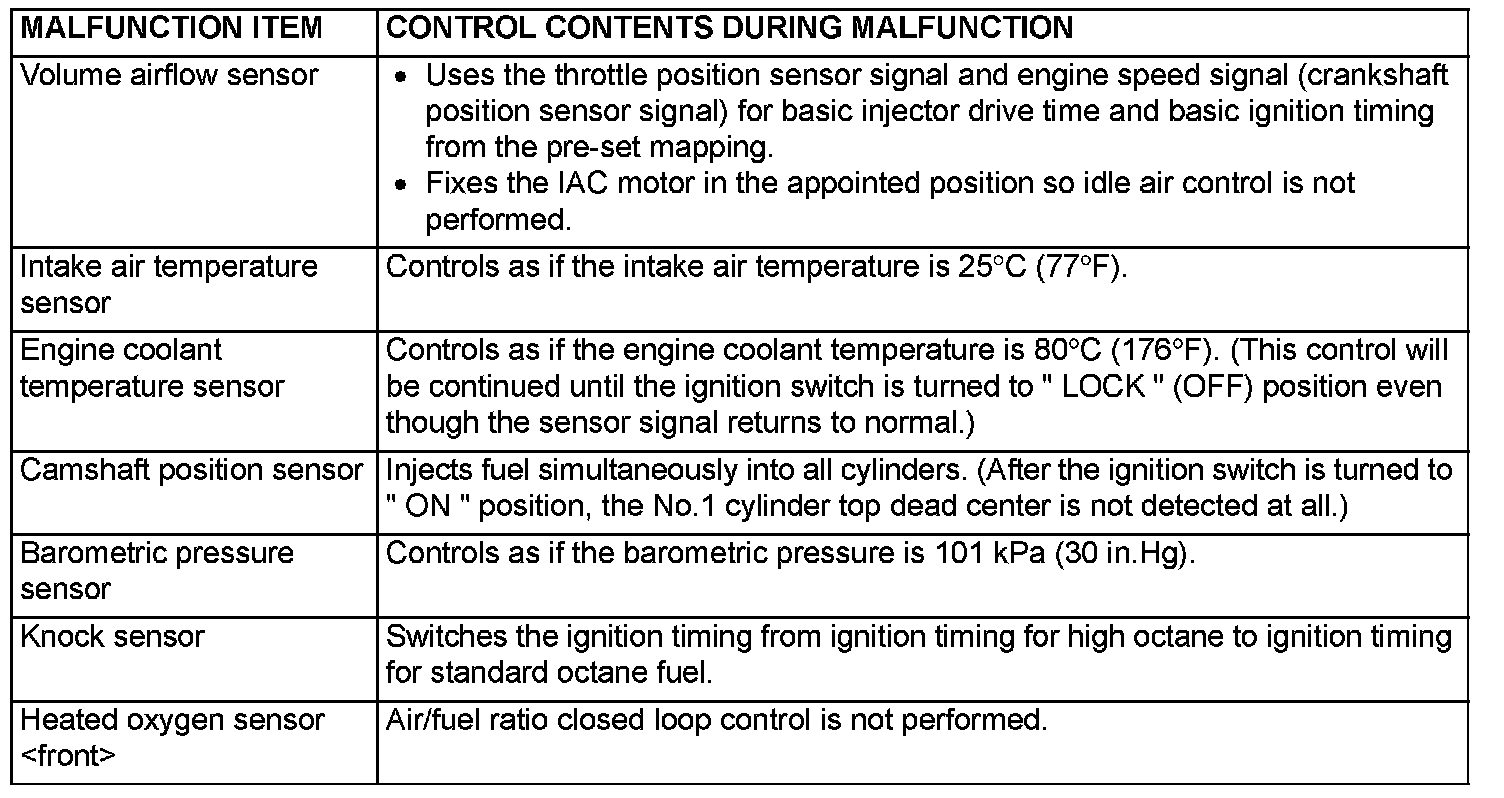

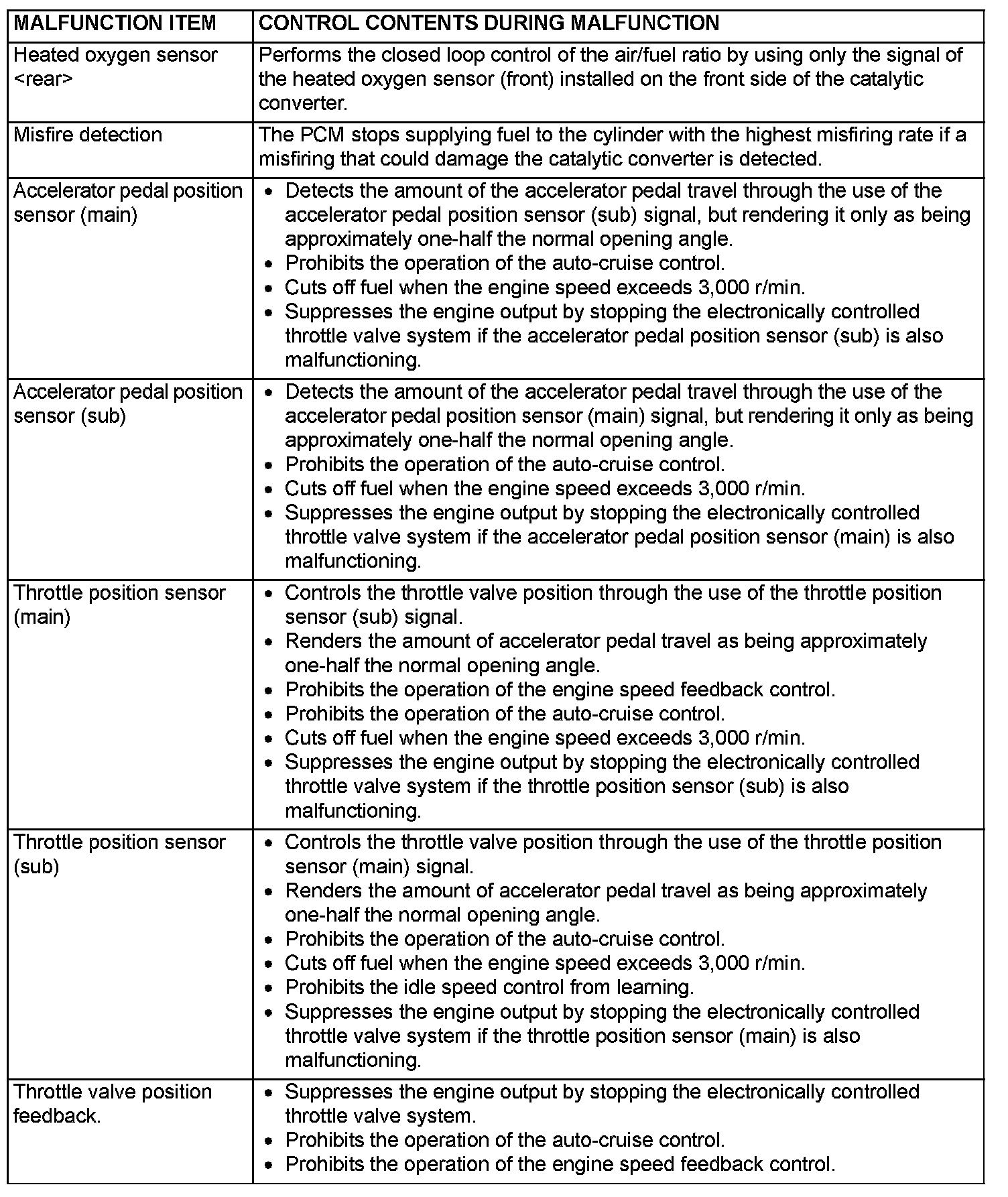

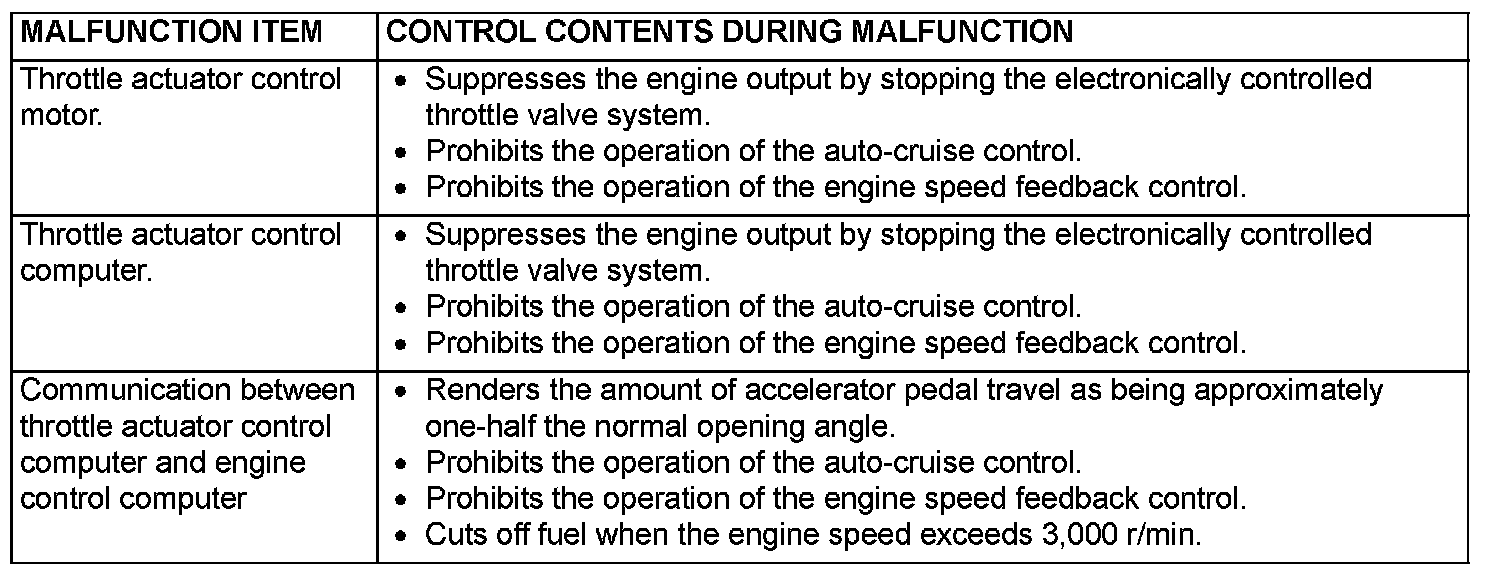

FAIL-SAFE FUNCTION REFERENCE TABLE

Part 1:

Part 2:

Part 3:

When the main sensor malfunctions are detected by the diagnostic test mode the vehicle is controlled by means of the given defaults.
