Data List Reference Table

Part 1:





Part 2:





Part 3:





Part 4:





Part 5:

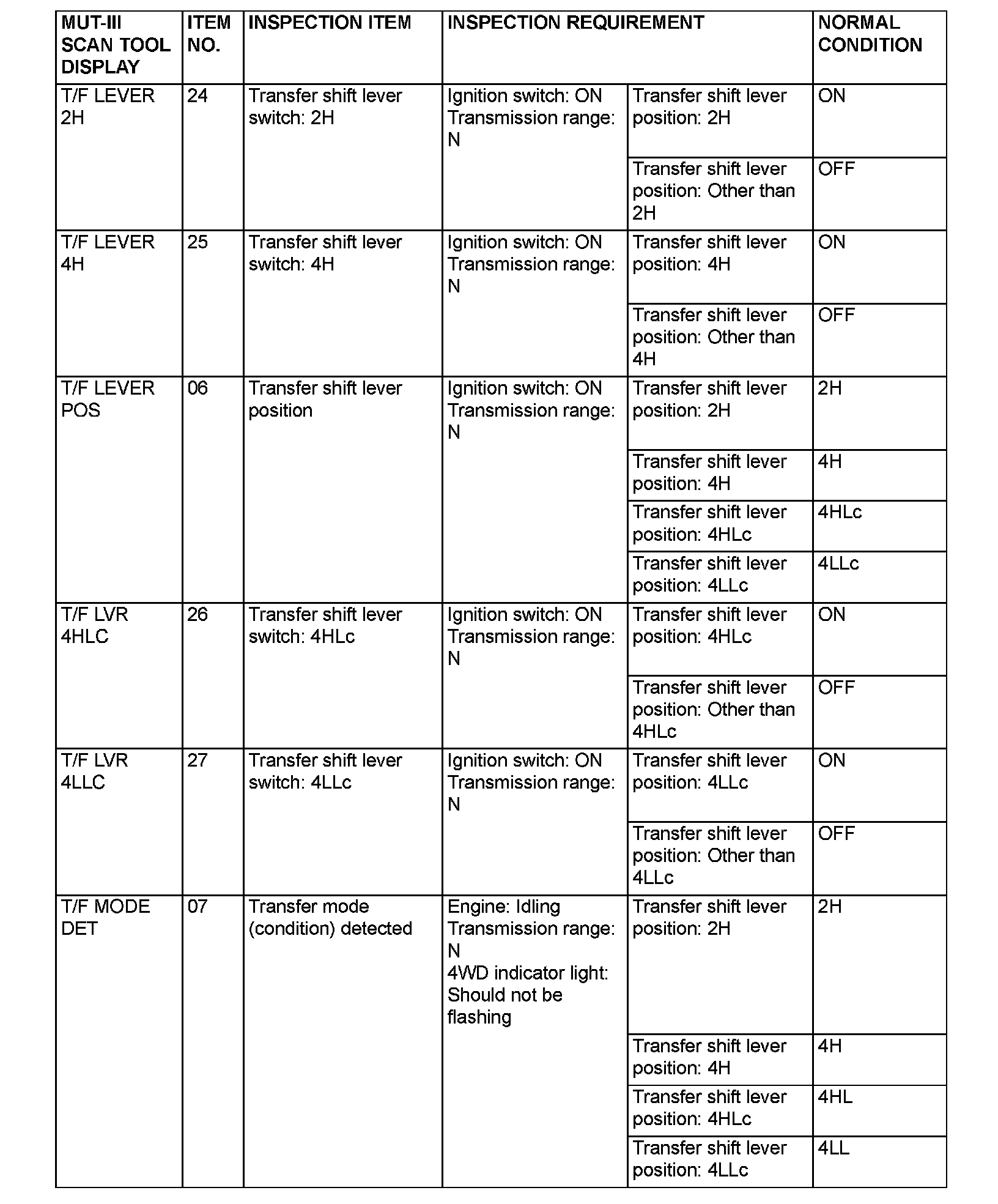

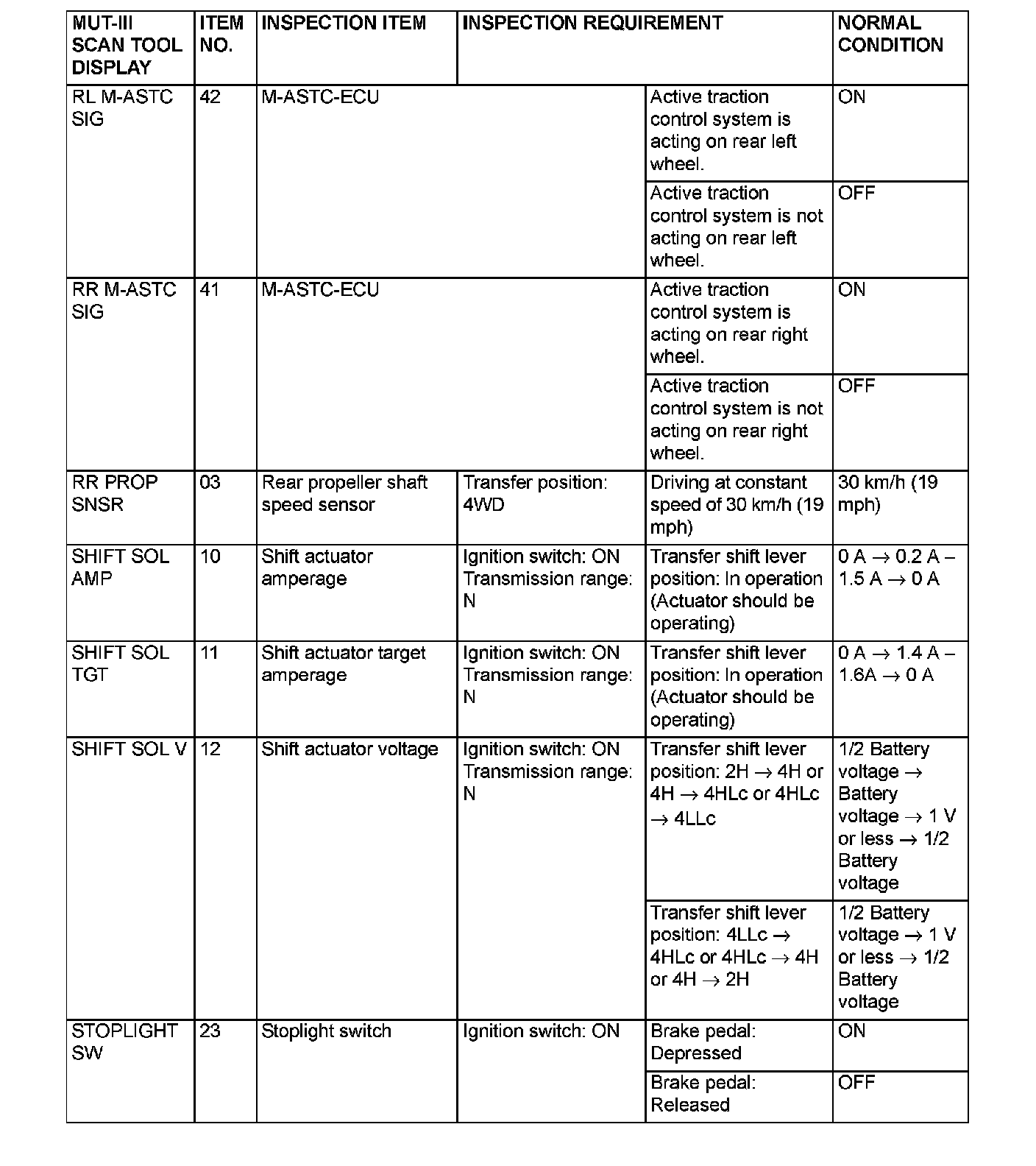

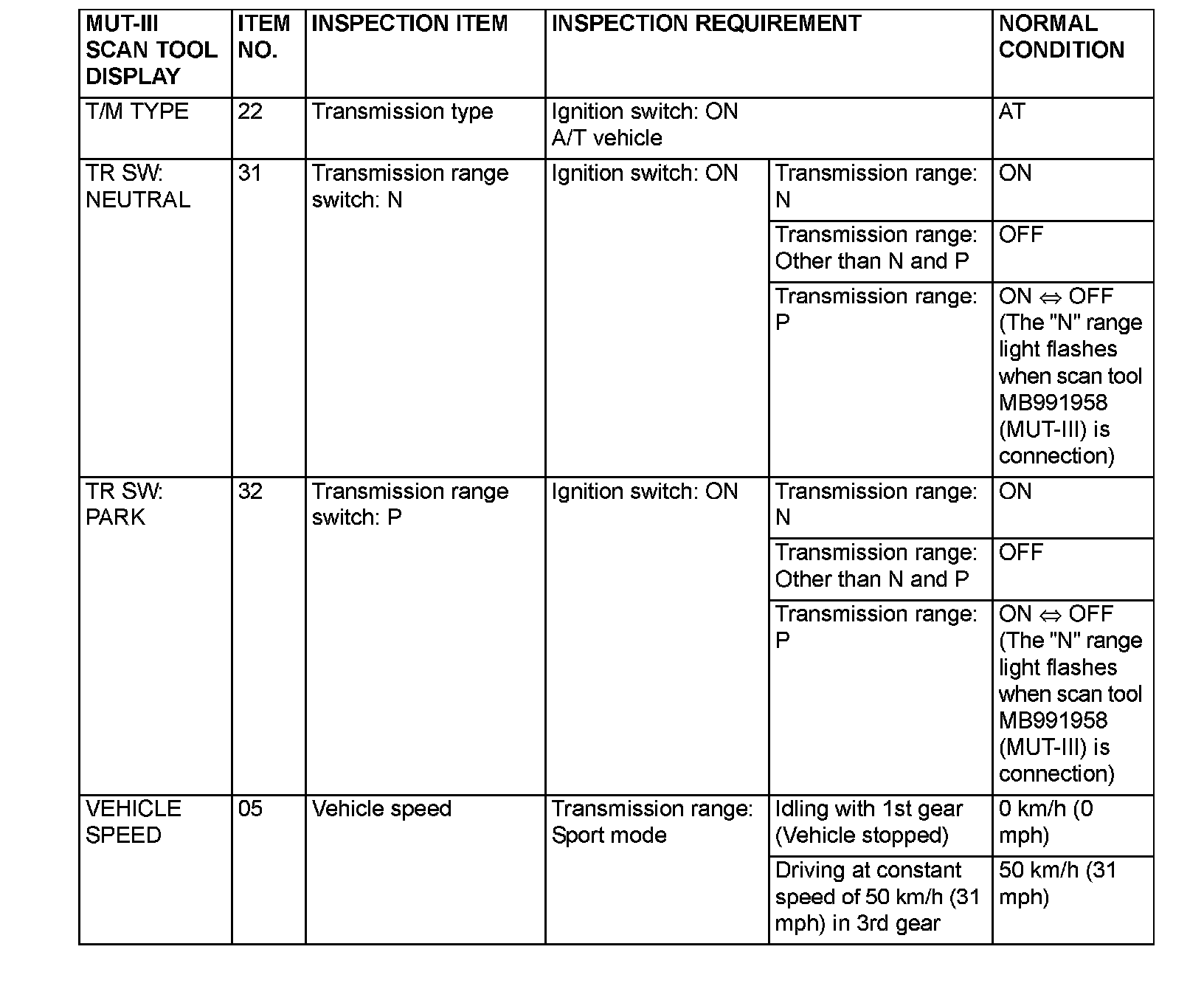

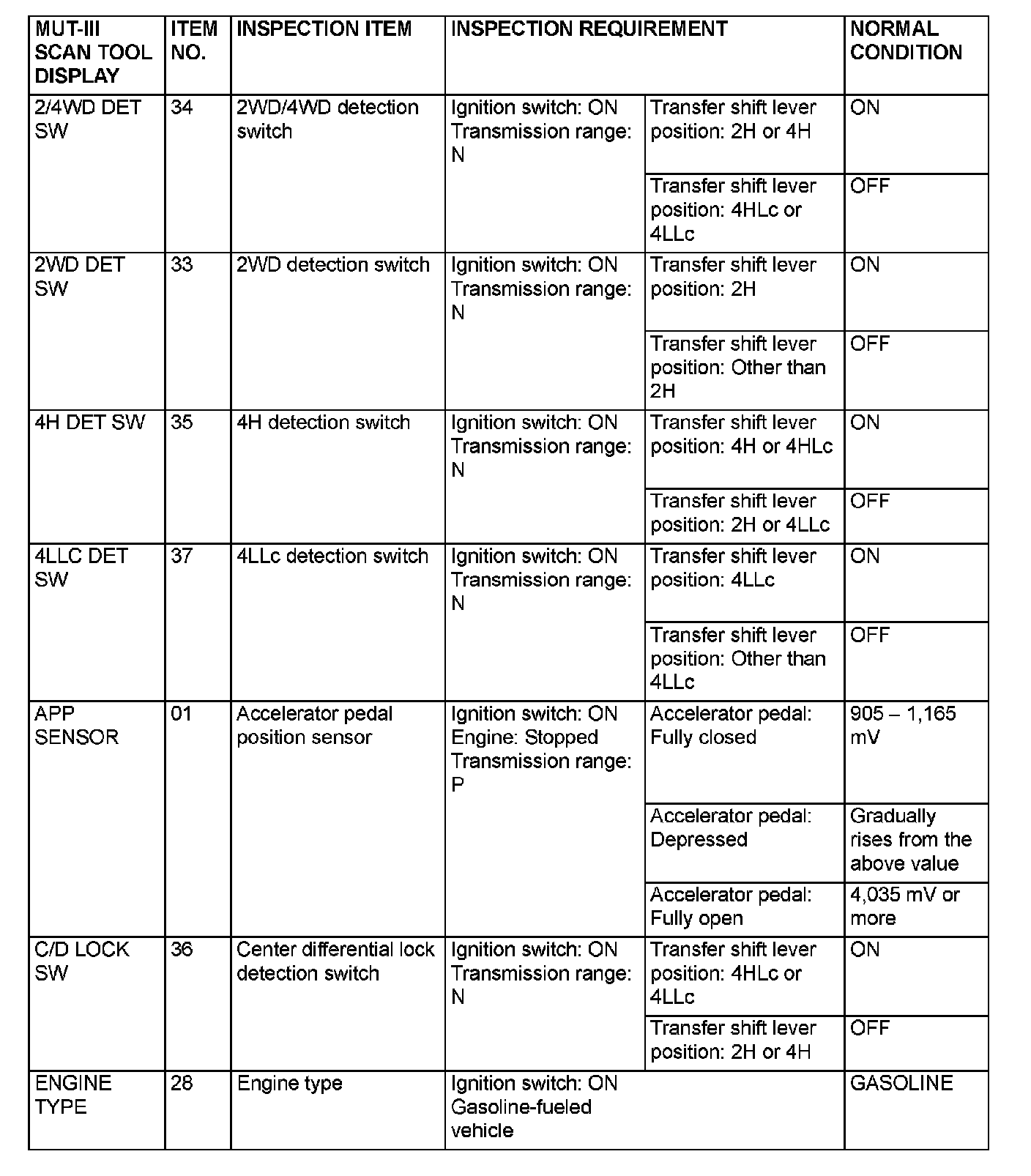

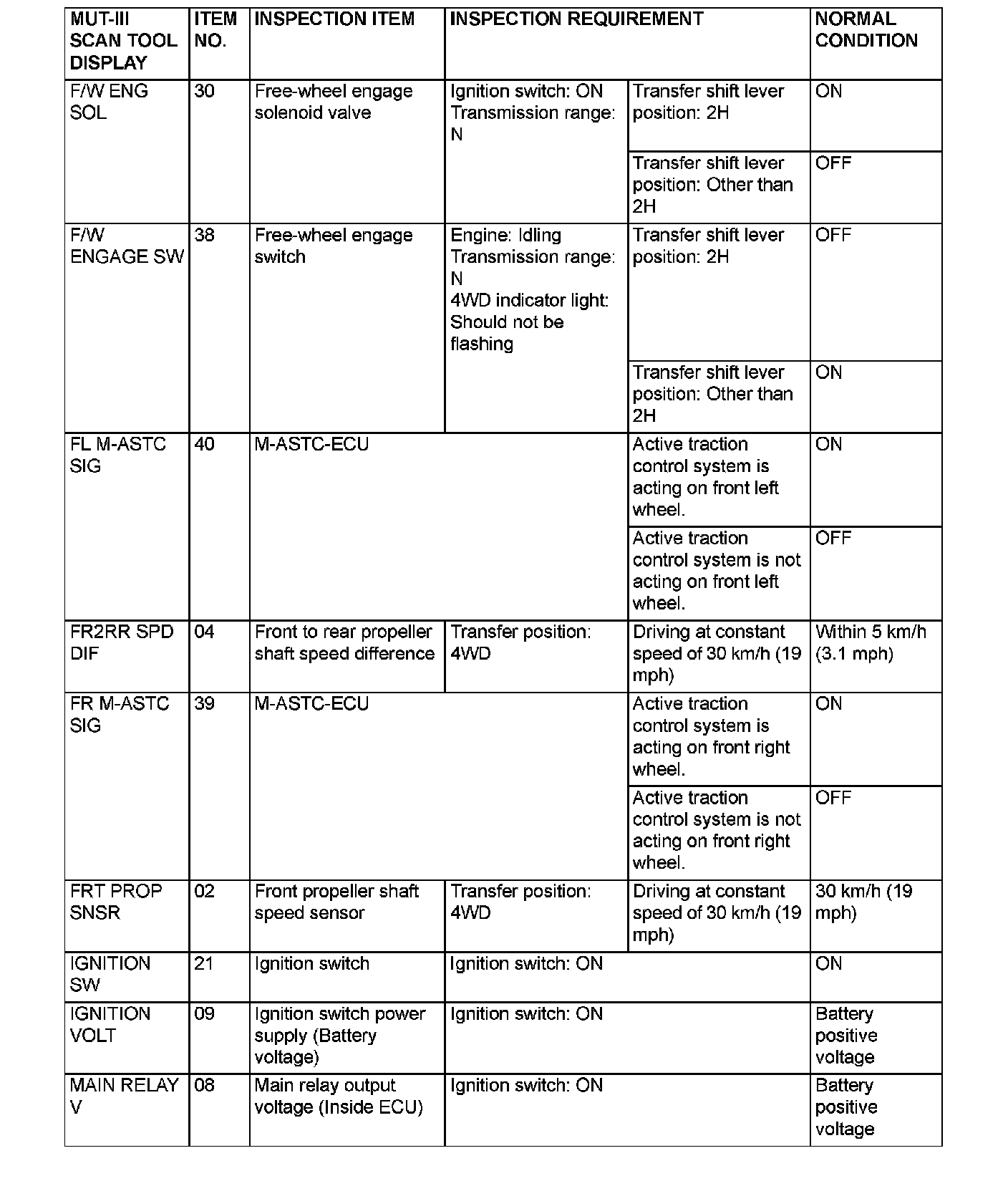

DATA LIST REFERENCE TABLE
