Ignition Switch: Service and Repair
IGNITION SWITCHRemoval And Installation:

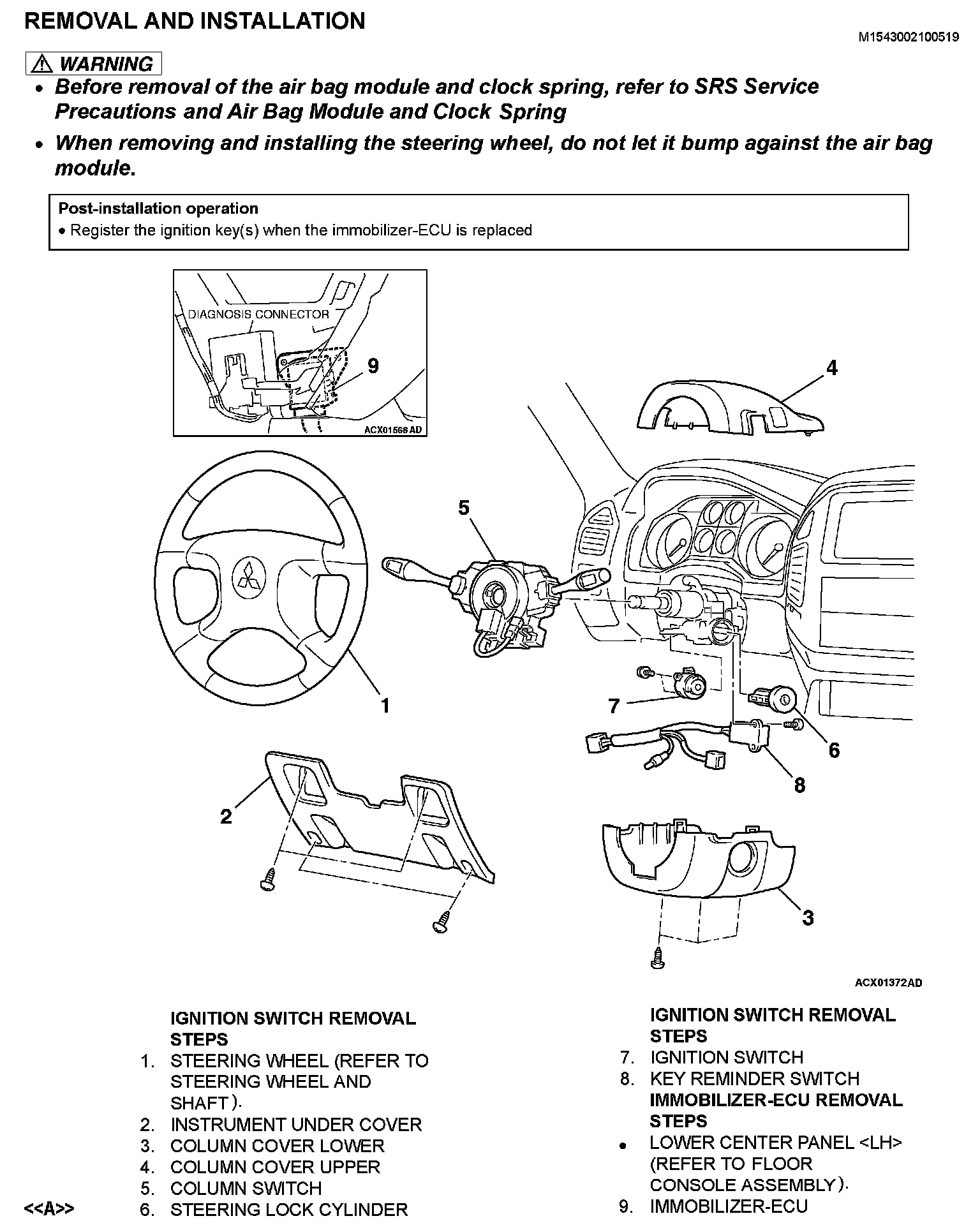

REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
<> STEERING LOCK CYLINDER REMOVAL
1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.

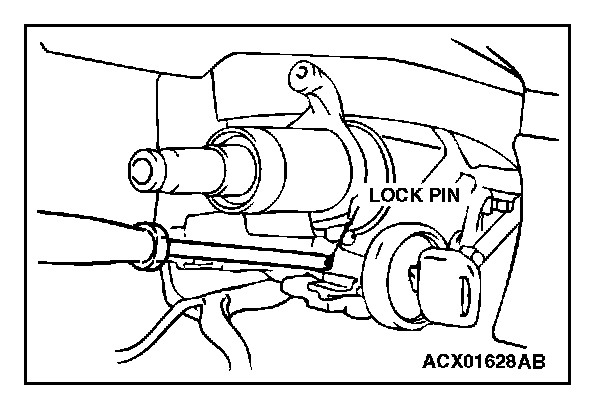

2. Using a small Phillips head screwdriver, pull the steering lock cylinder toward you.
