Key Reminder Switch Continuity Check

KEY REMINDER SWITCH CHECK

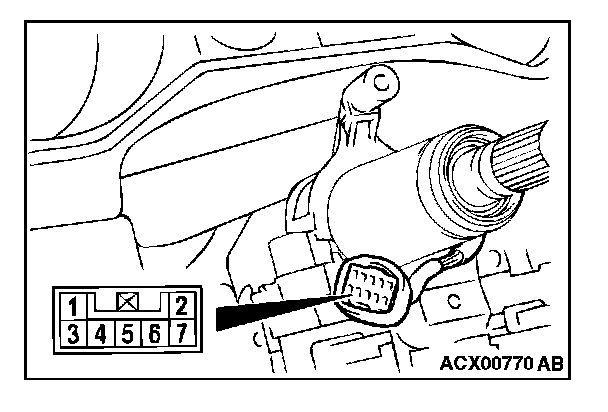

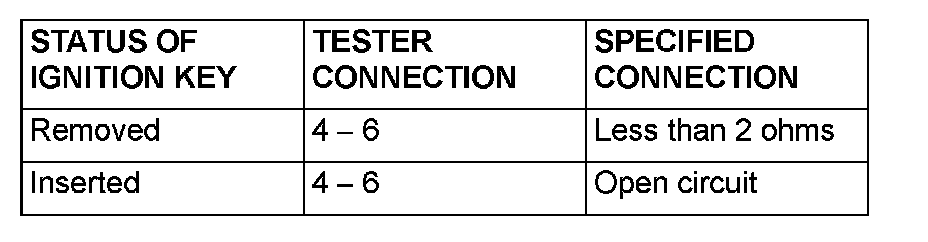

Disconnect key reminder switch connector without removing the ignition switch and steering lock cylinder. Then check the continuity.
