Keyless Entry

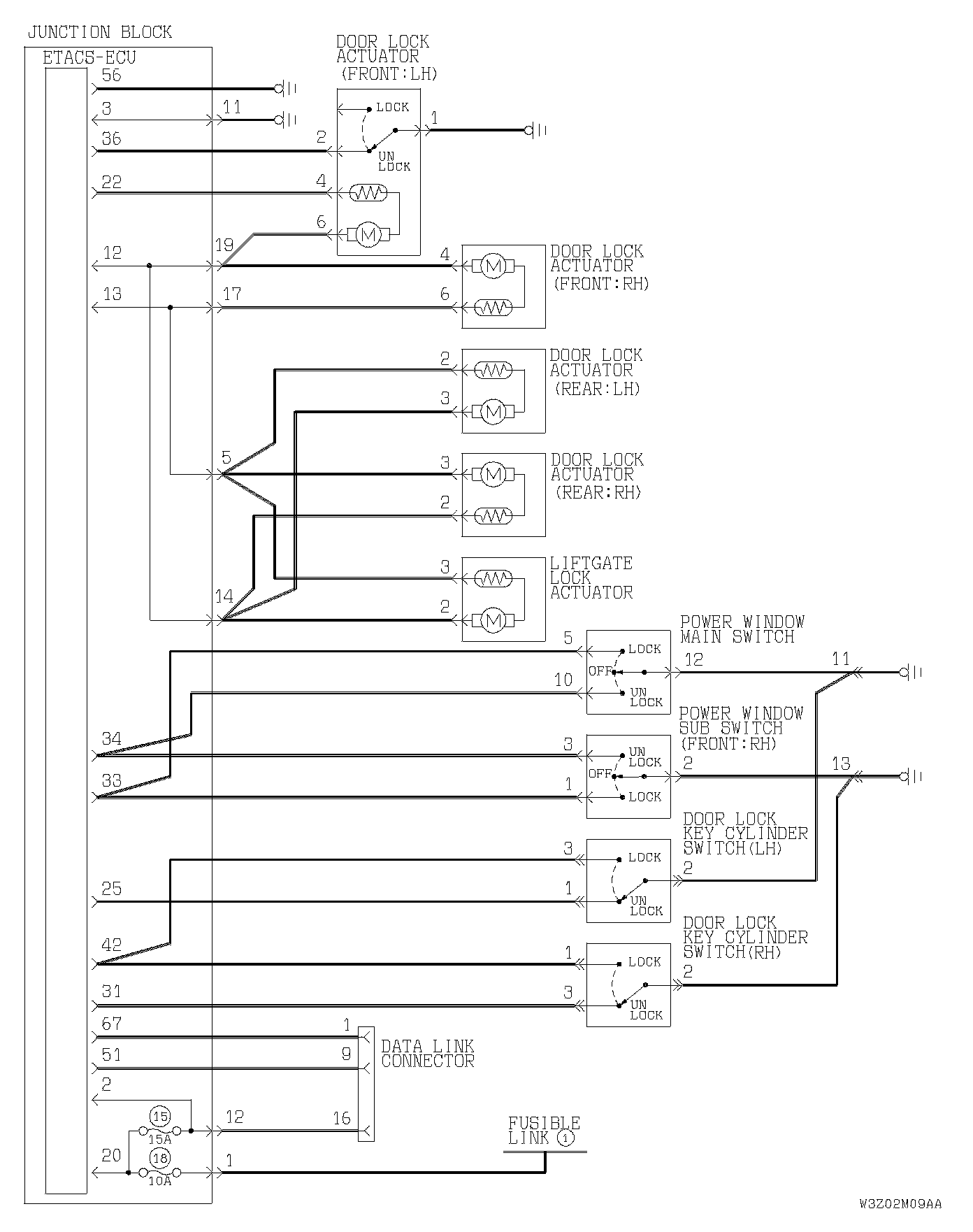

General System Circuit Diagram For The Keyless Entry System Part 1:

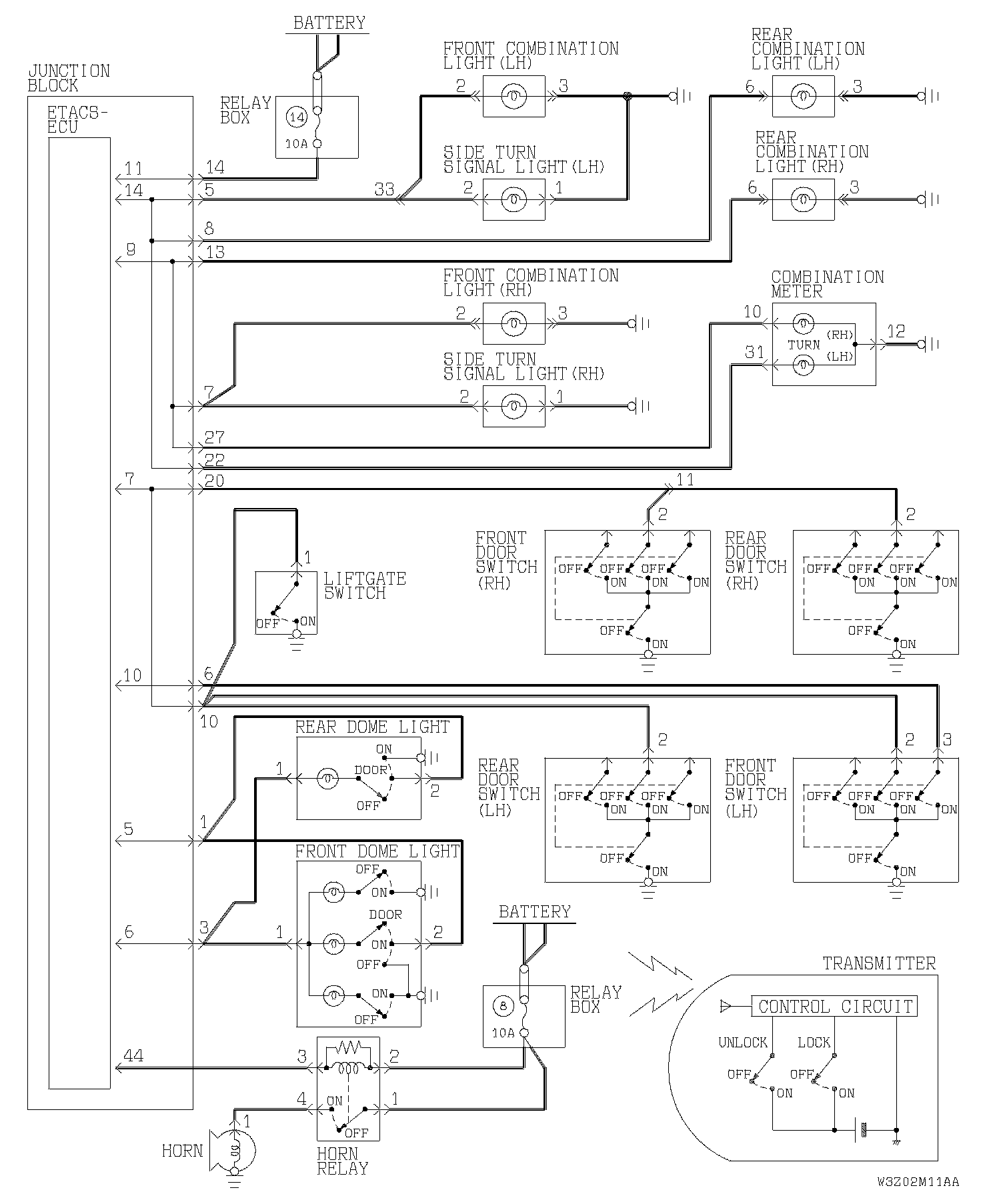

General System Circuit Diagram For The Keyless Entry System Part 2:
