Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2004
>>
Outlander L4-2.4L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Component Locations
Component Locations

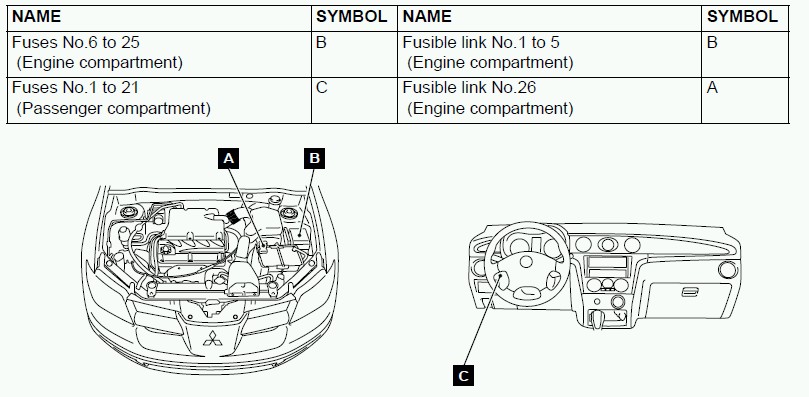

Overall View:

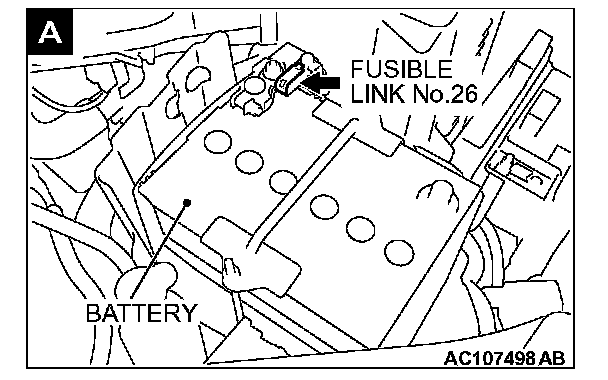

View A:

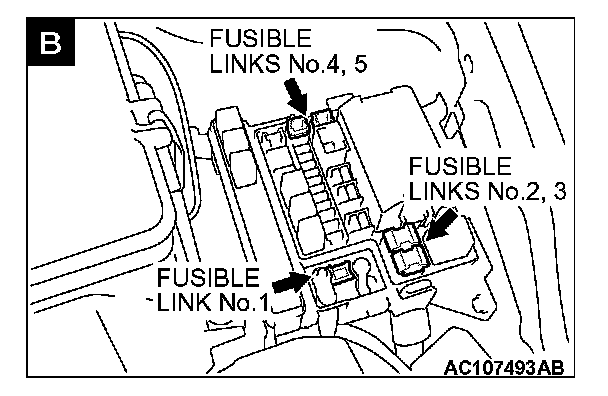

View B:

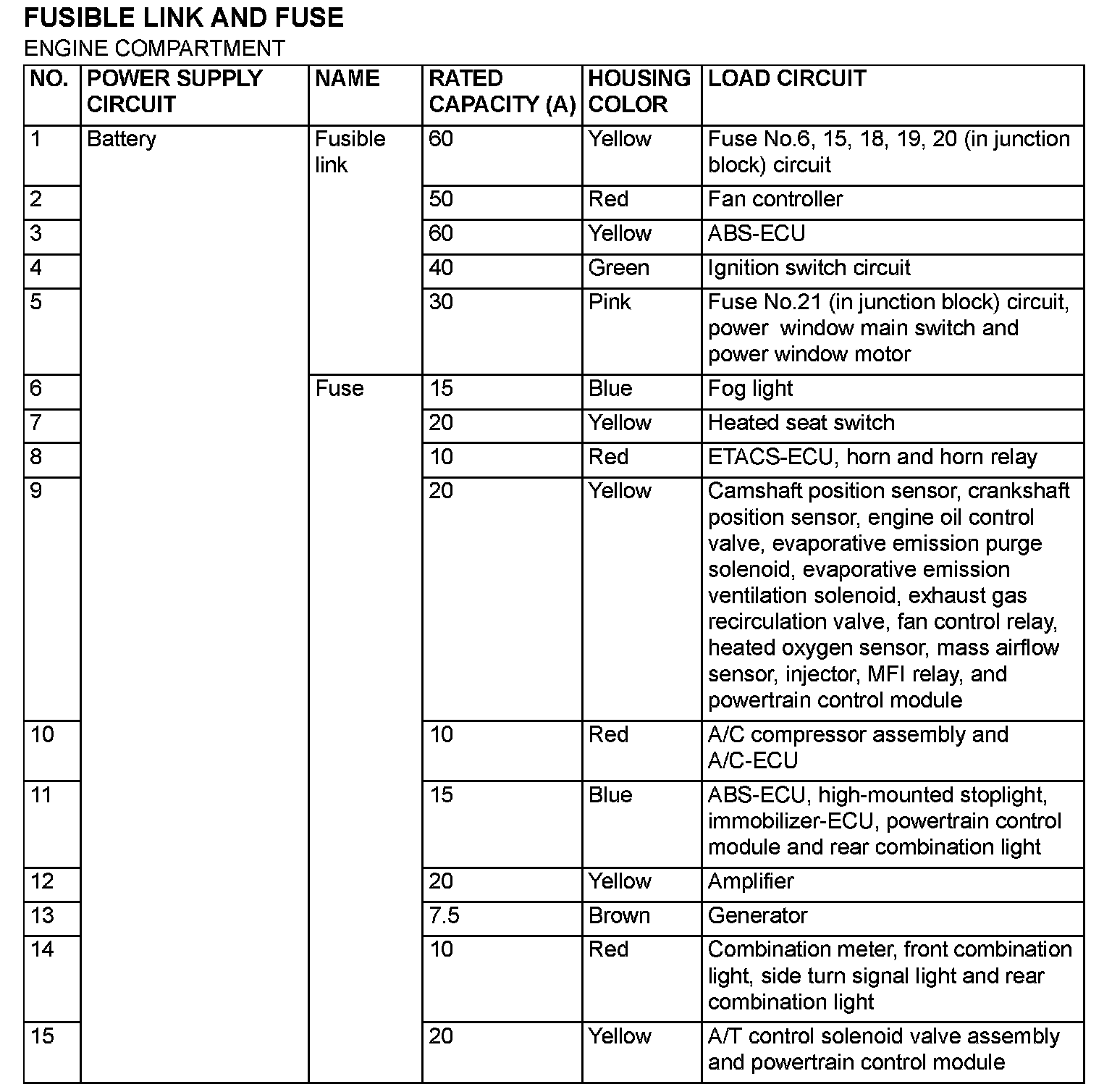

Application Table Part 1:

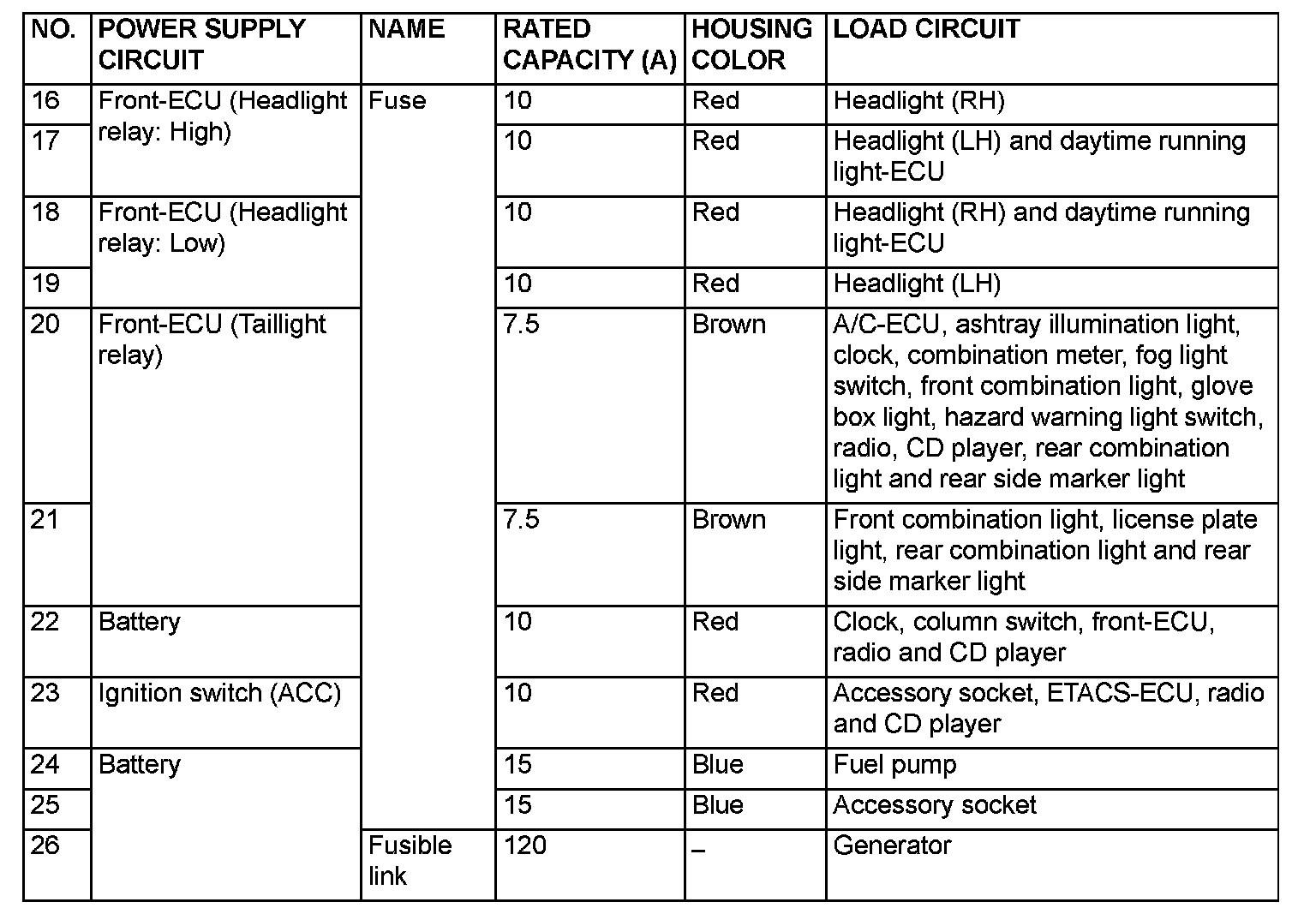

Application Table Part 2:

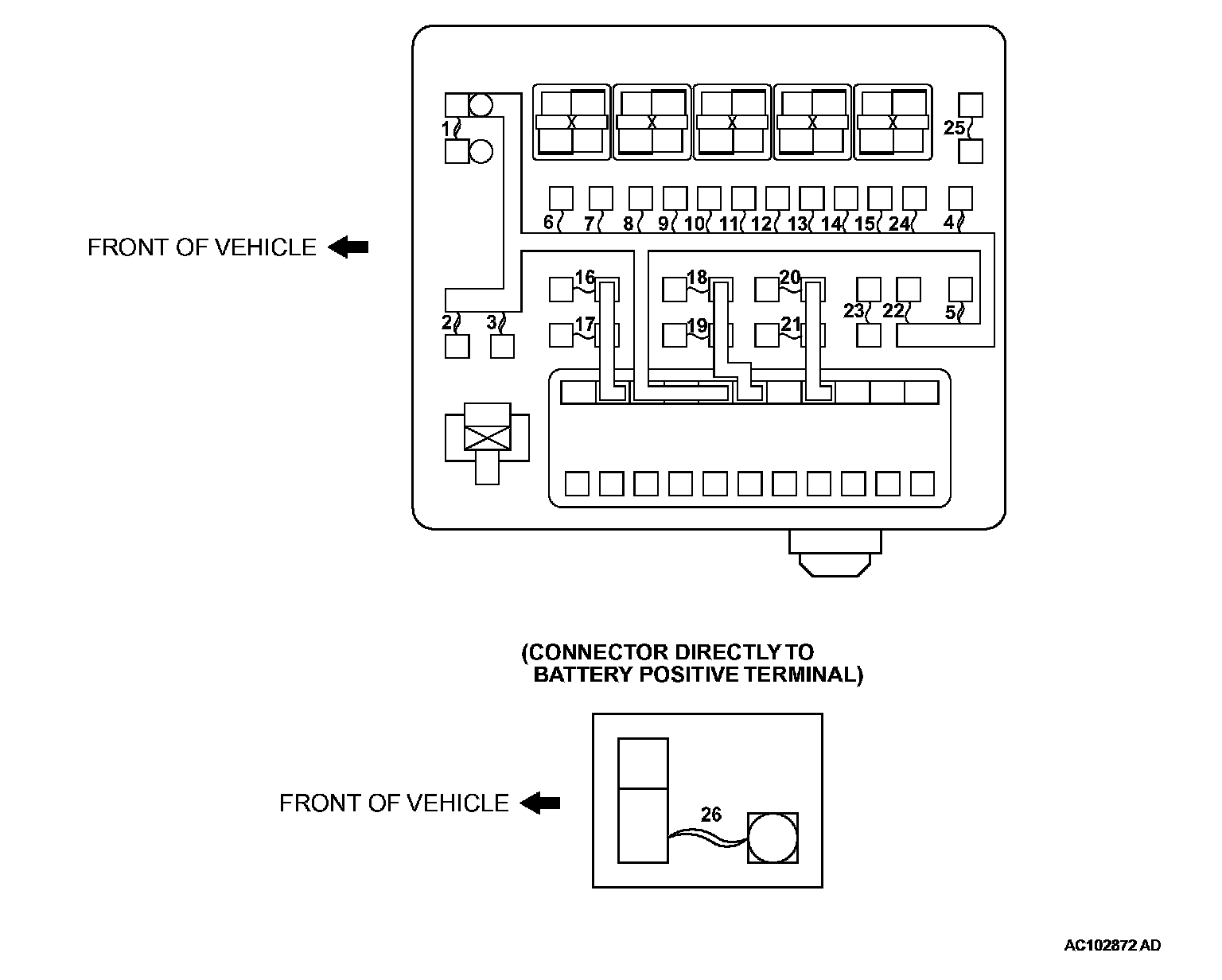

Location View:

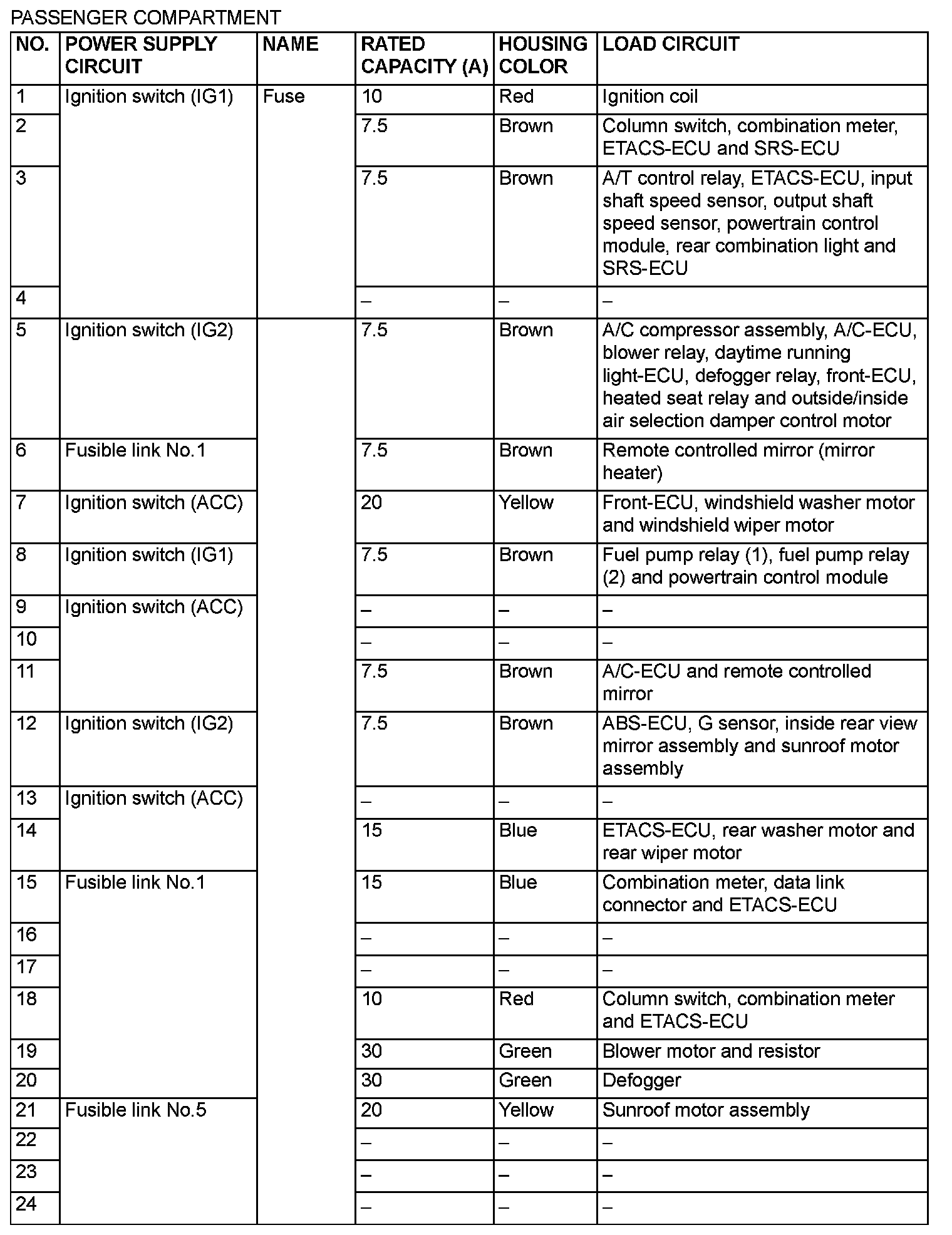

Application Table:

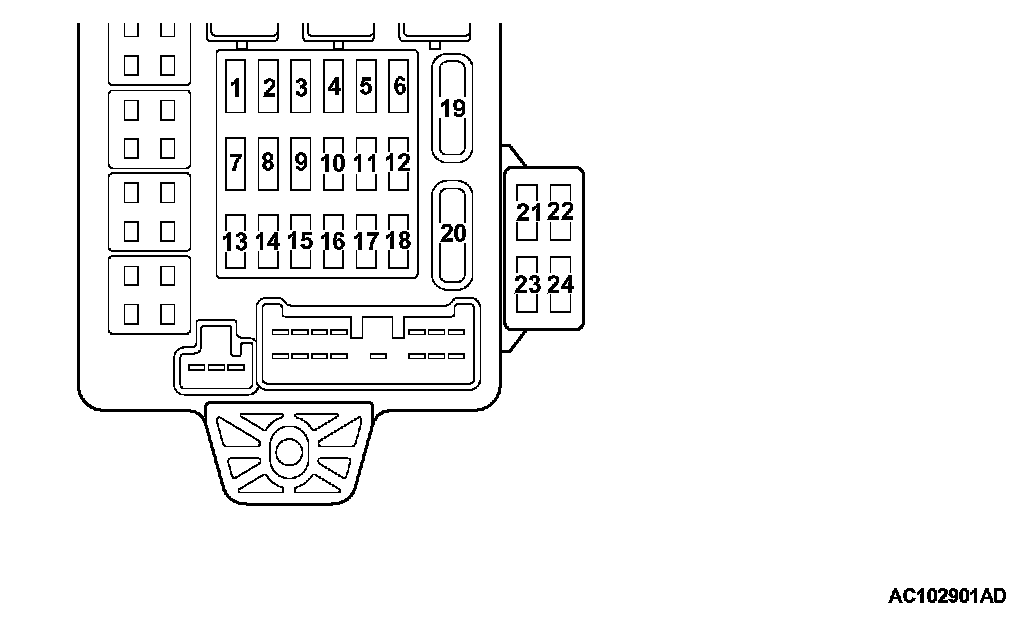

Location View:
