Pinout Values and Diagnostic Parameters

CHECK AT ECU TERMINAL

Part 1:




Part 2:




Part 3:

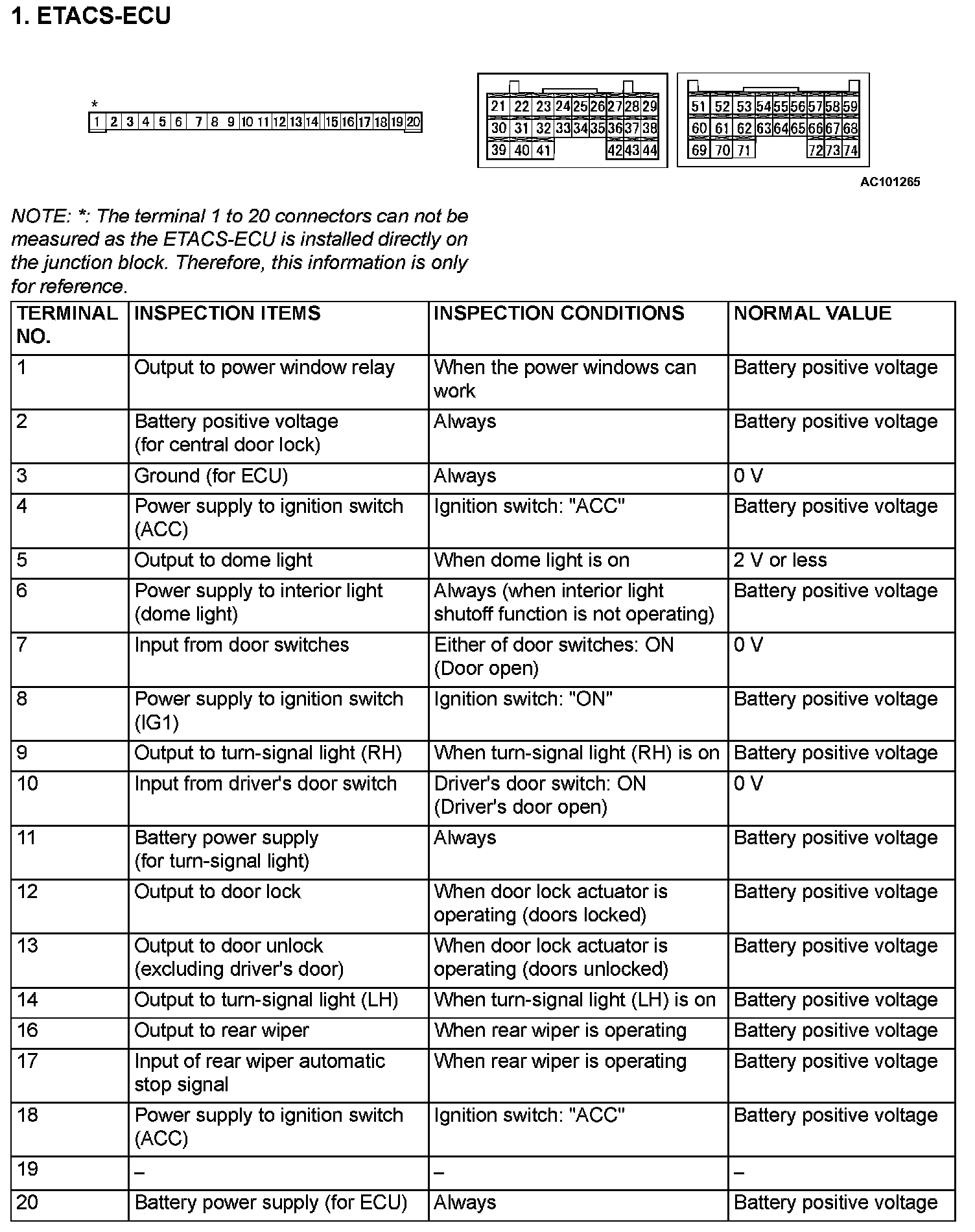

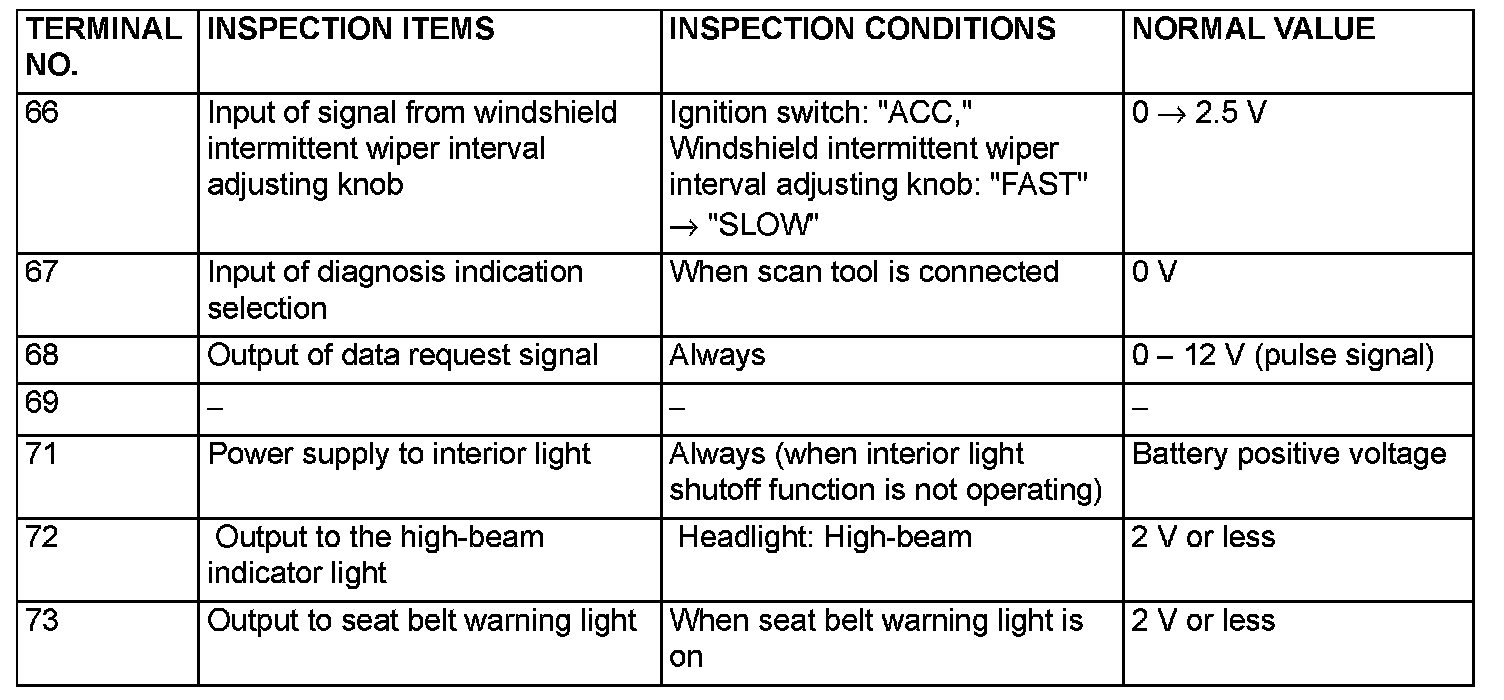

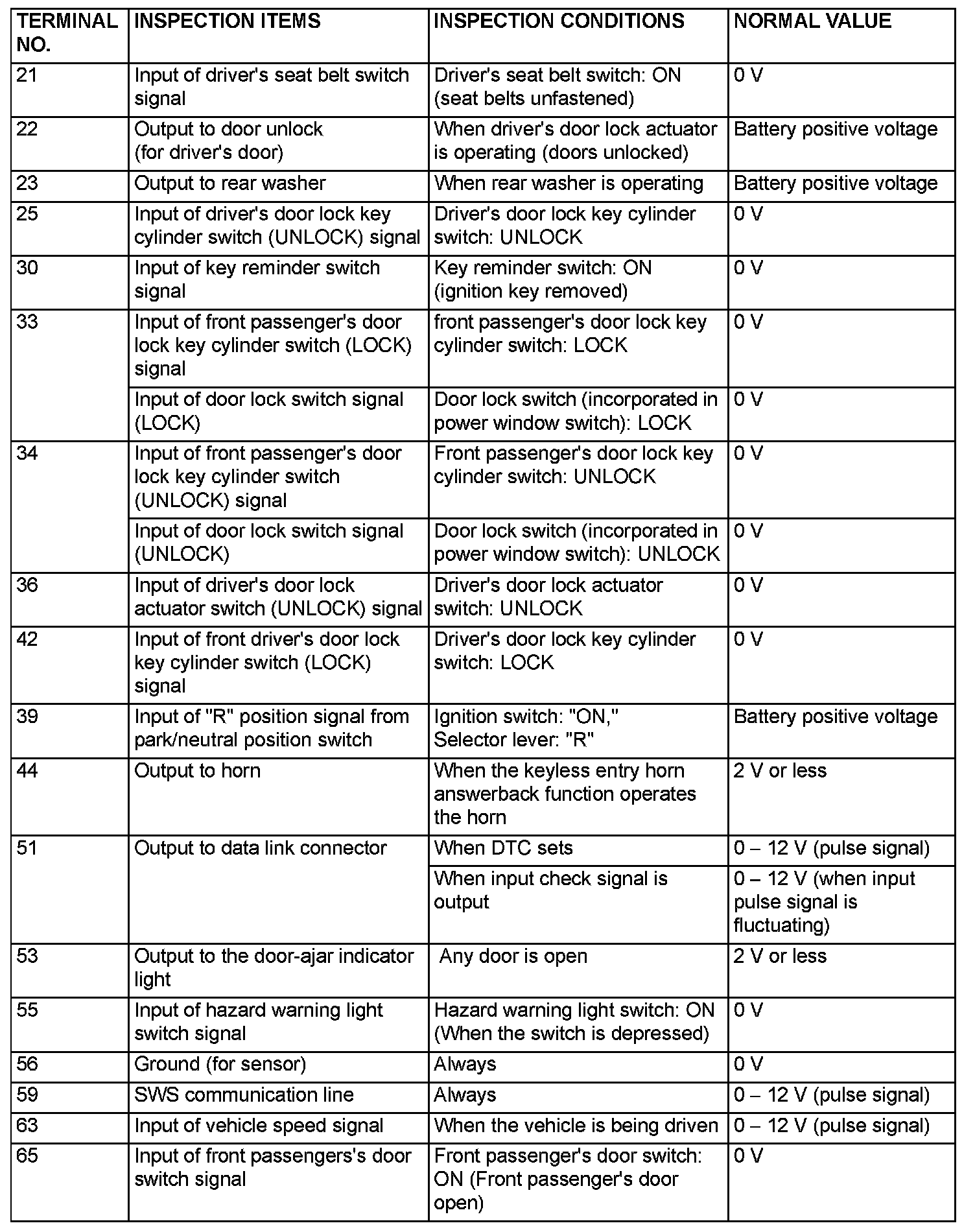

ETACS-ECU

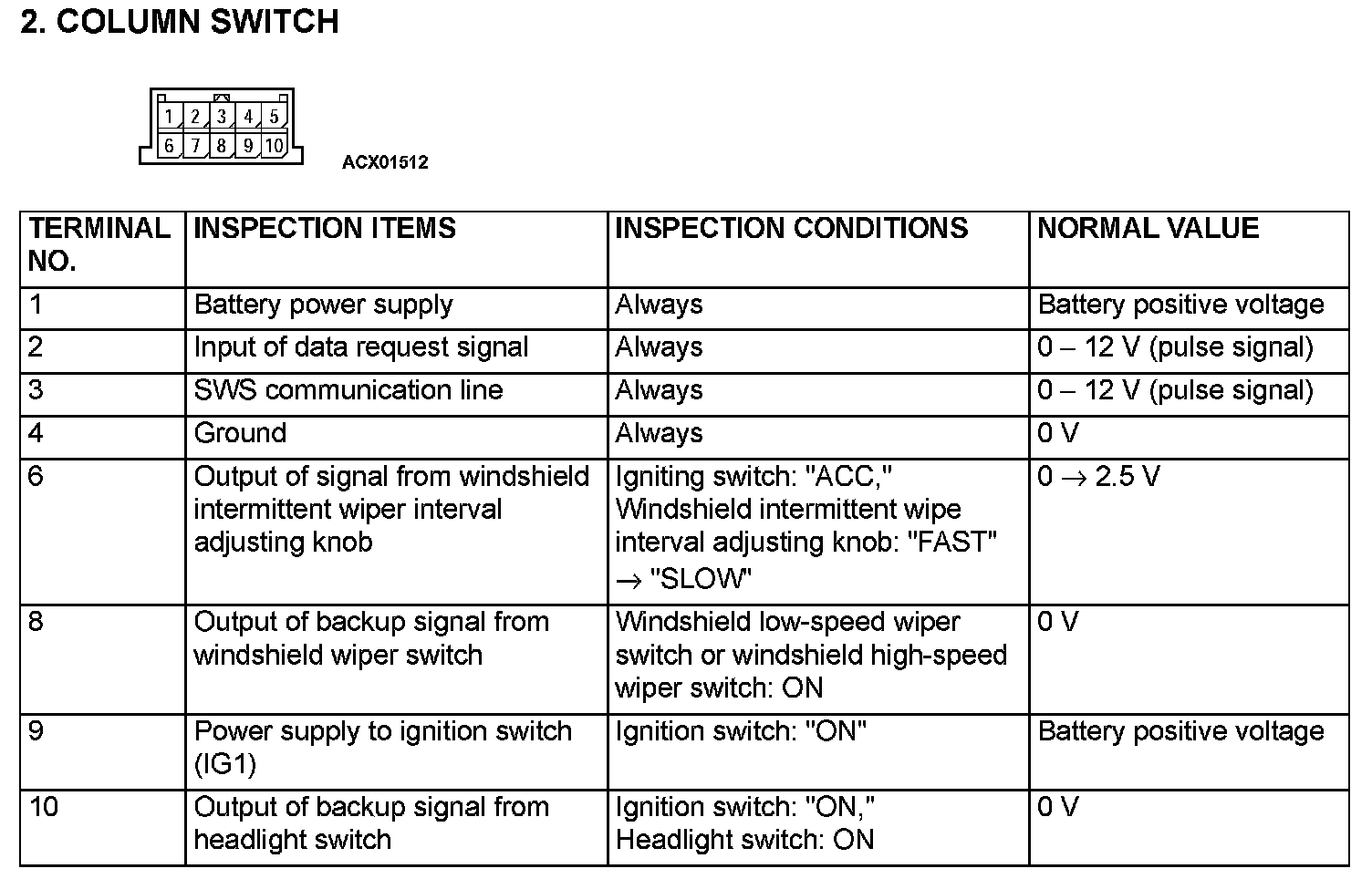

COLUMN SWITCH

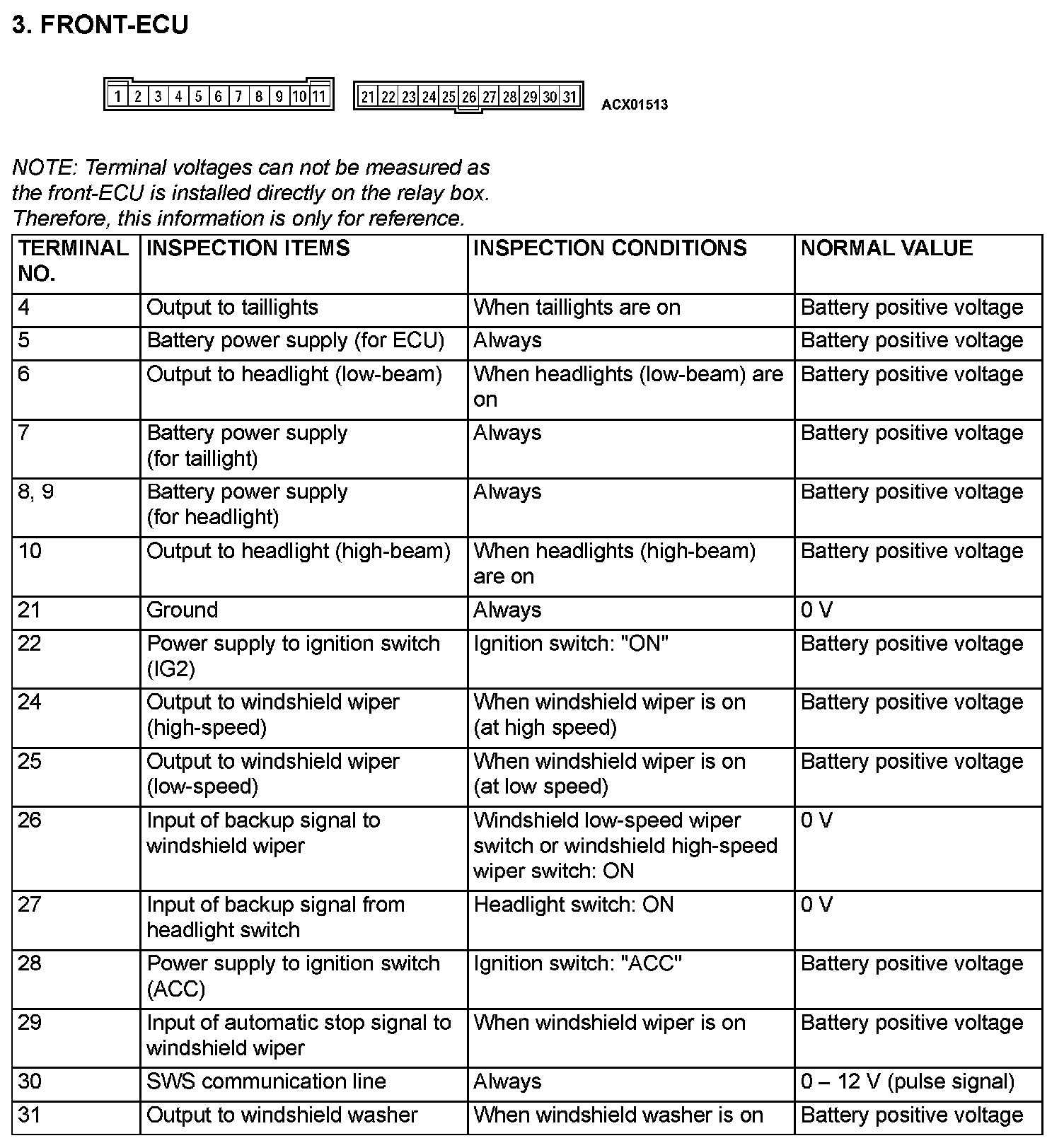

FRONT-ECU

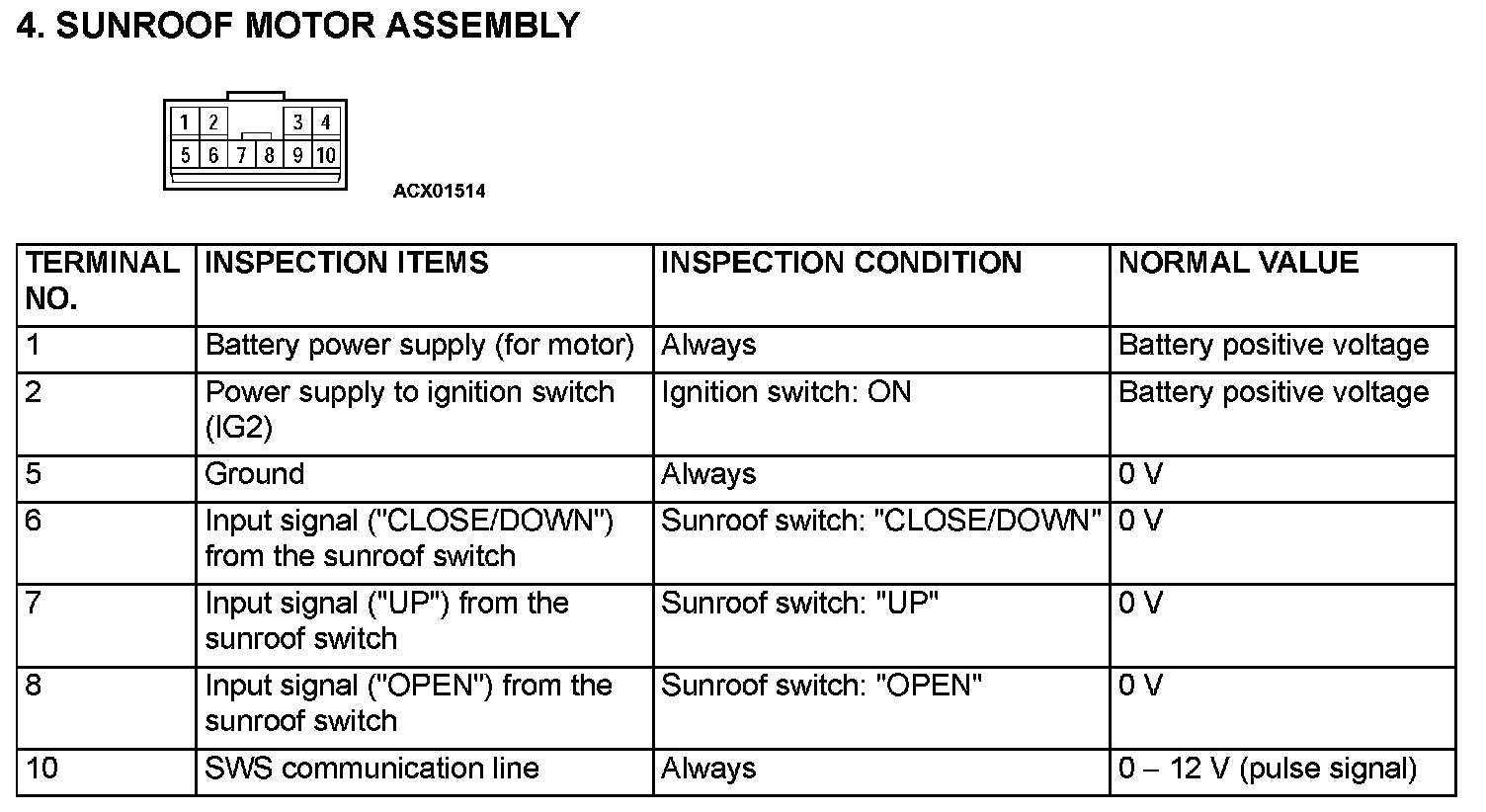

SUNROOF MOTOR ASSEMBLY
