Road Test

ROAD TEST

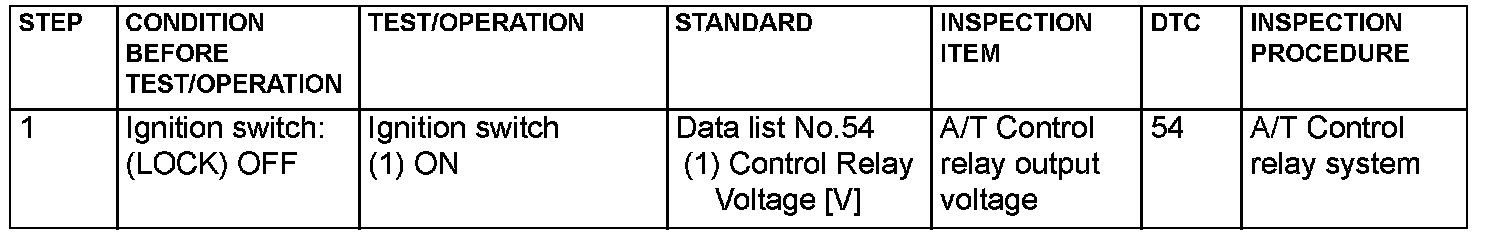

Step 1:

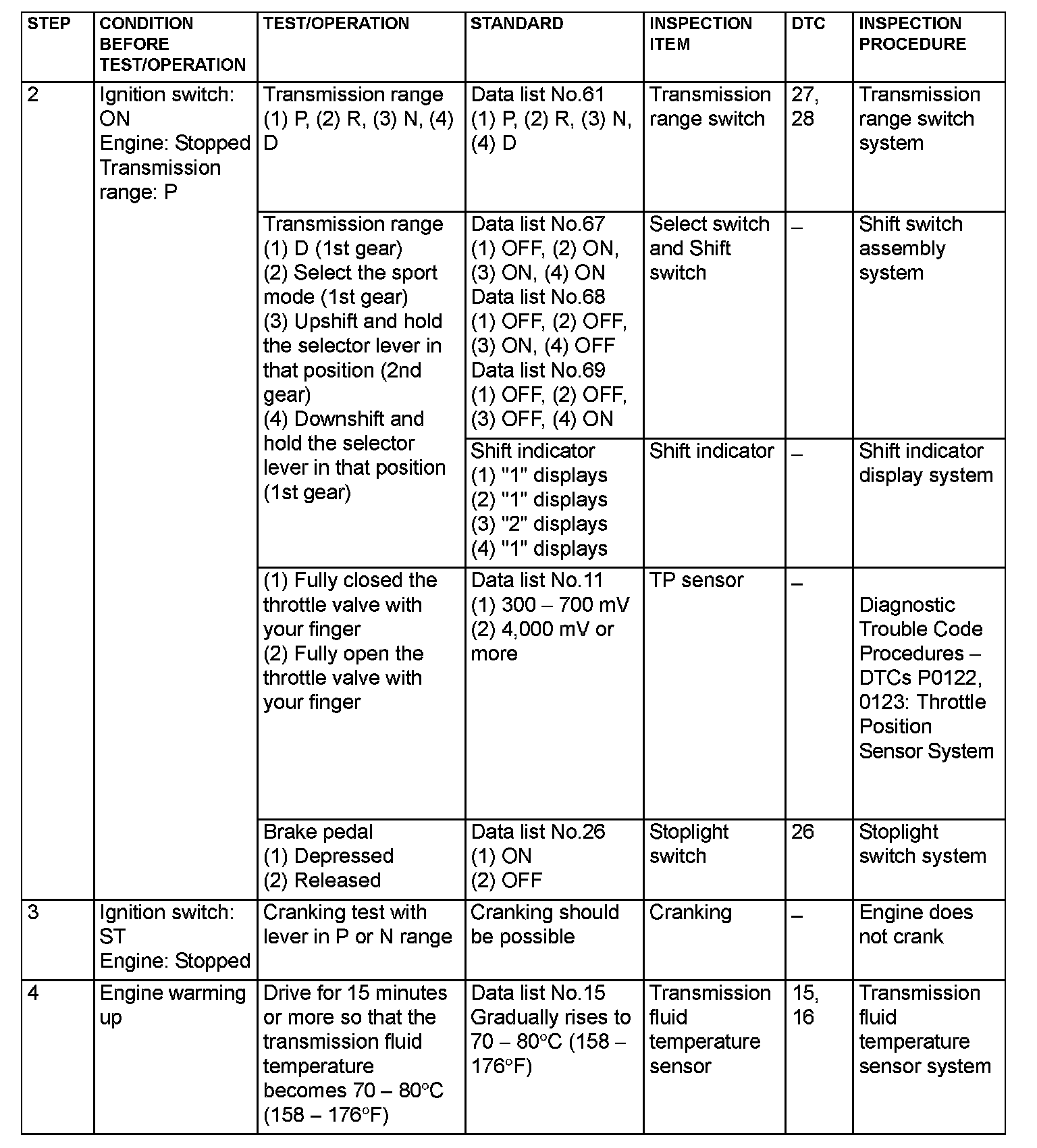

Steps 2-4:

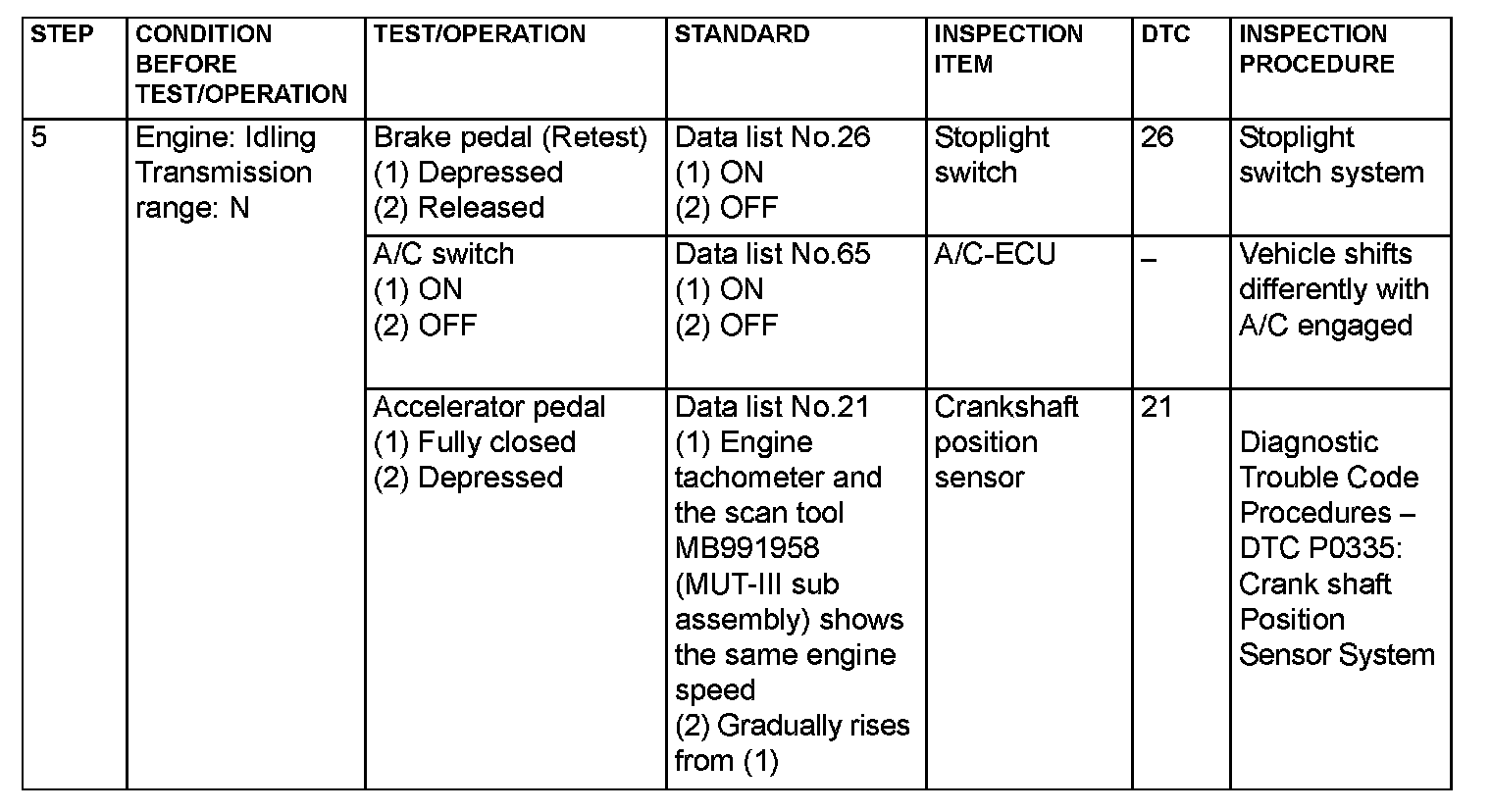

Step 5 (continued):

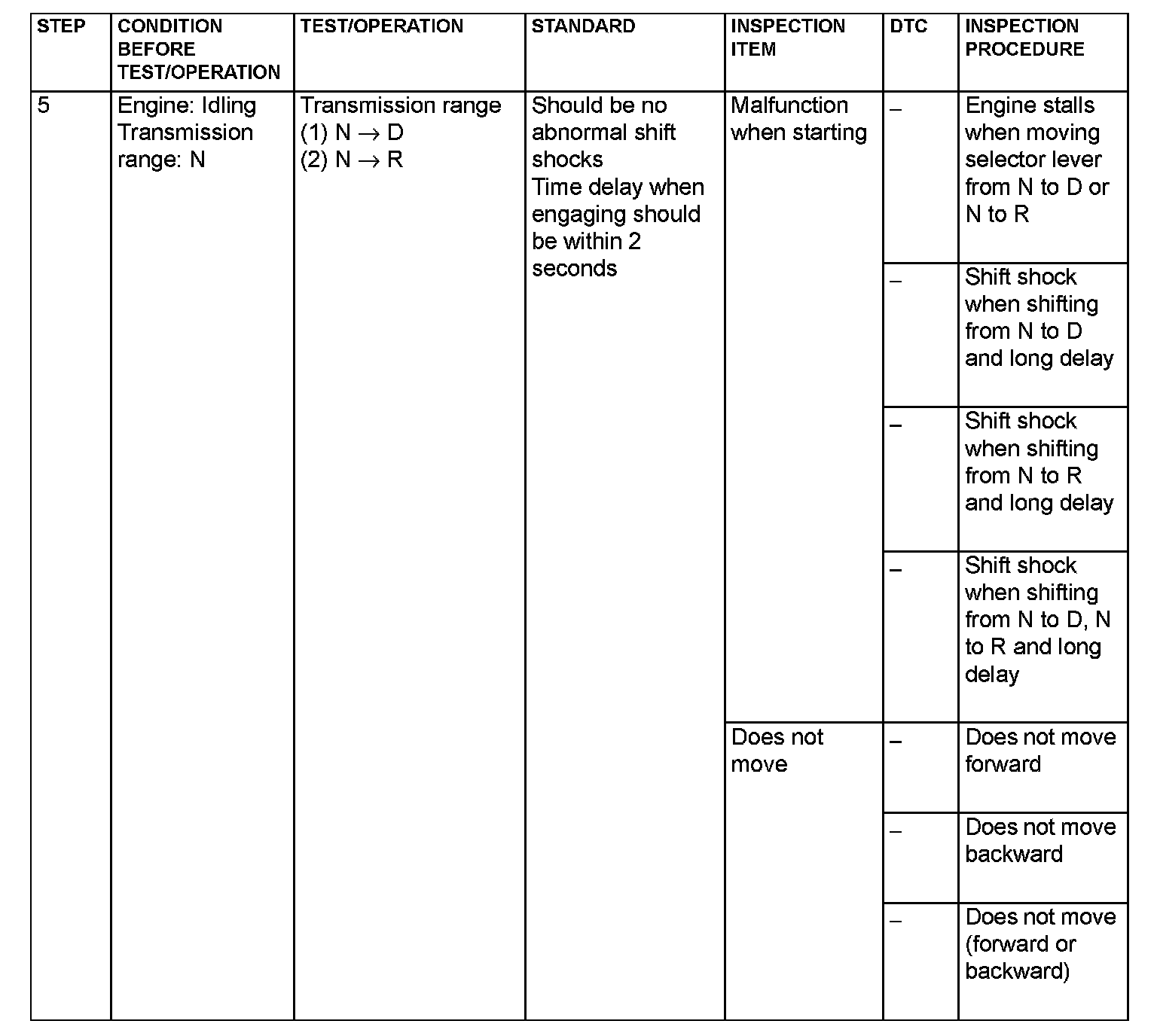

Step 5:




Steps 6 & 7:

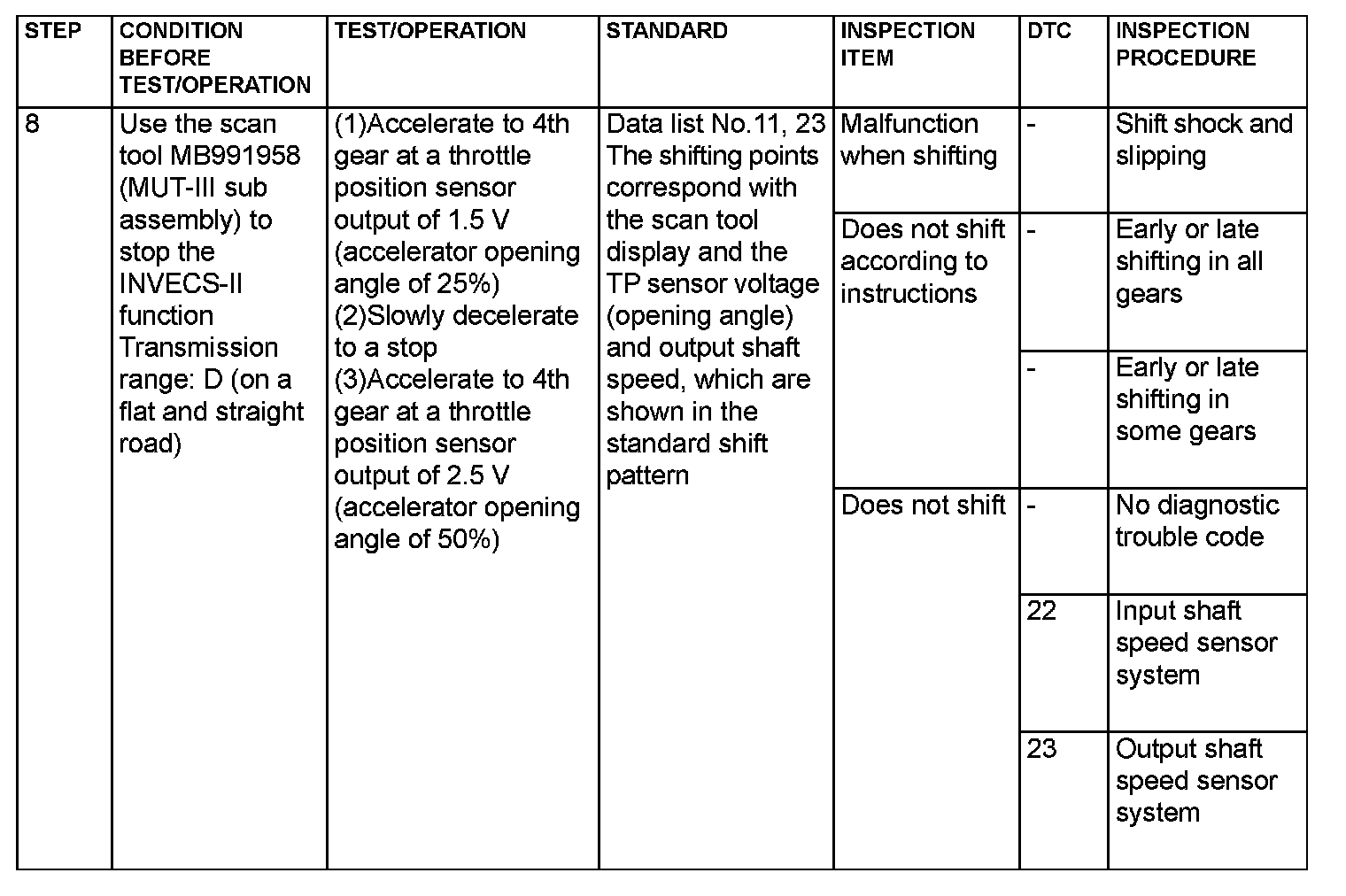

Step 8 (continued):

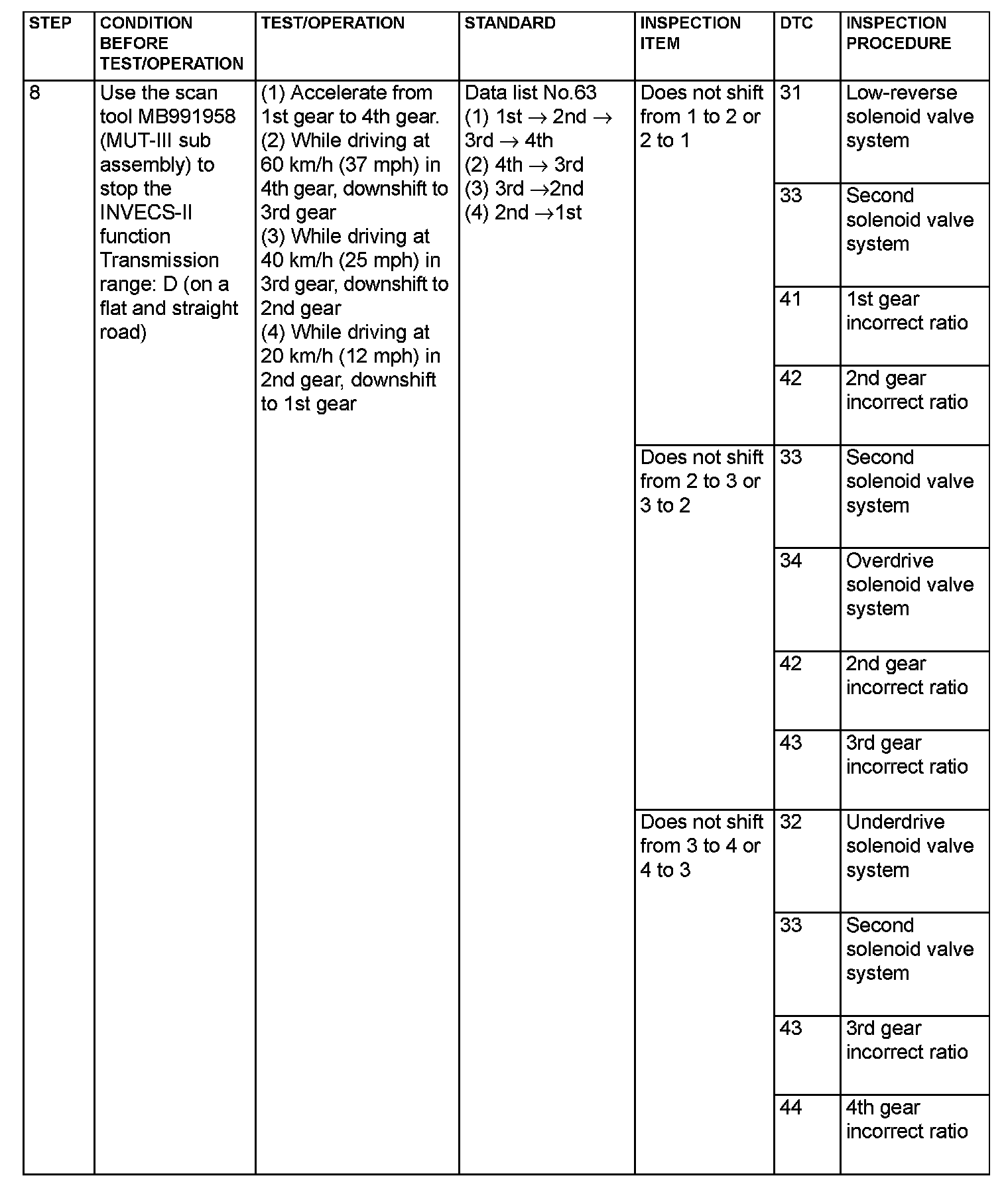

Step 8:

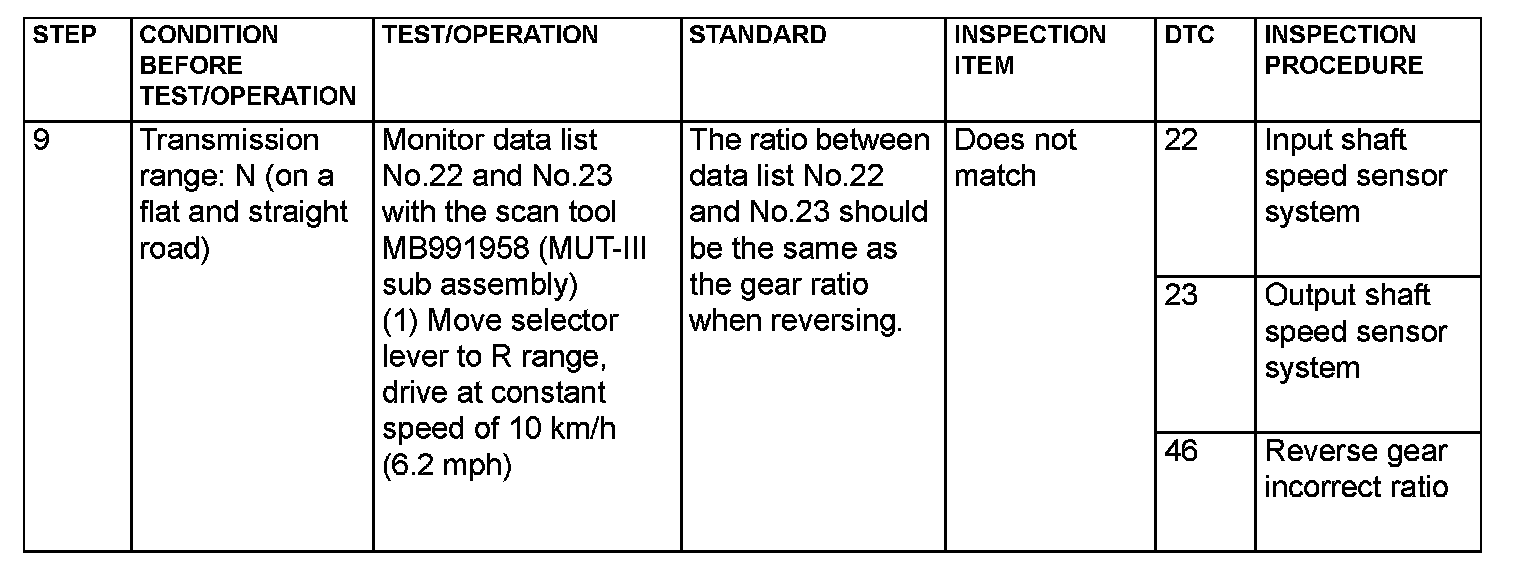

Step 9:





Check by the following procedures
