Component Tests and General Diagnostics

INSPECTION

IGNITION SWITCH CONTINUITY CHECK

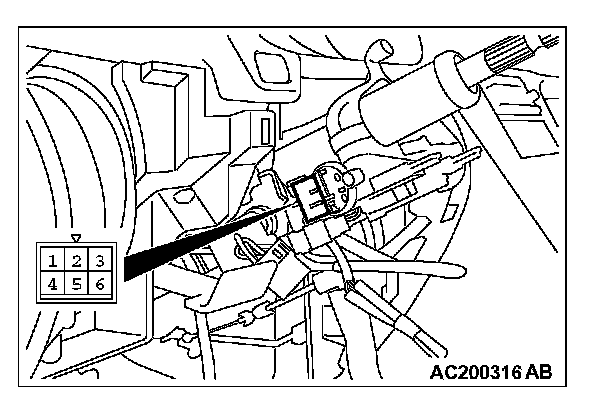

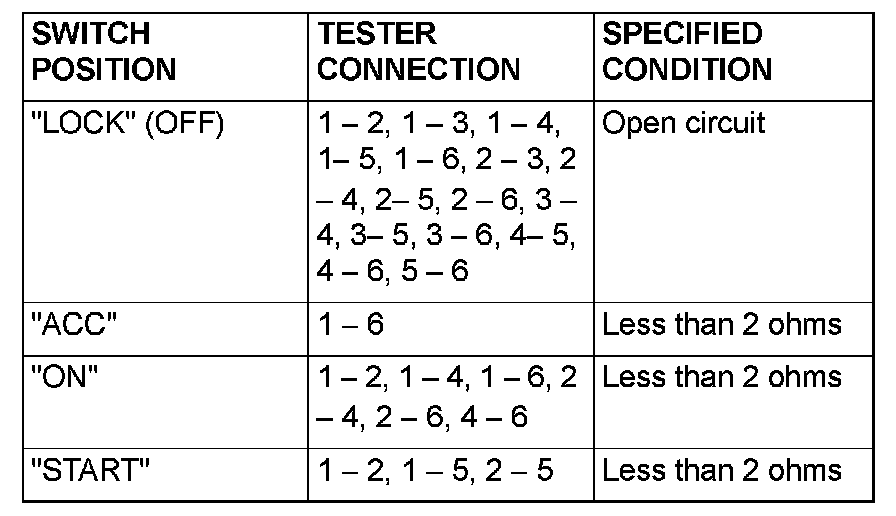

Disconnect ignition switch connector C-303 without removing the ignition switch. Then check the continuity.
