Inspection Procedure 2

The Ignition Key cannot be Registered.

TECHNICAL DESCRIPTION (COMMENT)
The ignition key transponder or the immobilizer-ECU is suspected to be defective.

TROUBLESHOOTING HINTS
- Malfunction of the ignition key
- Malfunction of immobilizer-ECU

DIAGNOSIS PROCEDURE

Required Special Tools:
- MB991223: Harness Set
- MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: Vehicles Communication Interface (V.C.I.)
- MB991827: MUT-III USB Cable
- MB991911: Main Harness B (Vehicles without CAN communication system)

STEP 1. Using scan tool MB991958, read the diagnostic trouble code.

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to "LOCK" (OFF) position before connecting or disconnecting scan tool.

Use scan tool MB991958 to check if DTC 11 is set.

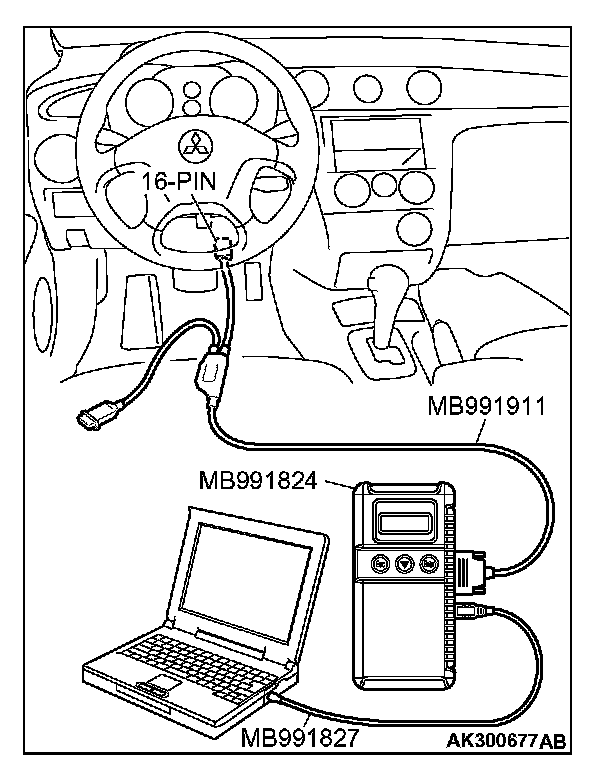

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch "ON" position.
3. Read the immobilizer system diagnostic trouble code.

Q: Does DTC 11 reset?

YES: Refer to Diagnostic Trouble Code Chart. Diagnostic Trouble Code Descriptions

NO: Replace the ignition key that cannot be registered. Then re-register the encrypted code (Refer to Accessories and Optional Equipment/Antitheft and Alarm Systems/Service and Repair/How to Register Encrypted Code). Verify that the ignition key can be registered, then Go to Step 2.

STEP 2. Retest the system.

Q: Does registered ignition key function properly?

YES: The procedure is complete (If no malfunction are found in all steps, an intermittent malfunction is suspected. Refer to How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunction).

NO: Replace the immobilizer-ECU.
