Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2005
>>
Endeavor V6-3.8L SOHC
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Traction Control/Active Skid Control System (TCL/ASC)
>>
Data List Reference Table
Data List Reference Table

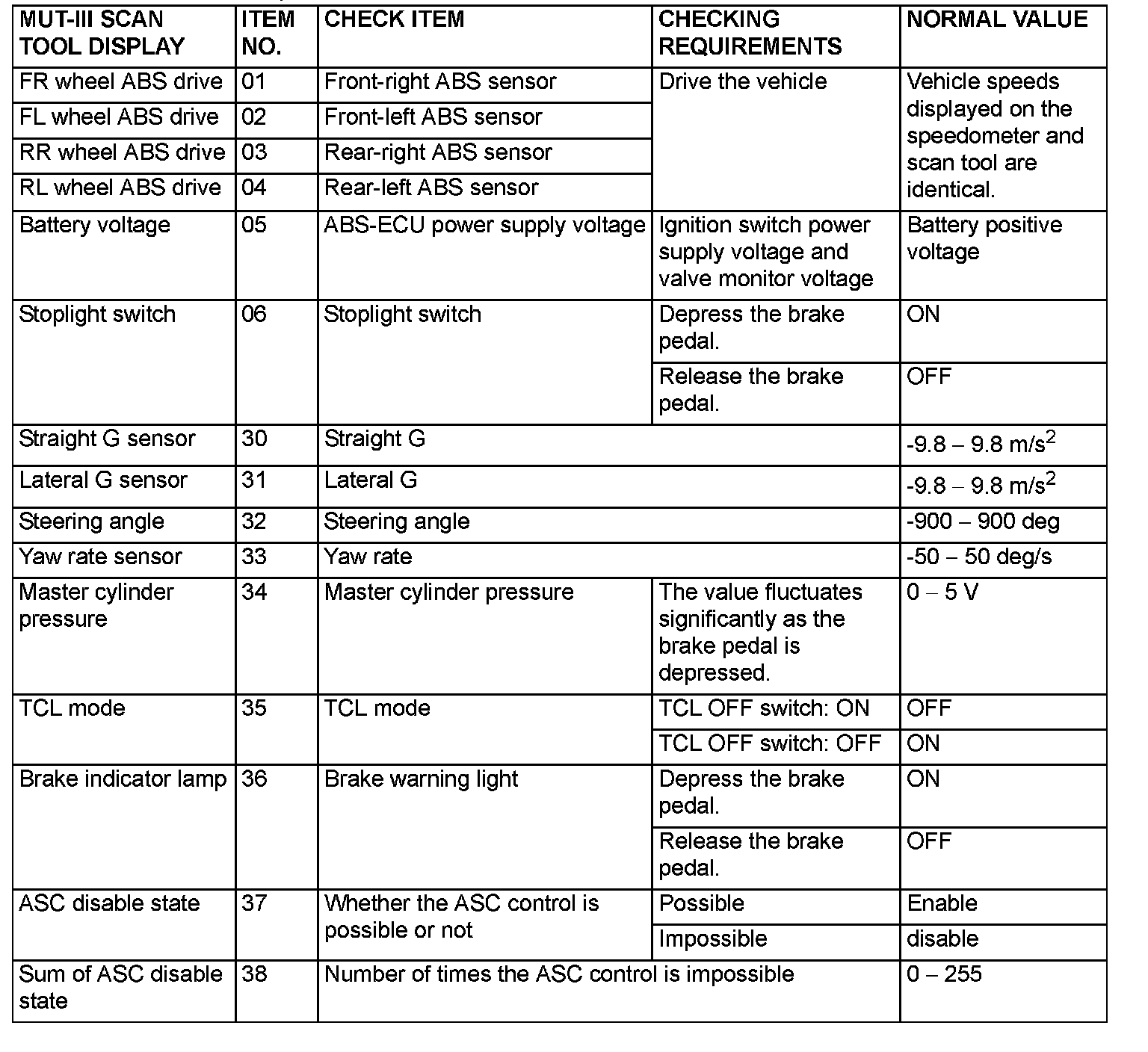

DATA LIST REFERENCE TABLE
The following items can be read by the scan tool from the TCL/ASC-ECU input data.
