Component Locations
Component Locations

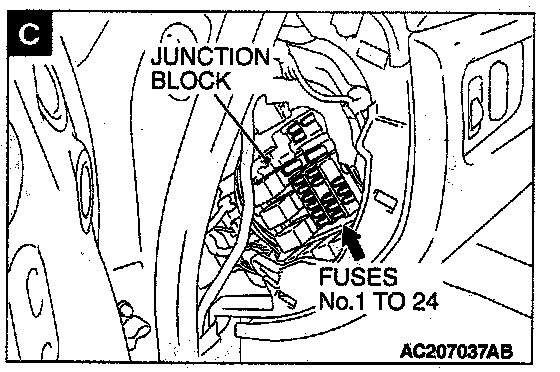

View C:

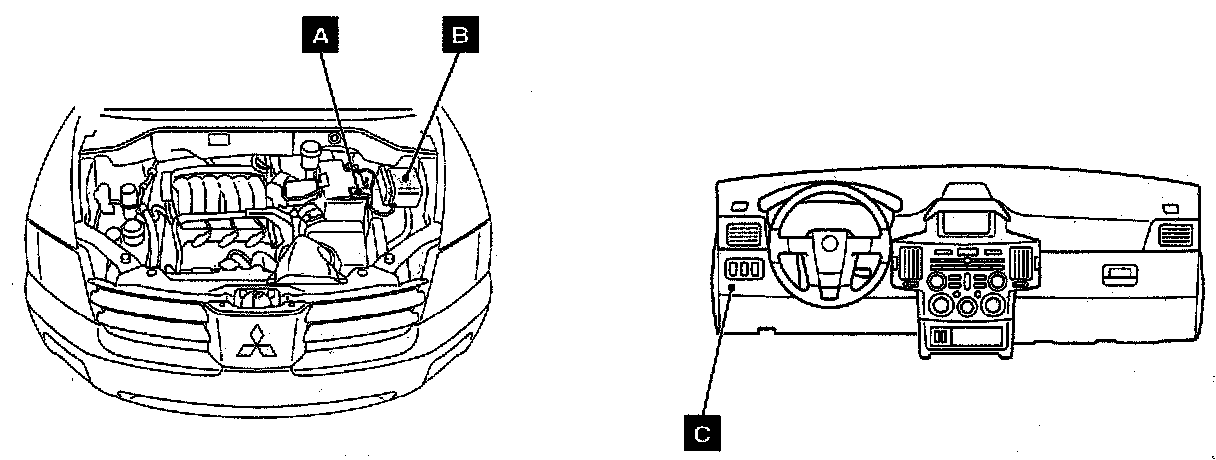

Overall View:
Junction Block:

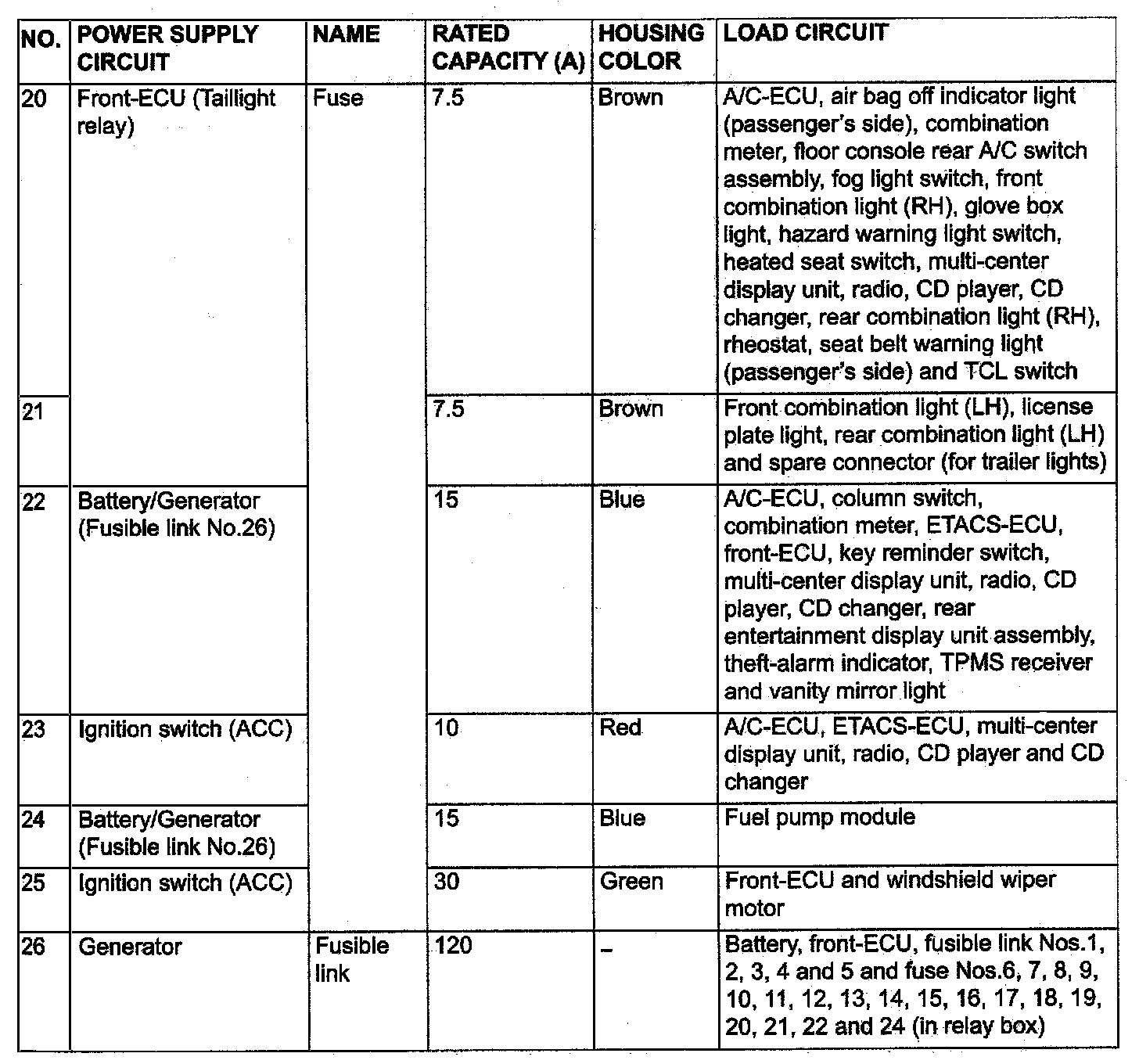

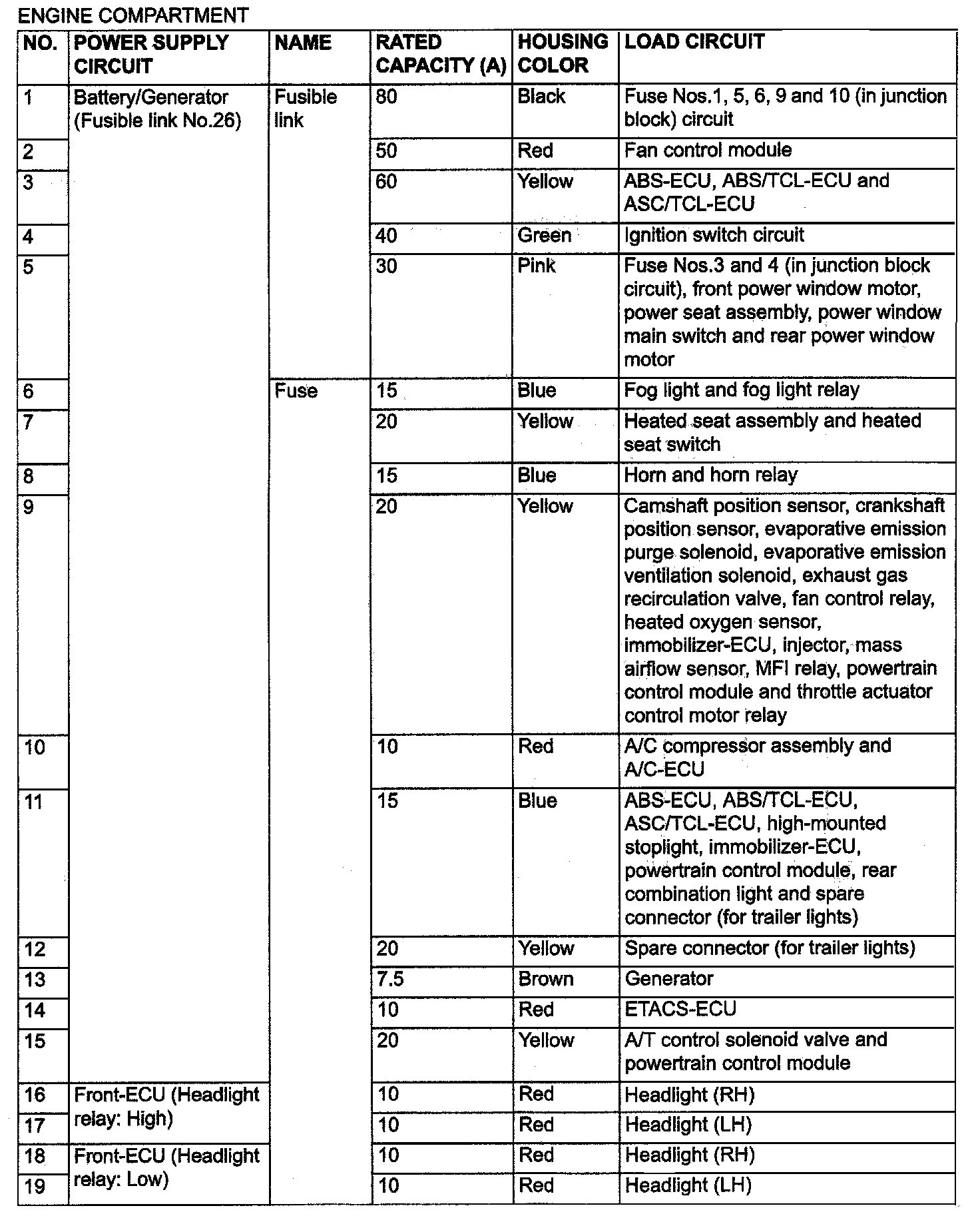

Fuses 1-26 (1 Of 3):
Fuses 1-26 (2 Of 3):
Fuses 1-26 (3 Of 3):

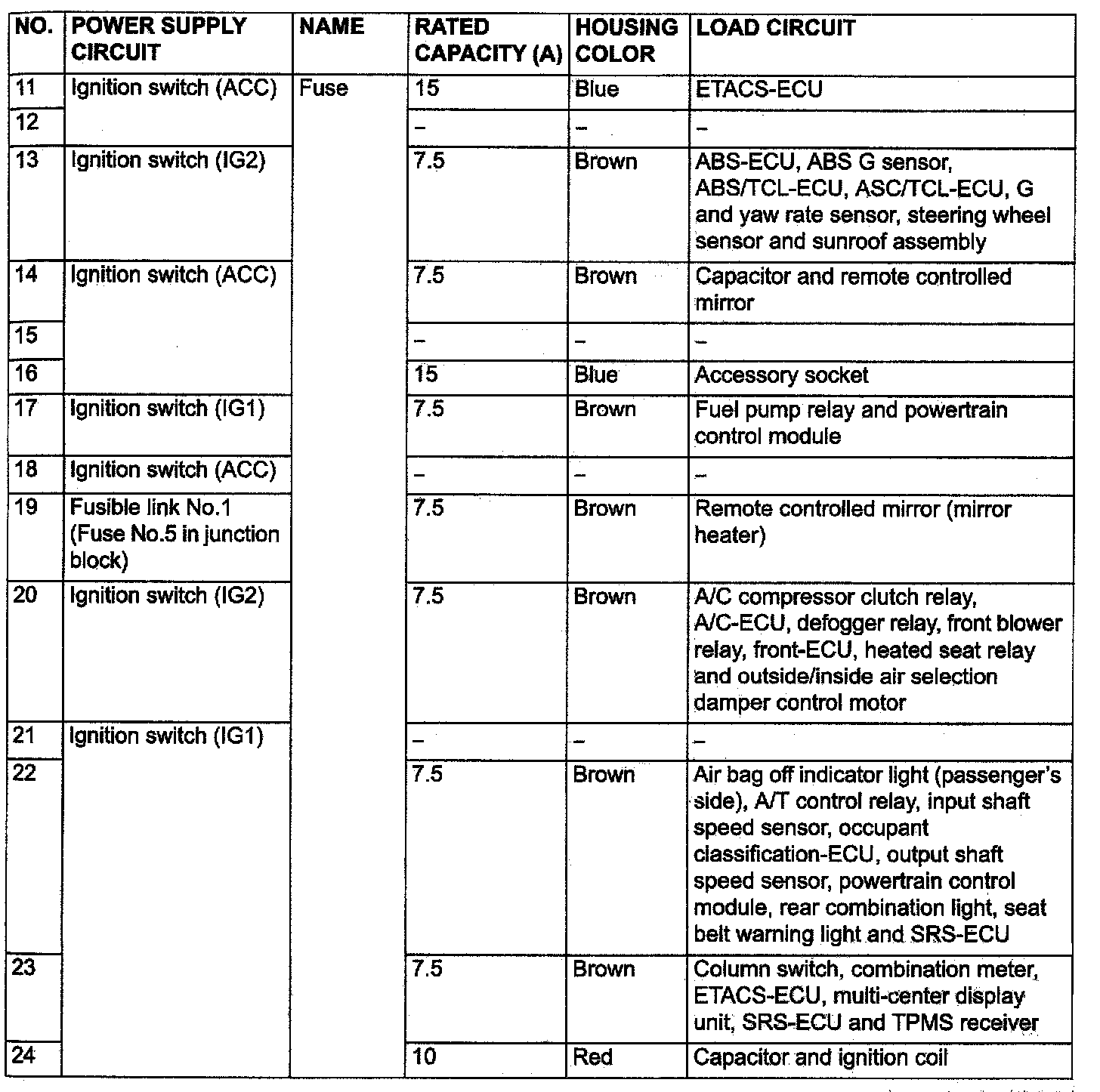

Fuses 1-24 (1 Of 3):
Fuses 1-24 (2 Of 3):
Fuses 1-24 (3 Of 3):
