Operation CHARM: Car repair manuals for everyone.

Information Bus: Adjustments

ON-VEHICLE SERVICE

CONFIGURATION FUNCTION

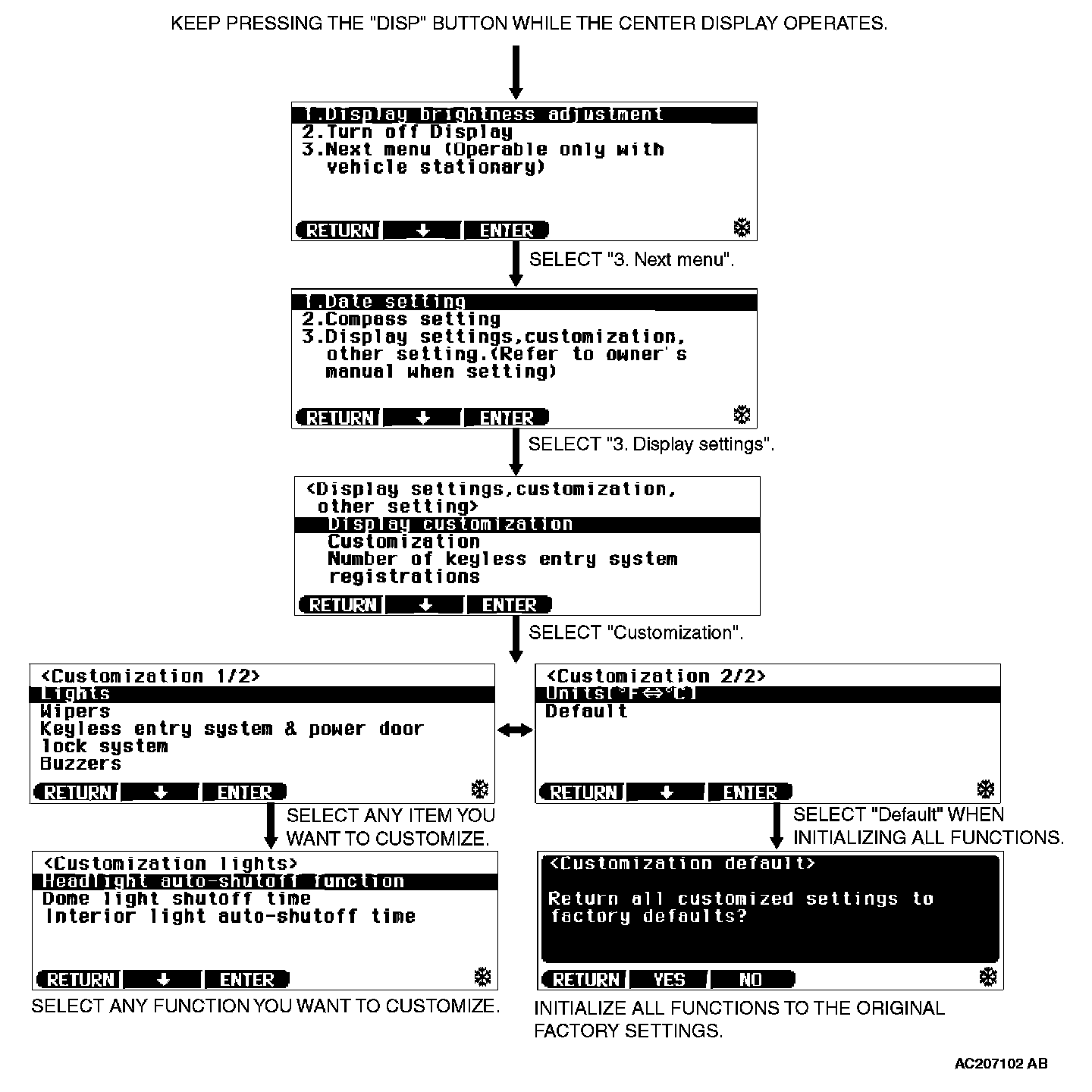

ADJUSTMENT BY OPERATING THE MULTI CENTER DISPLAY

Part 1:




Part 2:




Part 3:

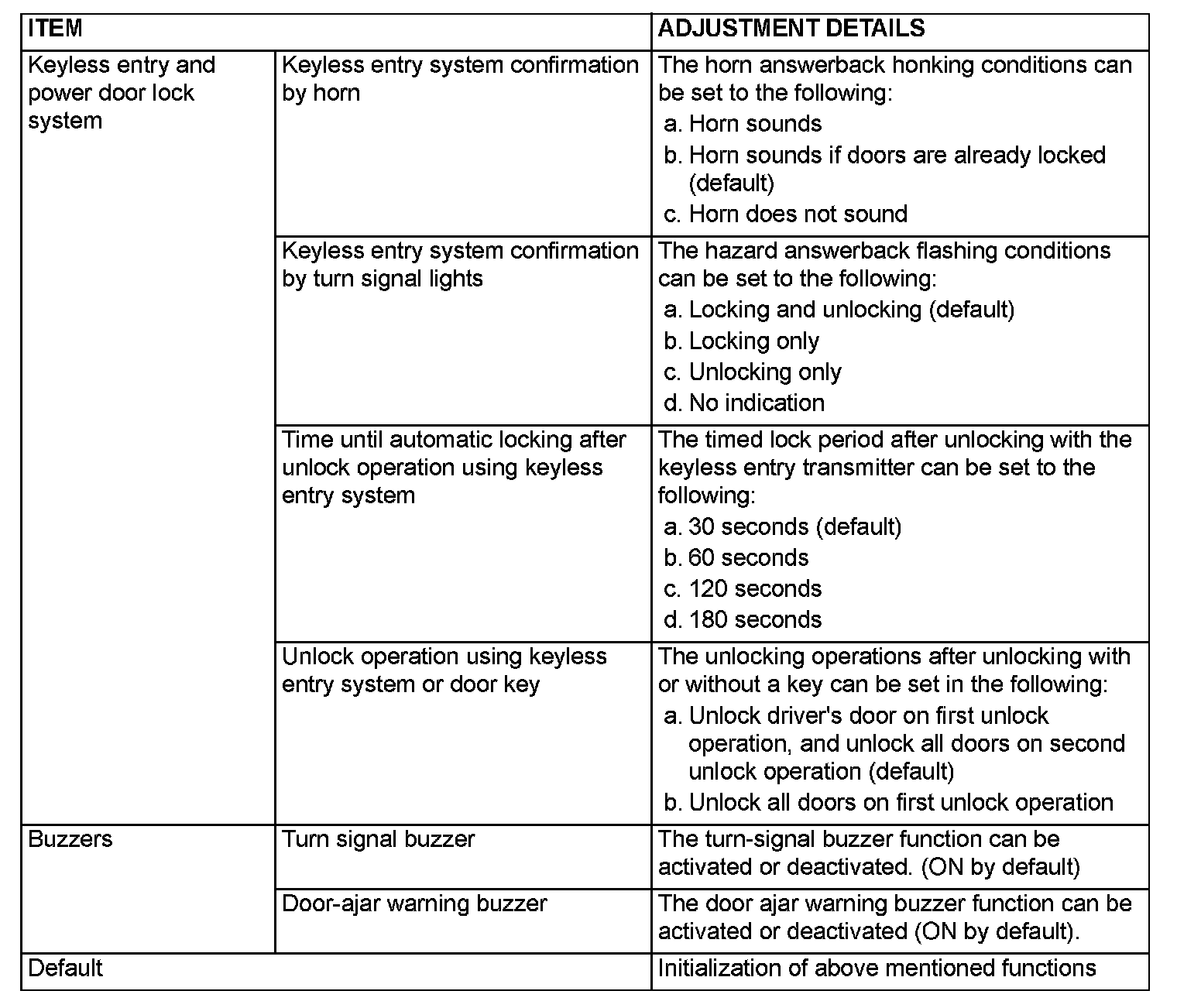

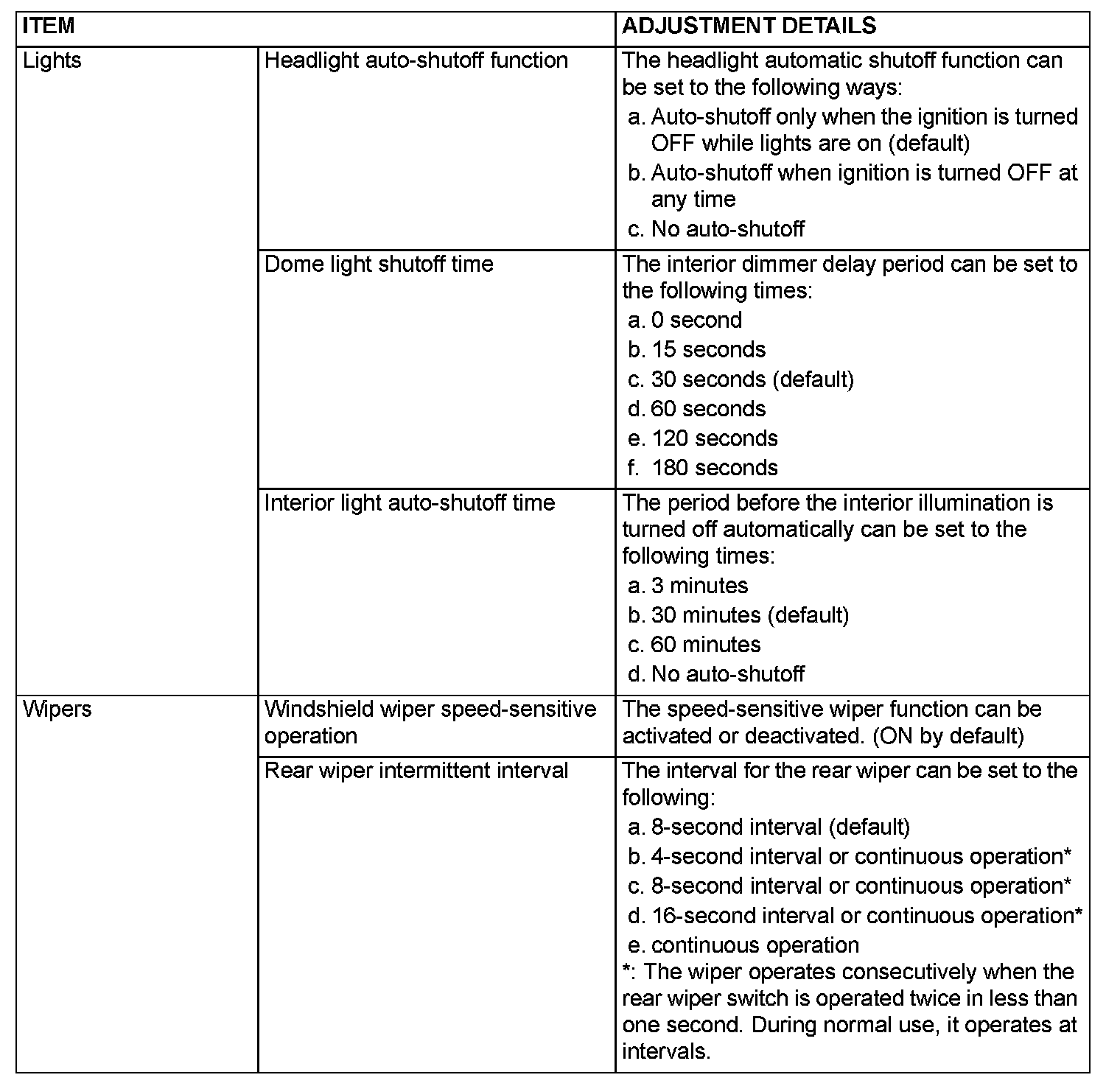

The following function and system customizations are possible by using the multi center display.
