FE120 L4-4.9L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

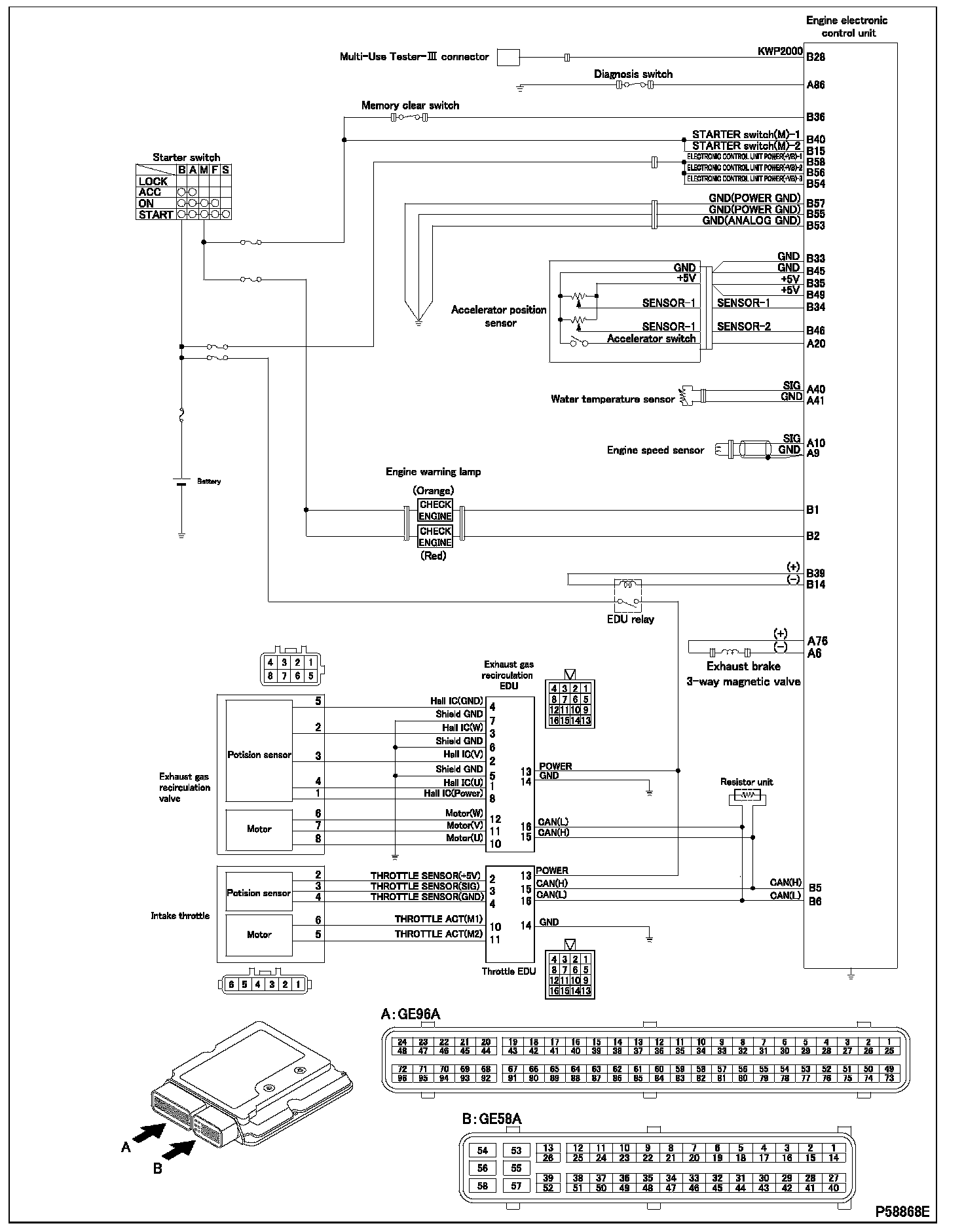

Electronic Throttle Control Module
Electronic Throttle Control Module
