Inspection Procedure

Inspection Procedure

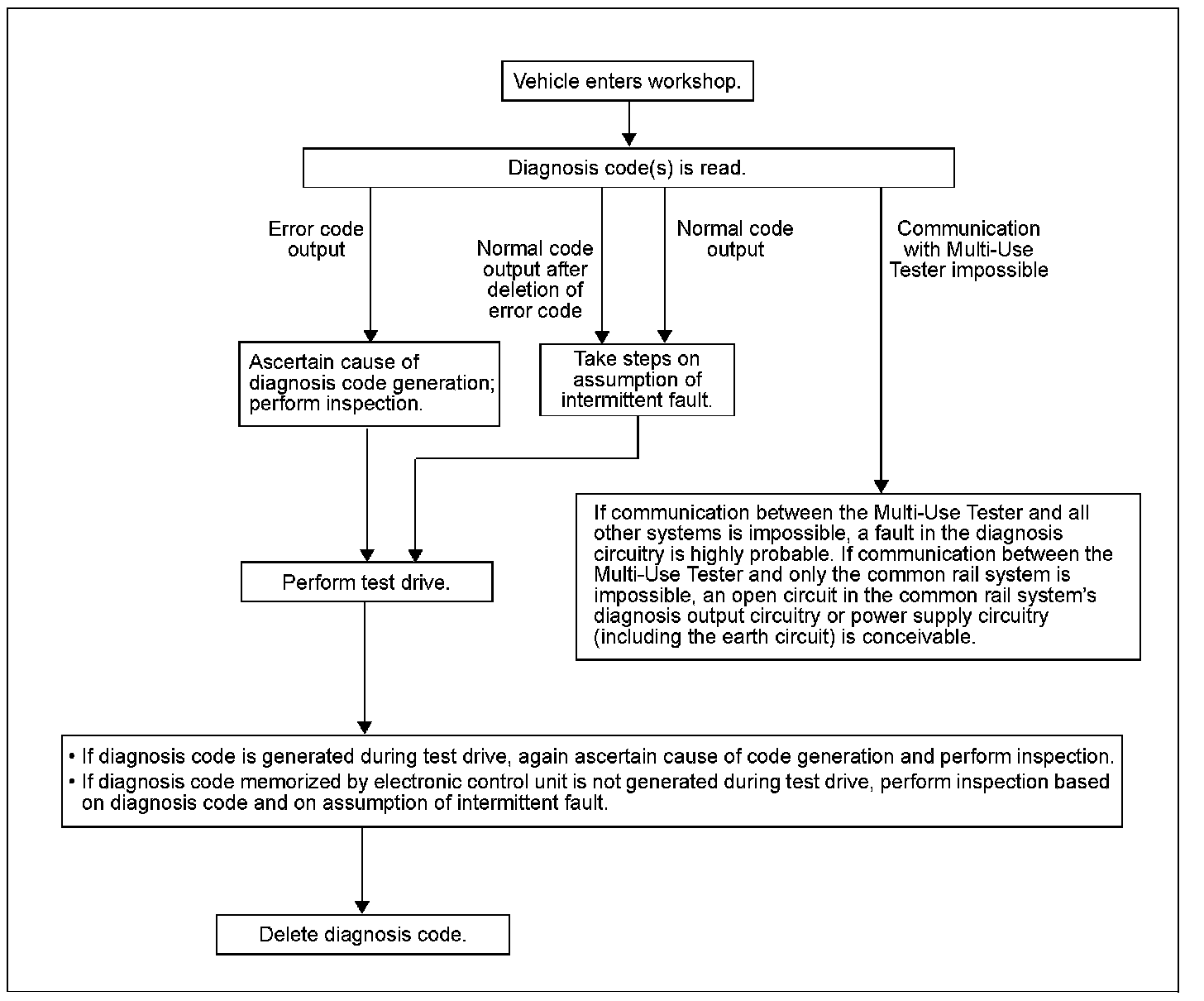

- System inspection can be performed most effectively using a Multi-Use Tester-III. Types of system inspection are broadly classified in accordance with fault symptoms and diagnosis codes as follows:
- Inspection based on diagnosis code memorized by electronic control unit
- Inspection performed on assumption of intermittent fault
