Disassembly and Assembly

HEATER CONTROL ASSEMBLY

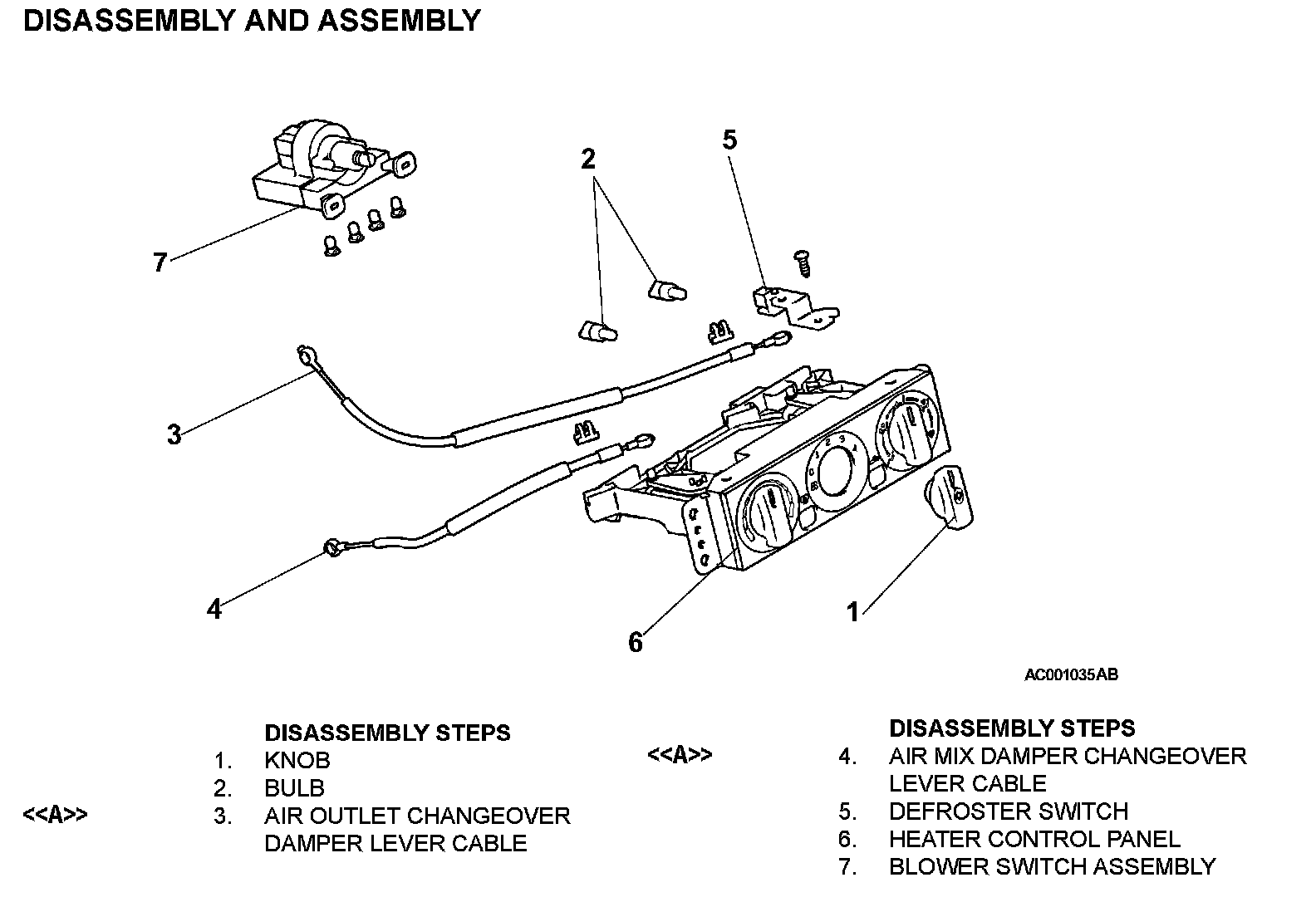

DISASSEMBLY AND ASSEMBLY

DISASSEMBLY SERVICE POINT

<> AIR OUTLET CHANGEOVER DAMPER LEVER CABLE AND AIR MIX DAMPER LEVER CABLE REASSEMBLY

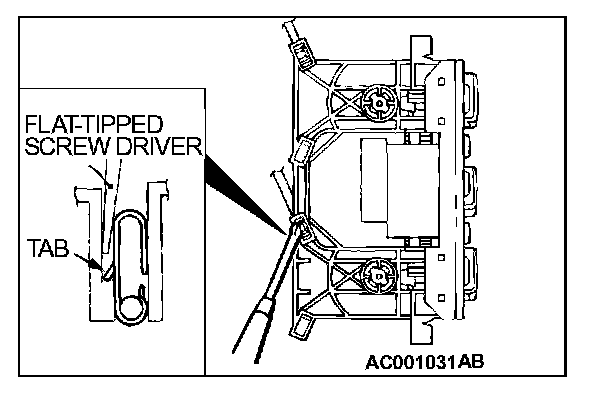

Insert a flat-tipped screwdriver into the control base clip from inner side, and then remove the cable by lifting the claw part of the clip.
