Component Locations

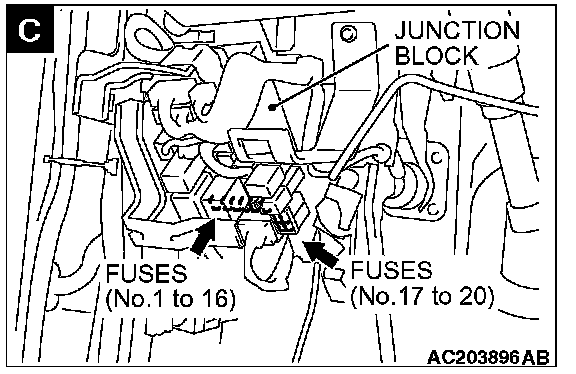

View C:

Overall View:

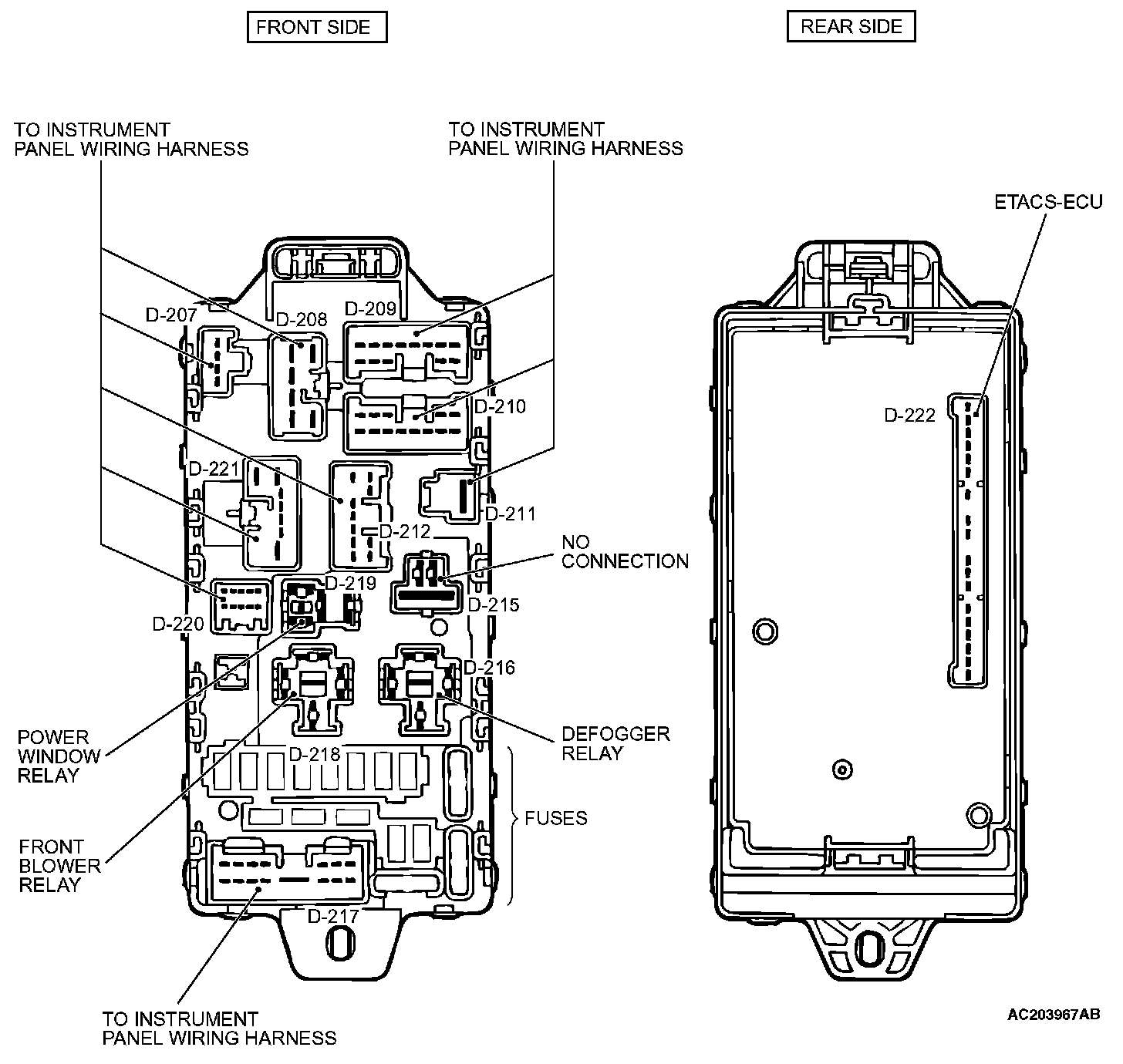

Junction Block:

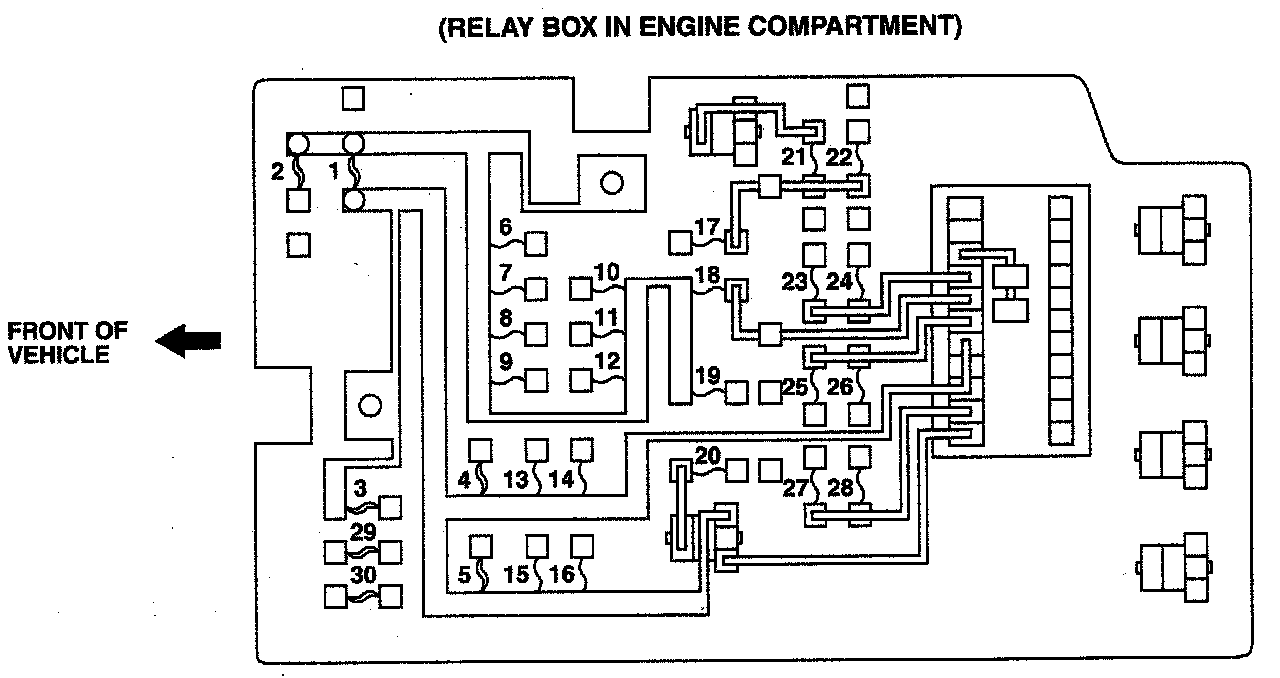

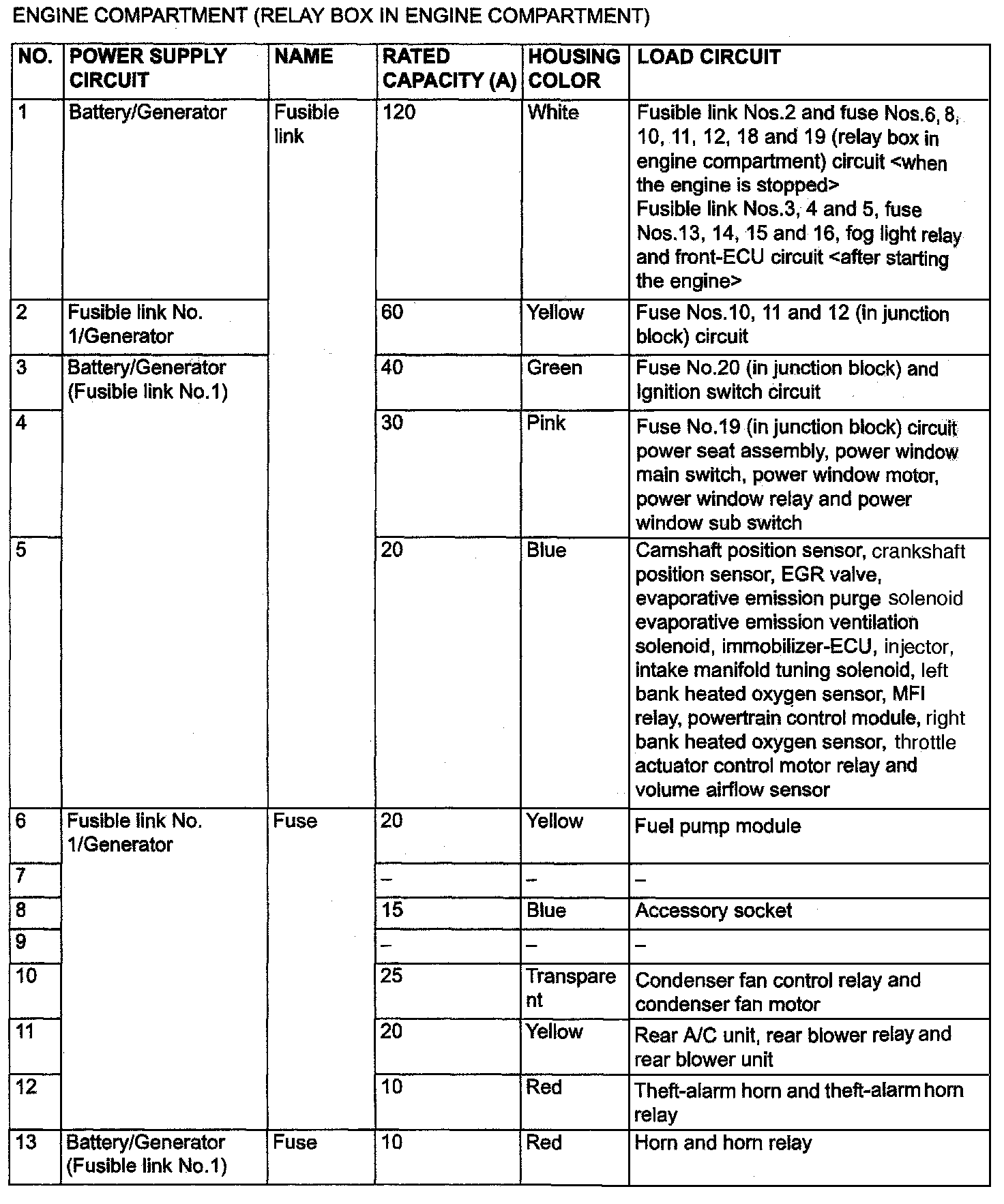

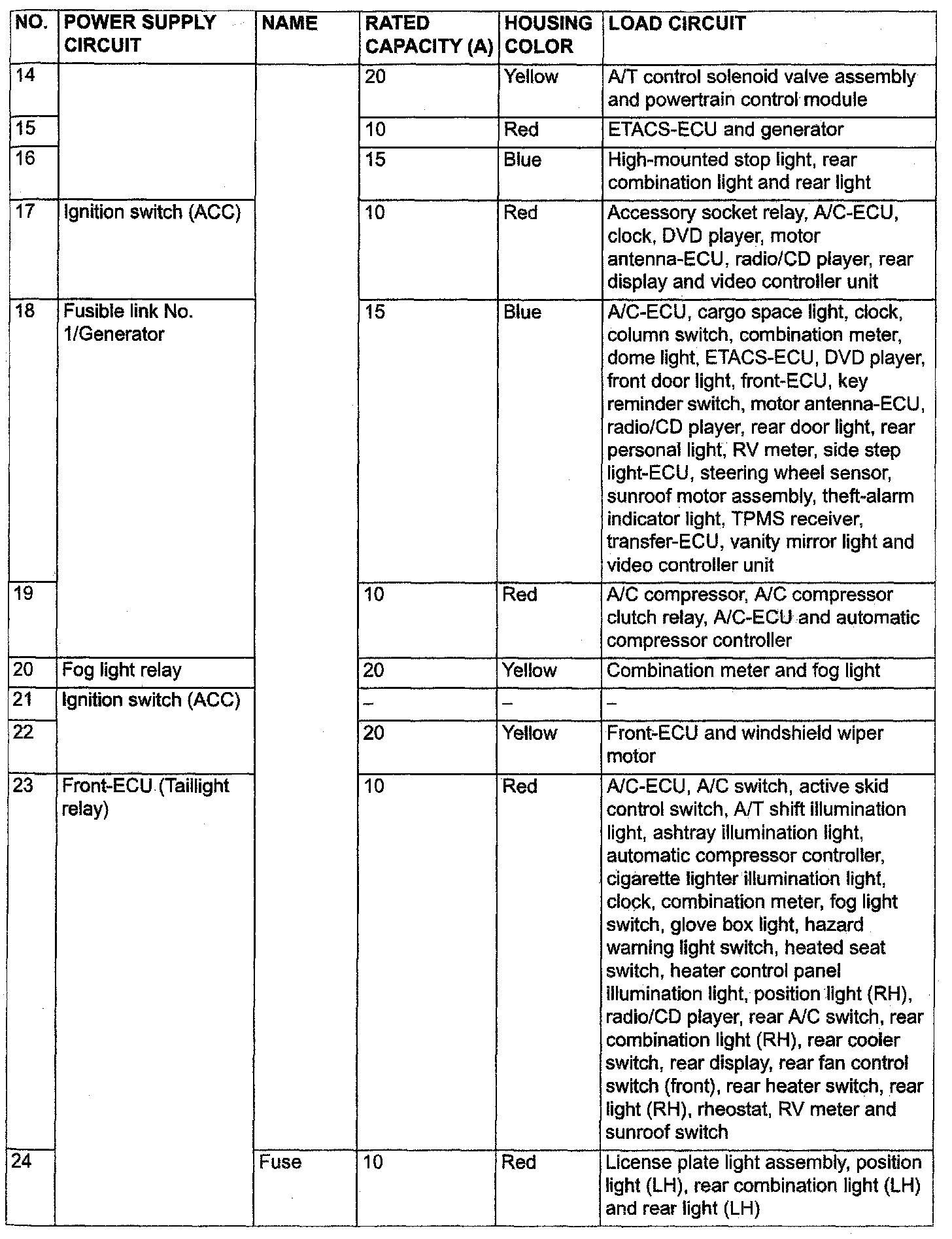

Fuses 1-30 (1 Of 4):

Fuses 1-30 (2 Of 4):

Fuses 1-30 (3 Of 4):

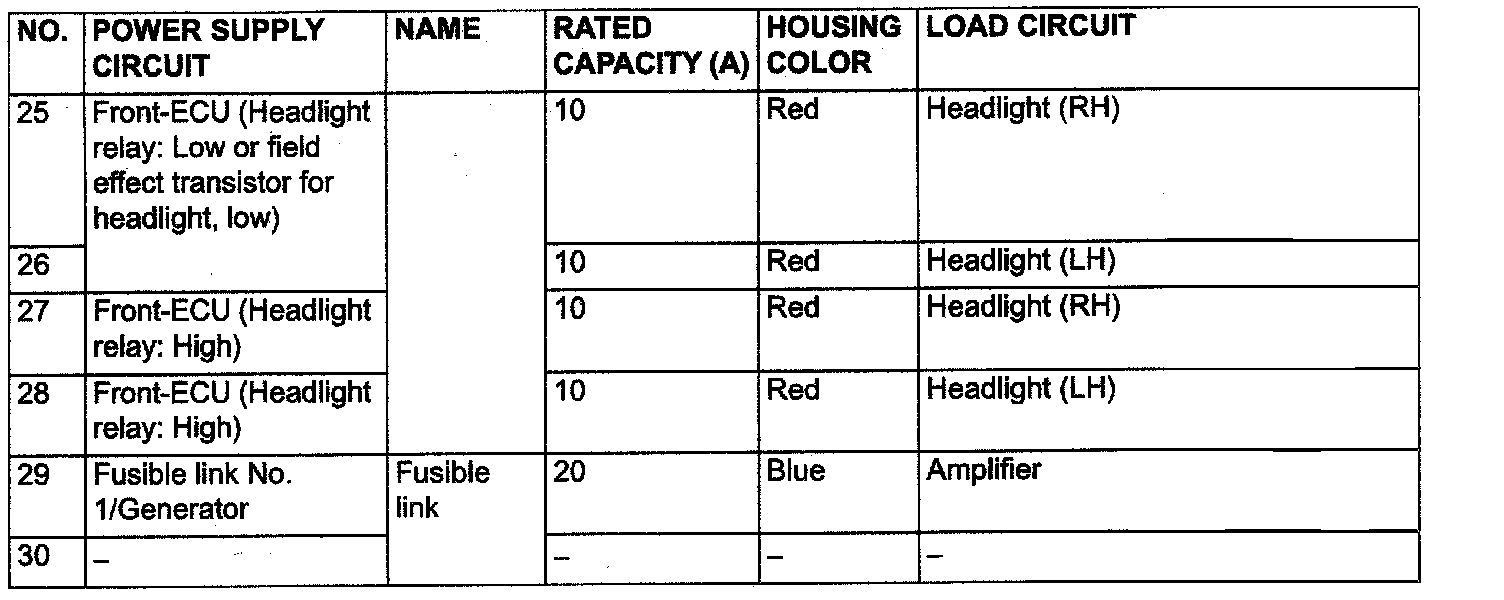

Fuses 1-30 (4 Of 4):

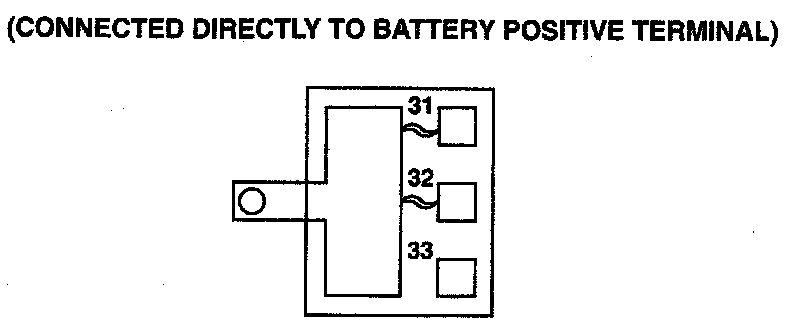

Fuses 31-33 (1 Of 2):

Fuses 31-33 (2 Of 2):

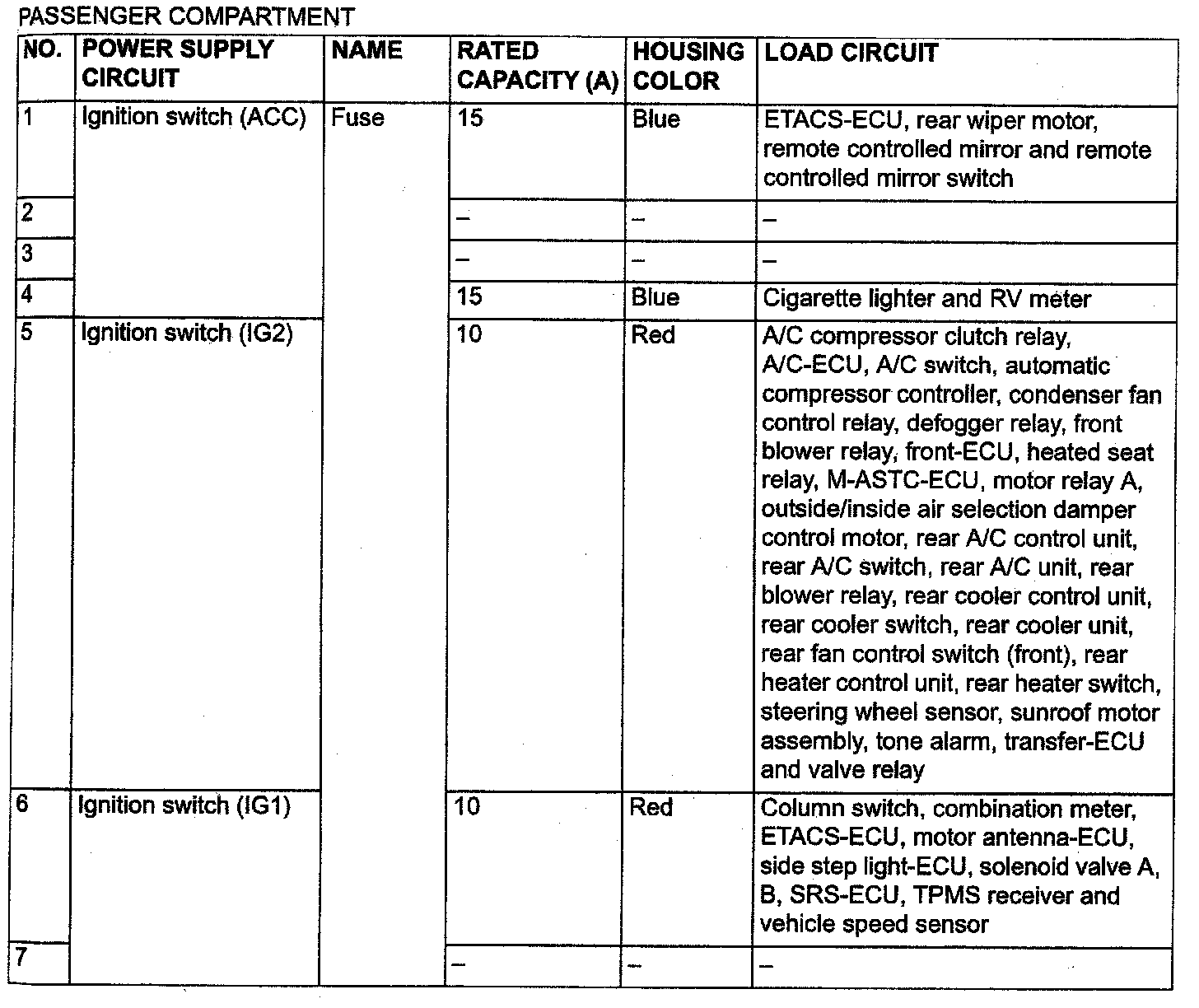

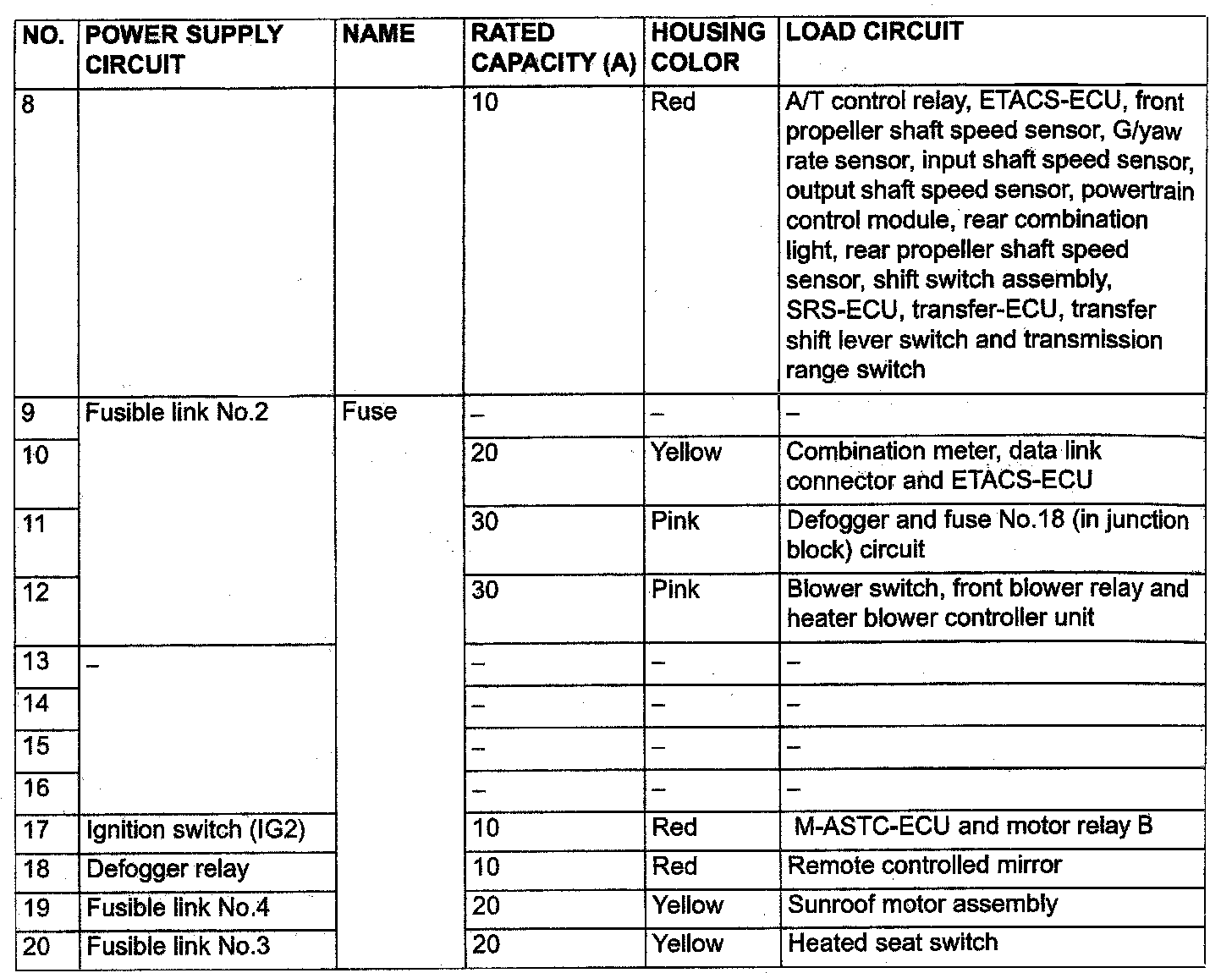

Fuses 1-20 (1 Of 3):

Fuses 1-20 (2 Of 3):

Fuses 1-20 (3 Of 3):

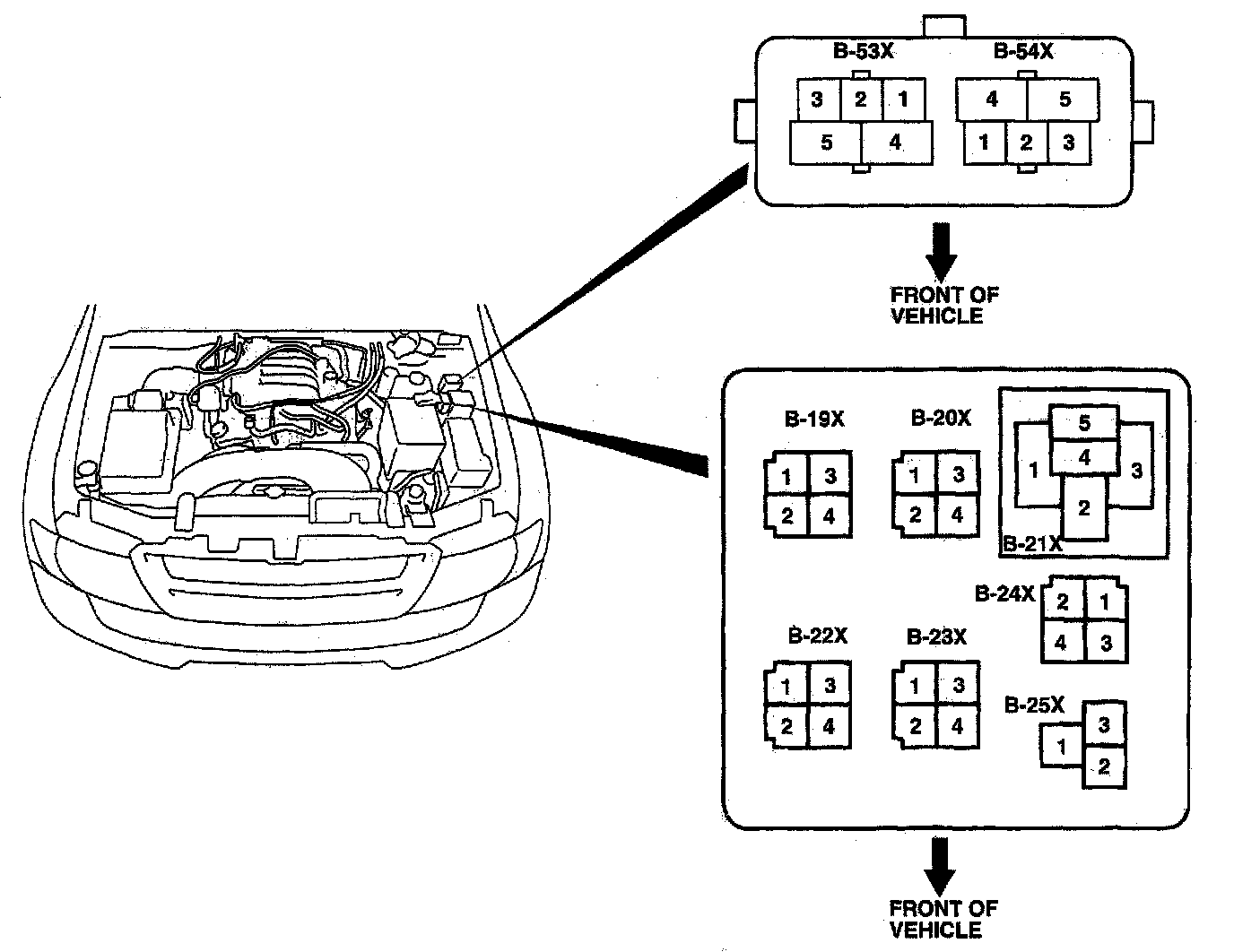

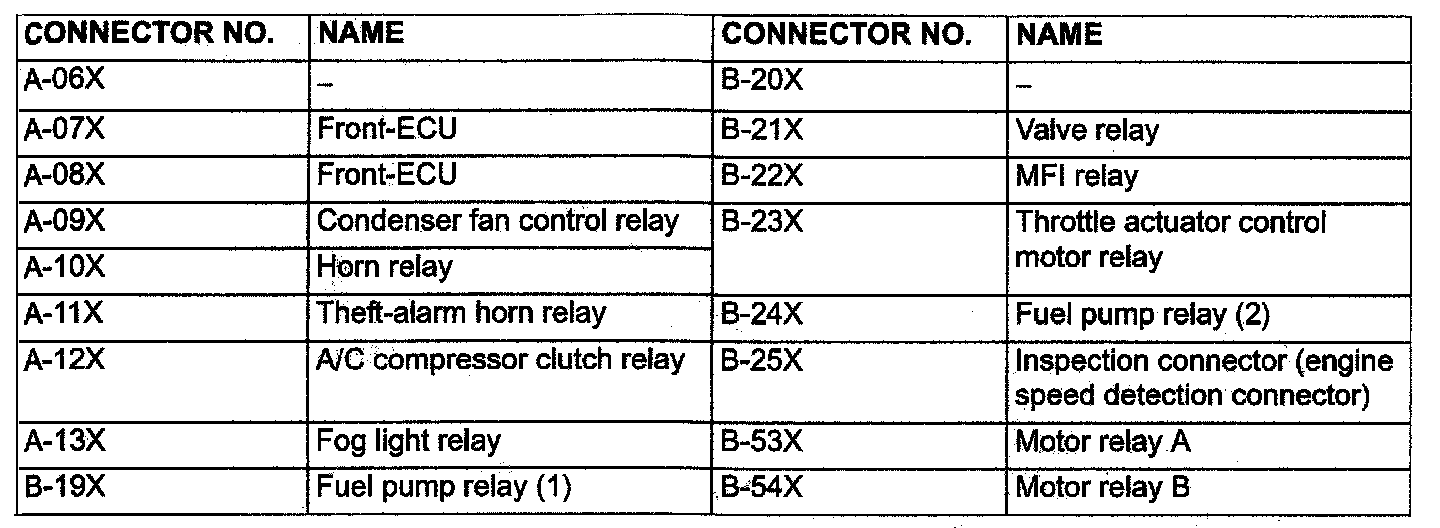

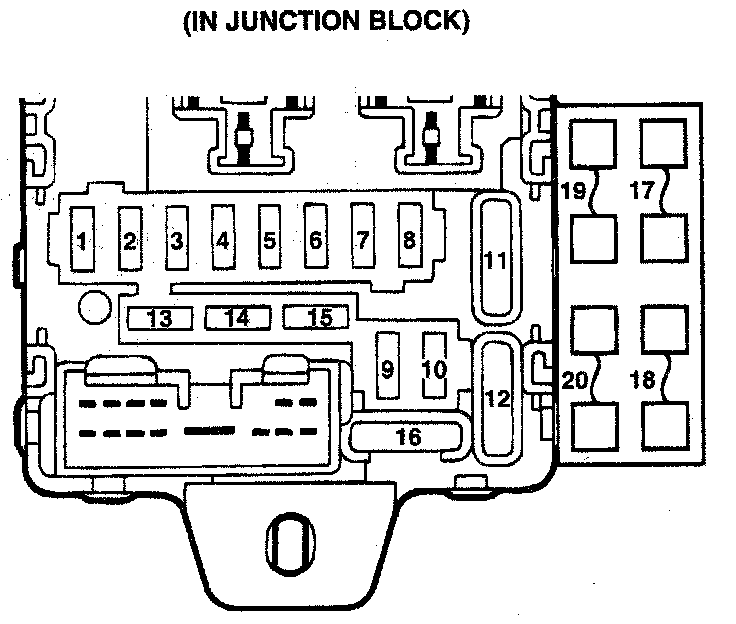

Centralized Relay (1 Of 3):

Centralized Relay (2 Of 3):

Centralized Relay (3 Of 3):
