Temperature Adjustment Switch Continuity Check
Temperature Adjustment Switch Continuity Check

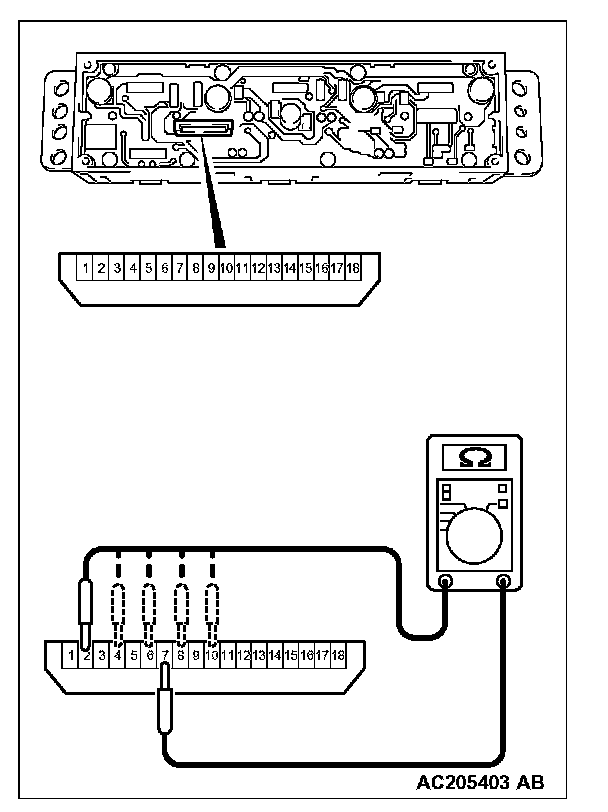

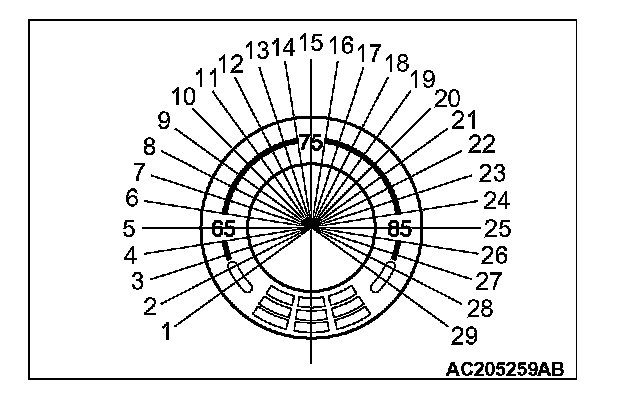

TEMPERATURE ADJUSTMENT SWITCH CONTINUITY CHECK

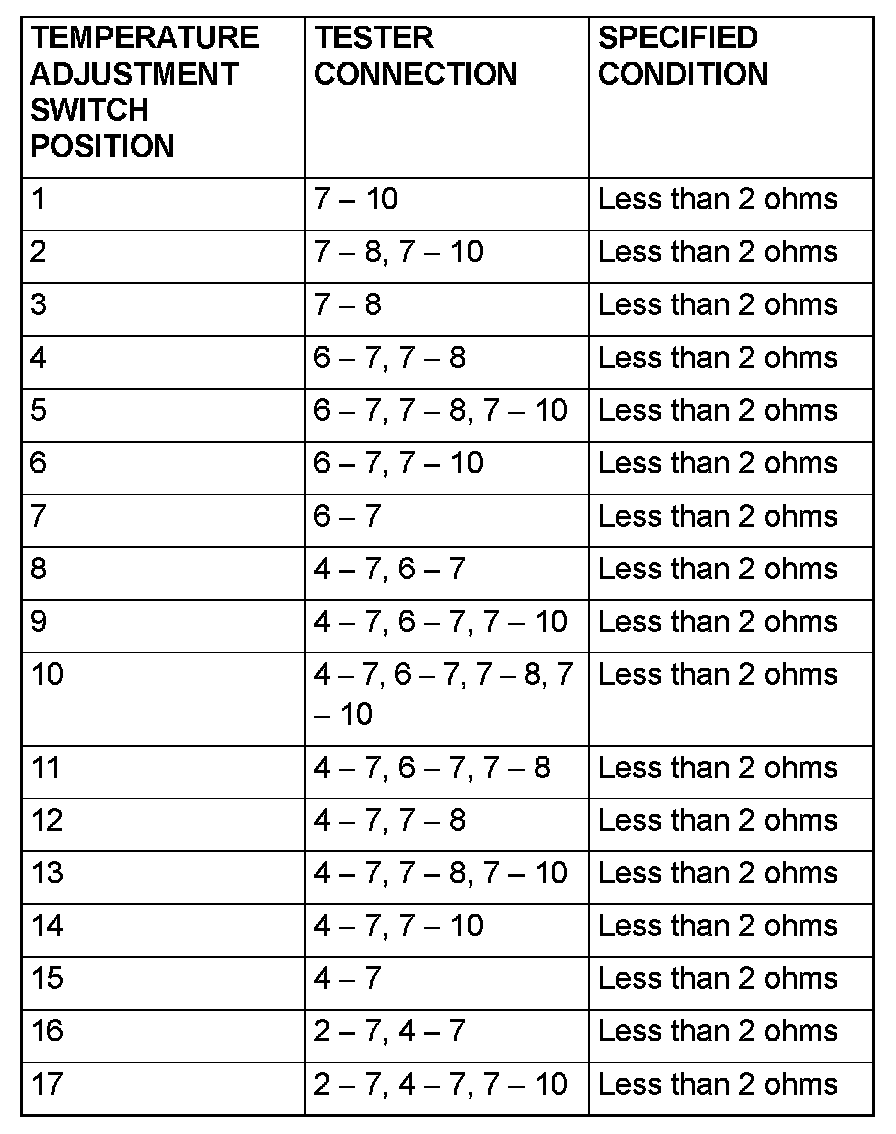

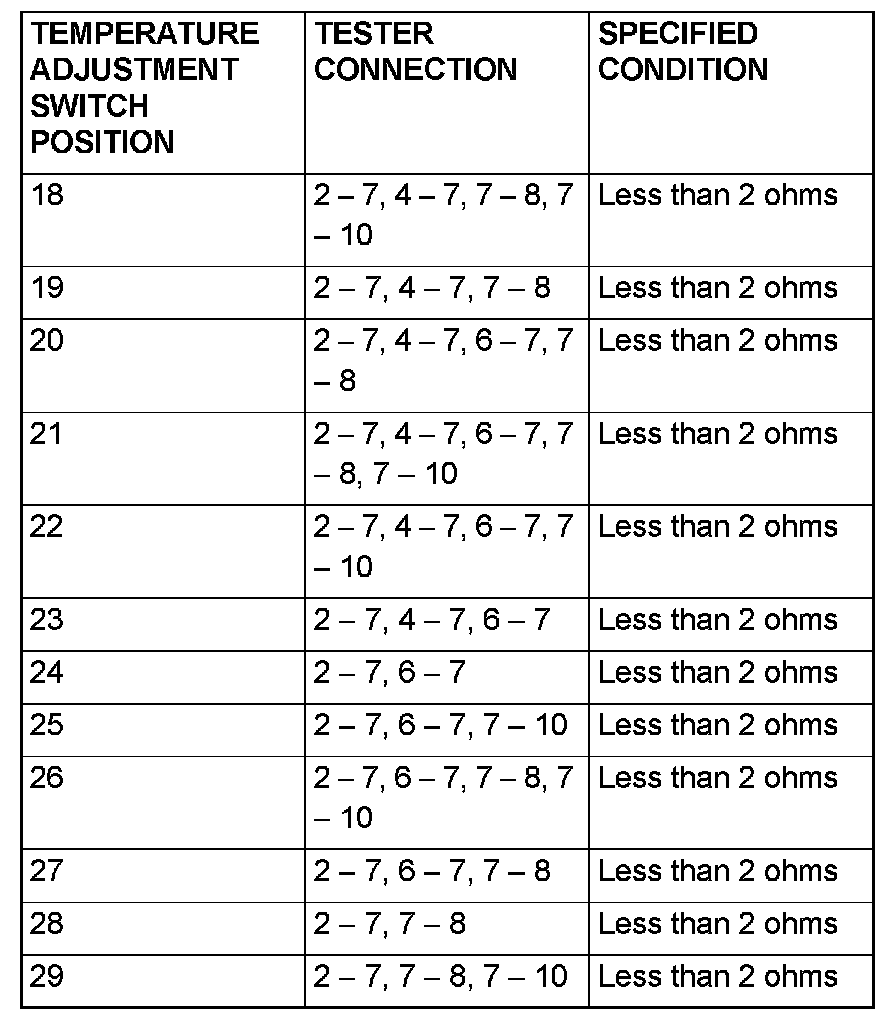

Follow the table to check the temperature adjustment switch for continuity.
