Knock Sensor: Service and Repair

KNOCK SENSOR

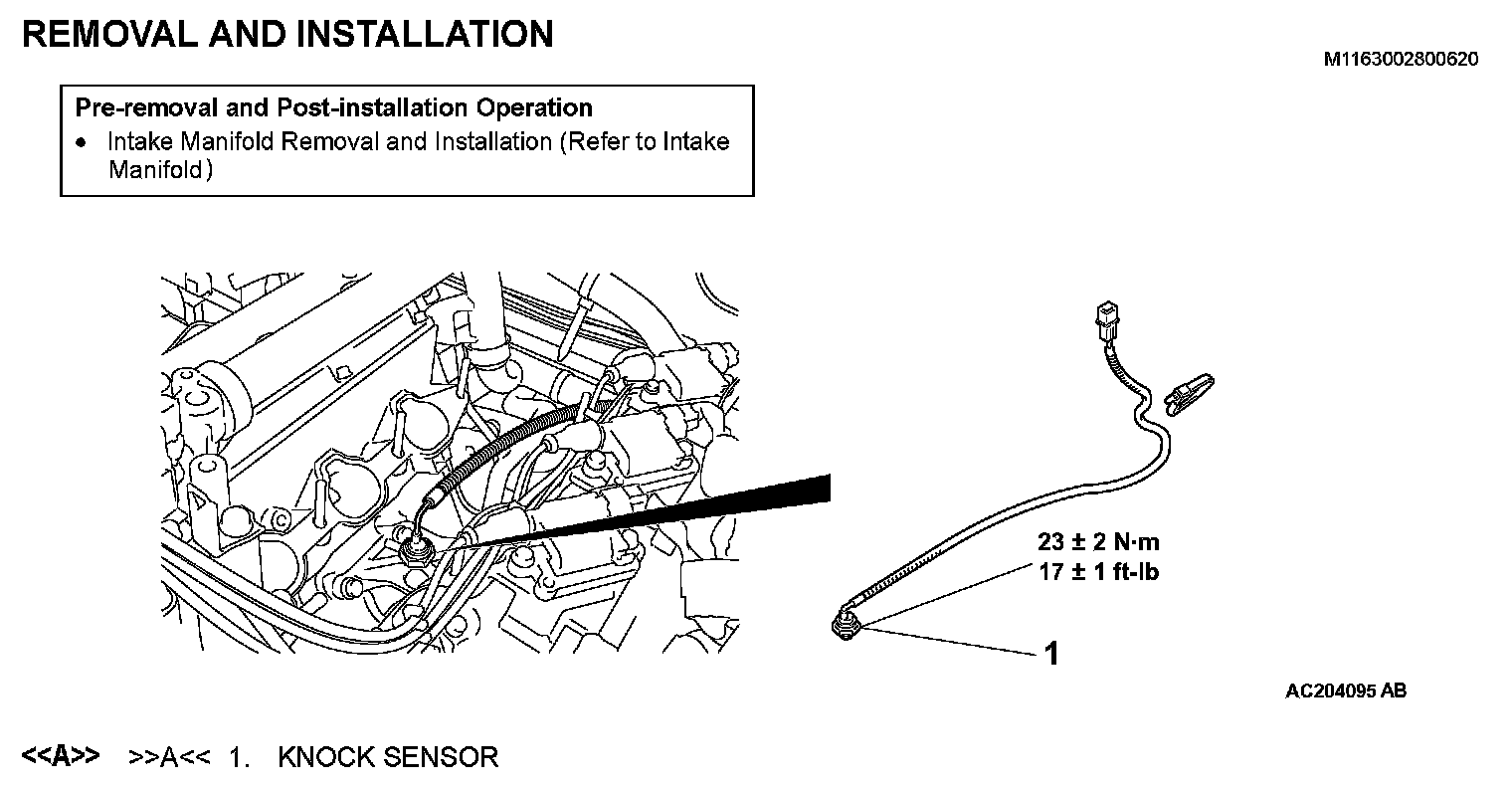

REMOVAL AND INSTALLATION

<> >>A<< 1. KNOCK SENSOR

Required Special Tool:
MD998773: Knock Sensor Wrench

REMOVAL SERVICE POINT

<> KNOCK SENSOR REMOVAL

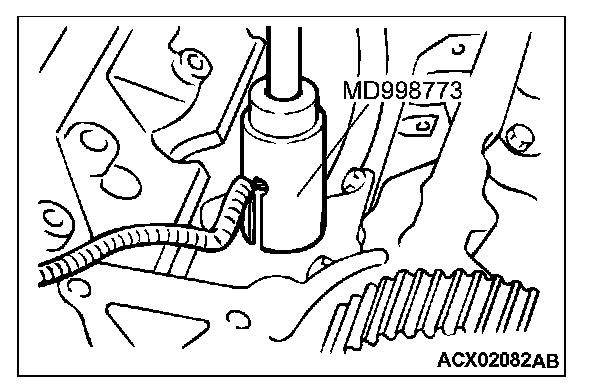

Use special tool MD998773 to remove the knock sensor.


INSTALLATION SERVICE POINT

>>A<< KNOCK SENSOR INSTALLATION

Use special tool MD998773 to install the knock sensor.
