2WD Detection Switch Check
2WD Detection Switch Check
2WD DETECTION SWITCH CHECK

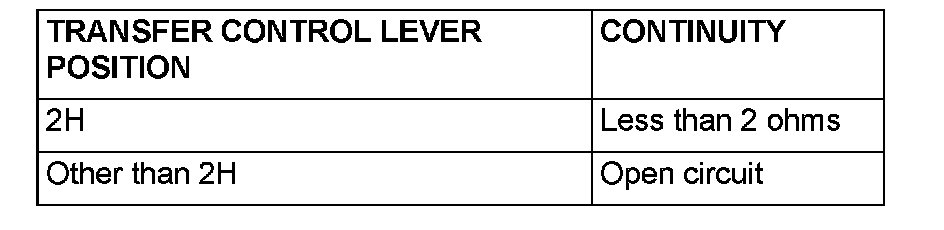

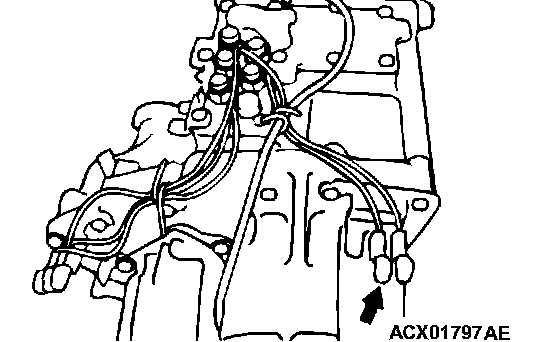

Check for continuity between the terminal of the black connector located on the transfer case.
