4H Detection Switch Check

4H DETECTION SWITCH CHECK

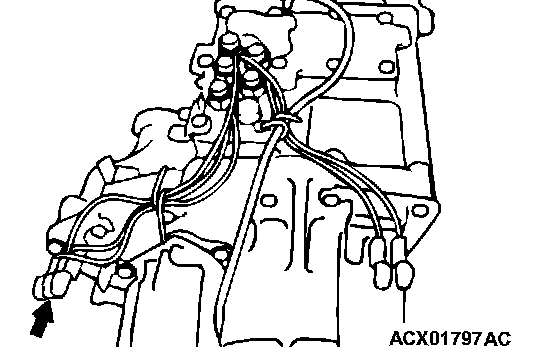

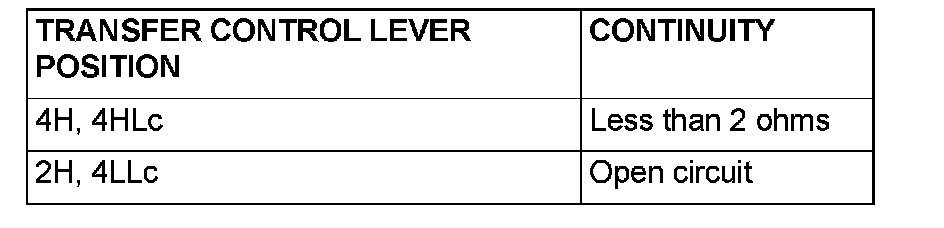

Check for continuity between the terminal of the white connector located on the transfer case.
