Center Differential Lock Detection Switch Check
Center Differential Lock Detection Switch Check
CENTER DIFFERENTIAL LOCK DETECTION SWITCH CHECK

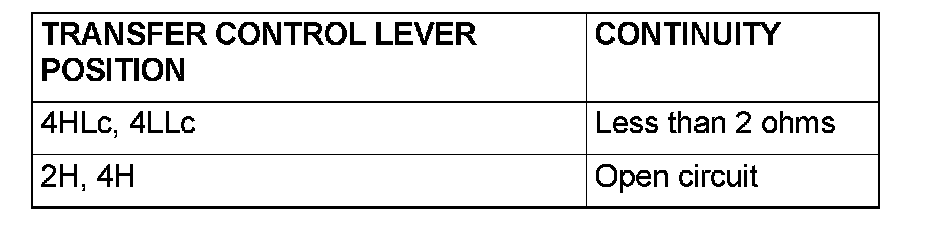

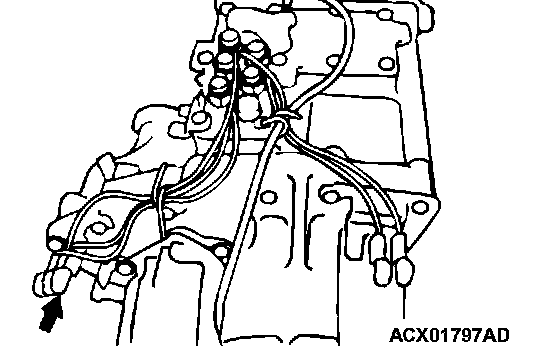

Check for continuity between the terminal of the brown connector located on the transfer case.
