Transmission Fluid Temperature Sensor Check
TRANSMISSION FLUID TEMPERATURE SENSOR CHECK1. Remove the transmission fluid temperature sensor.

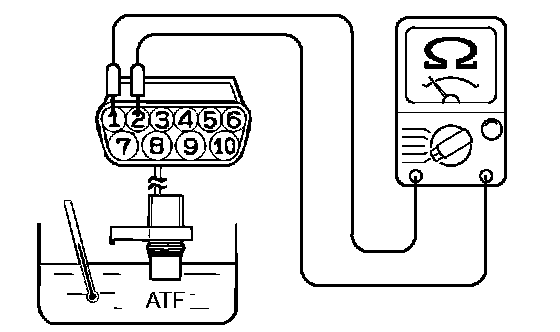

2. Measure the resistance between terminals No.1 and No.2 of the transmission fluid temperature sensor connector.

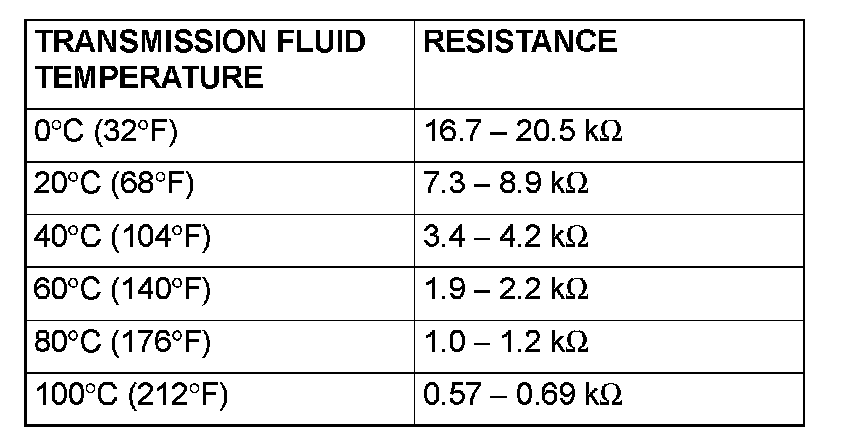

Standard value:
3. If the transmission fluid temperature sensor resistance is outside the specified range and the "A/T TEMP" indicator light is illuminating, replace the transmission fluid temperature sensor.
NOTE: The "A/T TEMP" indicator light on the combination meter illuminating when the temperature reaches approximately 125°C (257°F) or greater, and then stops illuminating when the temperature drops below approximately 115°C (238°F).
