Data Link Connector: Locations

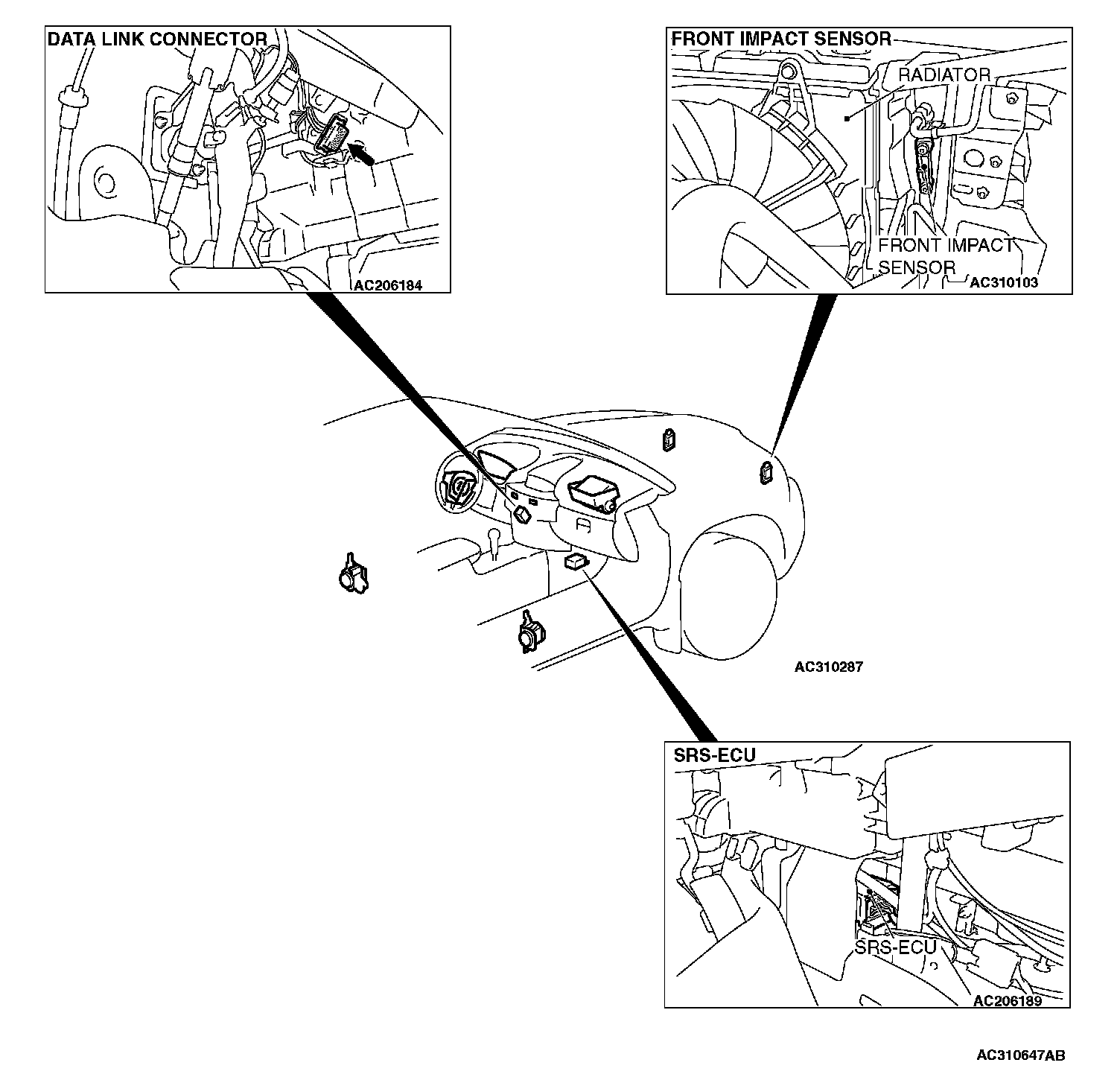

Overall View:

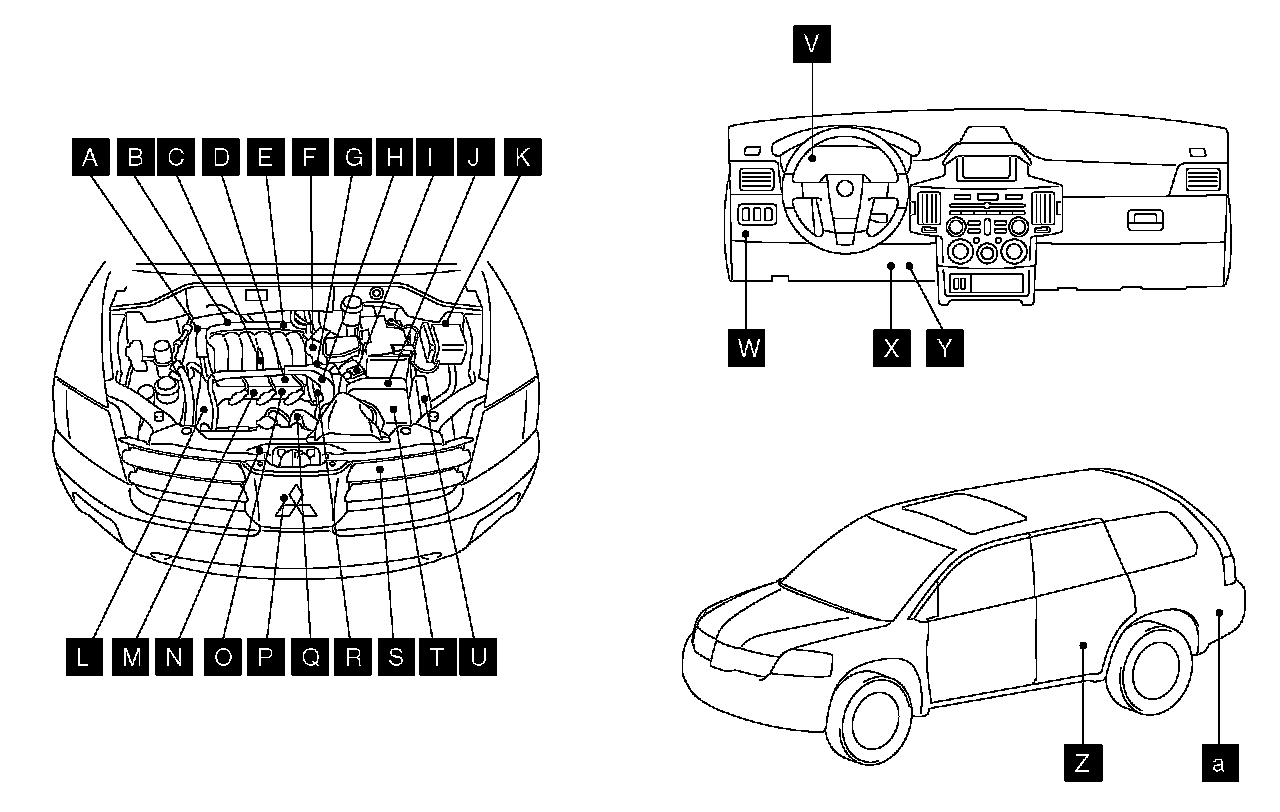

Overall View:

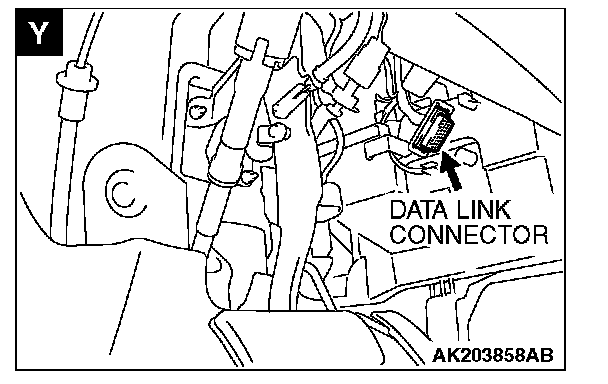

View Y:

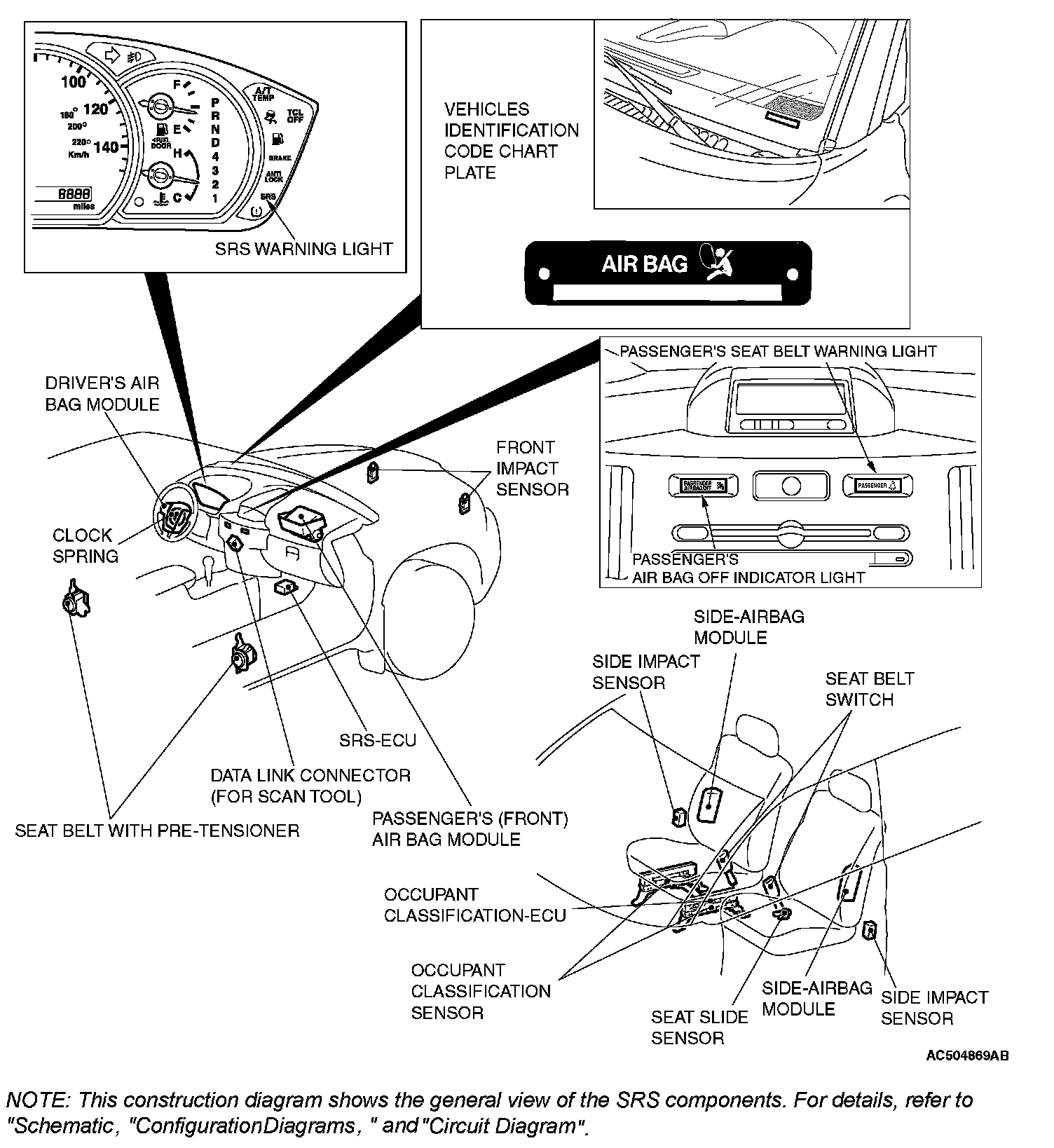

Construction Diagram:

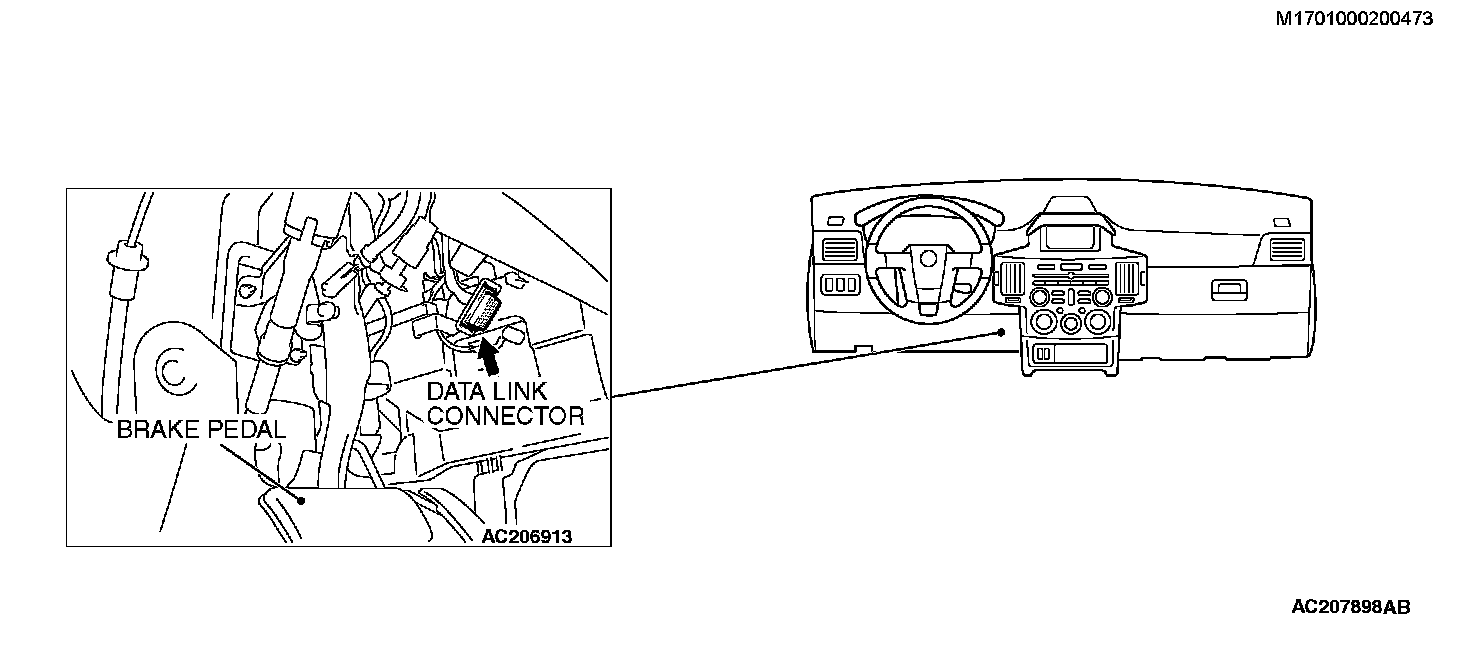

Component Location Part 1:
