Mirrors: Service and Repair

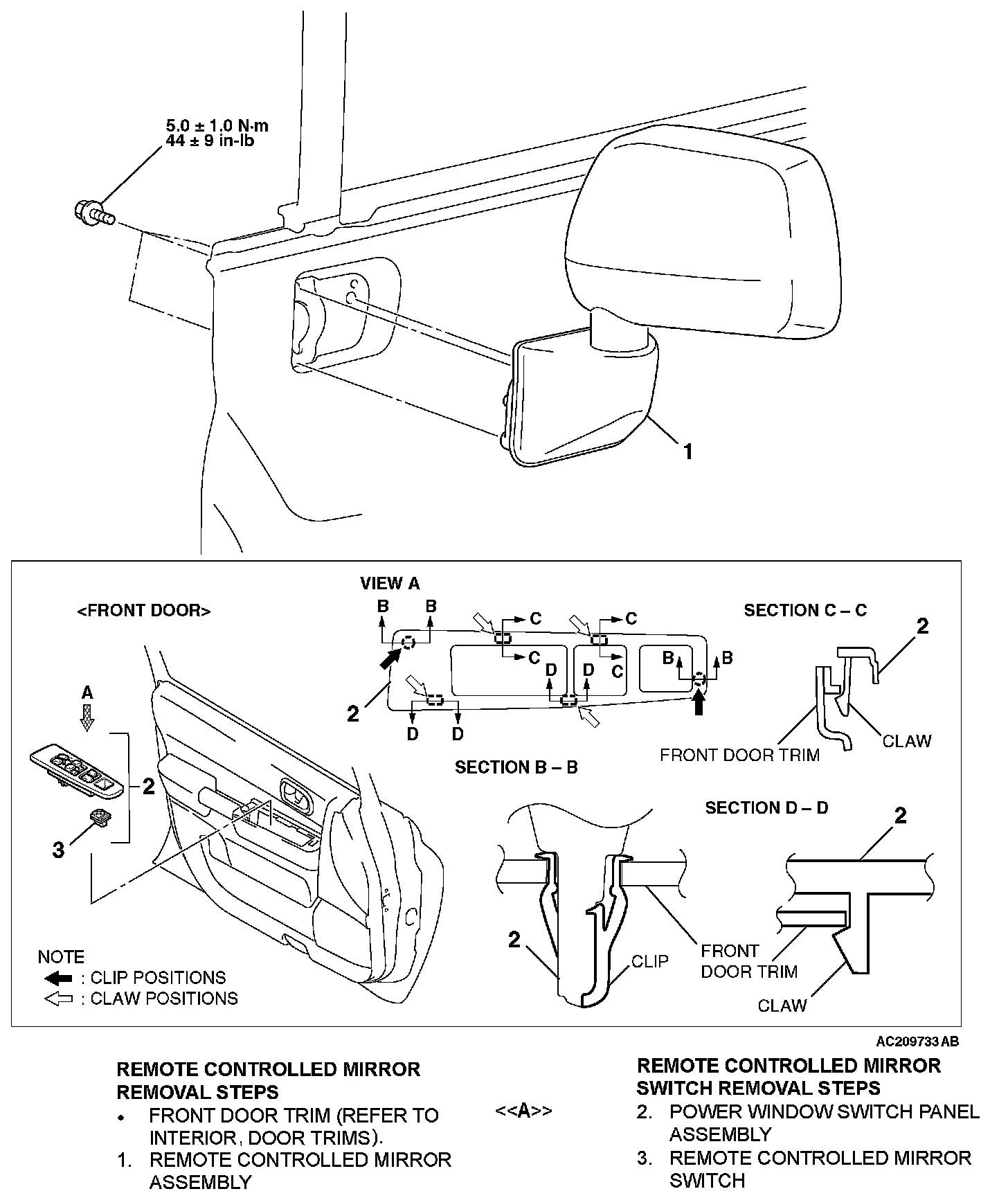

DOOR MIRROR

REMOVAL AND INSTALLATION

Removal Steps 1-3:

Required Special Tool:
- MB990784: Ornament Remover

REMOVAL SERVICE POINT

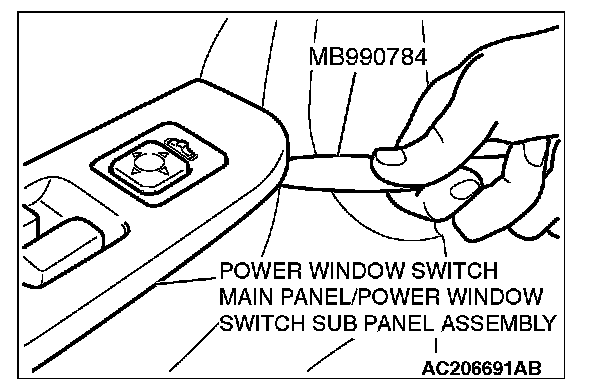

[A] POWER WINDOW SWITCH PANEL ASSEMBLY REMOVAL






Insert special tool MB990874 as shown to remove the power window switch panel assembly.
