Locations:

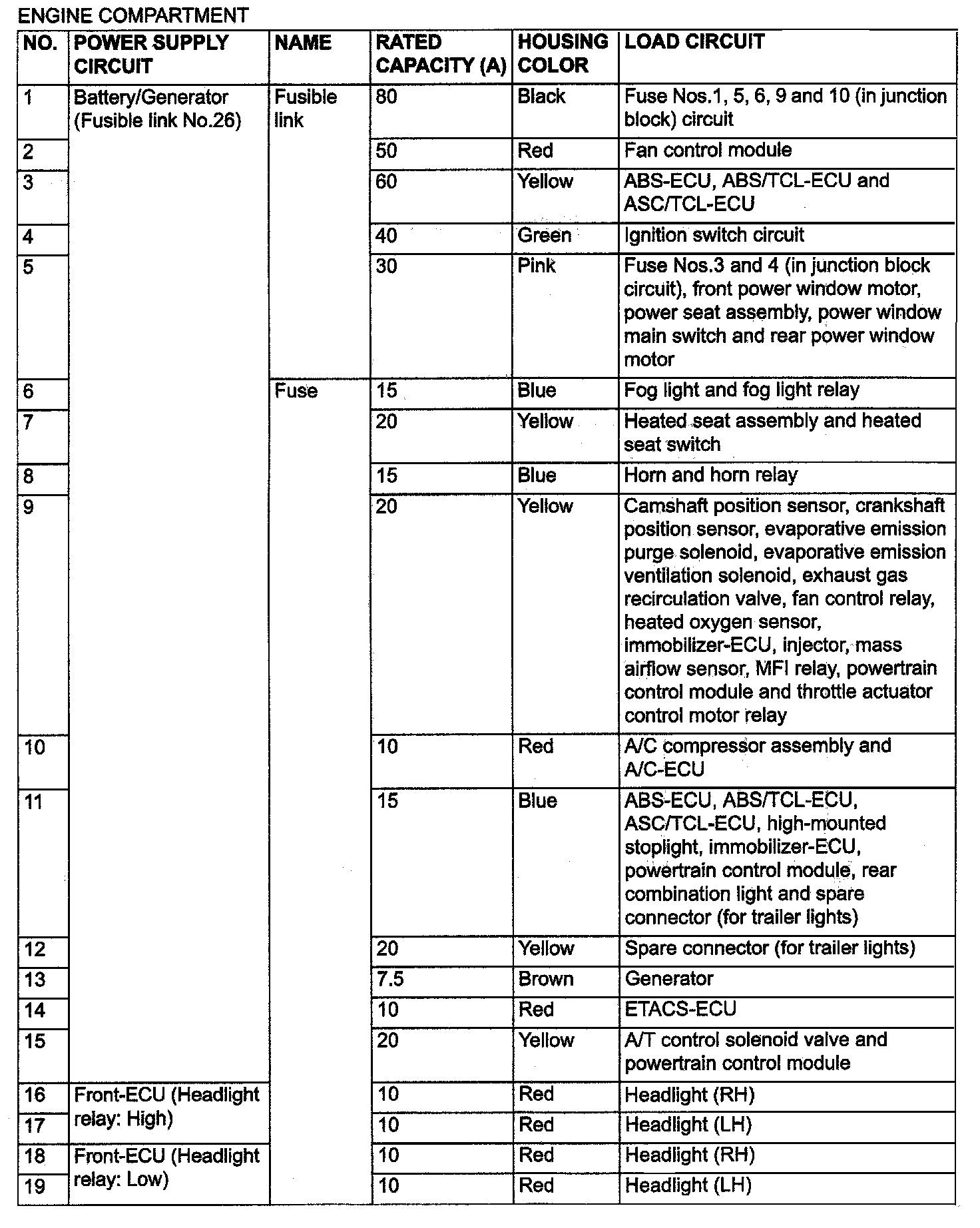

Fuses 1-26 (1 Of 3):

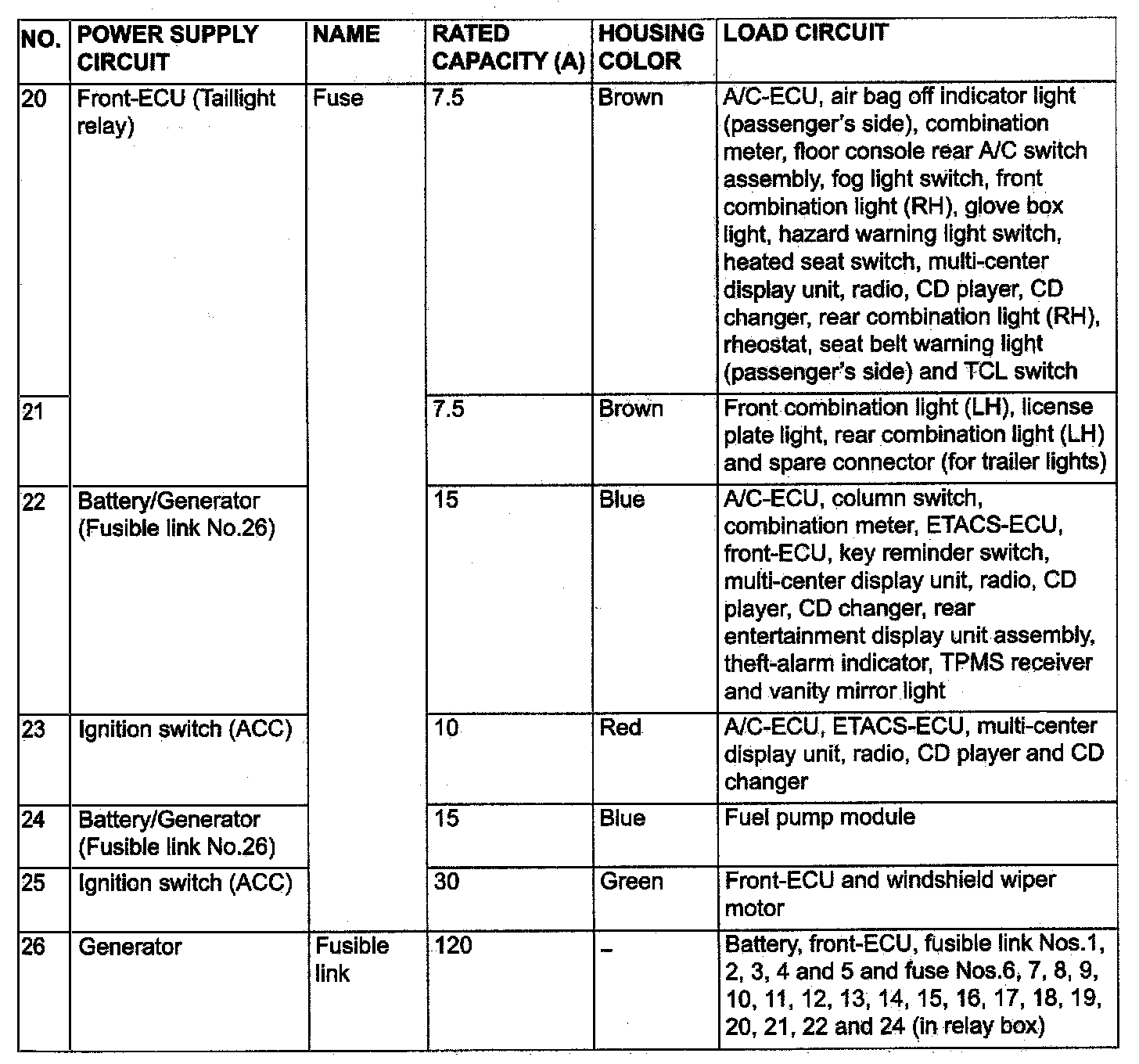

Fuses 1-26 (2 Of 3):
Fuses 1-26 (3 Of 3):

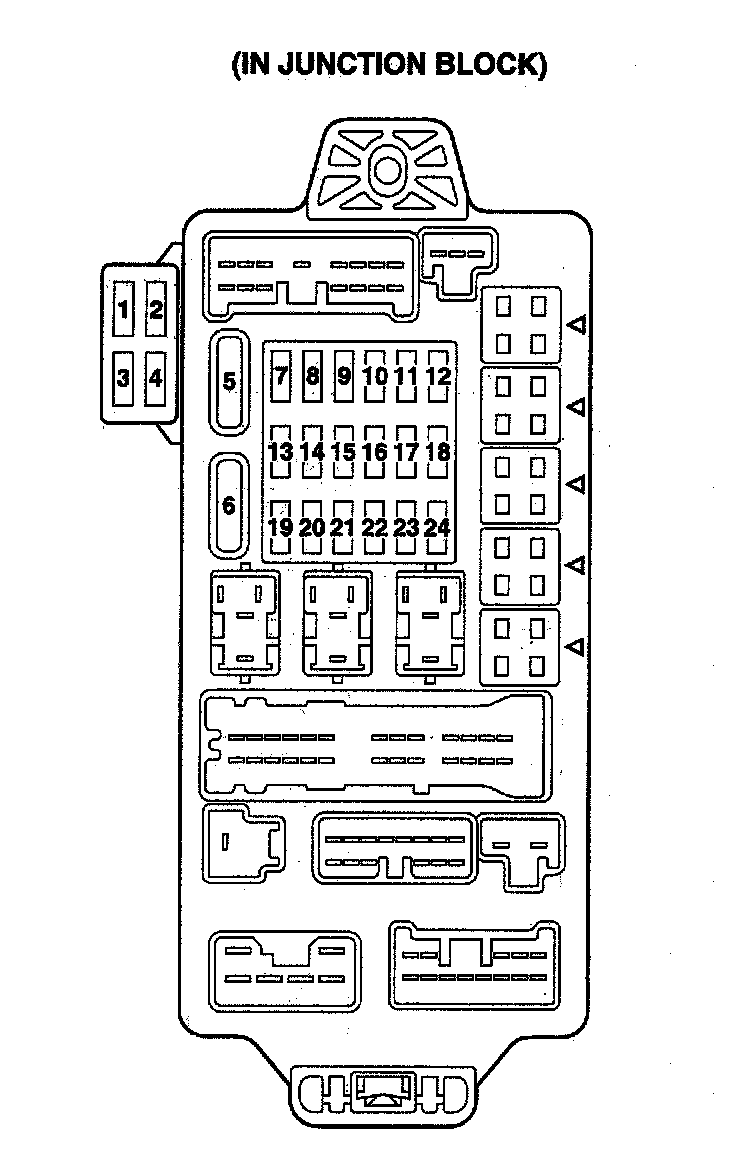

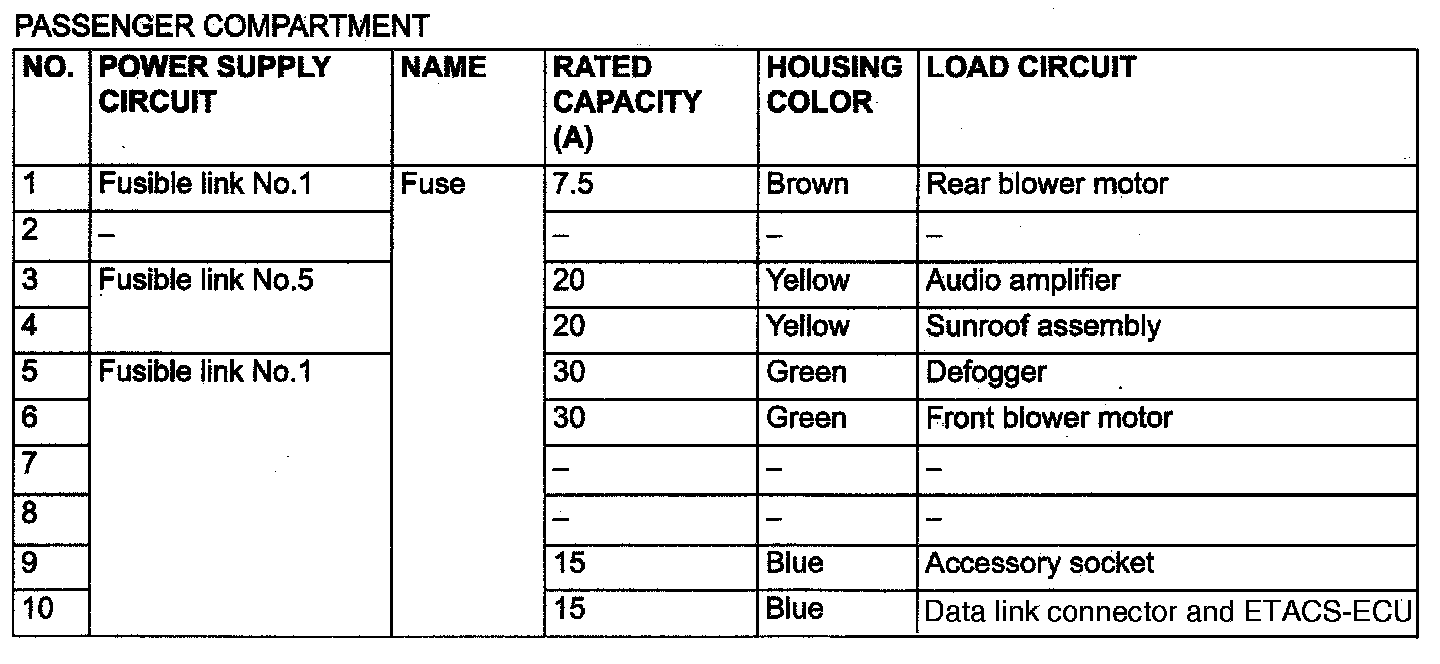

Fuses 1-24 (1 Of 3):
Fuses 1-24 (2 Of 3):
Fuses 1-24 (3 Of 3):

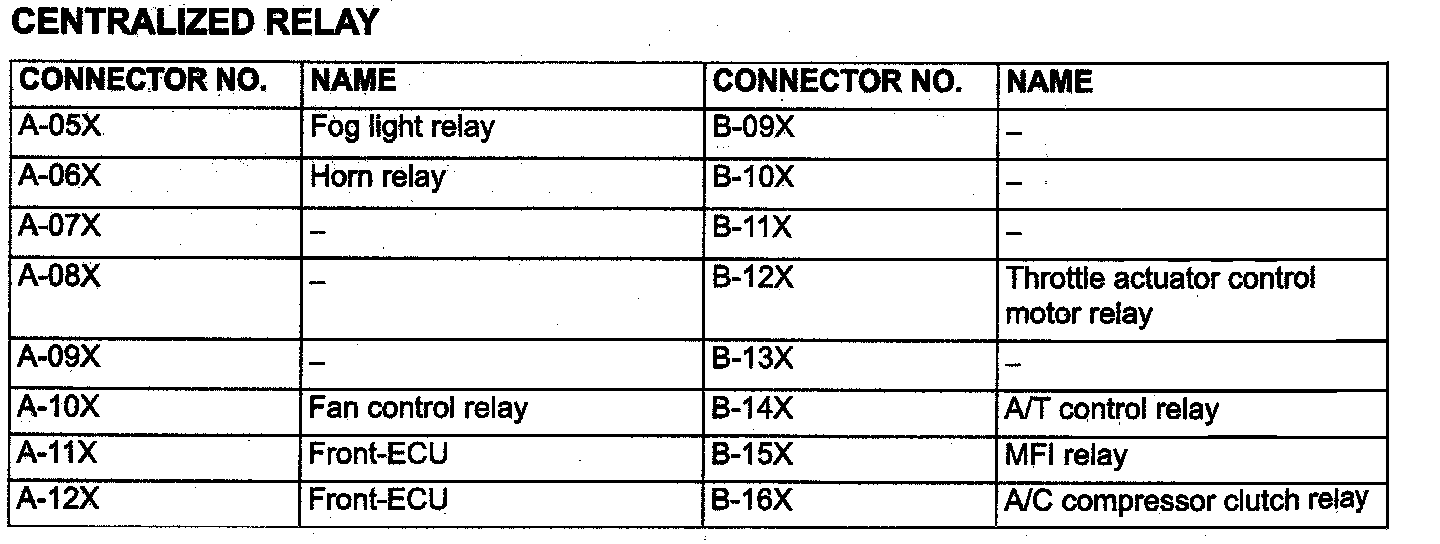

Centralized Relay (1 Of 2):

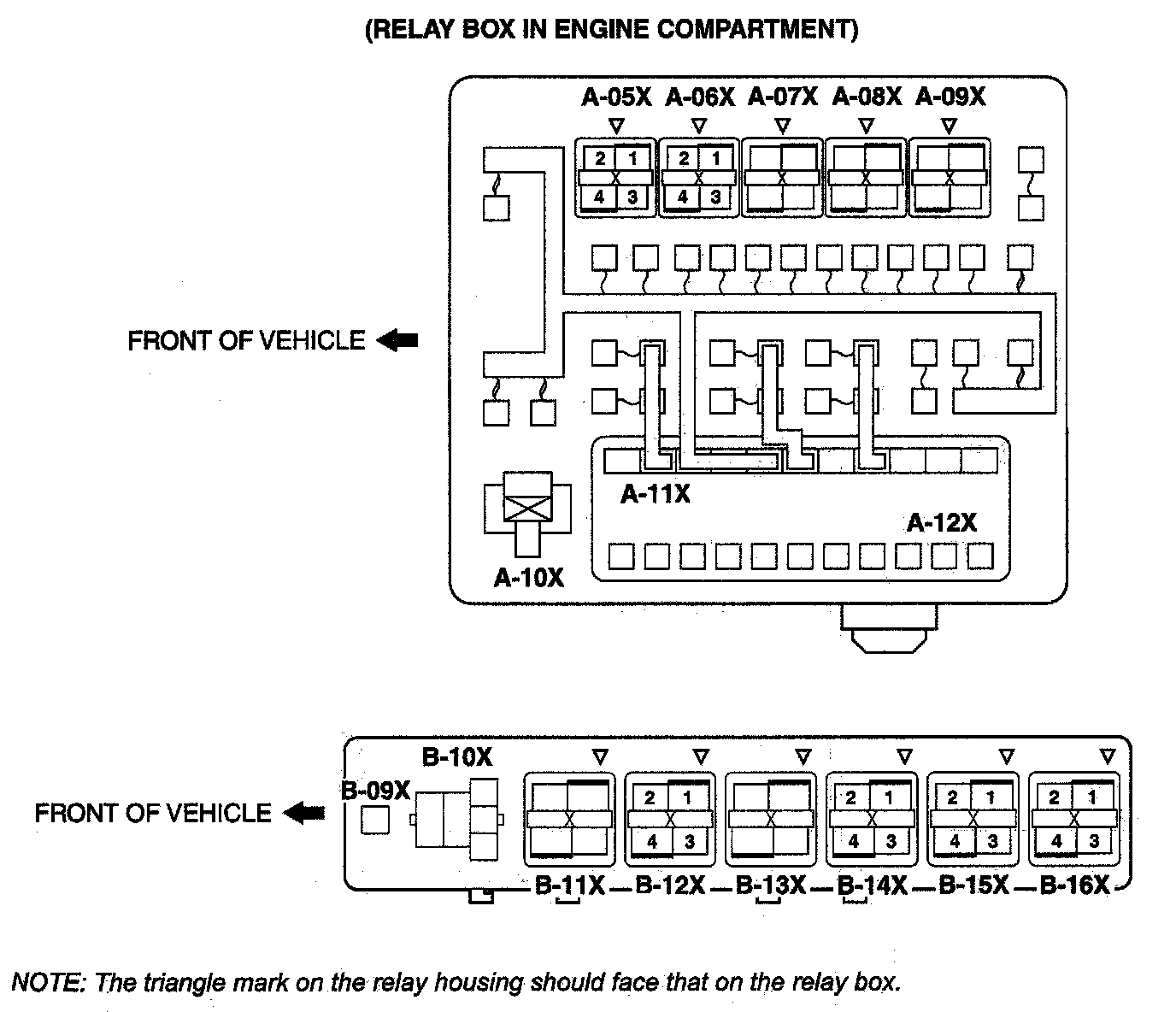

Centralized Relay (2 Of 2):
