Mode 6 Data

MODE 6 REFERENCE TABLE

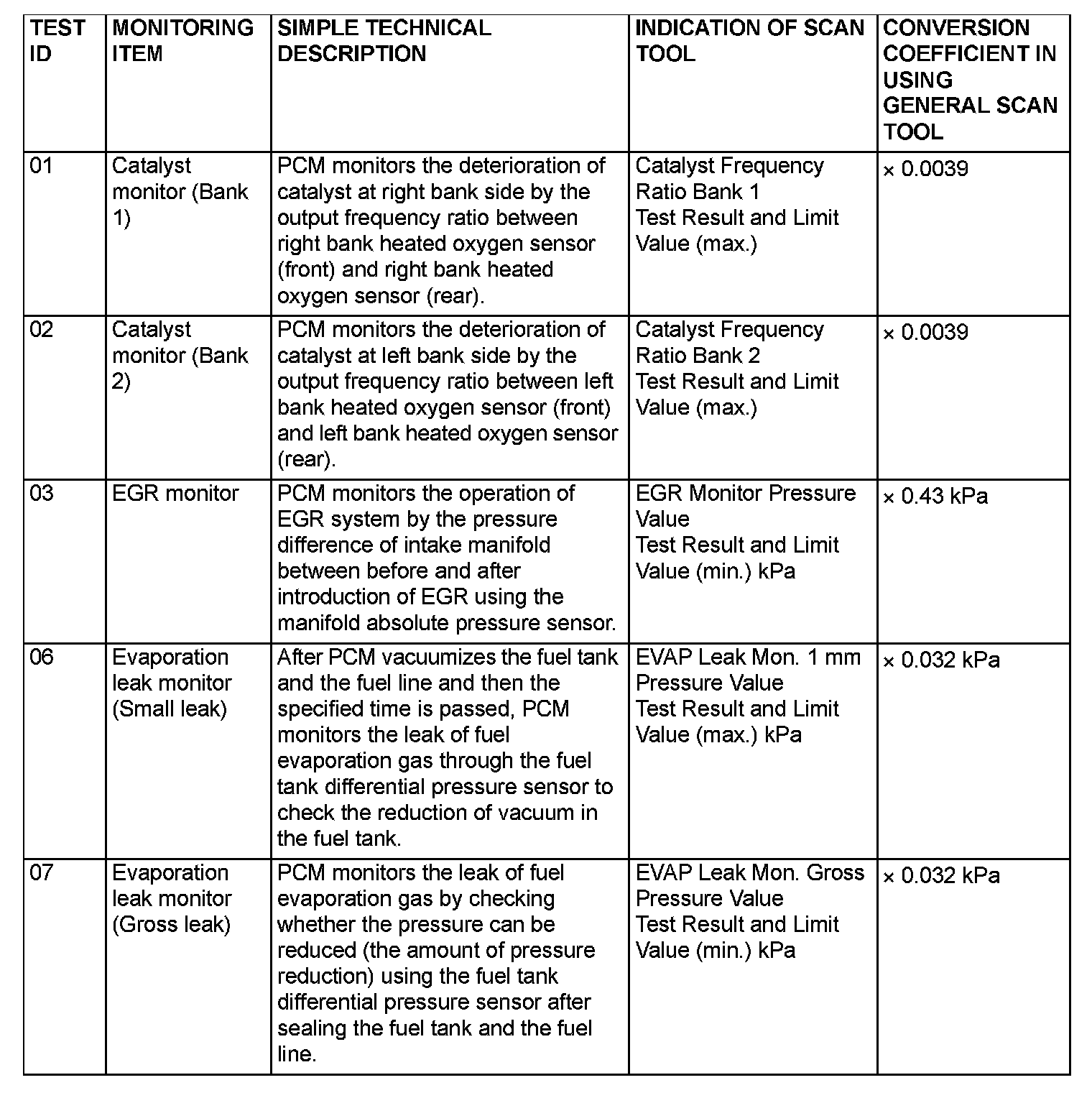

Mode 6 Reference Table Part 1:

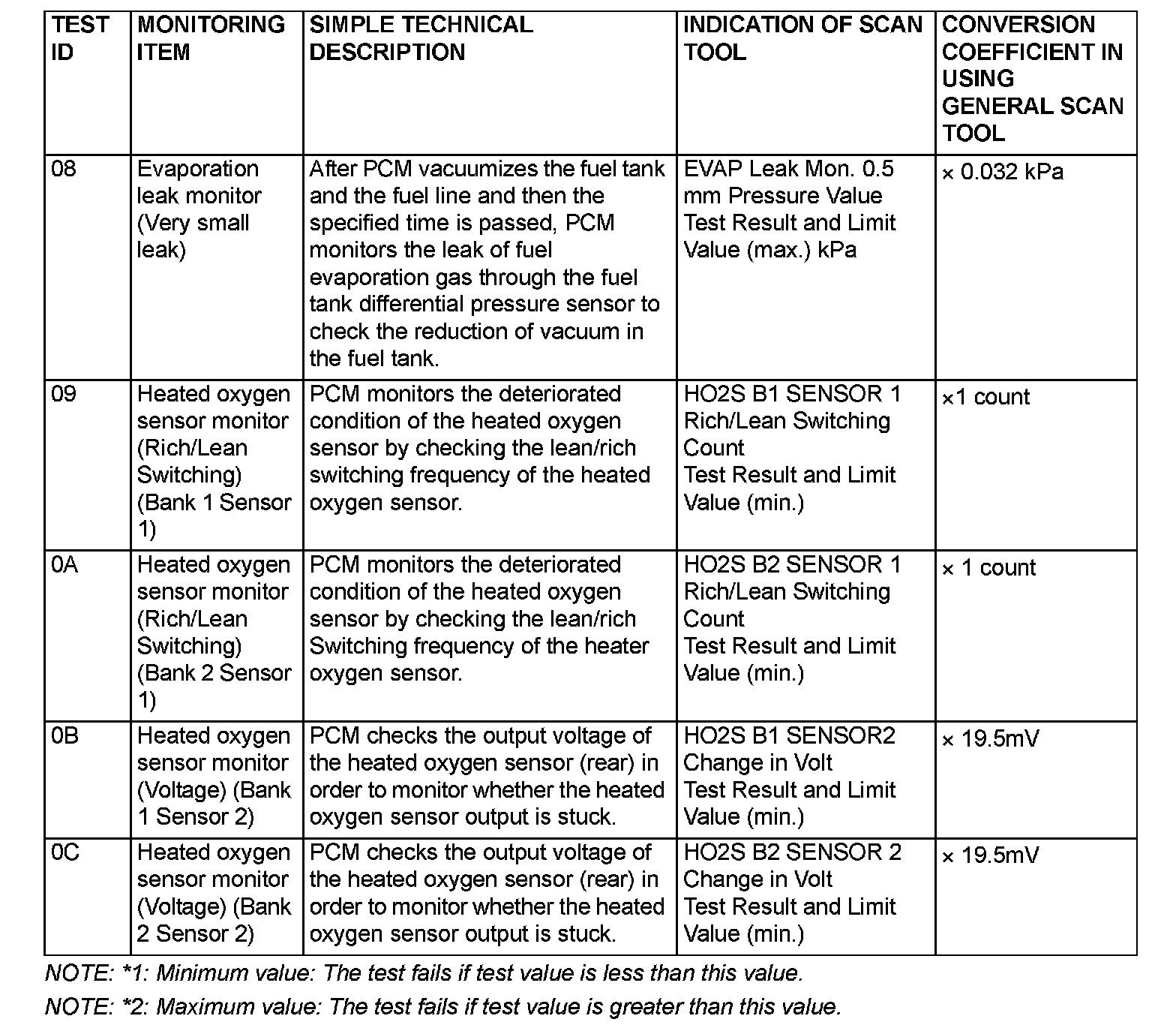

Mode 6 Reference Table Part 2:

The powertrain control module (PCM) monitors the condition of emission control system.

By selecting MODE 6 using scan tool, Test Result and Limit Value (minimum) *1 or (maximum) *2 about the main items of emission control system which PCM monitors can be confirmed. The value at the last monitoring is output by PCM as a test result.
