Removal and Installation

IGNITION SWITCH

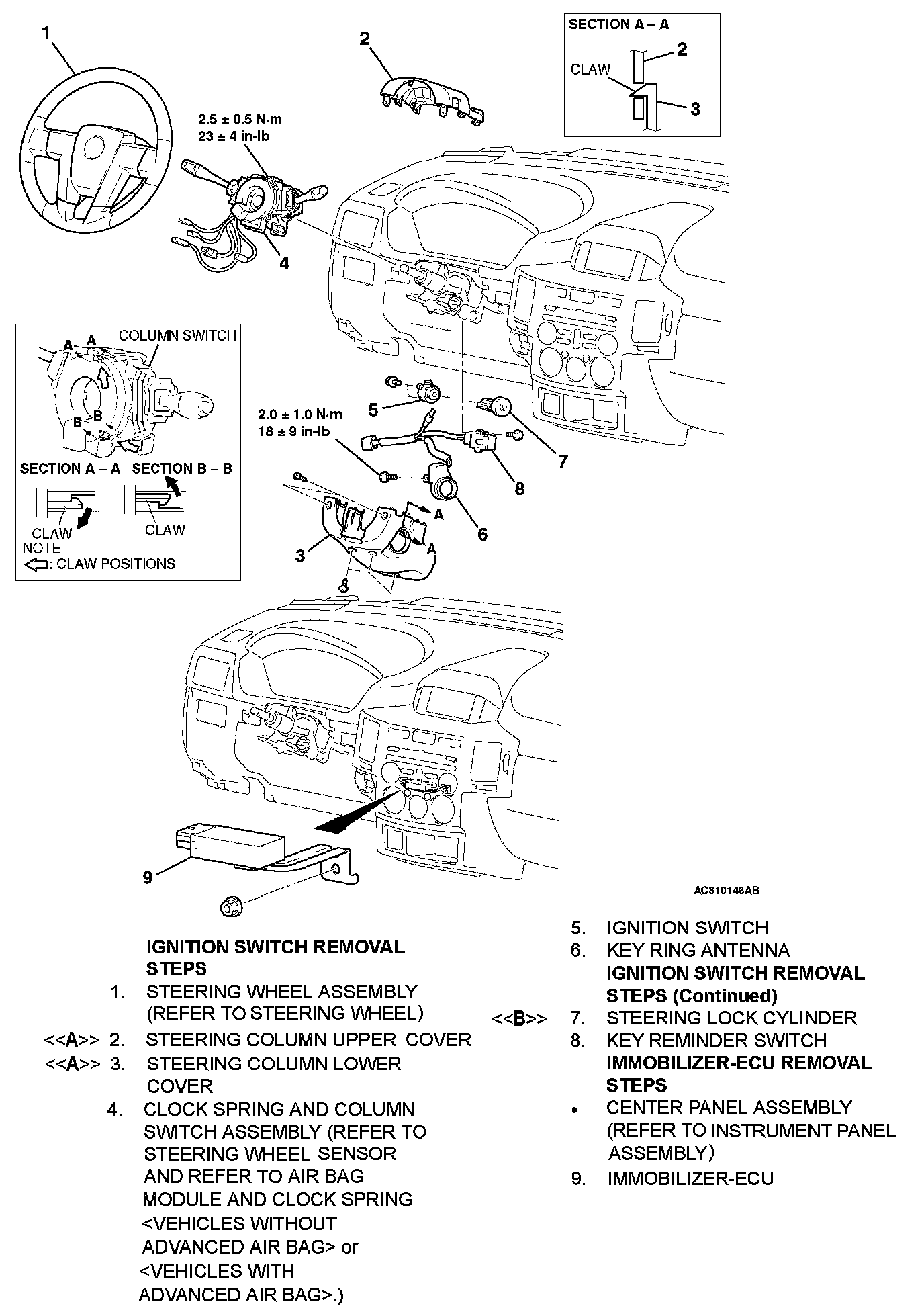

Removal Steps 1-9:

REMOVAL AND INSTALLATION

WARNING:
- Before removing the steering wheel, air bag module assembly and clock spring refer to Service Precautions and Air Bag Module and Clock Spring or - When removing and installing the steering wheel, do not let it bump against the air bag module.

REMOVAL SERVICE POINTS

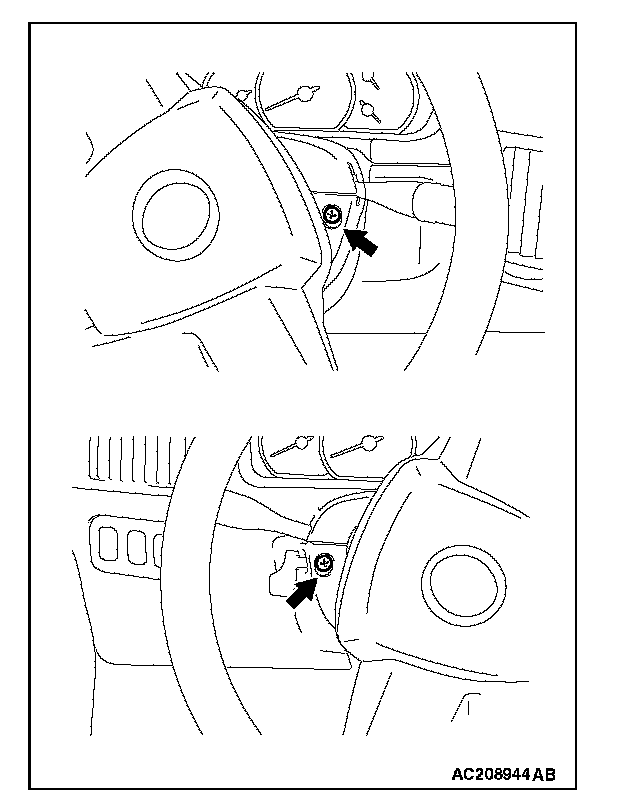

<> STEERING COLUMN UPPER COVER/STEERING COLUMN LOWER COVER REMOVAL

1. Rotate the steering wheel with a slightly from side-to-side to access and remove the mounting screws.

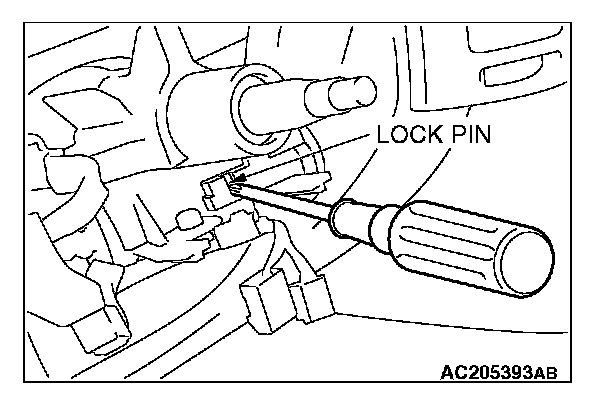

<> STEERING LOCK CYLINDER REMOVAL

1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.
2. Using a small Phillips head screwdriver, pull the steering lock cylinder toward you.
