Home >> Mitsubishi >> 2006 >> Lancer L4-2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Clutch Linkage >> Disassembly and Assembly

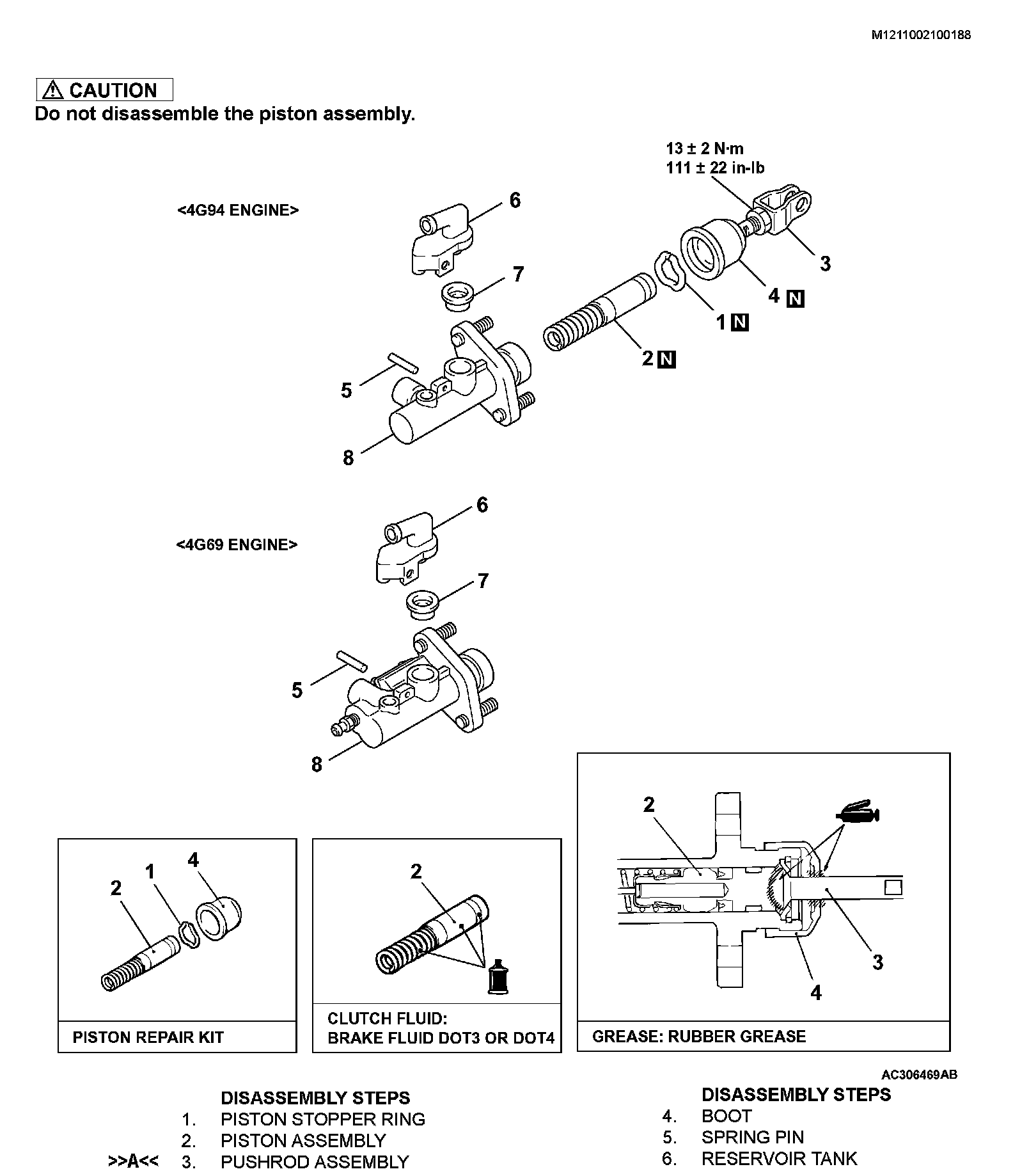

Disassembly and Assembly

Part 1:



Part 2:
