Fuse: Locations

Fuses

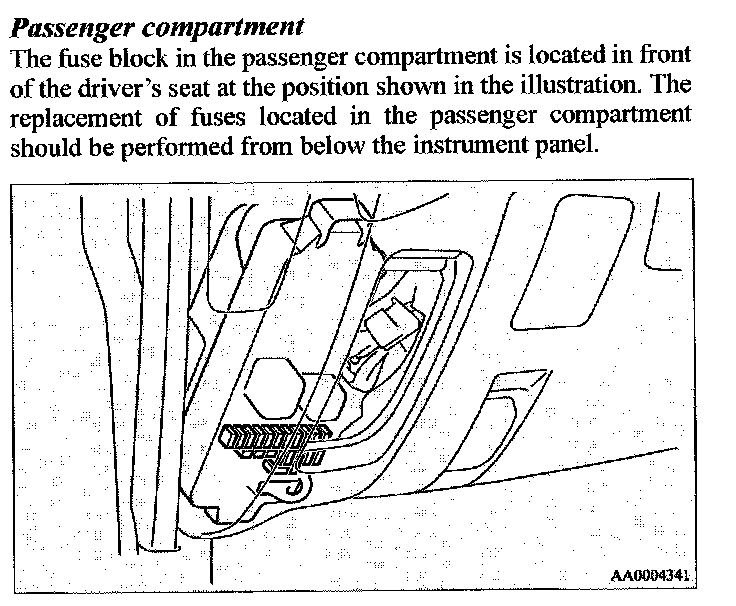

Fuse block location

To prevent damage to the electrical system from short-circuiting or overloading, each individual circuit is equipped with a fuse. The fuse blocks are located in the passenger compartment and in the engine compartment.

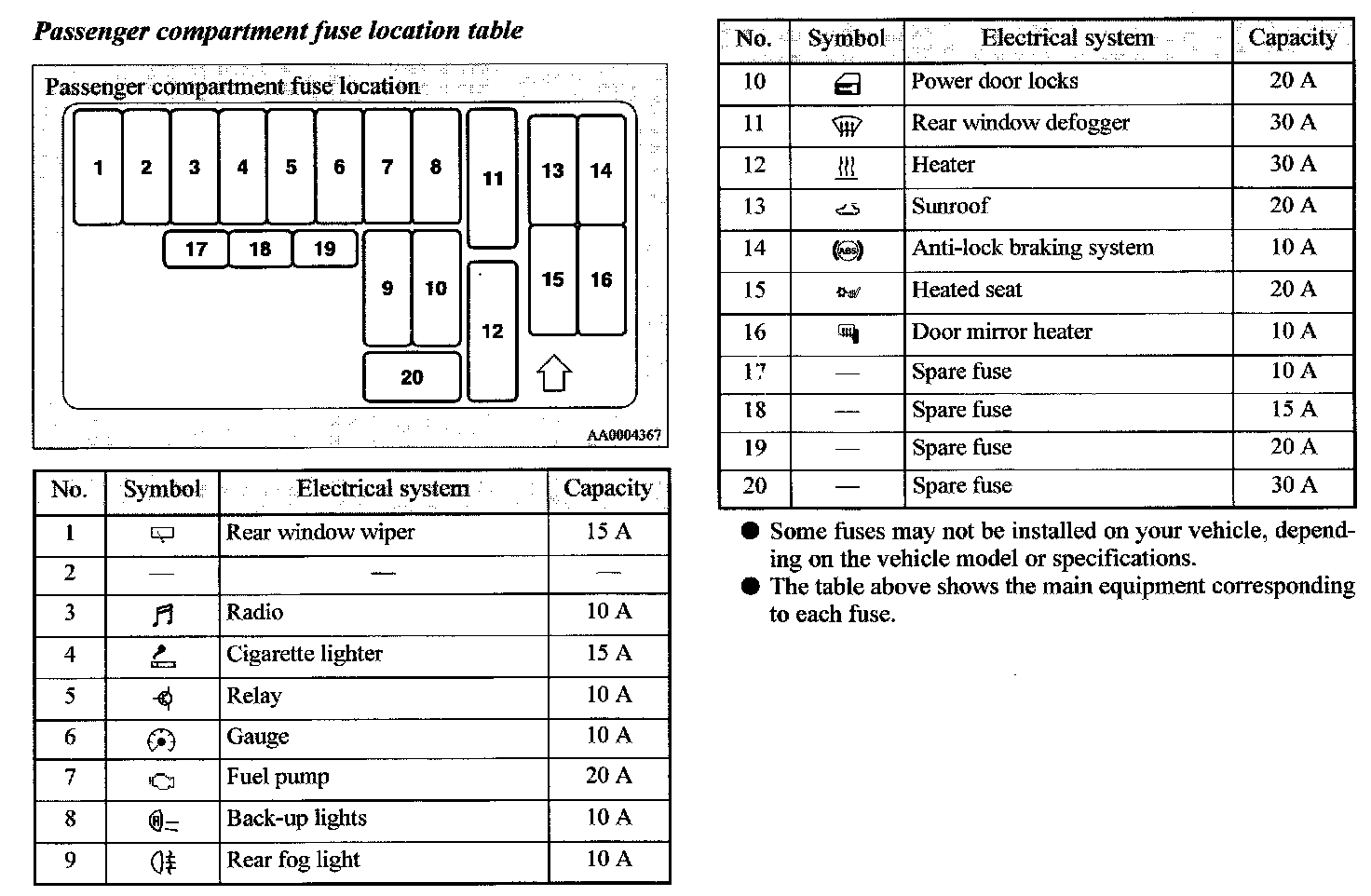

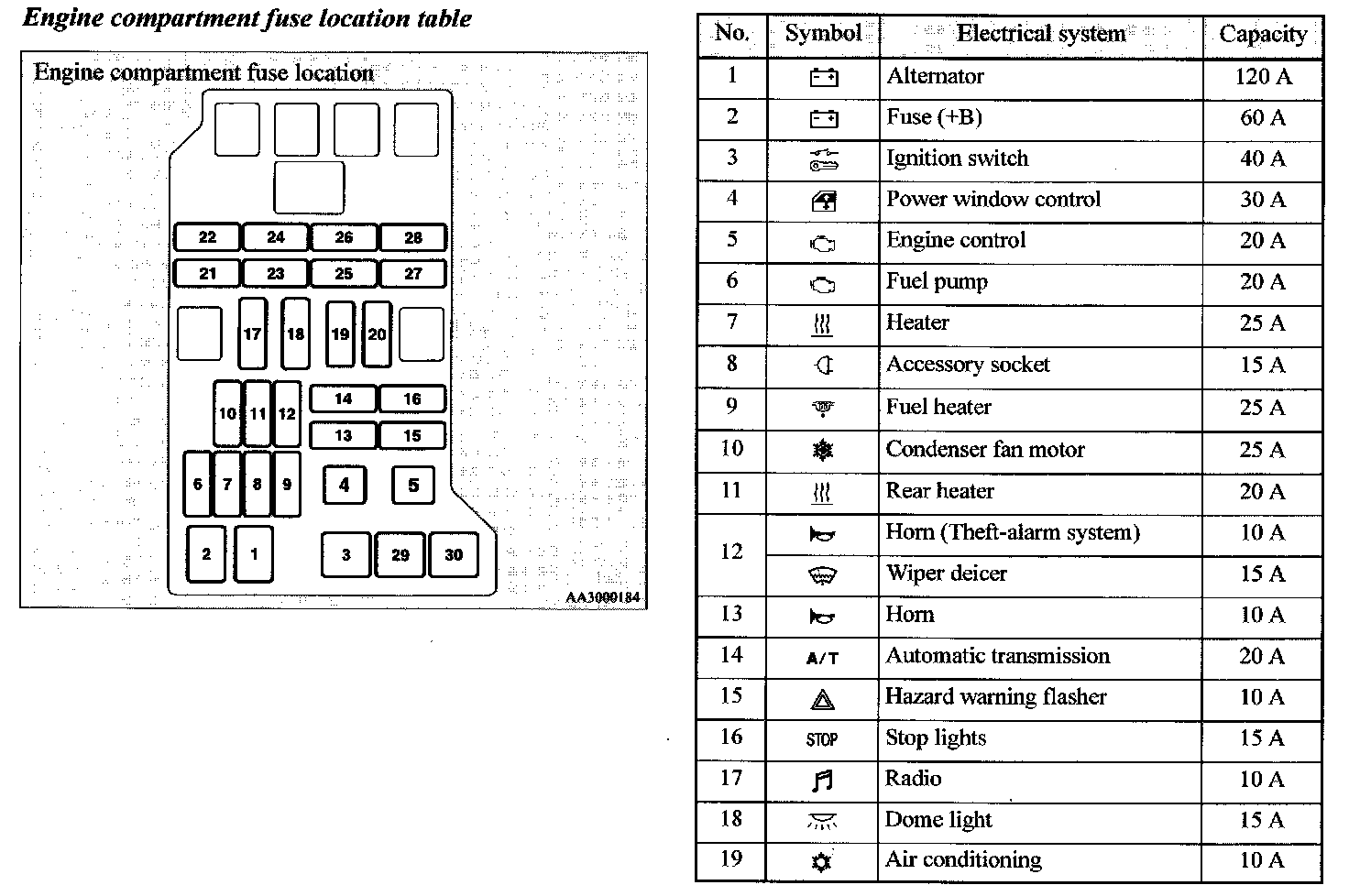

Fuse load capacities

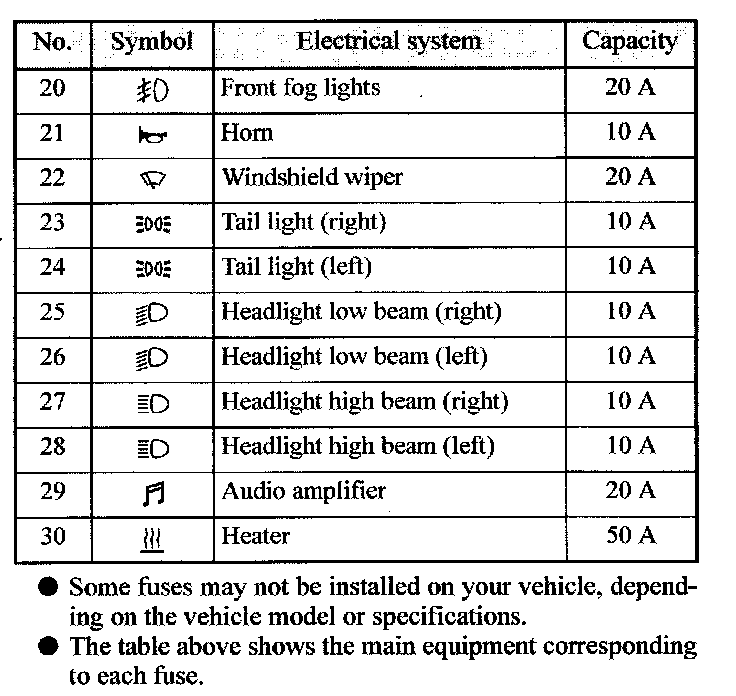

The fuse cover lists the names of the electrical systems and the fuse capacities.

Spare fuses are contained in the fuse cover. Always replace a blown fuse with one of the same capacity as the original.
