Input Signal Chart

Input Signal Chart - <SWS Monitor> (Part 1):

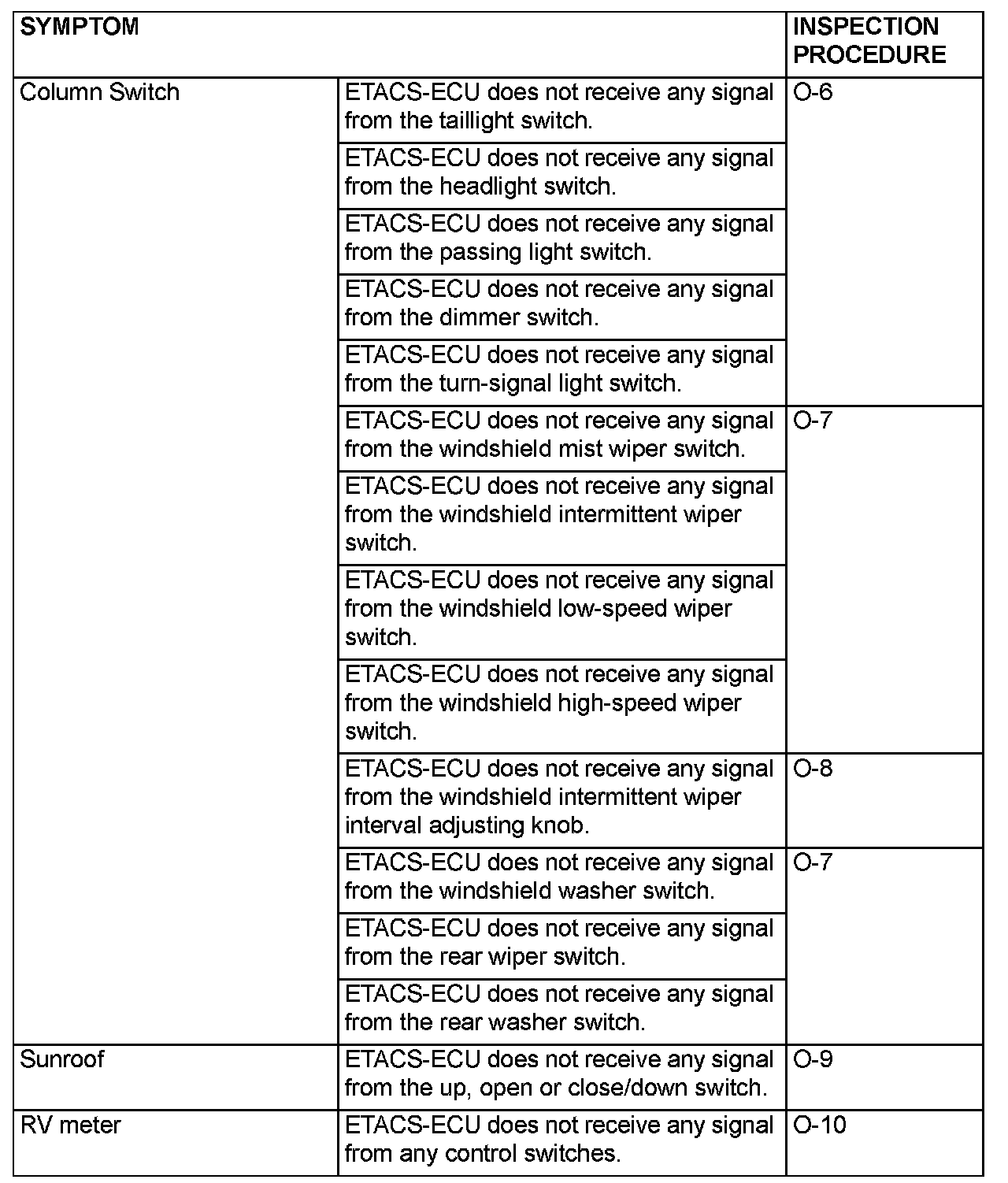

Input Signal Chart - <SWS Monitor> (Part 2):

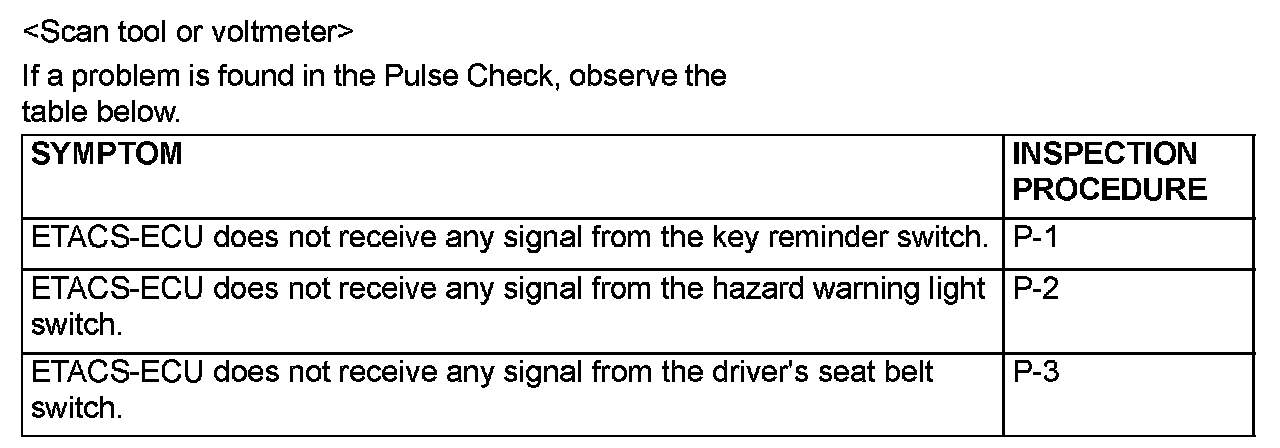

Input Signal Chart - <Scan Tool Or Voltmeter> (Part 1):

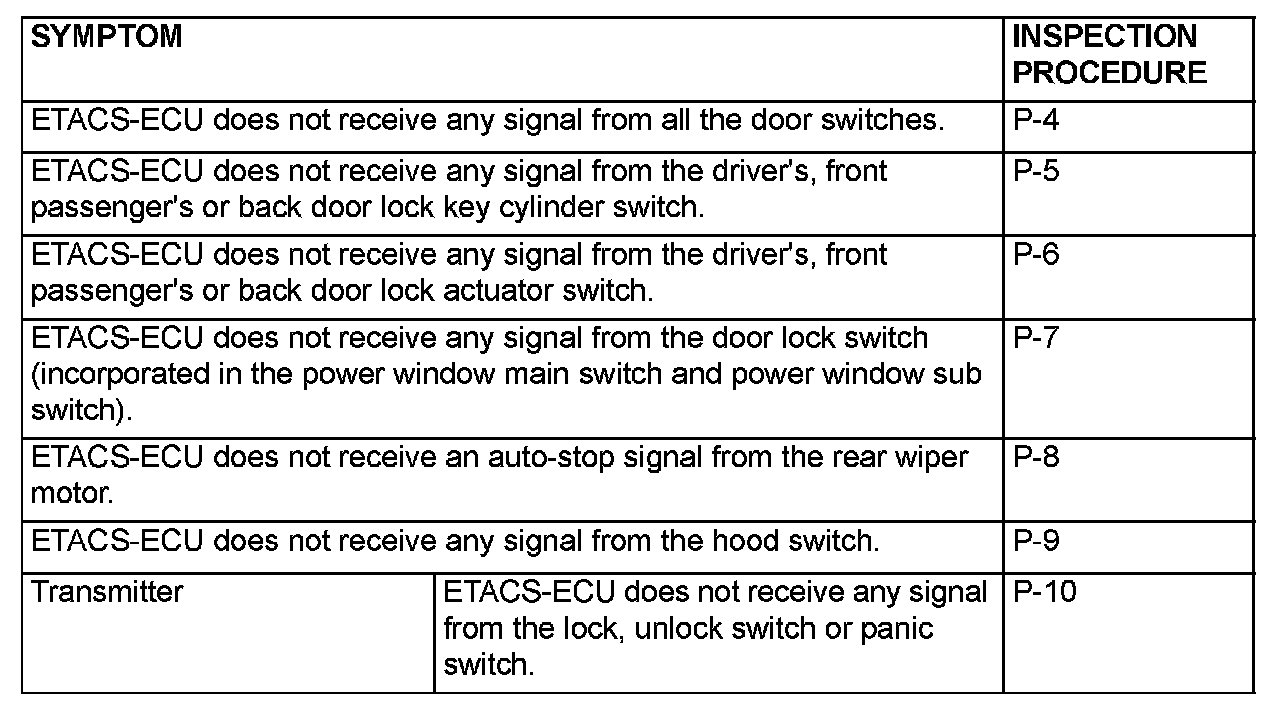

Input Signal Chart - <Scan Tool Or Voltmeter> (Part 2):
